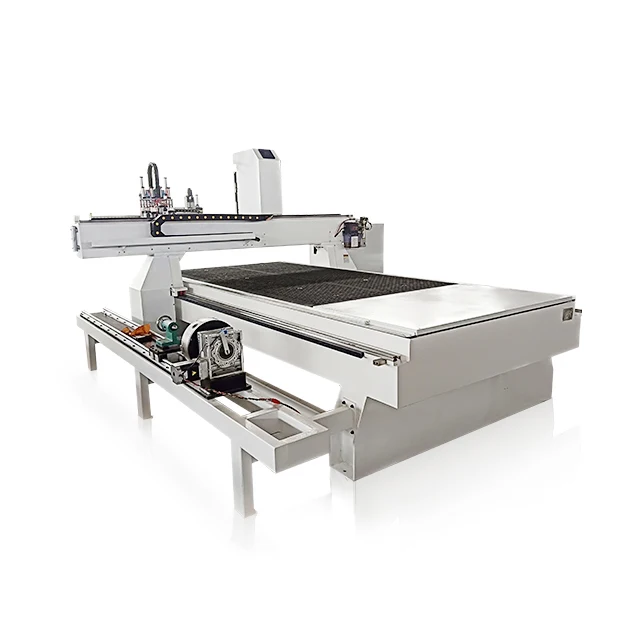

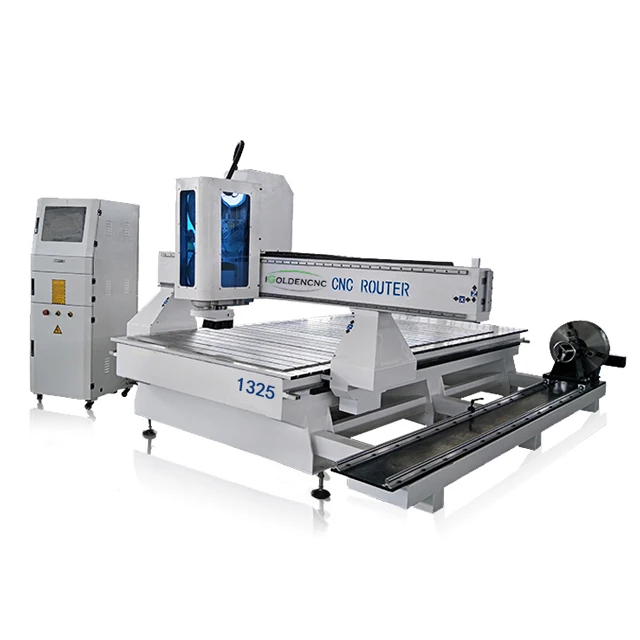

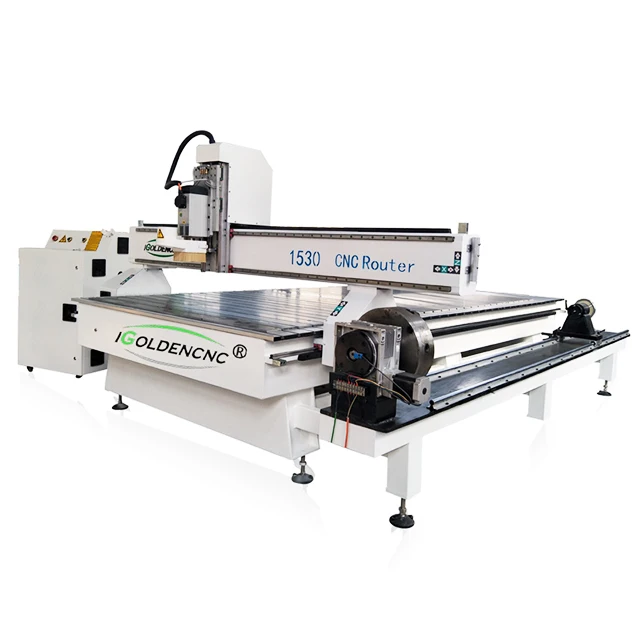

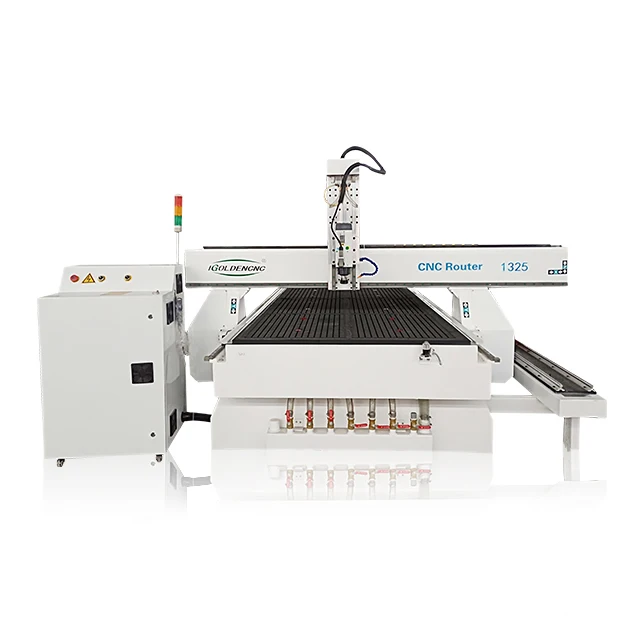

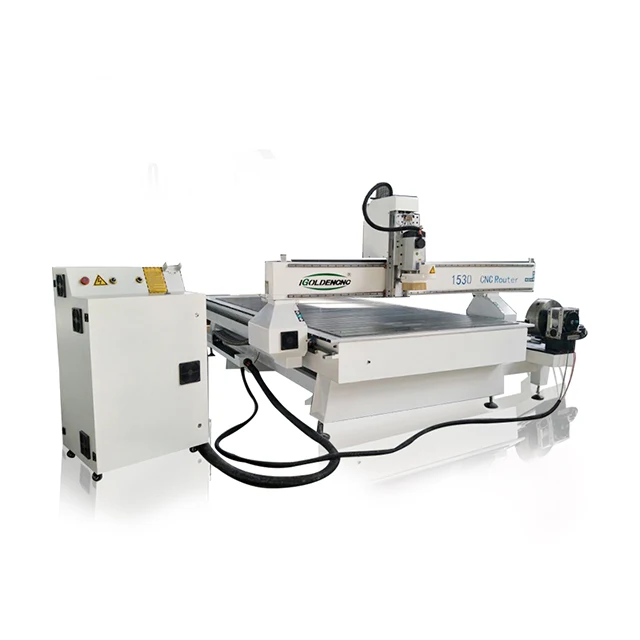

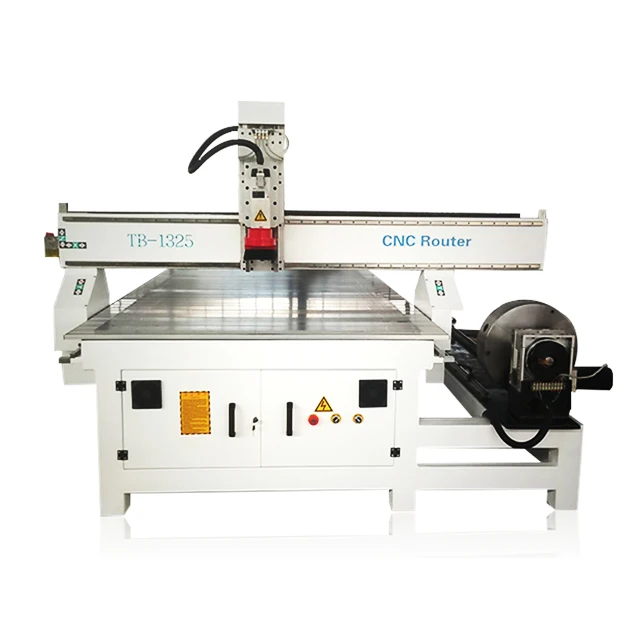

Fabricação de Máquina Router CNC com 4 Eixo para Usinagem em Madeira 4th Axis Diy CNC Router Machines Wood Cutting Woodworking Machinery

, Author

Promoção!

O preço original era: R$ 94.500,00.O preço atual é: R$ 83.311,00.

Up to 12 installments without cards through Mercado Pago. Learn more
Buy through Mercado Pago without cards and pay month by month
1
Add your product to the cart and, for the payment, select “Meses sin Tarjeta” or “Cuotas sin Tarjeta”.
2
Log in to Mercado Pago.
3
Choose the amount of installments that best suit you and you’re all set!

Credit subject to approval.

Any Questions? Check our Help.

REF: 1005006216578955 Categoria:

Descrição

  • Model Number: 3d cnc wood carving machine
  • Condition: New
  • CNC or Not: CNC
  • Brand Name: IGOLDENCNC
  • Origin: Mainland China
  • Machine name: Wood cutter machine
  • Table: Vacuum table with t slot
  • Structure: Seamless steel welded
  • XYZ transmission: XY axis is helical rack and gear
  • Inverter: Well known china Fuling 7.5kw
  • Spindle: 6kw italy HSD air cooling spindle
  • Motor: Servo motor(yaskawa 850w)
  • Controller system: DSP A18 control system
  • Driver: Servo driver(yaskawa 850w)
  • XYZ guide rail: Famous Taiwan Hiwin Line 20mm Square guide way

China Manufacturers Mini 5 Axis Diy CNC Router Machines Wood Cutting Woodworking Machinery

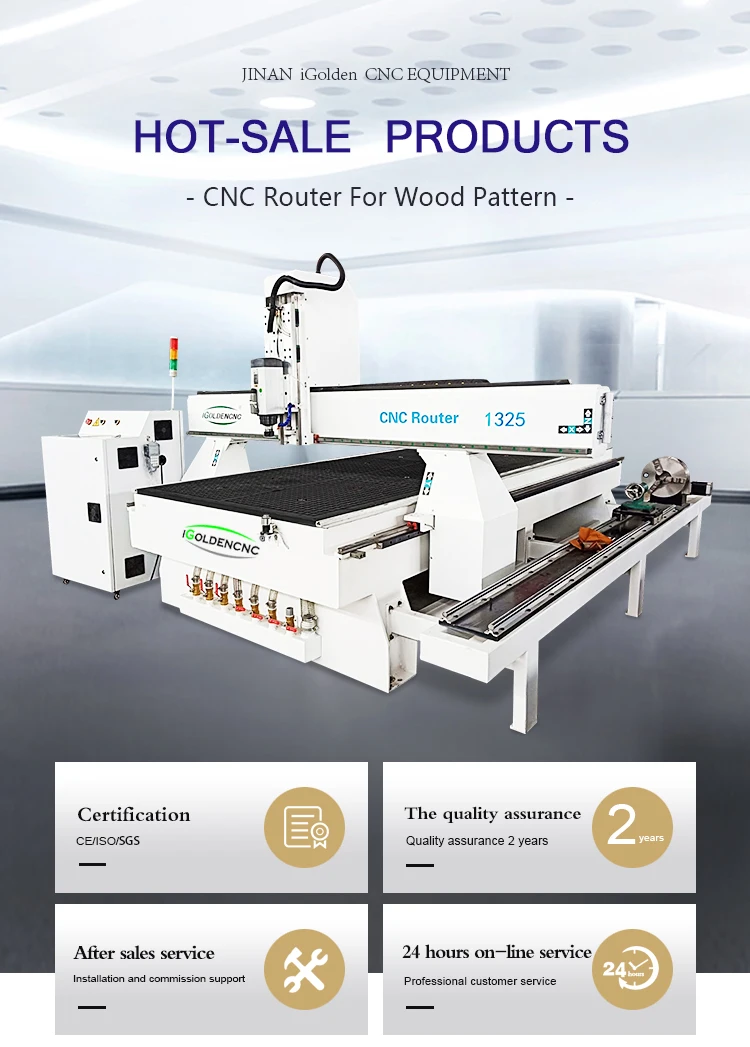

--1325--_01

Feature:

1. It is mainly used for engraving the wood plate and round shape.

2. High-speed machining: the curve and straight speed is the same, the idle speed can reach 30m/min, the cutting speed can reach 10m/min.

3. The weight loading and redundancy are high, the working life is long: three axes adopt the imported line square guide rail with the high precision, Axis Y adopts the double engine driving, the rigidity of machine is strong, the potency dimension is powerful, the turn is balanced.

4. Compatiility of software: it may be compatible with all kinds of software, such as JINGDIAO, Type3, Artcam, Castmate, CAD and CAM desigh software etc.

5. The convenience of control: it cn choose the advanced DSP control system of USB connection, the machine is completely offline working, not occupying any computer resources, and it can achieve the DSP on-off antomatism, achieve high-speed machining, the curve and straight line reach synchronization, the curve is more perfect.



Specifications

Model

IGD1325

Working Area

1300*2500*200mm

Table Size

3200*2100*1700mm

Spindle Power Motor

4.5KW

Spindle Speed

0~24000rpm/min

Table Structure

T-slot Table / Vacuum table

XYZ Structure

XY-Rack Pinion, Z-Ball Screw

Max Travelling Speed

50000mm/min

Max Working Speed

20000mm/min

Driving System

Stepper/Servo

Command

G Code

Working Voltage

AC220V/380V—50HZ

Operating System

NC Studio Control System/DSP / Mach 3  / NK105

Net Weight

1500KG

Gross Weight

1800KG

1. wood door and furniture decoration industry

solid wood compound door, cabinet door, large area plate plane carving, solid wood carving, board furniture carving, antique mahogany furniture carving, solid wood art fresco carving and other industries.

2. wooden handicraft processing

clock frame, process photo frame, calligraphy card, electrical counter Surface, sports equipment, thin aluminum plate carving.

--1325--_08

-_03

Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. All of our machines have passed with the following certificate.

-_04

--1325--_20
