- Hign-concerned Chemical: None
- Type: Other
- Brand Name: LanYuXuan
- Origin: Mainland China
- spindle taper: BT40
- no. of spindles: Single
- type: VERTICAL
- weight (t): 7
- table size (mm): 1200x600
- cnc control system: GSK
- table travel (x) (mm): 1000
- table travel (y) (mm): 600
- table travel (z) (mm): 600
- positioning accuracy (mm): 0.0075
- repeatability (x/y/z) (mm): 0.005
- range of spindle speed(r.p.m): 1 - 8000 r.p.m
- max. table load(kg): 1000 kg
- min. time of tool change(s): 2
- tool magazine capacity: 16, None, 24, 32
- key selling points: Sustainable
- warranty: 18 months
- place of origin: Shandong, China
- brand name: Luzhong Machine Tool
- voltage: 380V
- machinery test report: Provided
- video outgoing-inspection: Provided
- machining capacity: Heavy Duty
- rapid feed speed(mm/min): 0 - 6000 mm/min

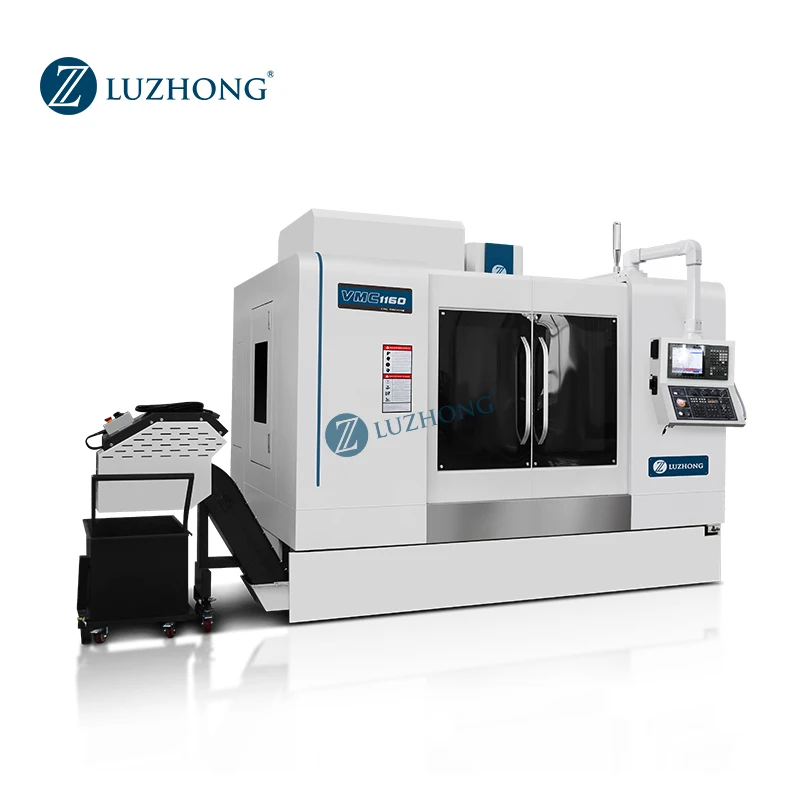

- Product name: CNC Vertical CNC Milling Machine 3 Axis
- Machine Type: Vertical Machine Centers
- Max Spindle speed: 8000
- Spindle taper: BT40
- Xaxis travel: 1000mm
- Yaxis travel: 600mm
- Zaxis travel: 600mm
- After Warranty Service: Video technical support
- Application: Metal Working Mould Processing
- Local Service Location: India
- Condition: New
- Marketing Type: New Product 2024
- Warranty of core components: 18 months
Welcome to my shop, The product price is affected by the place of receipt is not the final price, if you are interested, Welcome to contact me at any time!(WhatsApp:86+18173191685) Have a good day! Tel: +86 18173191685 Email: 2372413784@qq.com Wechat: Hbuxi-Oct21 Note:Some products in the store are customized products. Please confirm the quotation and shipping cost with us before purchasing to avoid being unable to ship due to price errors.
Products Description
The main performance characteristics锛�
1. High quality resin sand
2.Taiwan spindle
3.Taiwan ball screw and locking nut
4.Taiwan pressure cylinder
5.Automatic lubrication system
6.Chip conveyor at optional
2.Taiwan spindle
3.Taiwan ball screw and locking nut
4.Taiwan pressure cylinder
5.Automatic lubrication system
6.Chip conveyor at optional
|
Specifications
|
Unit
|
VMC1060
|
|
Table size
|
mm
|
1200X600
|
|
Table Maximum load
|
kg
|
600
|
|
X/Y/Z axis travel
|
mm
|
1000X600X600
|
|
Distance between spindle center and column surface
|
mm
|
667
|
|
Distance between spindle end face and worktable surface
|
mm
|
100-700
|
|
X/Y/Z max. feed speed
|
mm/min
|
10000
|
|
X/Y/Z max. rapid traverse
|
m/min
|
24/24/20
|
|
Max. spindle speed
|
r/min
|
8000
|
|
Spinder taper
|
|
BT40
|
|
Spindle motor
|
kw
|
11/15
|
|
X/Y/Z axis servo motor
|
kw
|
2.5/2.5/2.5
|
|
X/Y/Z motor connection
|
|
direct
|
|
X/Y/Z guid rail form
|
|
3 axis linear guide
|
|
T slot (number-width-pitch)
|
|
5-18-100
|
|
Repeat Positioning Accuracy
|
mm
|
±0.003
|
|
Tools type
|
|
Armless: 16/arm:24
|
|
Max. Tool weight
|
kg
|
8
|
|
Max tool length
|
mm
|
250/350
|
|
Eletric Capacity
|
KVA
|
16
|
|
Machine Dimension
|
mm
|
3340x2800x2700
|
|
Machine weight
|
kg
|
7000
|
VMC Machine Standard Details
MACHINE CONSTRUCT
High strength high quality
HT300 cast iron,

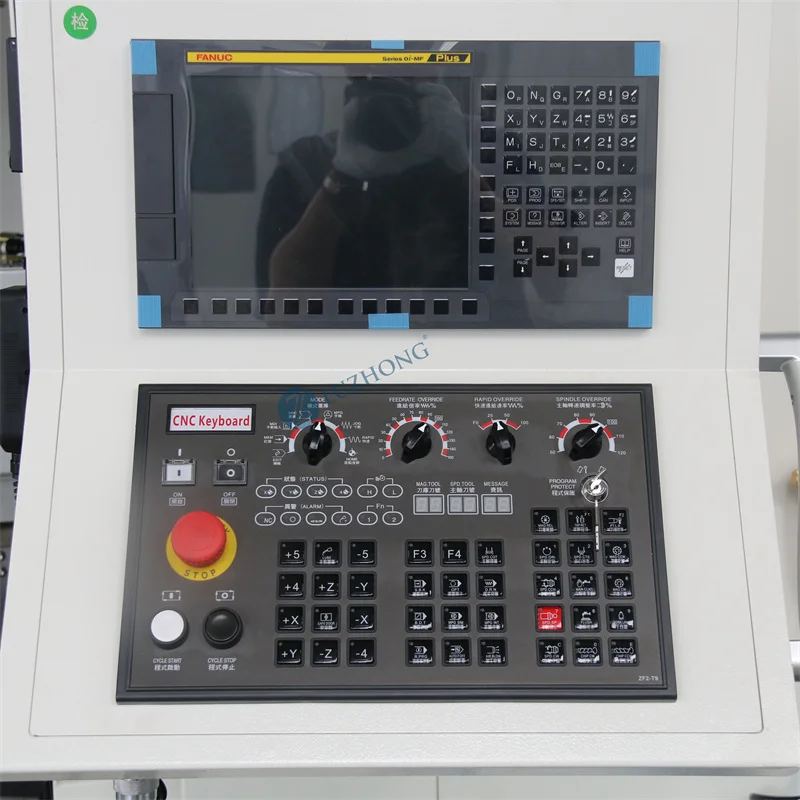

CONTROL SYSTEM
Standard: GSK25I / KND1000 control
.
TAIWAN PRECISION SPINDLE
1. Taiwan spindle BT40 8000rpm with ring cooling function 2. Passed dynamic balance ISO rating test

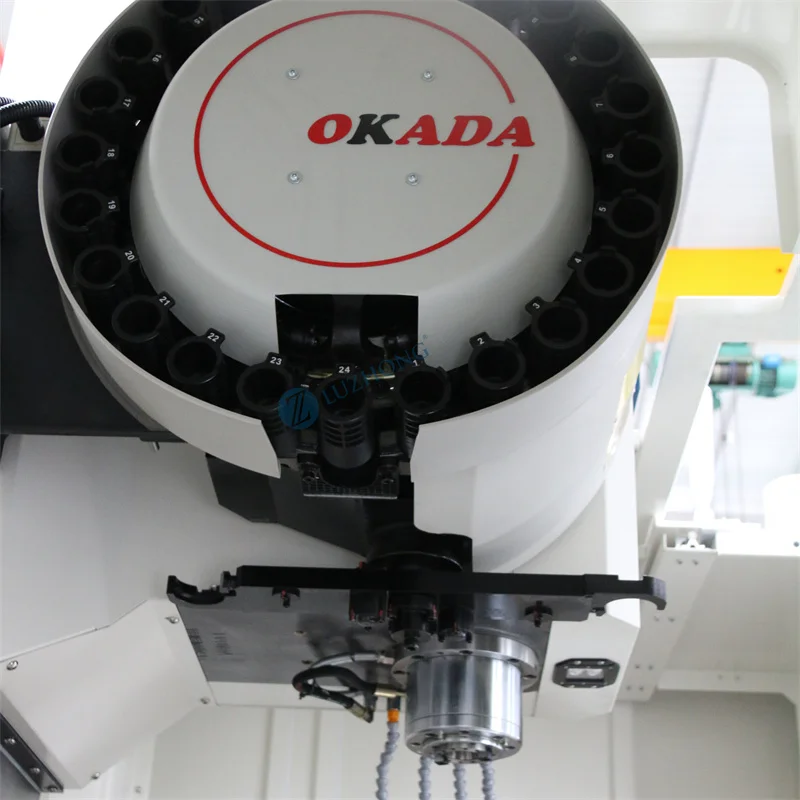

TAIWAN TOOL MAGAZINE
1.Taiwan OKADA arm 24 tool magazine . 2. tool change time only 2-3 seconds.

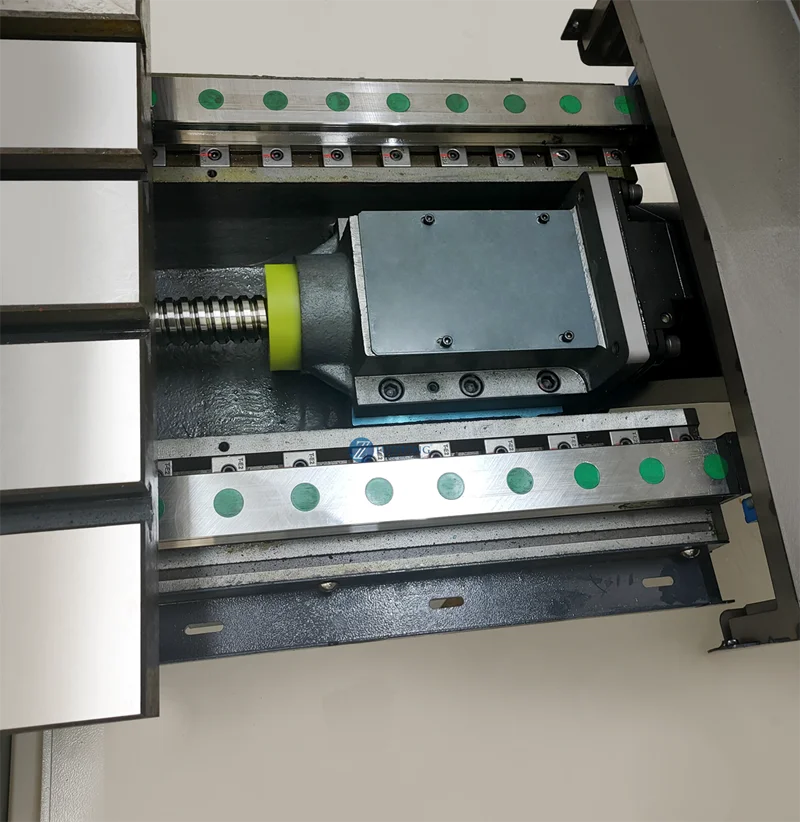

SCREW AND COUPLING
1 TAIWAN famous brand lead screw, 2. lead screw bearing using SKF or NACHI bearing, 3. coupling YC directly connected
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class 2. Brand: HIWIN or PMI
TOOL UNCLAMP CYLINDER
Taiwan spindle Tool unclamp cylinder
AIR STORAGE TANK
Air storage tank to ensure the stability of spindle tool change
STRONG CHIP PUNCHINIG
Standard with strong chip punching function .
AIR GUN AND WATER GUN
High-pressure air guns and high-pressure water guns
PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components.
SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. Quick plug as standard
AIR CONDITIONER
Standard with Industrial electrical cabinet air conditioner. Cooling the electric box better .
LUBRICATION SYSTEM
with HERG Automatic centralized lubrication device
LUBRICATION SYSTEM
Passed Renishaw laser interferometer testing
TESTING
Passed
Renishaw
ballbar testing
MILLING CHUCK
1. Standard with BT40 Milling chuck
LOCK KNIFE BLOCK
Standard with lock knife block .
Optional Configurations
Recommend Products
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
Company Profile
Shandong Luzhong Machine Tool has :
鈼� More than 80,000m² of the factory with more than 200 workers.
鈼� Strictly QC control with more than 24 steps testing processes
鈼� 30+ years CNC machine manufacture experience factory
鈼� 24 hours online service at any time
鈼� Trade with customers in more than 150 countries around the word .
鈼� Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
鈼� Strictly QC control with more than 24 steps testing processes
鈼� 30+ years CNC machine manufacture experience factory
鈼� 24 hours online service at any time
鈼� Trade with customers in more than 150 countries around the word .
鈼� Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
鈼� Support ODM OEM.
鈼� Warranty time is 18 months銆�
鈼� Warranty time is 18 months銆�
Shandong Luzhong Machine Tool co.,Ltd. Has got many international certifications such as lSO, WIPO, CE, BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and South east Asia, And we provide long-term overseas technical guidance and after-sales service for these countries .
.
Adhering to the "Best Machine by LUZHONG" purposes, We provides better quality machines more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
