Descrição
- Origin: Mainland China
- Warranty: 3months-1year
- Place of Origin: China
- Model Number: JK42H2A5007K4-22
- Phase: 2
- Type: Hybrid
- Current / Phase: 0.7A

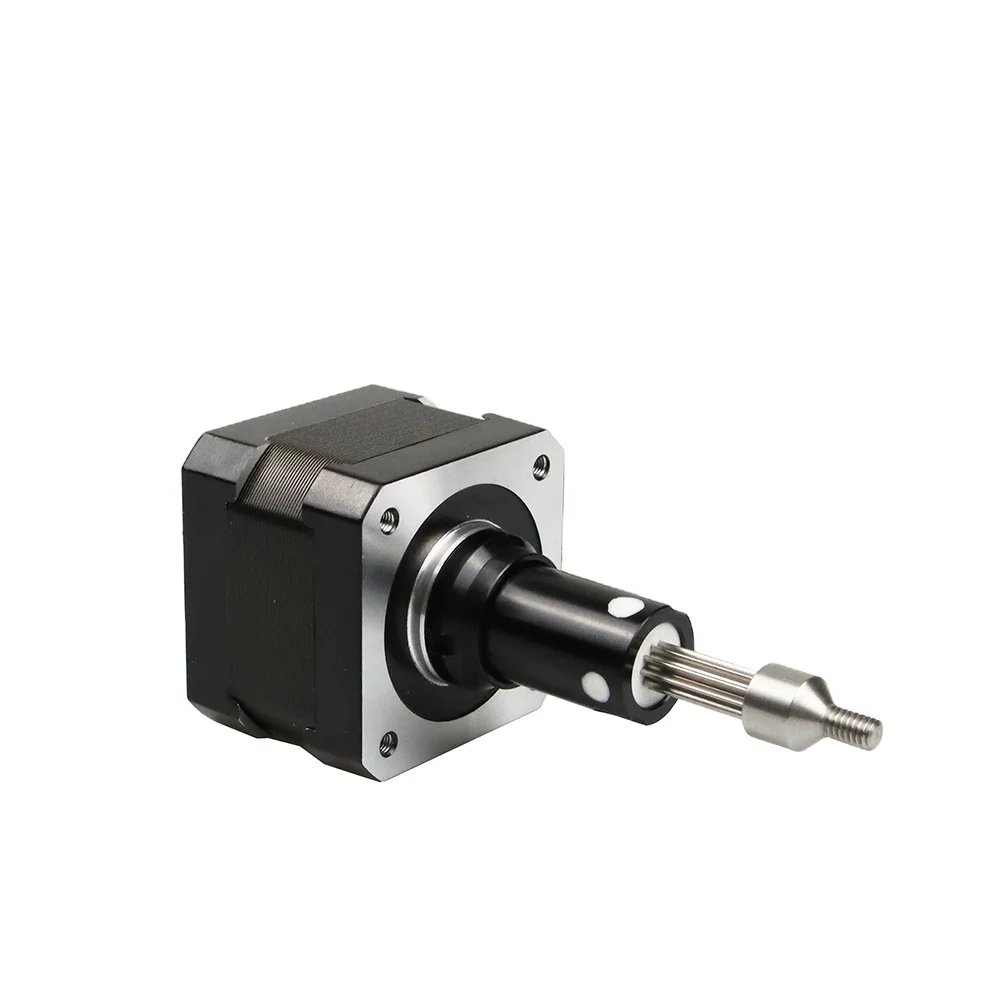

- Product Type: Nema 17 Captive Linear Actuators
- Model Name: JK42H2A5007K4-22
- Phase No: 2 Phase
- Rated Voltage: 5.0V
- Step Angle: 1.8Degree
- Lead Screw Diameter: 6.35mm
- Lead Screw Lead: 1.5875mm
- Linear Travel Per Step: 0.0079mm/step
- Resistance: 7.2Ω
- Minimal Thurst /300pps: 10KG
Product Description
|
item
|
value
|
|
Warranty
|
3months-1year
|
|
Place of Origin
|
China
|
|
Brand Name
|
Jkongmotor
|
|
Model Number
|
JK42H2A5007K4-22
|
|
Phase
|
2
|
|
Type
|
Hybrid
|
|
Current / Phase
|
0.7A
|
|
Product Type
|
Nema 17 Captive Linear Actuators
|
|
Model Name
|
JK42H2A5007K4-22
|
|
Phase No
|
2 Phase
|
|
Rated Voltage
|
5.0V
|
|
Step Angle
|
1.8Degree
|
|
Lead Screw Diameter
|
Φ6.35mm
|
|
Lead Screw Lead
|
1.5875mm
|
|
Linear Travel Per Step
|
0.0079mm/step
|
|
Resistance
|
7.2Ω
|
|
Minimal Thurst /300pps
|
10KG
|

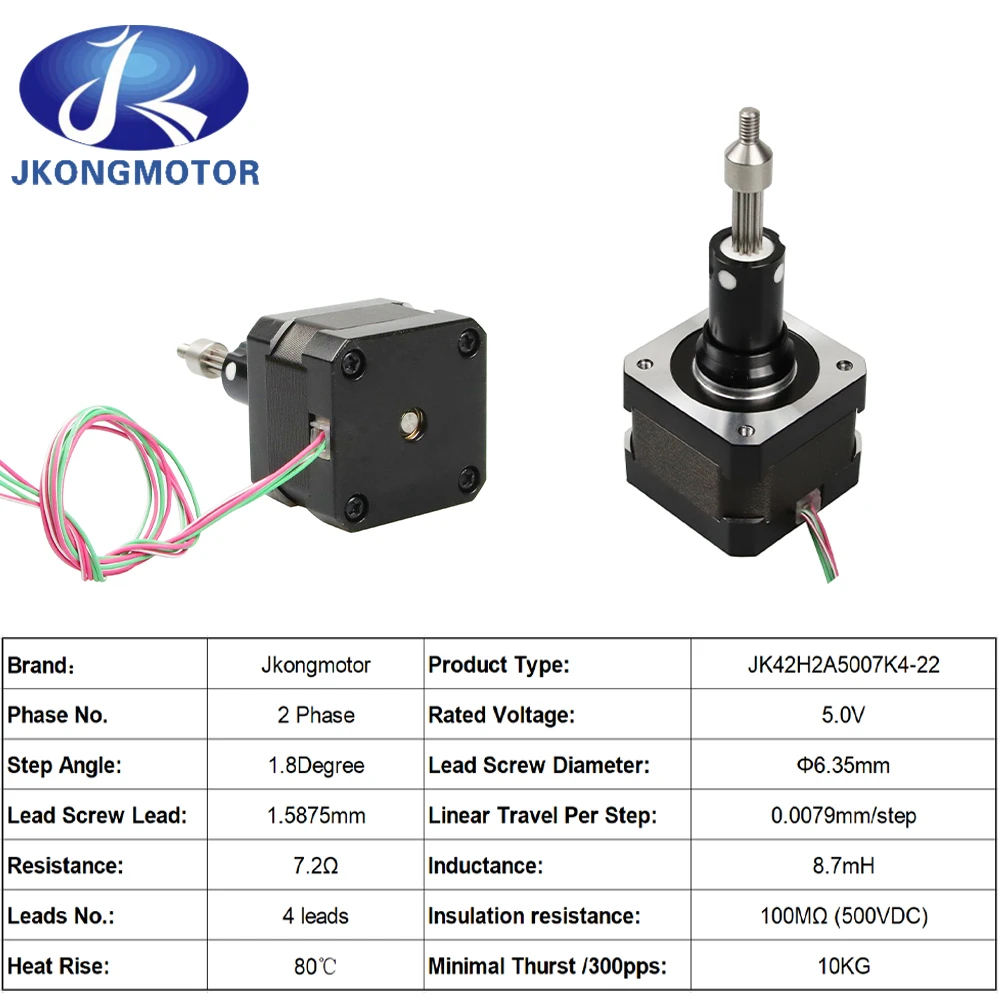

Product Parameters:
Brand:Jkongmotor
Product Type: Nema 17 Captive Linear Actuators
Model Name: JK42H2A5007K4-22
Phase No.: 2 Phase
Step Angle: 1.8Degree
Rated Voltage: 5.0V
Current: 0.7A
Resistance: 7.2Ω
Inductance: 8.7mH
Lead Screw Diameter: Φ6.35mm
Lead Screw Lead: 1.5875mm
Linear Travel Per Step: 0.0079mm/step

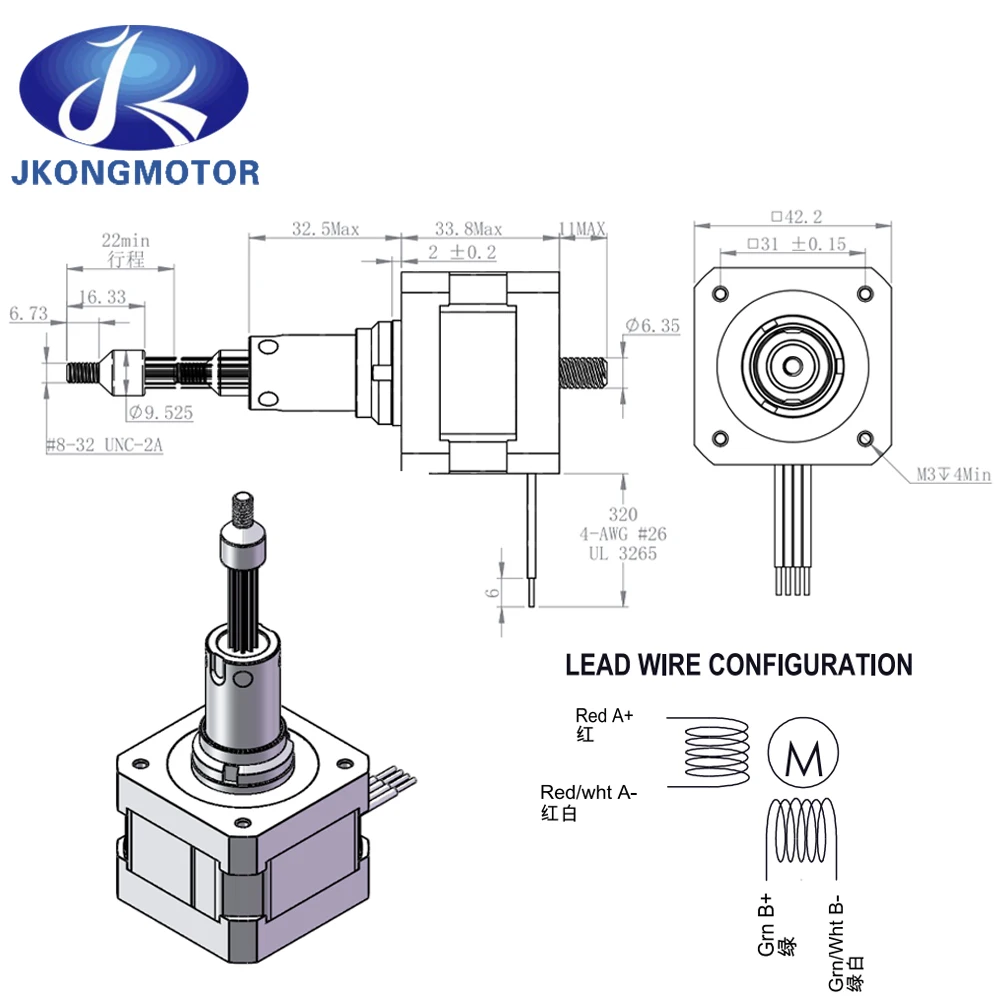

Leads No.: 4 leads
Insulation resistance: 100MΩ (500VDC)
Heat Rise: 80℃
Minimal Thurst /300pps: 10KG
Noted: This motor can replace Haydon motors
Product Type: Nema 17 Captive Linear Actuators
Model Name: JK42H2A5007K4-22
Phase No.: 2 Phase
Step Angle: 1.8Degree
Rated Voltage: 5.0V
Current: 0.7A
Resistance: 7.2Ω
Inductance: 8.7mH
Lead Screw Diameter: Φ6.35mm
Lead Screw Lead: 1.5875mm
Linear Travel Per Step: 0.0079mm/step
Leads No.: 4 leads
Insulation resistance: 100MΩ (500VDC)
Heat Rise: 80℃
Minimal Thurst /300pps: 10KG
Noted: This motor can replace Haydon motors
Product Features:
1. It has a threaded drive screwheld mostly inside the motor body which connected to a spline.
2. It has a built in anti-rotation though the use of a spline shaft that allows it to extend and retact as a unit with no requirements for additional anti-rotation.
3. The captive actuator is designed for shorter strokes up to about three inches, the basic design is least tolerant of system misalignment and is the most protective actuator style, beacuse it is self contained. The captive has the longest basic body style.
