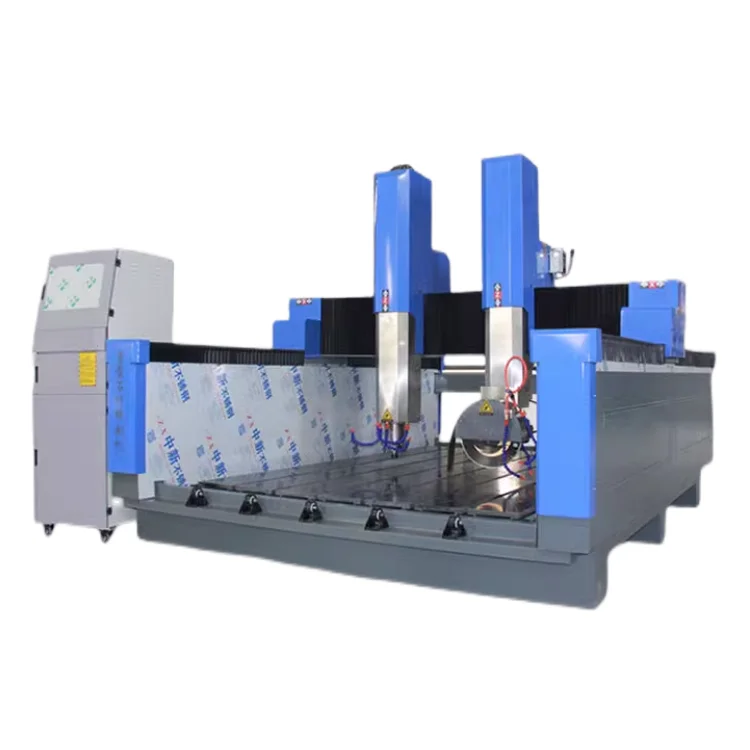

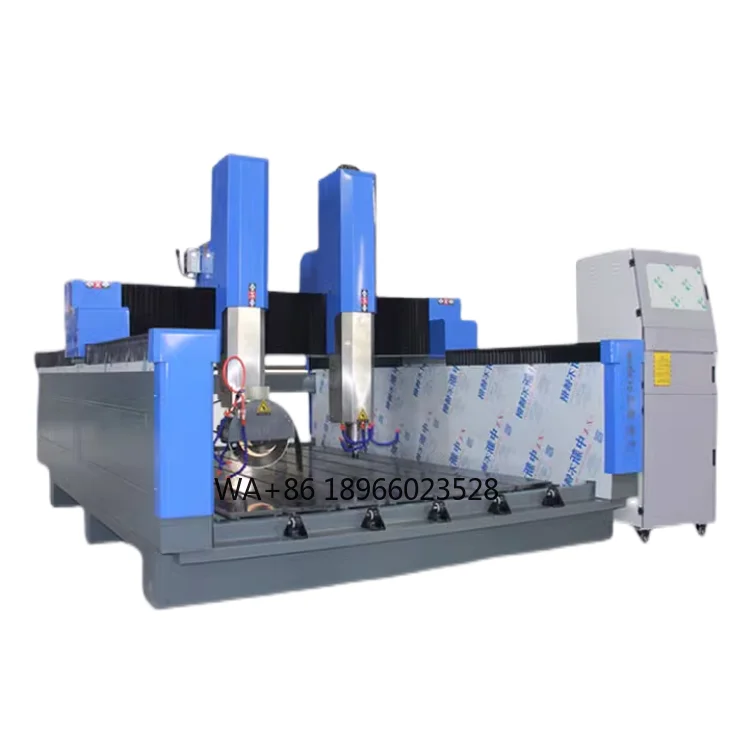

Double heads stone cnc router bridge saw blade engraving cutting machinefor quartz granite marble
1 It is designed for all kinds of stone, and it can be used for carving marble, granite and other stones.
2 The table has a sinking design, which can make the stone CNC machine run more smoothly.
3 The Z-axis motor has a brake function, which can prevent the machine head from falling and hitting the table.
4 The dustproof design prevents debris from entering the guide rail, effectively prolonging the service life.
| Items |
US-1525 |
|
| Working area(mm) |
X |
1500 |
| Y |
2500 |
|
| Z |
400 |
|
| Transmission system |
X |
Taiwan HIWIN square guide rail ,TBI ball screw driving |
| Y |
Taiwan HIWIN square guide rail ,TBI ball screw driving |
|
| Z |
Taiwan HIWIN square guide rail ,TBI ball screw driving |
|
| Spindle |
Power |
Powerful 5.5 kw water-cooling spindle |
| Rotating Speed |
24000rpm |
|
| Cooling Type |
water- cooling/pump |
|
| Collet diameter |
ER 32 Ø3.175,4,6 8 12.7 |
|
| About drive systems run with smaller noise, lower heating, smoother movement and have better performances at higher speed.Save human strength and save time. |
X |
Leadshine 850W servo motor with Shimpo reducer |
| Y |
Leadshine 850W servo motor with Shimpo reducer |
|
| Z |
Leadshine 850W servo motor with Shimpo reducer |
|
| Compatible file formats |
G code /PLT/DXF/ENG |
|
| Inverter |
Fuling brand It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control. |
|
| Compatible CAD/CAM Softwares |
JD pait/Type3 / Artcam / |
|
| Working Voltage |
three phase AC380V/50/60Hz, |
|
| speed |
10000-25000mm/min |
|
| XYZ Positioning Accuracy (MM) |
<0.01 |
|
| Repetitive Positioning Accuracy(MM) |
<0.03 |
|
| oil-inject lubrication system |
Auto /Manual Oil system |
|
| Accessories |
Collets |
3pcs+,(φ3.175, φ4, φ6 φ8 φ12.7) ER 25 |
| Cutter |
knives 20pics |
|
| Maintenence tools |
Tool Box Available |
|
All the working area and specifications can be customized according to requests.
 |
 |
 |
