- Produto Químico de Alta Preocupação: Nenhum
- Material: BORRACHA
- Tipo: Outros
- Origem: CN (Origem)
- spindle taper: BT30
- no. of spindles: Single
- type: VERTICAL
- dimension(l*w*h): 2350*2200*2400 mm
- weight (t): 3.4
- table size: 260
- cnc control system: Lynuc
- table travel (x) (mm): 400
- table travel (y) (mm): 650
- table travel (z) (mm): 250
- positioning accuracy: ±0.008
- repeatability (x/y/z) (mm): ±0.005
- range of spindle speed: 1 - 30000 r.p.m
- max. table load(kg): 30
- min. time of tool change(s): 4
- tool magazine capacity: 14
- key selling points: Automatic
- warranty: 1 Year
- place of origin: Guangdong, China
- voltage: 380V 50HZ /220V 60 HZ
- machinery test report: Provided
- video outgoing-inspection: Provided

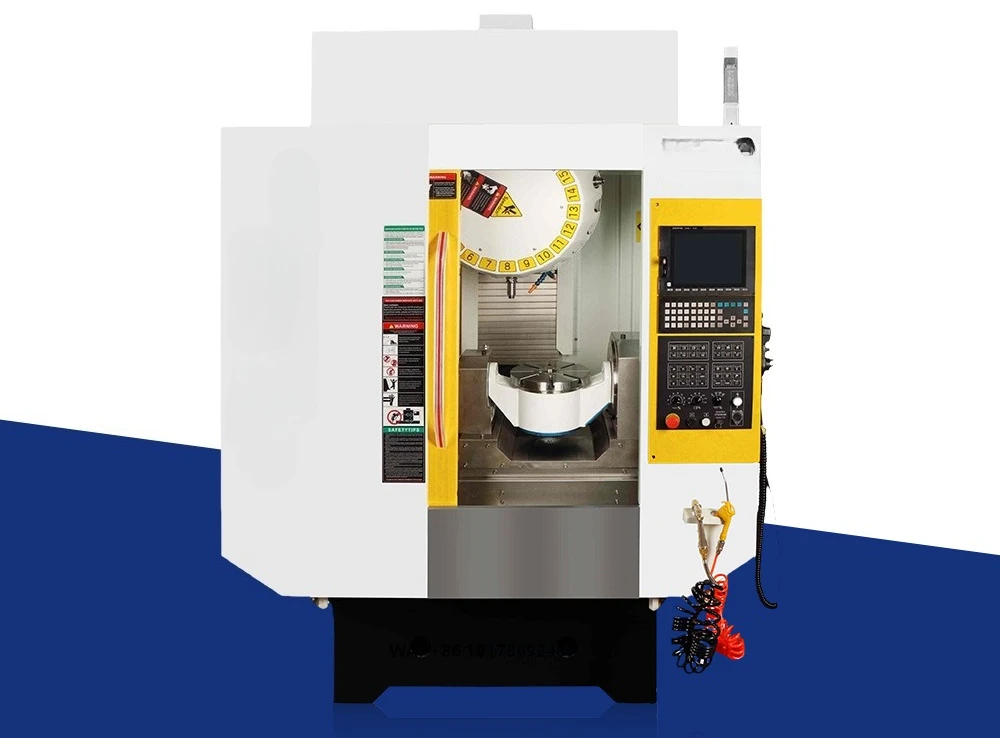

- Product name: Leyo U200 5 Axis Compact Machining Center
- Machine Type: Vertical Machine Centers
- Product type: 5 Axis Machine
- Keywords: 5 Axis Machining Center
- Function: Machining Metal
- Processing: Maching Center
- Precision: High Precision Machining Center
- Machine Name: VMC Vertical Machining Center
- Other Name: Compact Machining Center
Dear customer, Welcome to my store,We sell all kinds of products. If you have any other items you wish to purchase, please feel free to consult us.There is a discrepancy between the current price and the actual price (configuration and logistics). To obtain product details and more favorable prices, please add WhatsApp for confirmation Manager: Liu Mr WhatsApp:+86 19176692407 Email：1799483840@qq.com
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:247.33333333333334px;height:241.53645833333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:247px;height:241px}#detail_decorate_root .magic-4{overflow:hidden;width:247.33333333333334px;height:241.32523616734147px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-5{margin-top:0;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-6{width:750px;border-collapse:collapse}#detail_decorate_root .magic-7{min-height:28px;padding:5px 10px;width:726px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-8{text-align:center}#detail_decorate_root .magic-9{font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-10{font-size:18px}#detail_decorate_root .magic-11{display:none}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:48px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:225px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:412px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:224px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{vertical-align:top}#detail_decorate_root .magic-17{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-18{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-19{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-20{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:68px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:68px}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:218px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:218px}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:2588px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:2588px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:970px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:970px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:1425px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:1425px}
Hot sale
Product Paramenters
|
LEYO U-200 5 Axis Machining Center Technical List
|
|
|
||
|
Items
|
Unit
|
U-200
|
||
|
X-axis travel
|
mm
|
400
|
||
|
Y-axis travel
|
mm
|
650
|
||
|
Z-axis travel
|
mm
|
250
|
||
|
X-axis rapid moving speed
|
m/min
|
15
|
||
|
Y-axis rapid moving speed
|
m/min
|
15
|
||
|
Z-axis rapid moving speed
|
m/min
|
15
|
||
|
X/Y/Z axis position accuracy
|
mm
|
±0.008
|
||
|
X/Y/Z axis reposition accuracy
|
mm
|
±0.005
|
||
|

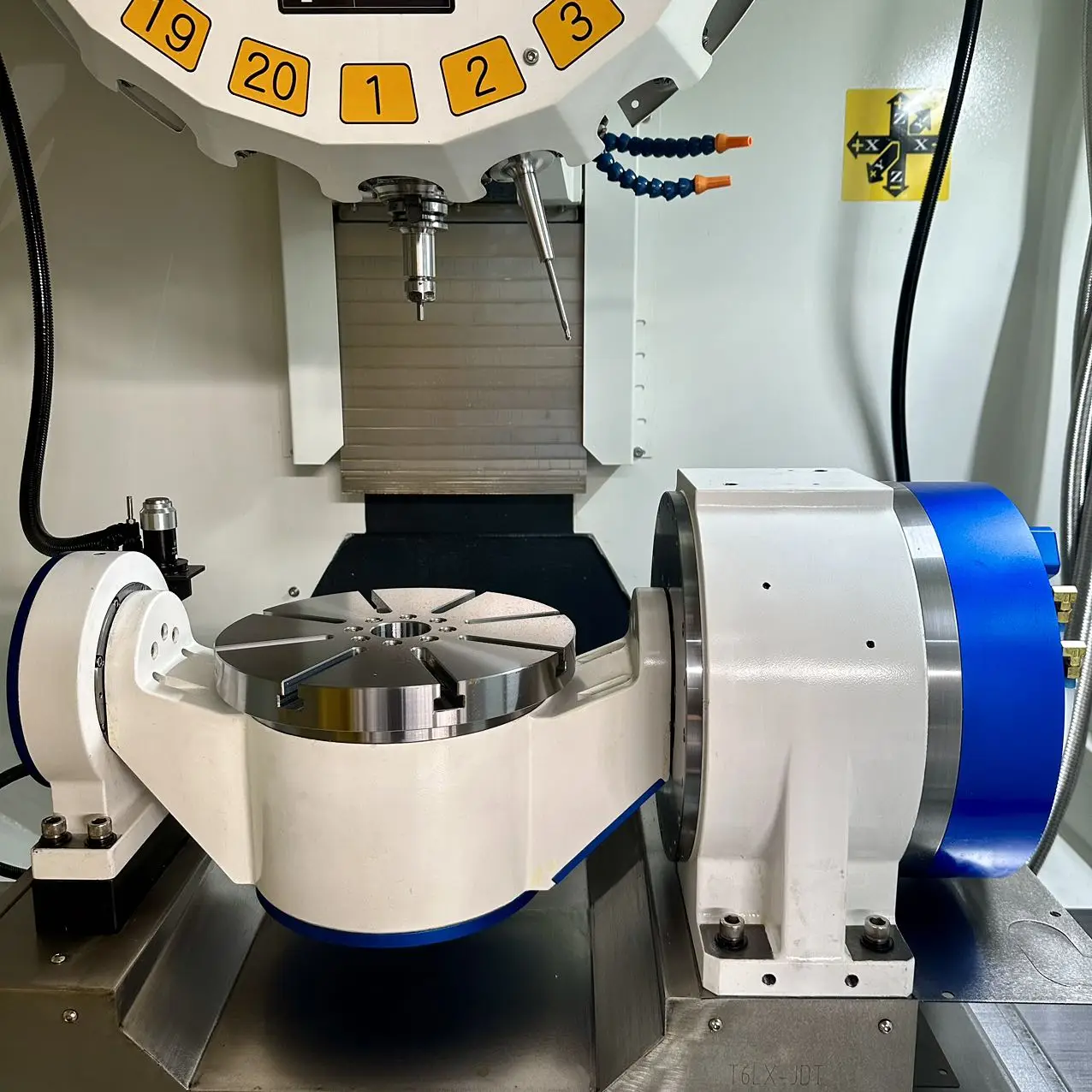

A-axis travel (tilt axis)
|
°
|
±110°
|
||
|
A-axis maximum speed
|
rpm
|
100
|
||
|
A-axis rated torque
|
N.m
|
110
|
||
|
A-axis position accuracy
|
arc
|
8"
|
||
|
A-axis reposition accuracy
|
arc
|
6"
|
||
|
C-axis travel (rotation axis)
|
°
|
360°
|
||
|
C-axis maximum speed
|
rpm
|
200
|
||
|
C-axis rated torque
|
N.m
|
30
|
||
|
C-axis position accuracy
|
arc
|
6"
|
||
|
C-axis reposition accuracy
|
arc
|
4"
|
||
|
A-axis braking mode
|
|
Air brake
|
||
|
Distance from the highest end face of the spindle to the worktable
|
|
330
|
||
|
Dimensions of worktable (rotarytable)
|
mm
|
260
|
||
|
Rotarytable bearing capacity
|
kg
|
30
|
||
|
Model and specification of spindle cone handle
|
|
NBT30
|
||
|
Maximum spindle speed
|
rpm
|
30000
|
||
|
Rated power of spindle
|
kw
|
7.5
|
||
|
Rated torque of spindle
|
N.m
|
6.8
|
||
|
Maximum spindle torque
|
N.m
|
10
|
||
|
Tool magazine form
|
|
D-type tool magazine-servo
|
||
|
Number of tools held in the tool magazine
|
pcs
|
14
|
||
|
Tool change time (T-T)
|
s
|
4
|
||
|
Maximum tool length
|
mm
|
200
|
||
|
Maximum tool weight
|
kg
|
4
|
||
|
Machine tool appearance dimensions (length x width x height)
|
mm
|
2350x2200x2400
|
||
|
Machine weight
|
kg
|
3400
|
||
|
Air demand for machine tools
|
kg/cm³
|
6
|
||
|
Total power of machine tool
|
kw
|
10
|
||
Products Description
LEYO U-200 five axis machining center description
LEYO U200 5 Axis Machining Center is a high-tech and high-precision machining center specifically designed for processing complex surfaces. This machining center is mainly used in industries such as aviation, aerospace, scientific research, precision instruments, and so on. The five axis linkage CNC machining center system is suitable for machining workpieces such as impellers, blades, marine propellers, heavy-duty generator rotors, steam turbine rotors, large diesel engine crankshafts, etc.
