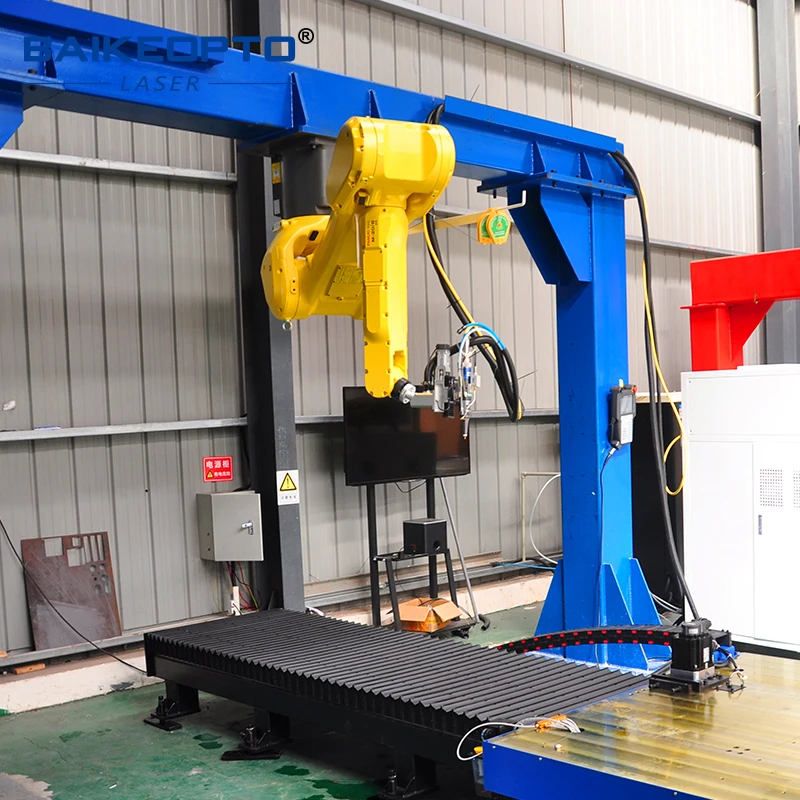

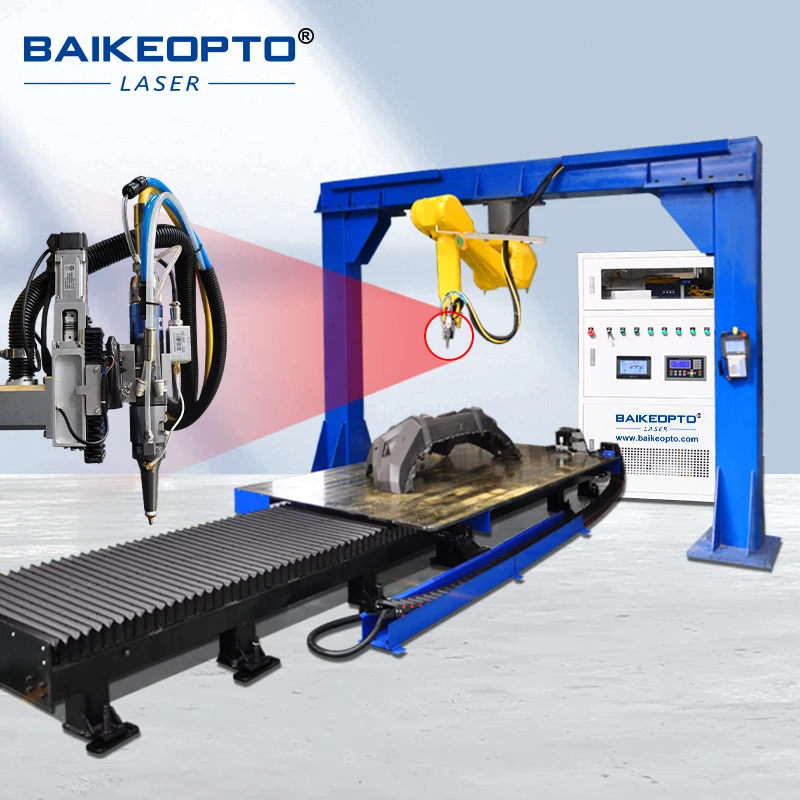

BK-RC3000LX Industrial 3D Robotic Laser Cutting System with Teaching Mode for High-Speed Metal Processing

1.Non-contact cutting: The workpiece deformation is small without mechanical stress

2.High degree of flexibility: Any process path for any workpiece is controlled by the orogram

3.Fast cutting speed: The cutting speed can reach 12 meters per minute, which is more than 3 times higher than CNC

4.Good cutting quality: The cut surface is smooth and burr-free, and there is no need for post-processng

5.Stable and reliable performance: Sustainable and stable operation tens of thou-sands of hours of super long service life

6.Green and environmental protection process: Almost no consumables, high yield and no pollutants

7.Good cutting flexibility:Spatial three-dimensional image arbitrary cutting without manual adjustment of Angle.

8.High production efficiency: Replace traditional trimming die and punching die without opening die and secondary processing

9.High cutting accuracy: Laser spot small and narrow incision up to ±0.05mm

10.High economic benefit: Greatly shorten the development cycle of new products greatly reduce the cost and mantenance free

11.Simple and fast operations: The process library is perfect and the process step sare simple

12.Strong expansibility : Automatic devices such as extendable positioner greatly shorten the blanking waiting time

13.Support Customization service for components.Laser source

Using the domestic frist-line brand Raycus fber laser, with high anti-reaction,strong reliability, long service life equipped with10m three-dimen-sional reinforced opticacable effectively ensure long-termstable work.

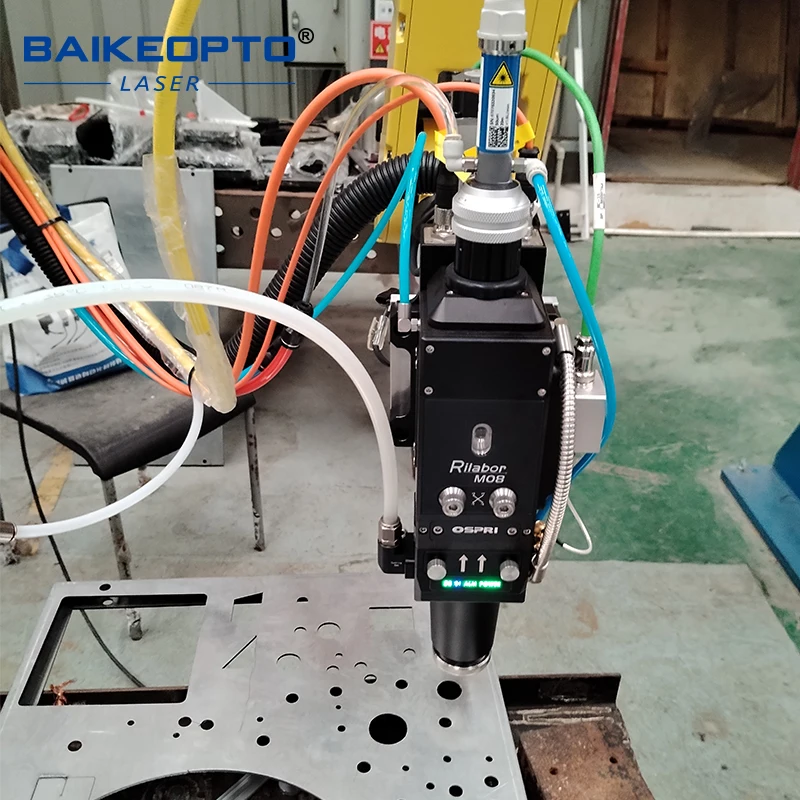

3d cutting head

The lightweight 3D special anti-colli-sion cutting head can achieve accu-rate cutting of 3D metal the rmofor-med partsor irregular pipe space curves. Modular design, high spatial freedom, fexible adjustmentWater cooler

1.Provide cooling water cooling for theaser

2.Provide constant temperature water cooling for laser cutting heads

3.Efficient and environmentally friendly

4.There are flow and over temperature alarms

5.Laser with linkage signal protection

Robot body control cabinetIt is equipped with a standard manual teaching device, which can directly generate, edit and transmit processing programs without programming. lt can also be optionally equipped with a 3D offline simulation system to directly import the digital model and generate the cutting path with one clickLASER CUTTING MACHINE FOR HOT-FORMED PARTS OF LOCO MOTIVES

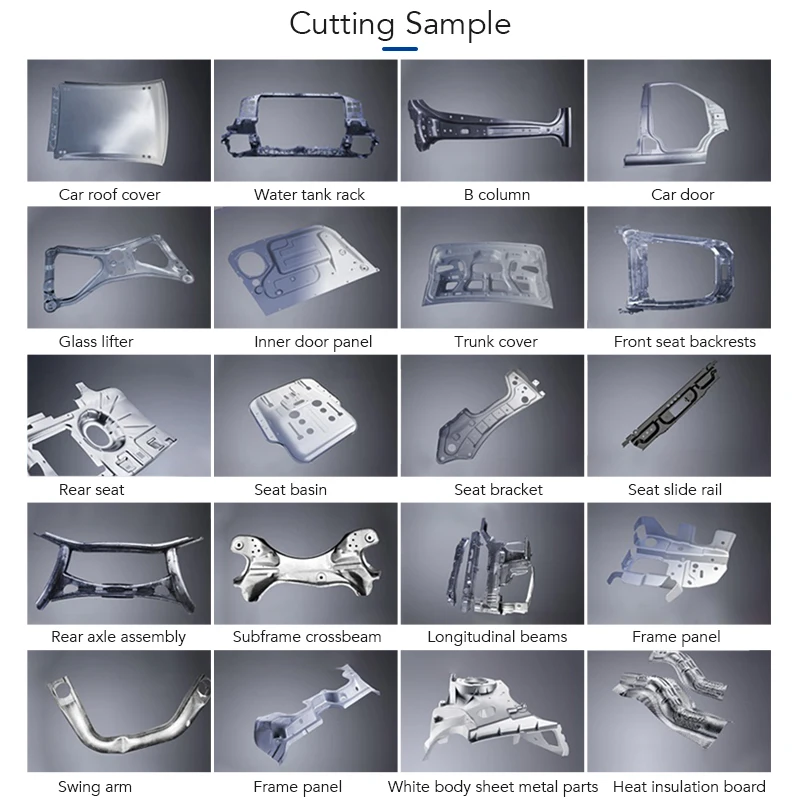

The 3D laser cutting machine is currently the preferred solution product for processing special-shaped pipe fittings such as helmets, aluminum alloy frames, automotive drawn parts, and flat pipes. The processing of this equipment is not affected by the shape and Angle of the workpiece. The cut surface is smooth and fat without burrs, occupies as mall area, is easy to operate and maintain, and has a low maintenance cost. lt is an advanced three-dimensional fber laser cutting equipment integrating high stability.high precision, high performance and high speed.1.With "high precision, high flexibility and high efficiency" as the core, it reducesmanualintervention through intelligent technology, and signifcantly improves thecustomizat-ion ability and production effciency of the manufacturing industry.

2.The PLC system independently developed and designed, combined with the flexible and fast action performance of industrial robots, can be programmed or off-linepro

3. lt is an advanced and cost-effective cutting and blanking tool for research and development and small-scale trial production in the field of locomotive manufac-turing. lt is particularly suitable for multi-angle, high-precision flexible cutting and trimming of metal three-dimensional hot-formed partsIntegrated independent laser control systemThe control cabinet is dust-proof and corrosion-resistant, with a human-machineoperation panel and a standard wiring structure. The entire machine is highly inte-grated and can be optionally equipped with PWM control and dedicated industrial air conditioning as required to achieve perfect cuttingSupport customization

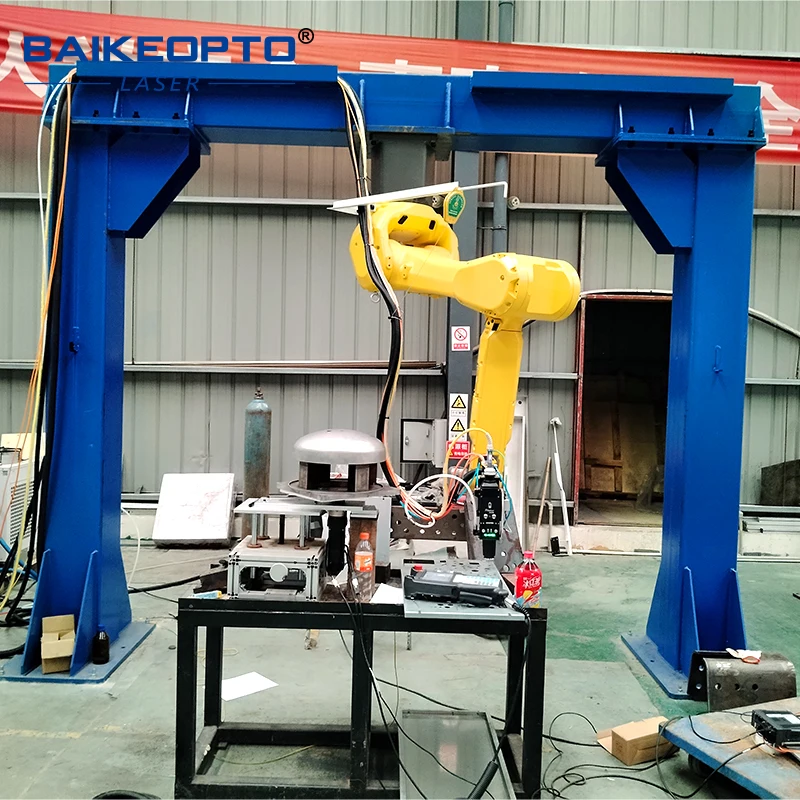

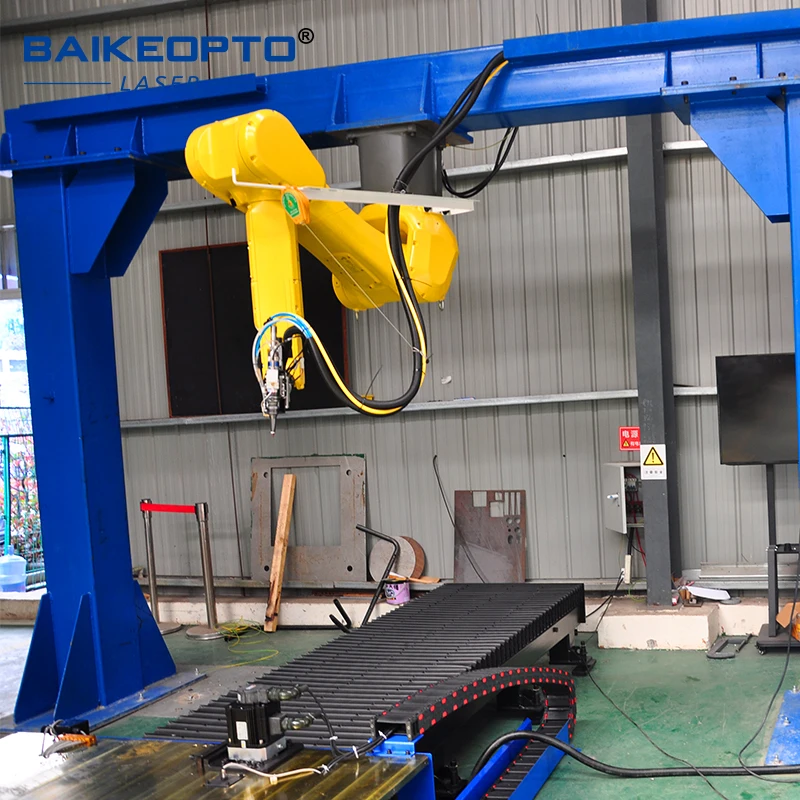

According to processing requirements, different types of linkage or collaborative positioners, overhead rails or floor rails can be matched to achieve precise and efficient cutting of workpieces of different materials, shapes and sizesThe mainstream installation methods of robots By taking advantage of the flexible and rapid movement performance of industrial robots, the processing methods are more flexible and free, enabling multi-directional, rapid and efficient cutting of special-shaped pipe fittings of different sizes and thicknesses
