Name: Automatic Diamond Cutting Polishing Slant Bed Lathe CNC Velg Acut Weld Wheel Repair New Gear Engine Pump Motor Horizontal
SKU: 1005009387277046
Availability: InStock

High-concerned chemical: None
DIY Supplies: Electrical
Origin: Mainland China
type: Horizontal
max. length of workpiece (mm): 600
structure: Flat Bed Lathe
machining capacity: Heavy Duty
max. weight of workpiece(kg): 1500
width of bed (mm): 260
no. of spindles: Single Phase
number of axes: 2
travel (x axis)(mm): 460
travel (z axis)(mm): 630
positioning accuracy (mm): ±0.001
repeatability (x/y/z) (mm): ±0.001
place of origin: Sichuan, China
dimension(l*w*h): 1680*1250*1600mm
brand name: GookiiTech
model number: GT-RDCM21-7
voltage: 220V, 380V
tool post stations: 4
weight (kg): 1300
warranty: 1 Year
key selling points: High-accuracy
machinery test report: Provided
video outgoing-inspection: Provided
range of spindle speed(r.p.m): 400 - 1600
cutting torque: 6000
Color: Customized Color Acceptable
Max. Size of Rim: 26 inch
Motor: Servo Motor

Dear friends, welcome to our store, if you need other models of this product, please contact my WhatsApp OR WeChat +86 181 52739781 (email: dy31631415926@126.com) I will send the product link for you to purchase!

Features:

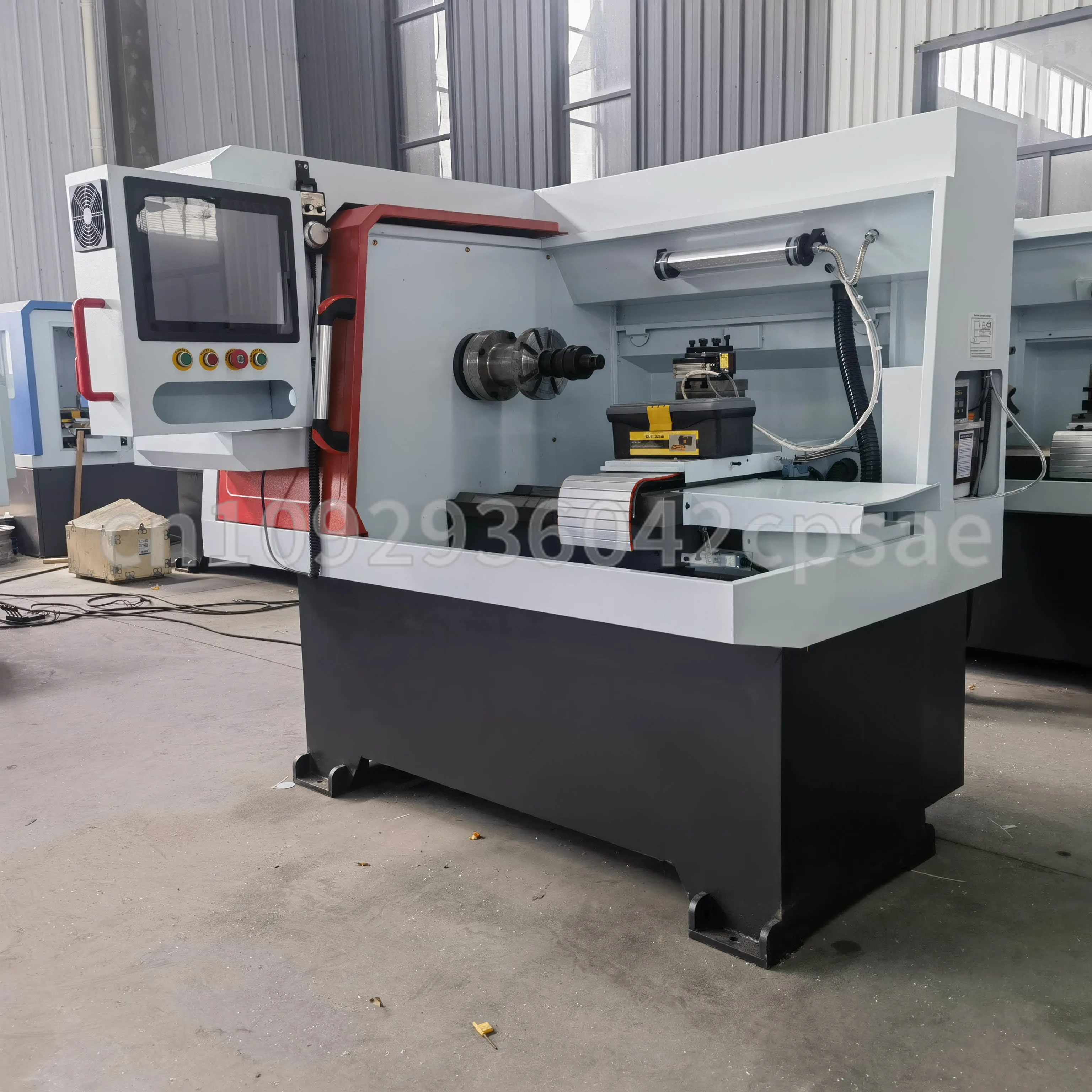

Name: Car Lathe Rim Aluminium Alloy Rim Diamond Cutting Machine Rim Refurbish CNC Wheel Repair Machine
Precision: High Precision
Processing type: Alloy Wheels
Automatic grade: Full Automatic
X,Z axis motor type: Servo Motor
Scanning Type: Laser Scanning

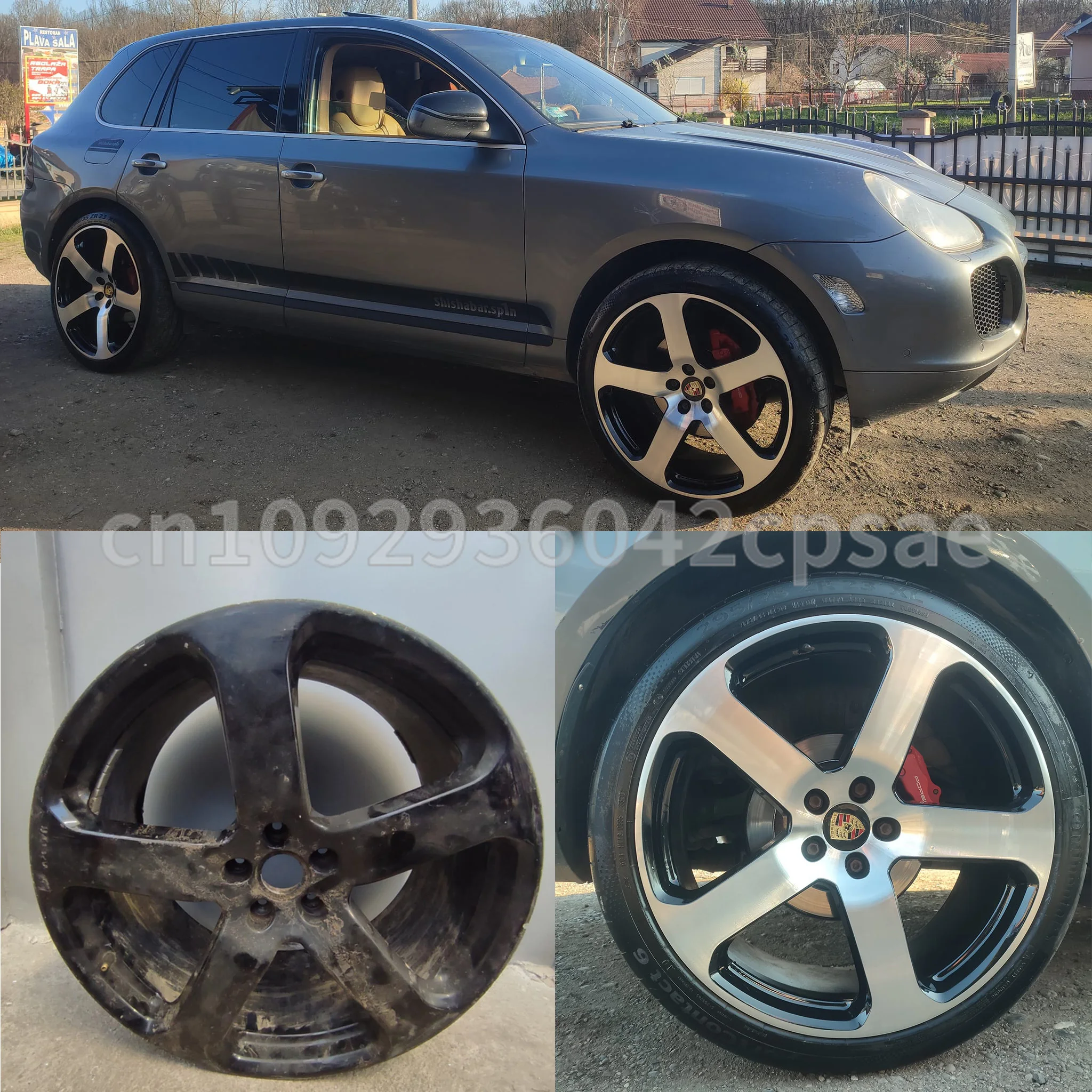

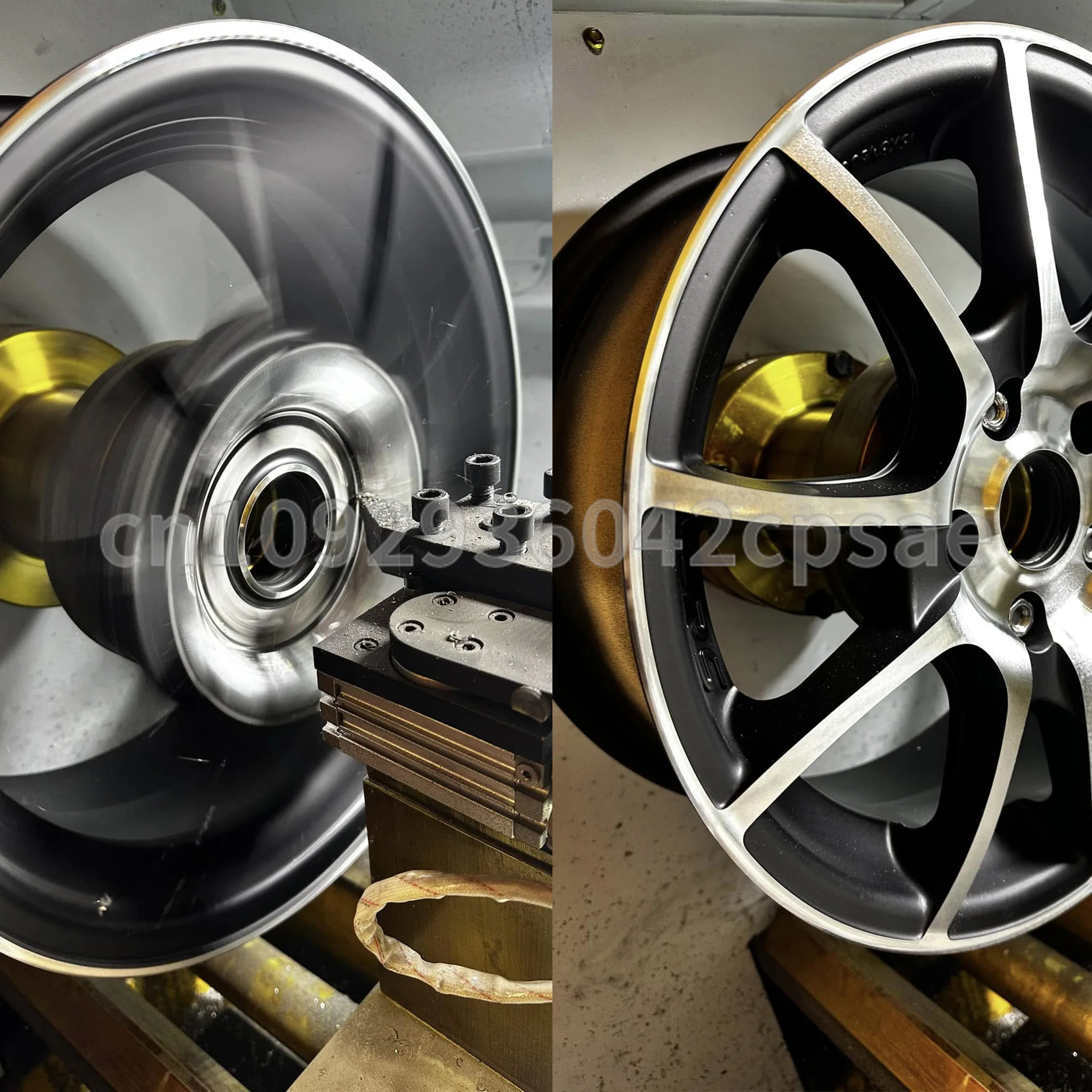

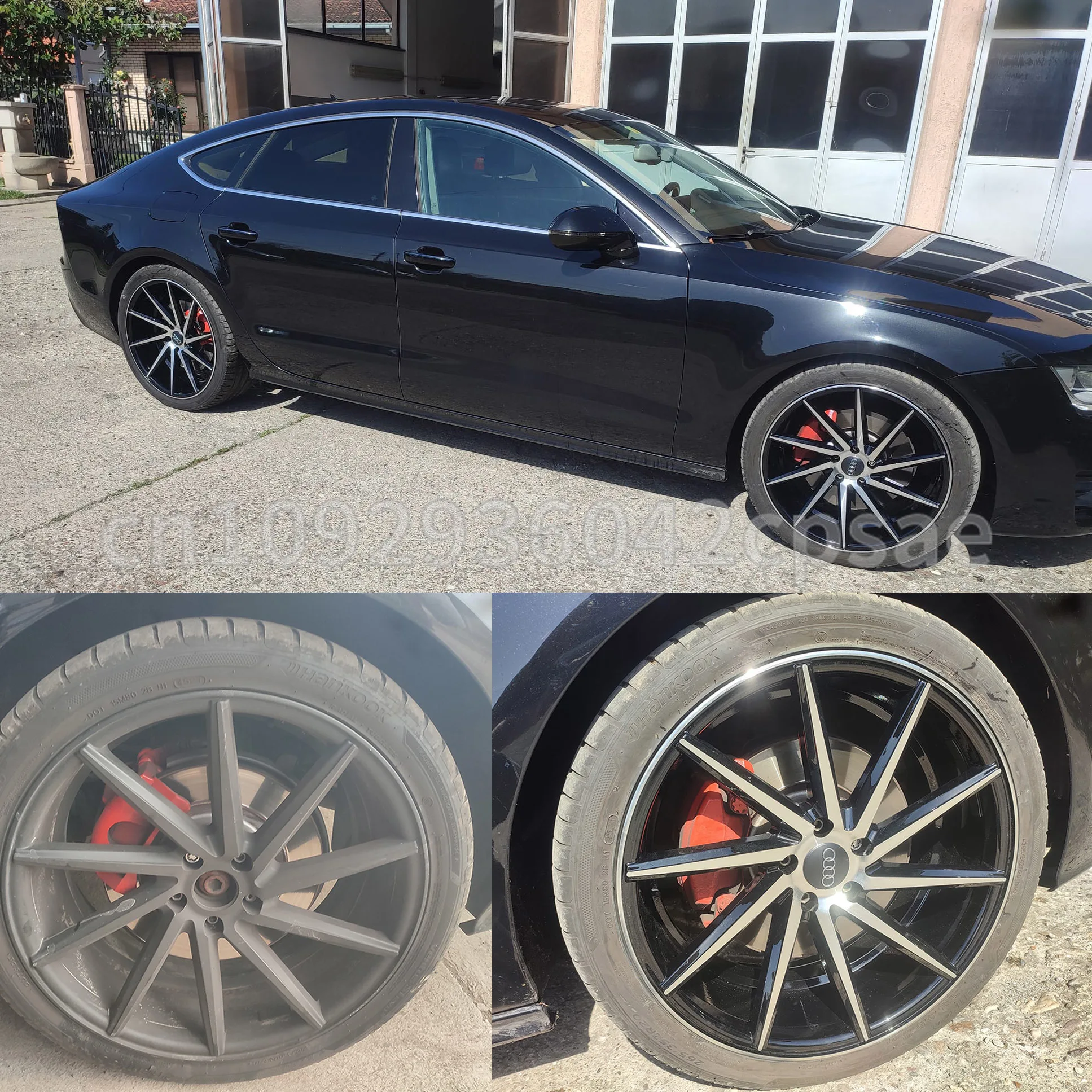

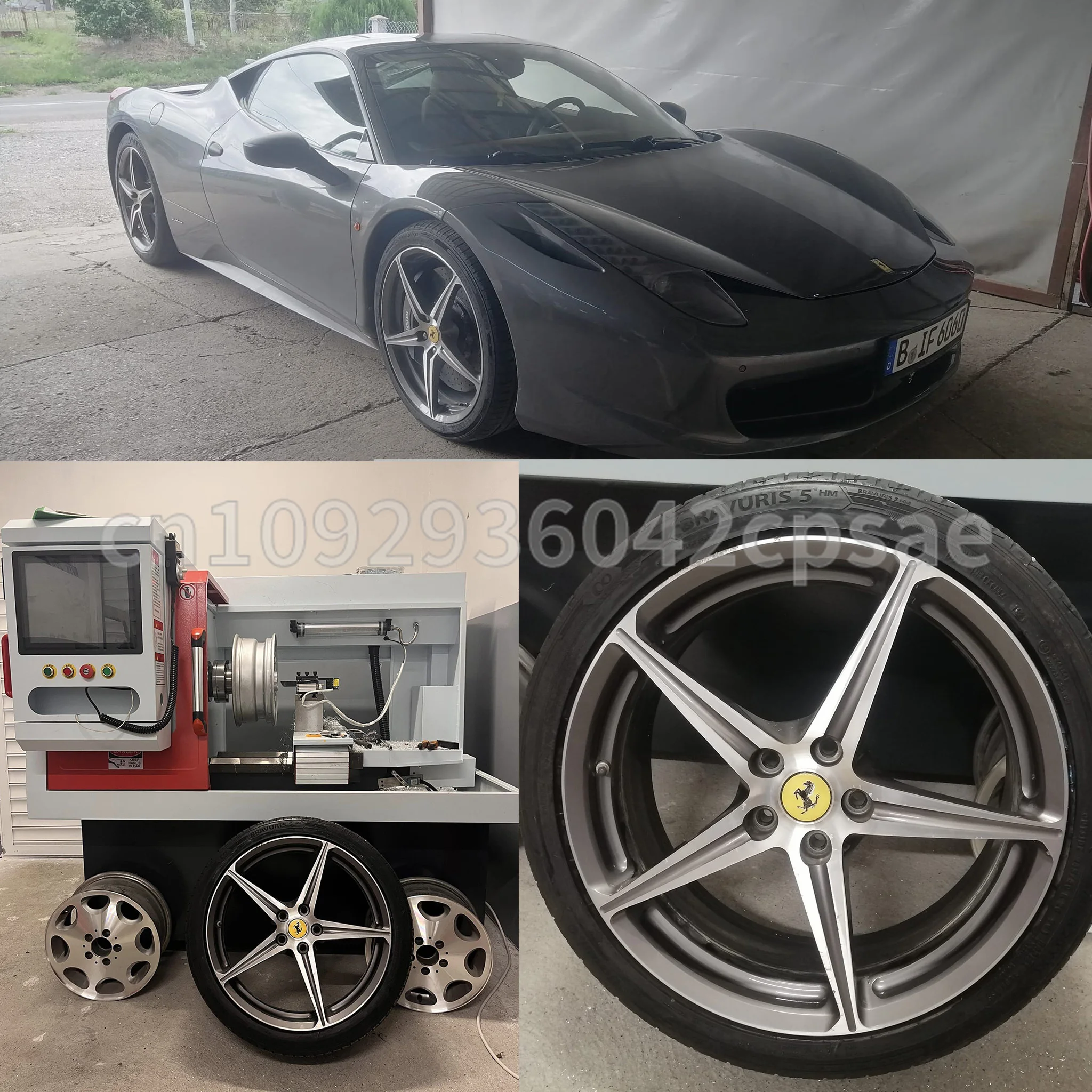

Function: Wheel Rim Repair, Wheel Refurbishment
Voltage: 380V/ 220V
Power: 7500W
Color: Customized Color Acceptable
Guarantee: 1 Year
Technical Support: Life time

Max size of alloy wheel

13-25inch
