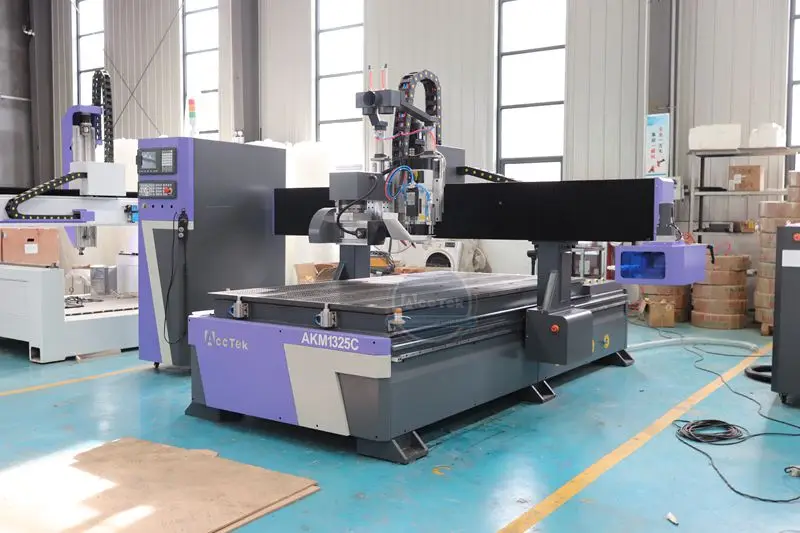

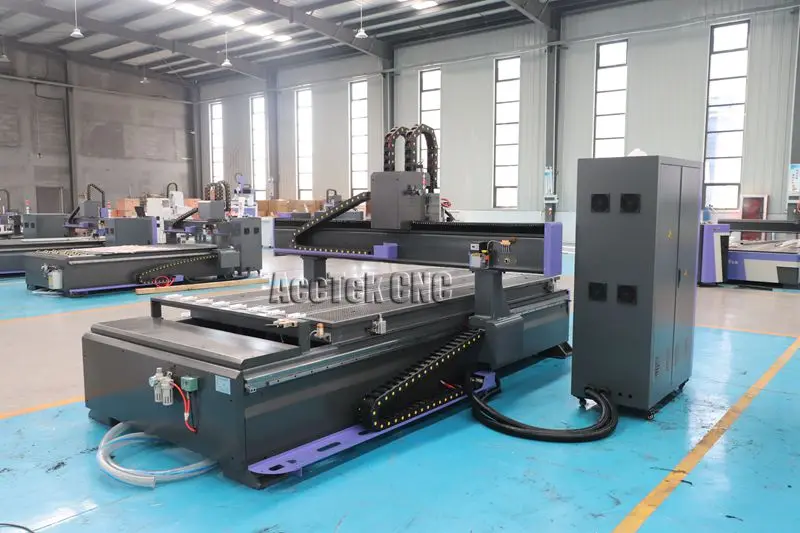

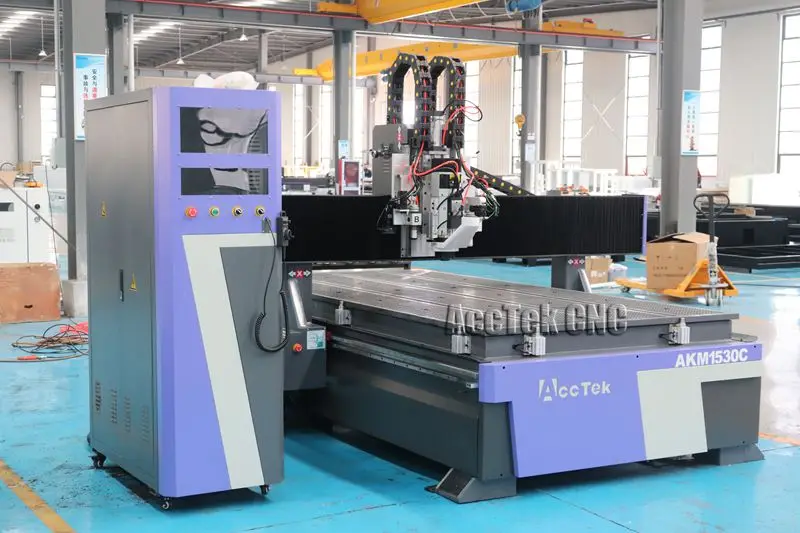

ATC CNC Router 1325 3d Wood Carving Cutting Machine Woodworking Machinery With Linear Tool Changer

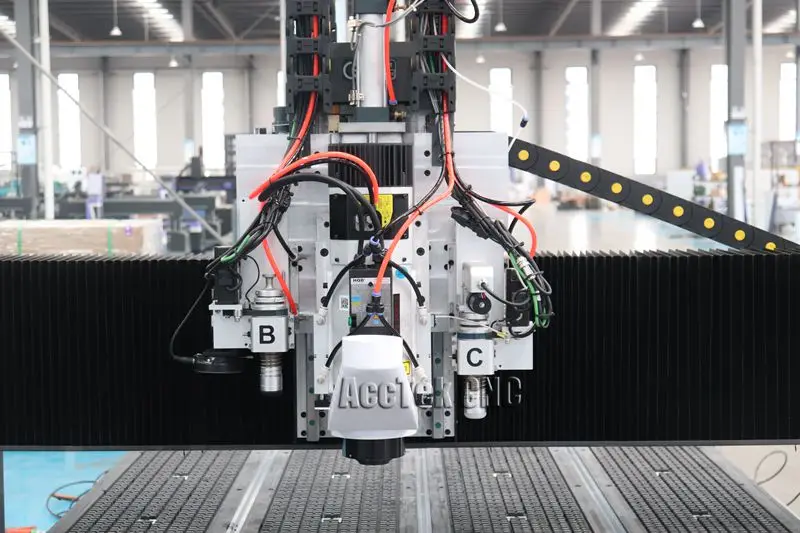

1. With 8 or 12 sets of tools to change automatically, which can saving time of tools changing and improving working efficiency.

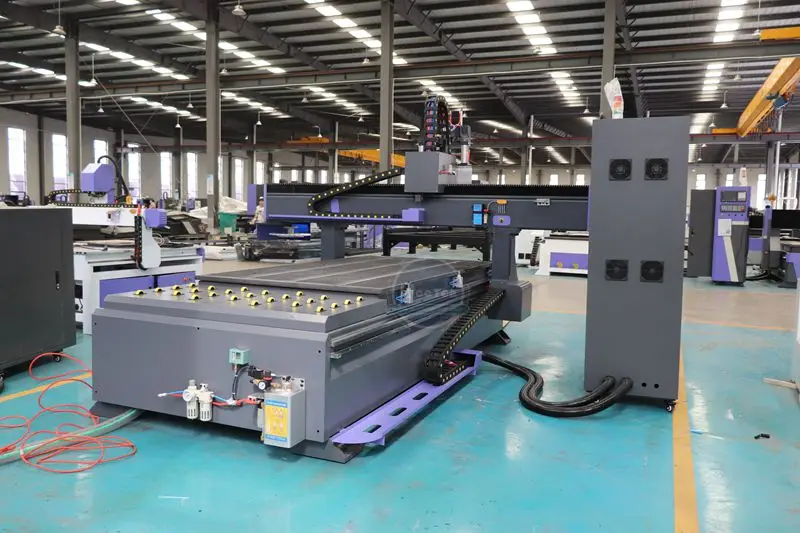

2.Vacuum table using high-density material with great suction strength, comfortably accommadating all sizes of work piece.
3.control system is simple, convenient and easy to learn, users can quickly get the fleciblity to master the use of equipment, strong independence.
4.The frame adopts the gantry column structure, the machine parts are produced and assembled with extremely high precision to ensure the high performance and stability of the machine, excellent quality and tolerance.
5.the saw with 320mm diameter which can cut 50mm material at once .
Description | Parameter |
X,Y,Z Working Area | 1300x2500x250mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
Table Surface | Vacuum&T-slot Table |
Frame | Welded Structure,heavy duty T-structure |
X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
Z Structure | Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
Max. Power Consumption | 15.0KW |
Max. Rapid Travel Rate | 45000mm/min |
Max. Working Speed | 30000mm/min |

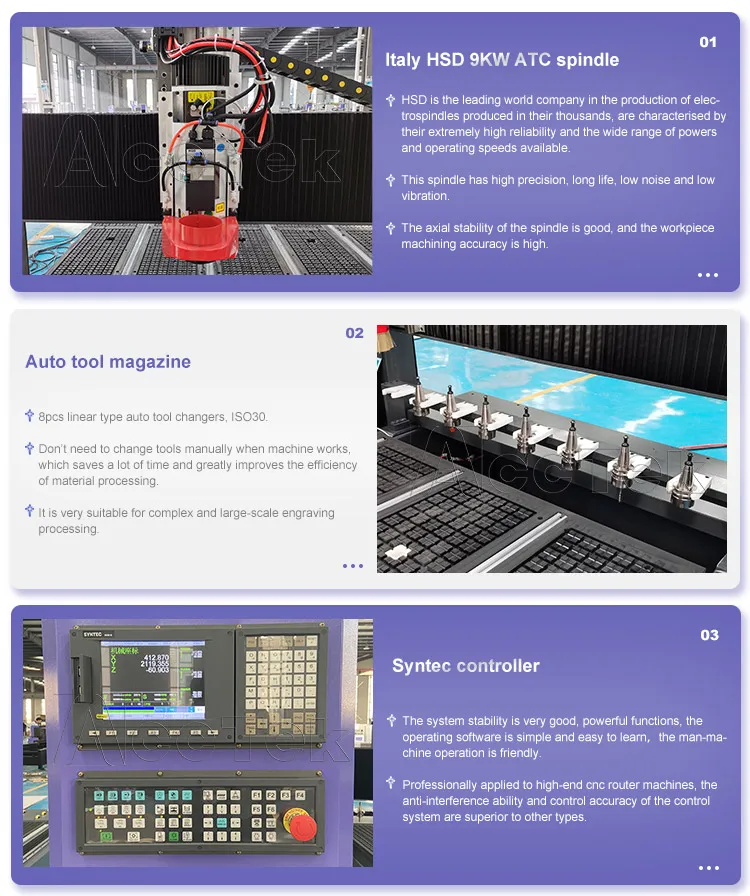

Spindle Power | 9.0kw air cooling spindle |
Spindle Speed | 0-24000RPM |

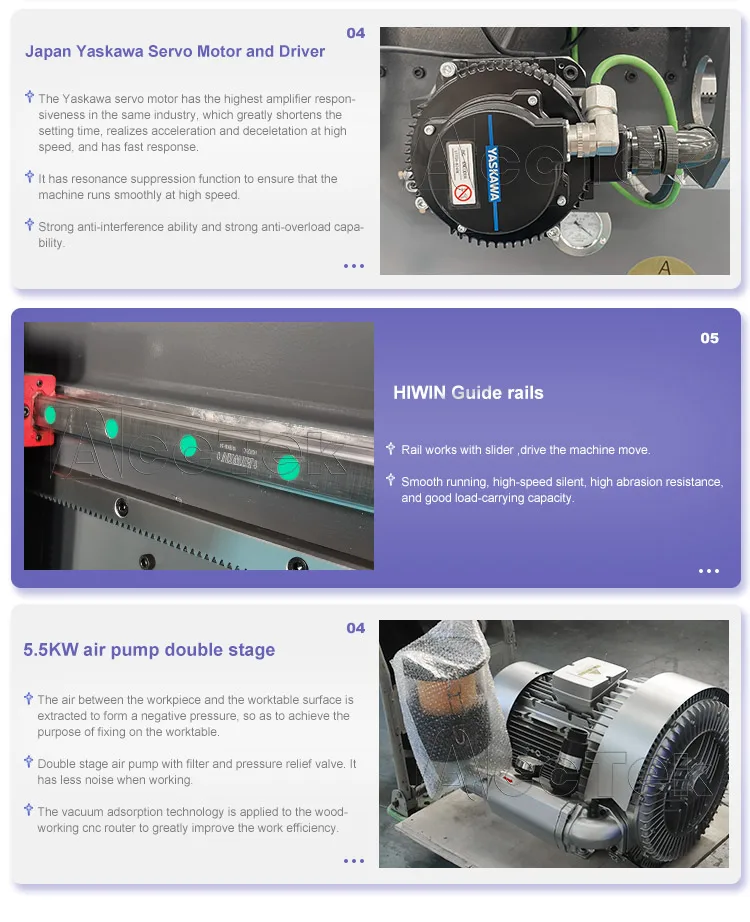

Drive Motors | servo motor and driver |
Working Voltage | AC380V/50/60Hz,3PH |
Control System | Taiwan SYNTEC control system |
X,Y Resolution | <0.01mm |
Software Compatibility | Artcam Software |
Running Environment Temperature | 0 - 45 Centigrade |

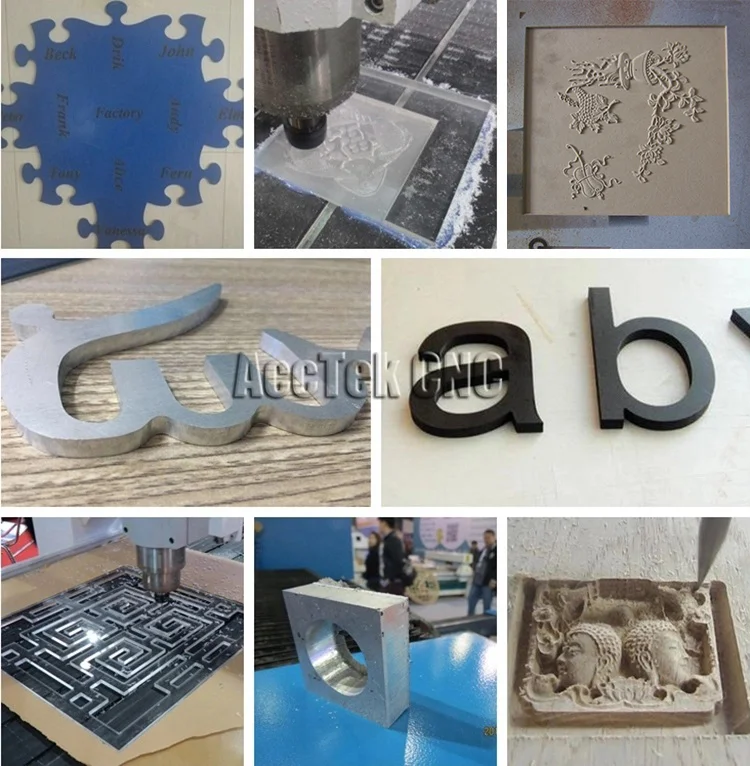

Applicable industies:Furniture,wood door,cabinet,mdf, Arts & Crafts,wood sculptures,3D relief Business Signs,aluminum and so on.with Atc tool magazine,can improve work efficiency.
Jinan AccTek Machinery Co.,Ltd specializes in manufacturing CNC Router and Laser machines. Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control.
Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.

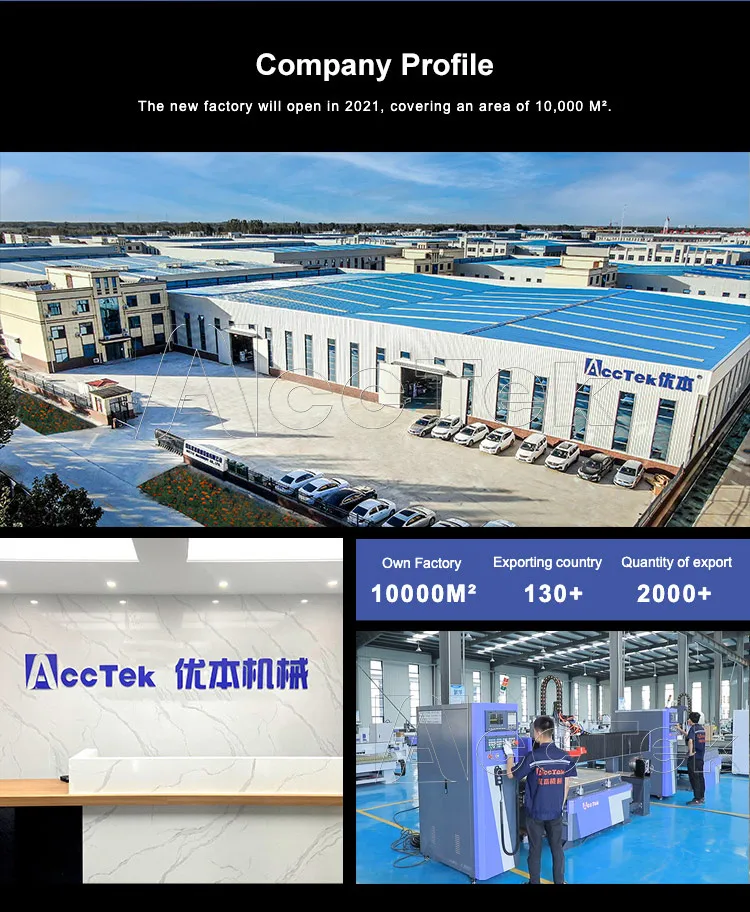

Now we own two workshops,one for cnc router and another for laser machines. Which covers 3000,00 square meters. There are 40 members in manufacturing and 21 members for marketing and service.
