- High-concerned chemical: None
- Fans: 1
- PFC Type: PASSIVE
- Number of SATA Ports: 4
- Graphics Card 12V Pin Number: 2 x8 pin +2 x6 pin
- D-type Bus Number: 3
- CPU Power Connector: 8 pin x2
- Package: Yes
- Interface Type: 20 + 4Pin
- Application: Desktop,Server,Mining
- Model Number: AK800
- Input Voltage: 200-240Vac
- Modular: Non-Modular
- 80 PLUS Certification: Other Certification
- Brand Name: Aigo
- Origin: Mainland China
- Output Voltage: fonte
- Certification: CE,FCC,RoHS
Important! Attention!
The AK series power supplies have been upgraded and optimized, maintaining the same power and efficiency as before, with lower fan noise and more stable power efficiency!
Differences:
1. The packaging is different from the original;
2. An independent on/off switch has been added;
3. The RGB lighting has been removed.
New and old packaging will be shipped randomly. Please note!

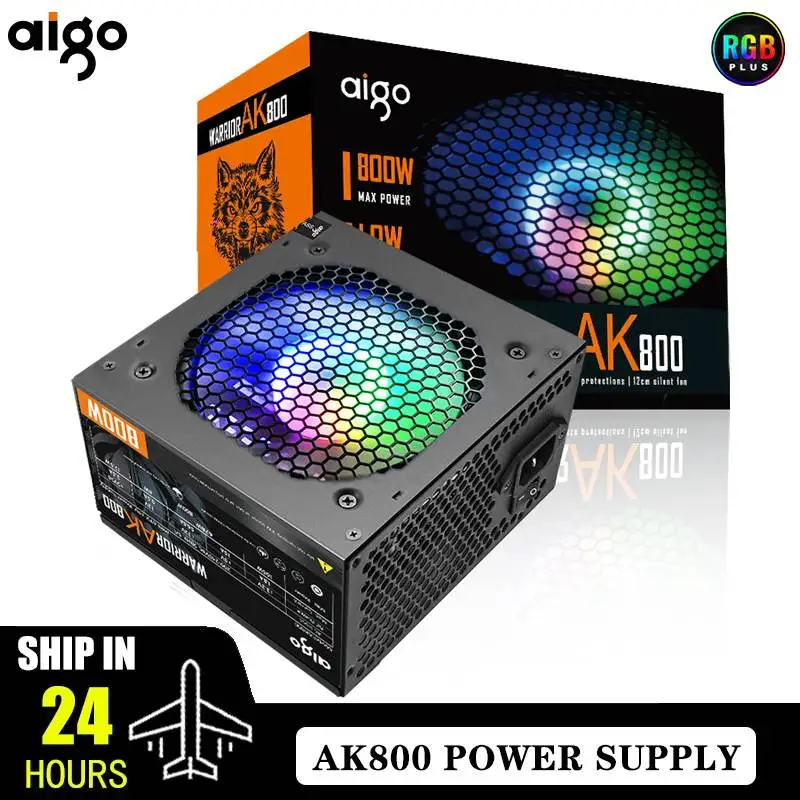

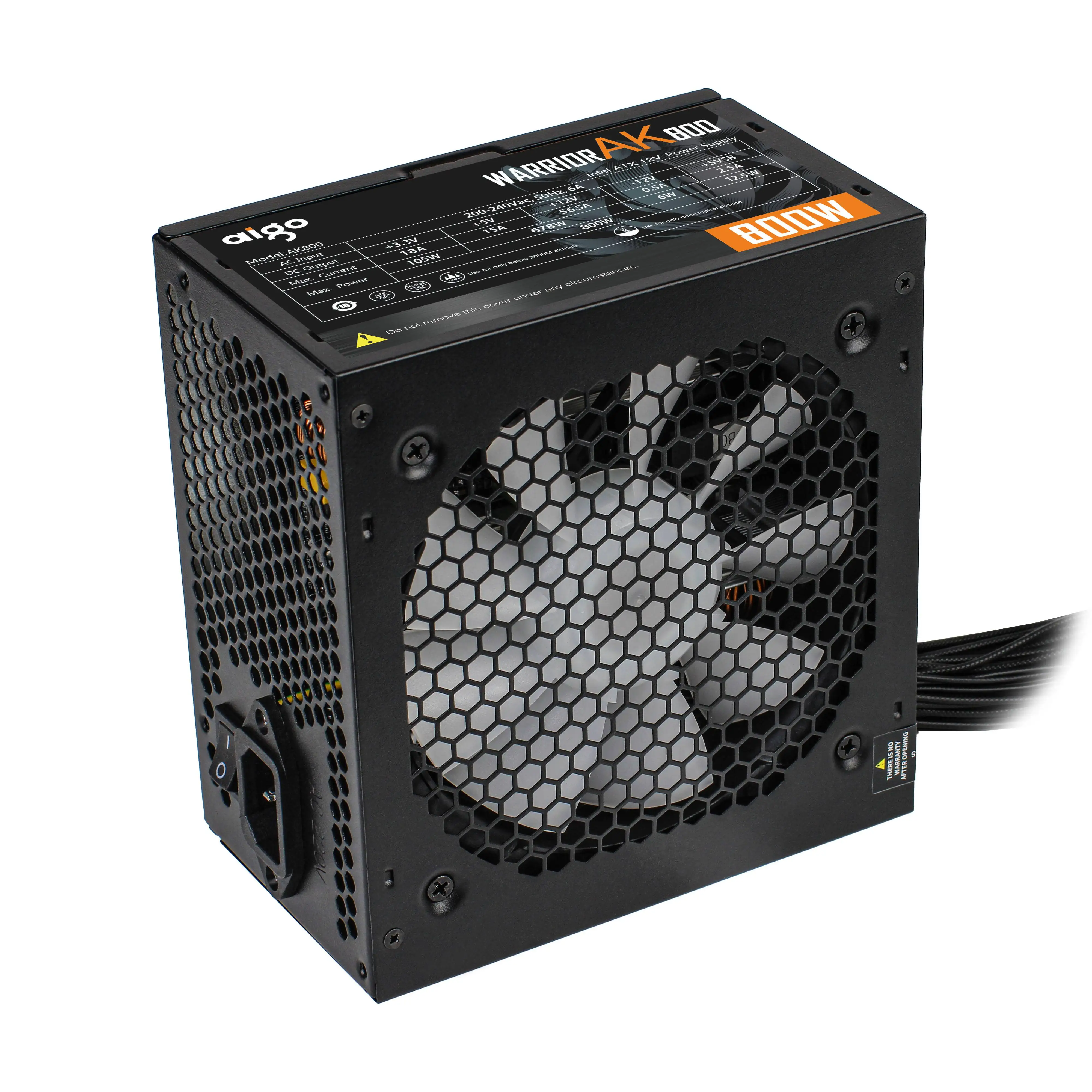

Aigo AK 500W/600W/700W/800W PC PSU Power Supply unit Black Gaming Quiet 120mm rgb Fan 24pin 12V ATX Desktop computer Power Supply for BTC
Package Included:
1 x Power Supply
1 x Power Supply Cables
1 x Installation instruction
Noticed : This link only support order quantity : 1 piece. If your order quantity over 1 piece ,pls contact customer service.
AK Series power supply Specification:
1: Power supply size: 140mm * 150mm * 86mm
2: Power standard: ATX 12V
3: Applicable to CPU range: AMD, Intel
4: PFC type: active PFC
6: Maximum power: 500W/600W/700W/800W/1000W
7: Efficiency: 80%
8: Input voltage: 200V-240V
9:+ 3.3V output current 20A
+ 5V output current 15A
+ 12V1 output current 48A
- 12V output current 0.3A
+ 5Vsb output current 2.5A
10: Support wide voltage: Yes
11: Support temperature control PWM: Yes
12: Certification: CB, CCC, FCC, Class, B, CE, ROHS
13: Product weight: 1900g
14: Support power: 20P / 24P motherboard
15: Power Output Design: Multiplex + 12V
16:IDE interface: 2
17: SATA interface: 4
18: CPU interface: P4 + 4
19: Video card interface: (6PIN + 2)* 2
