- Hign-concerned Chemical: None
- Certification: ce
- Origin: Mainland China
- Model Number: MC6024F
- Certification: CE
- Name: 6M 12M Factory Customization CNC Fiber Laser Pipe Cutting Machine Laser Metal Tube Cutting Machine Price
- Key word: Professional Metal Tube Laser Cutting Machine
- Color: Green & White
- Working area: 240*6000mm
- Laser power: 1500w/2000w/3000w...
- Laser source: Max/Raycus laser source
- Motor & Driver: Leadshine servo motor & driver
- Cutting head: Raytools cutting head
- Control system: Raytools control system
- Cooling method: Water cooling

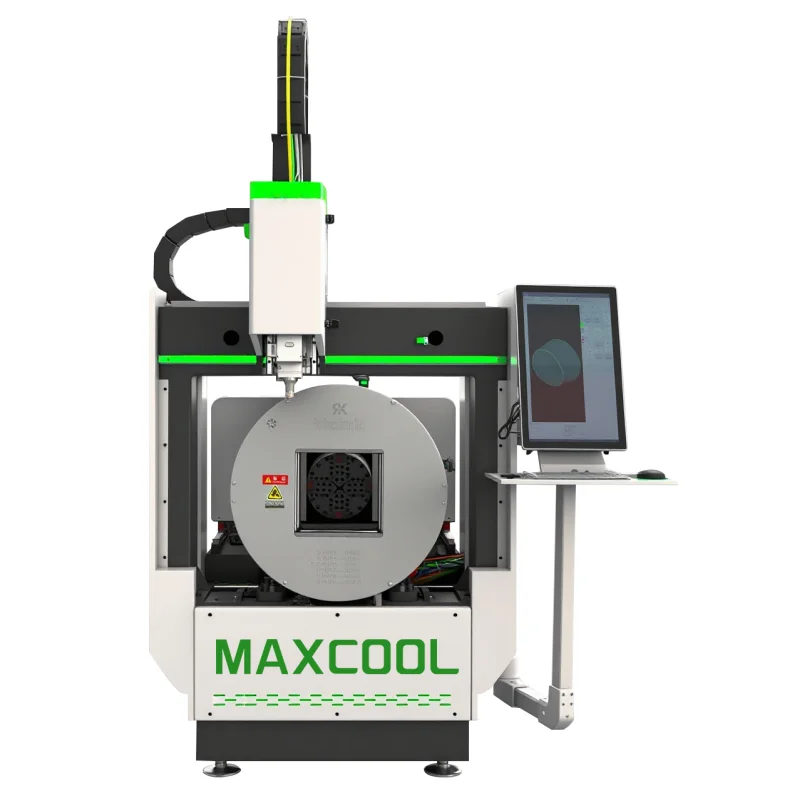

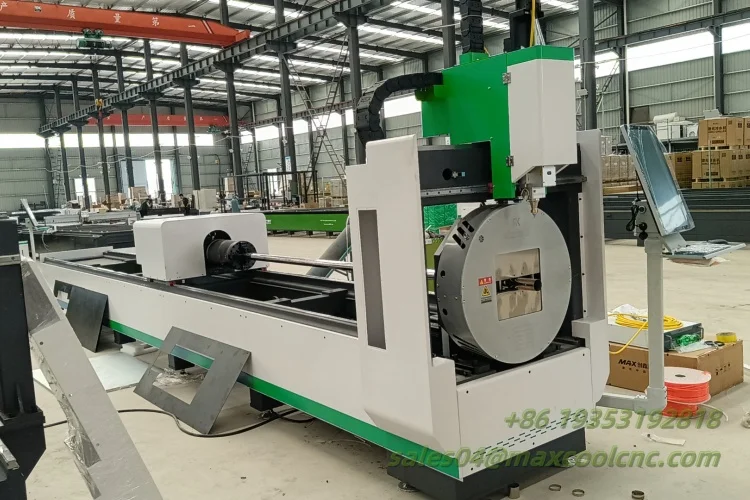

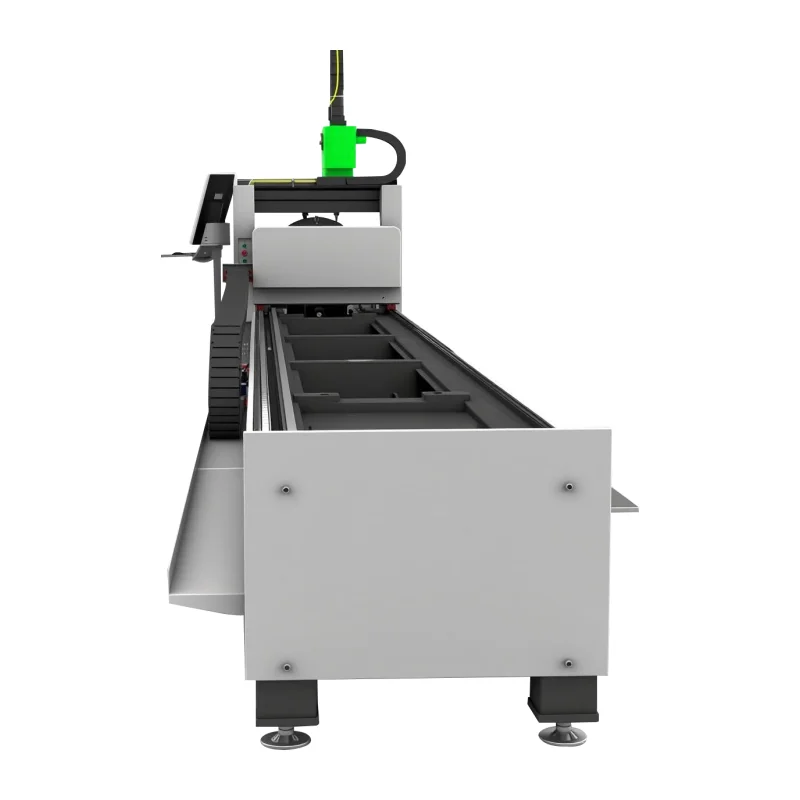

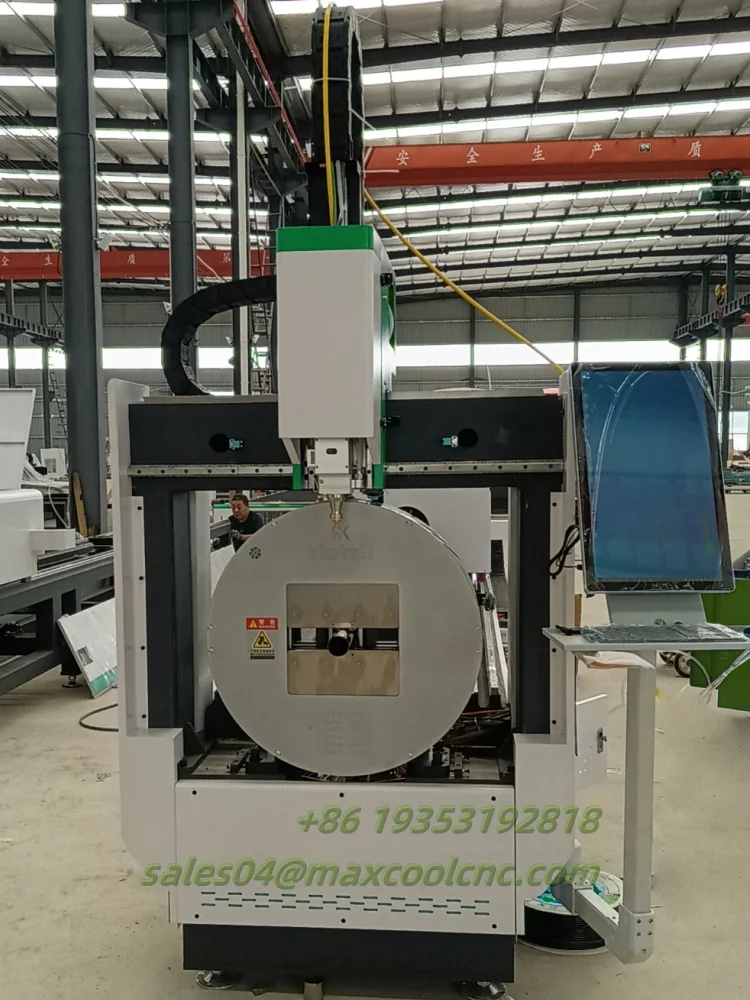

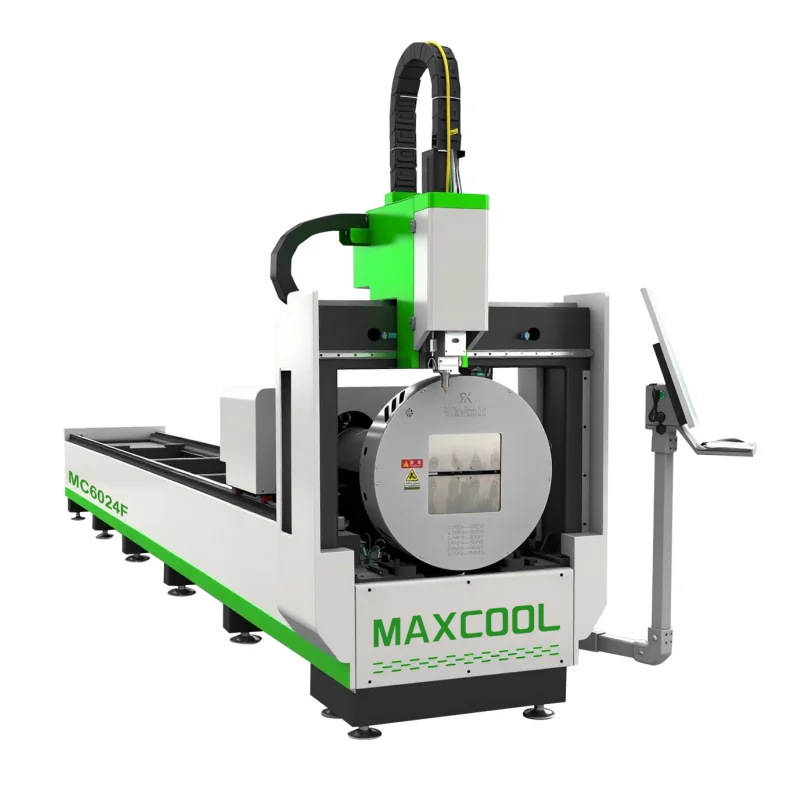

6M 12M Factory Customization CNC Fiber Laser Pipe Cutting Machine Laser Metal Tube Cutting Machine Price
Product Introduction
Product Parameter
1 | Model | MC6024F |
2 | Working area | 240*6000mm |
3 | Laser power | 1500W/2000W/3000W... |
4 | Control System | Raytools controller |
5 | Transmission | Rack and pinion transmission |
6 | Guide rail | Linear guide rail |
7 | Motor | Leadshine servo motor |
10 | Repeat positioning accuracy | ±0.02mm/m |
11 | Maximum Acceleration | 0.5G |
12 | Min line width | 0.1mm |
13 | Graphic Format Supported | AI, BMP, DST, DXF, DXP, PLT |
14 | Cooling Way | Water cooling |
15 | Machine Operating temperature | 0 ℃ -40 ℃ |
16 | Power Requirements | 220V/50Hz/60Hz |

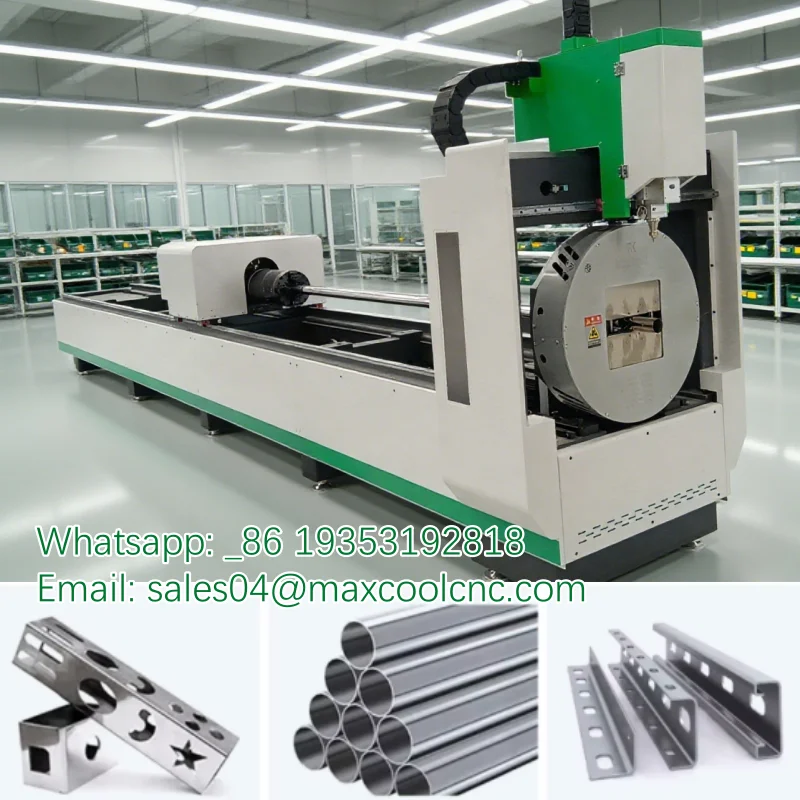

Samples
Specialized fast speed cutting of a variety of metal plates,pipes (add pipe cutting device),
mainly used in stainless steel,carbon steel,galvanized sheet,electrolytic plate,
brass,aluminum,steel,various alloy plate,rare metal and other materials.
After sale service
After-sale service
1. 3 years quality guaranty for the machine and online service everyday day, free technical support.
2. Free training to guarantee you can operate machine correctly.
3. We will provide the consumable parts at an agency price when you need replacement.
4. Our staff can be sent to your company to install or adjust if necessary.
5. The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment.
