- Hign-concerned Chemical: None
- is_customized: Yes
- Conductor Size: 1- 5 AWG
- Number of Contacts: 1 - 10
- Model Number: SAK 35EN
- Type: Screw
- Brand Name: WONKEDQ
- Origin: Mainland China
- Certification: CE,RoHS
- Usage: Distribution cabinet
- Application: Electrical Wiring Terminal Block
- Mounting Type: Din Rail
- Size L/H/W: 58/62/18mm
- Voltage: 800V
- Current: 125A

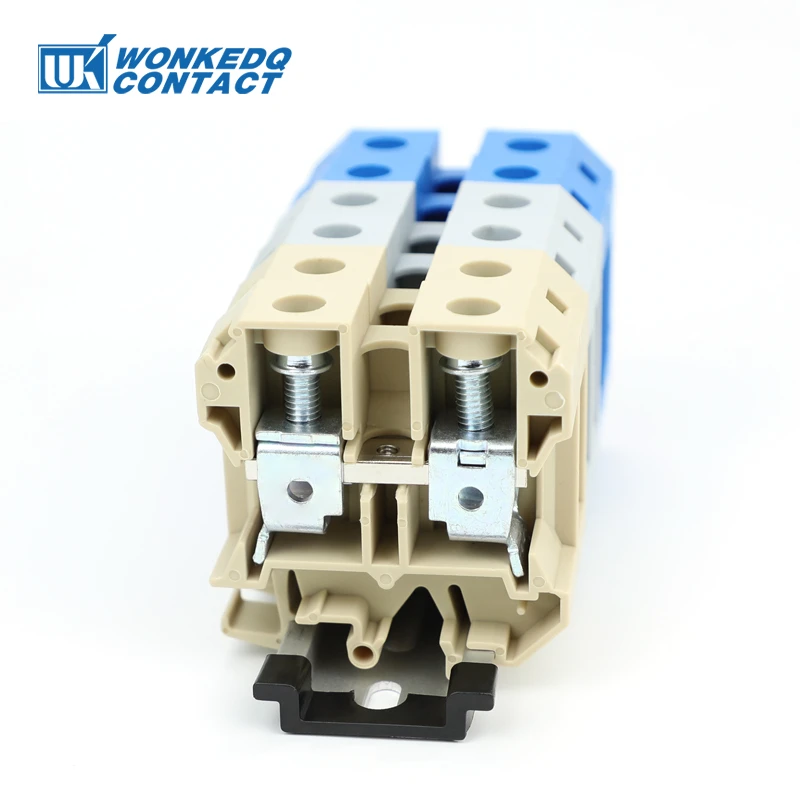

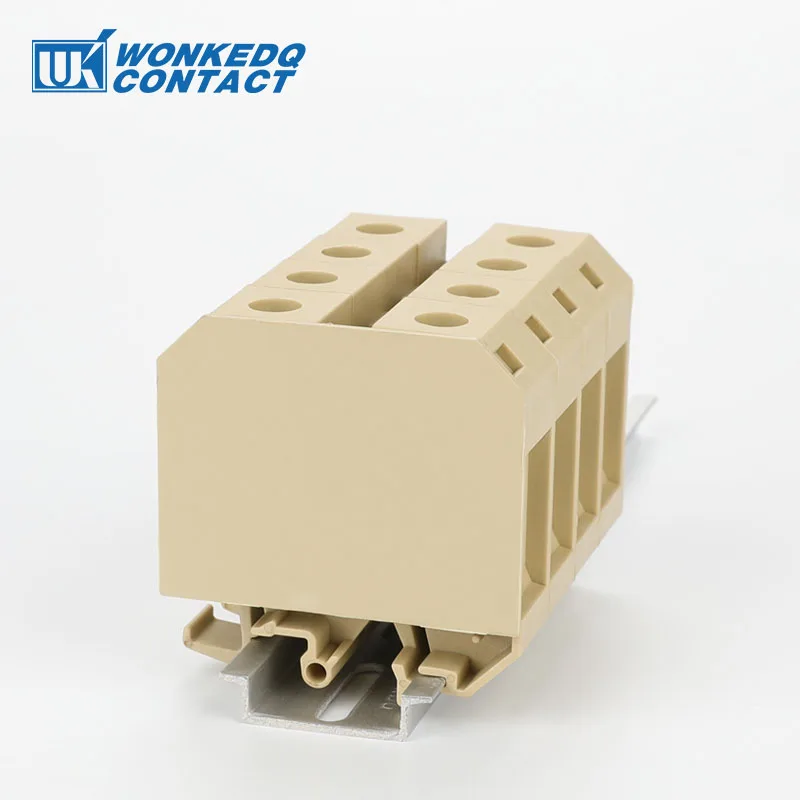

DESCRIPTION

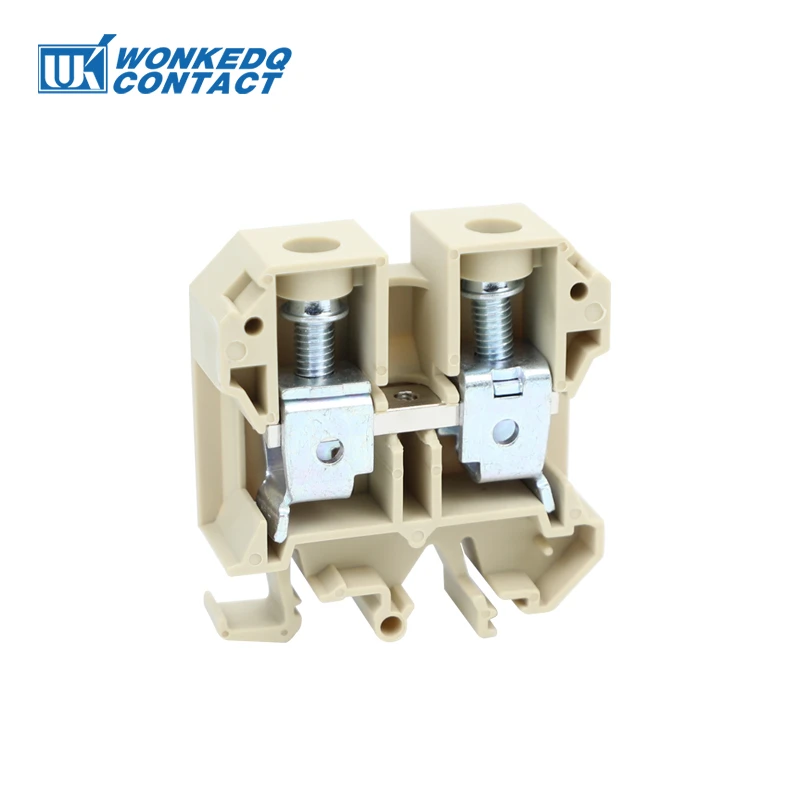

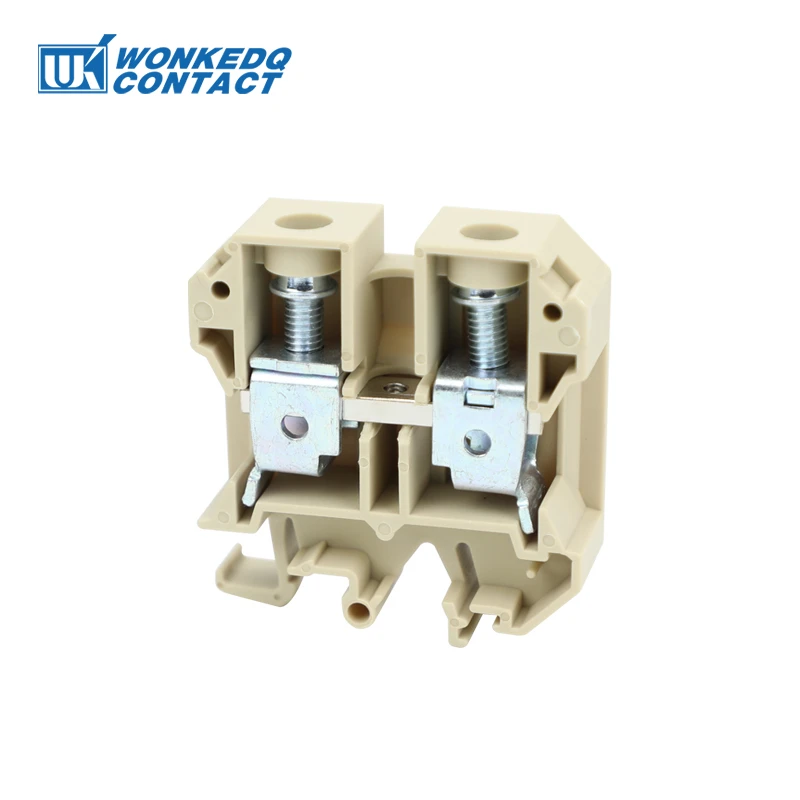

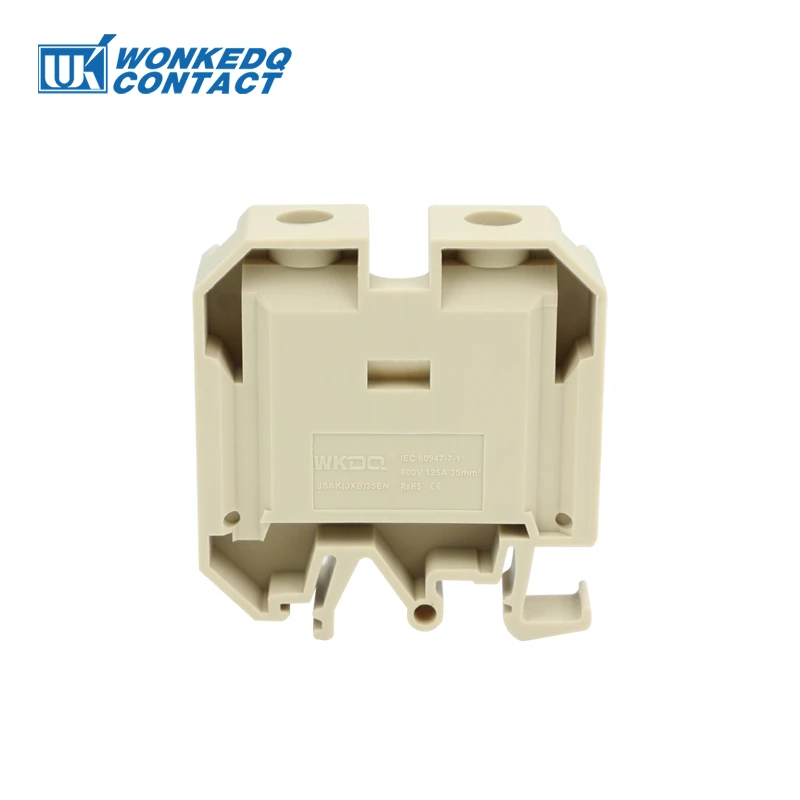

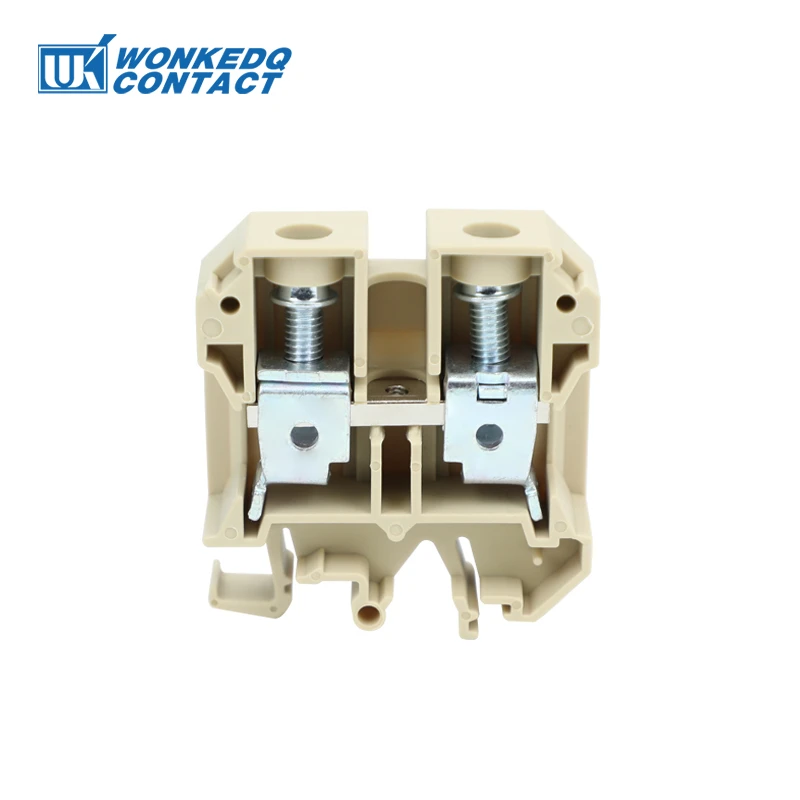

The SAK series terminal blocks with clamping yoke connection make planning easer and operational safety, providing a range of different requirements.
Made from engineering antiflaming nylon PA66 with brass screw metal.
Maintenance-free and vibration-proof screw connection
Low voltage drop and gas-tight contact point
With universal foot which can be installed on Din Rail NS 35. The three different clip-on foot designs available for different types of Din Rails.
It can connect two conductors with ease, even large conductor cross sections are not a problem.
Electric potential distribution can use fixed bridges in the terminal center o.
Large range of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.
ACCESSORIES ( Click the pictures to the links)
|
|
|
|

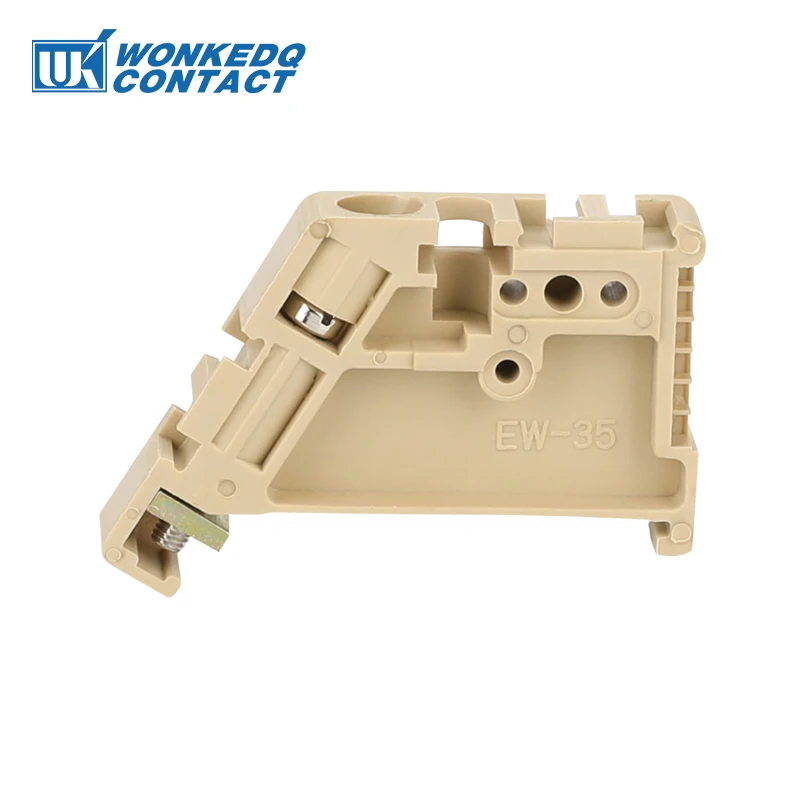

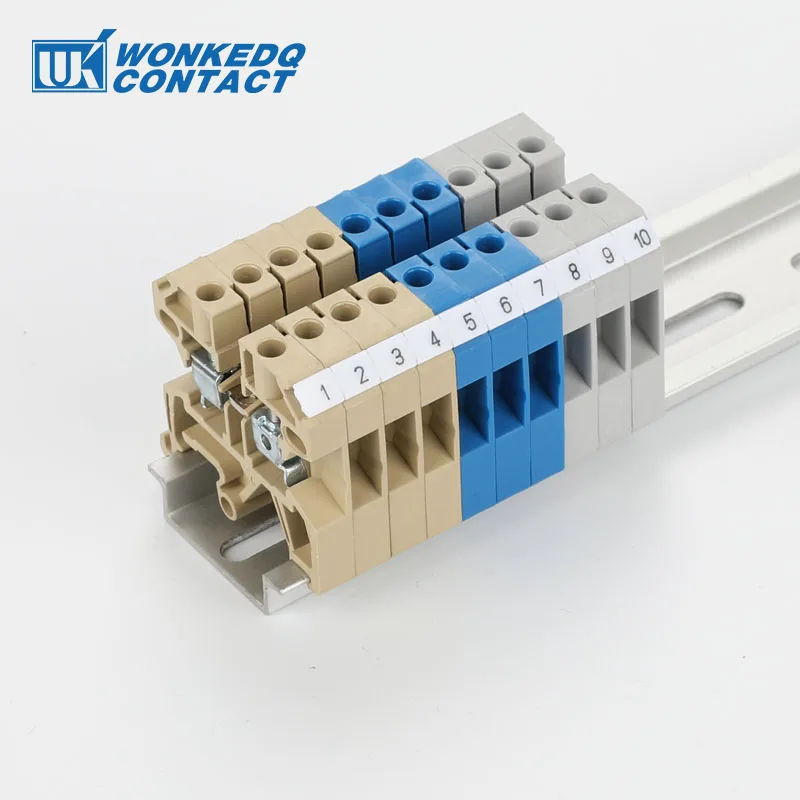

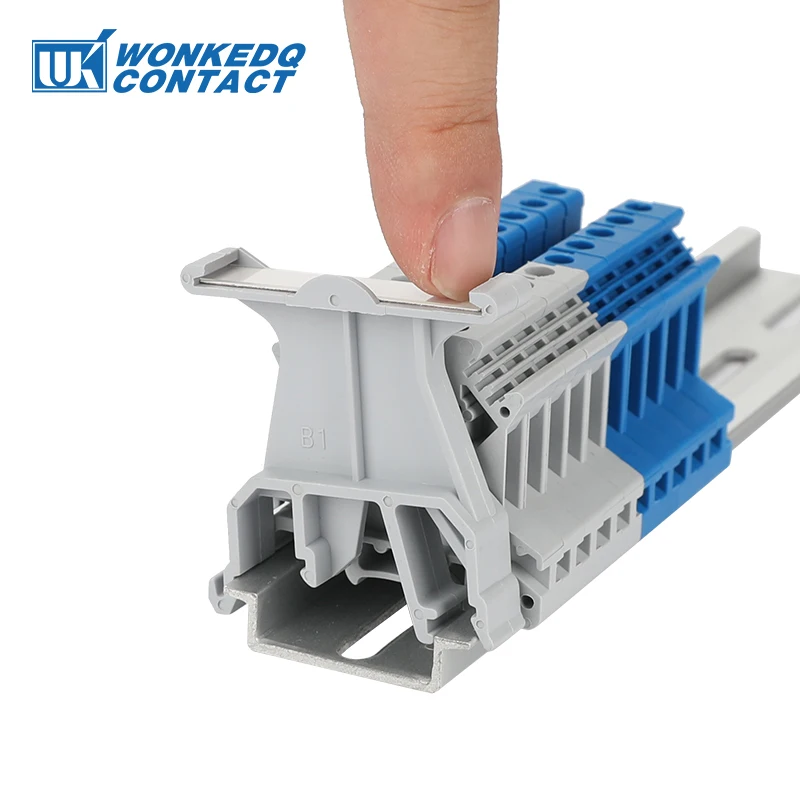

END COVER | MARKER STRIPS | END STOP | MARKER CARRIER |
|
|
|
|

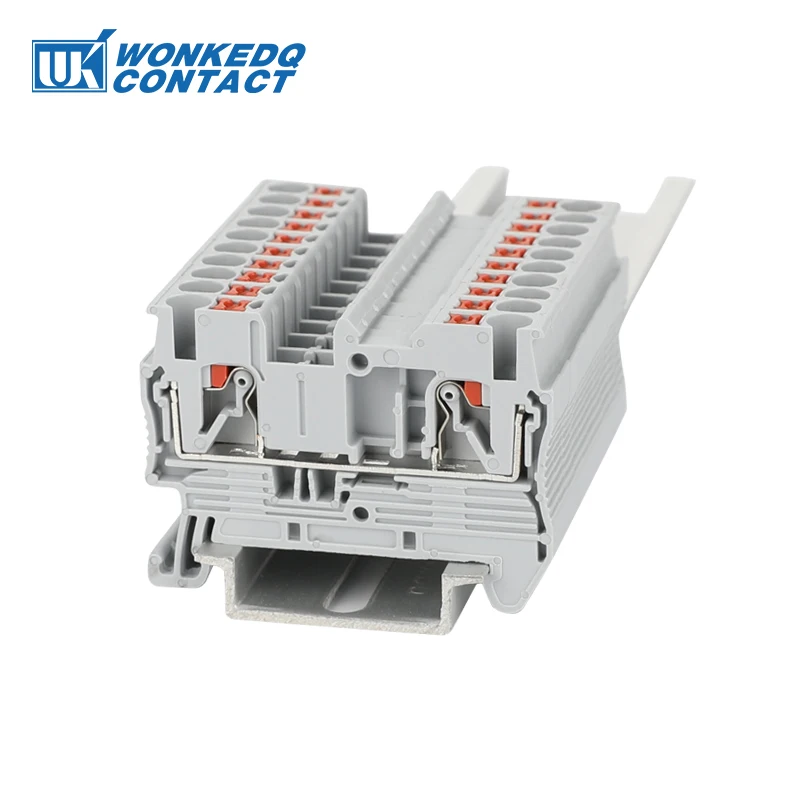

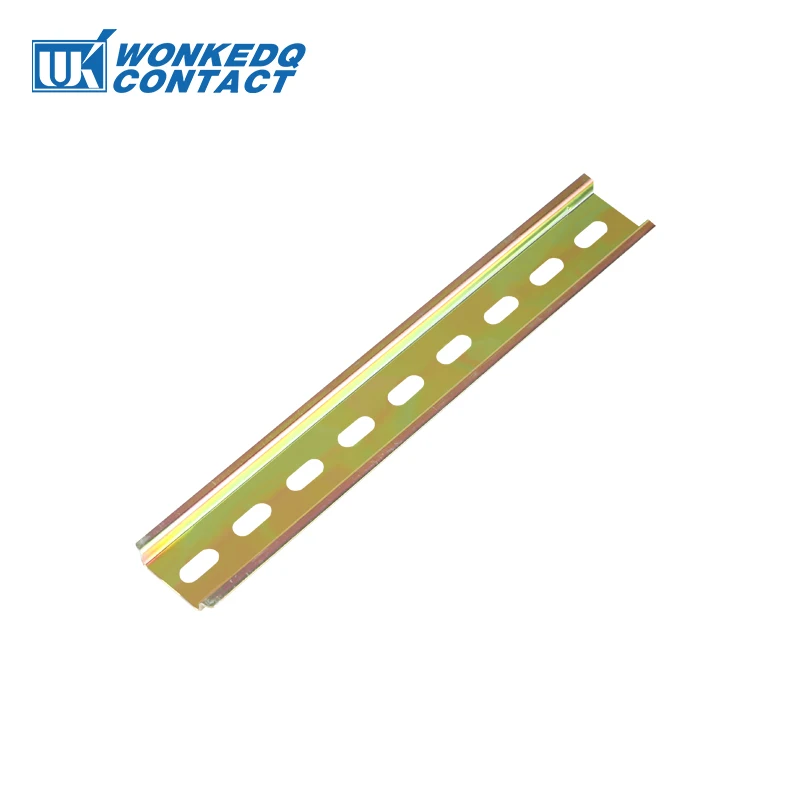

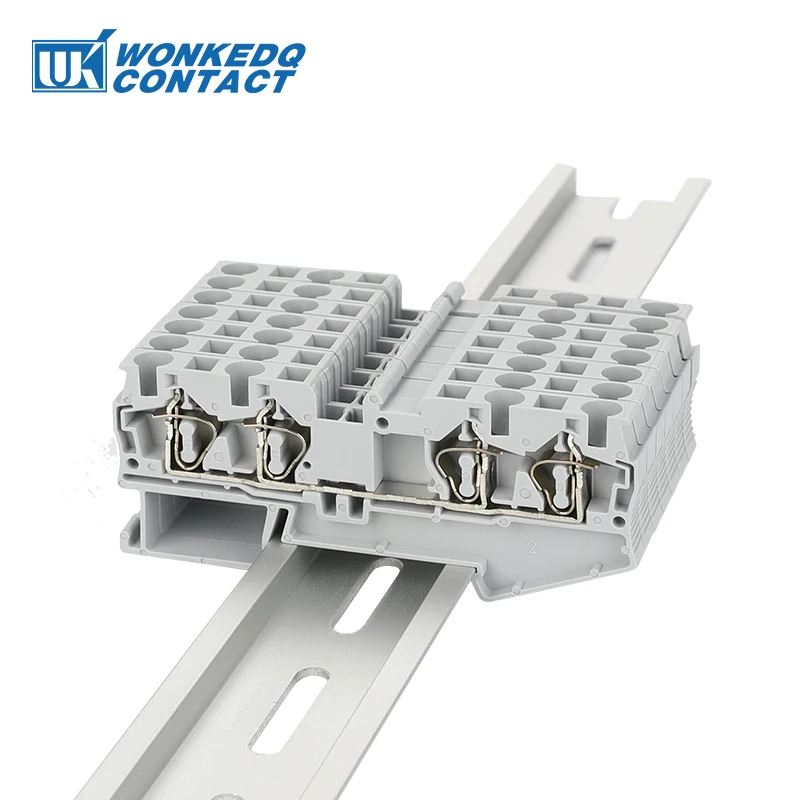

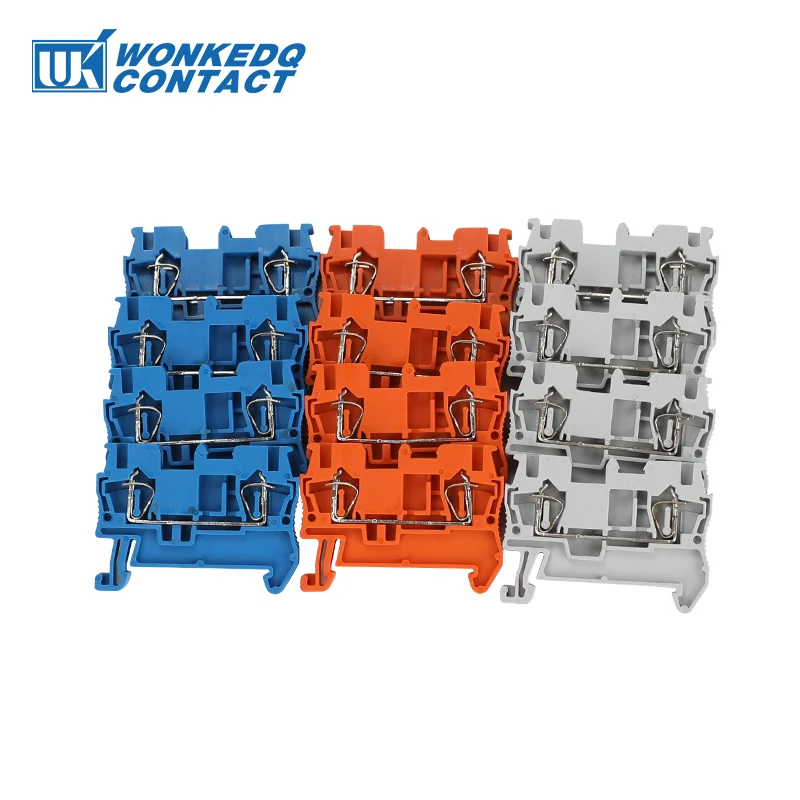

DIN RAIL | RECOMMEND (ST2.5) | RECOMMEND (PT2.5) | RECOMMEND (ST4) |
Type No. | Details | Accessories |
SAK 35EN | 800V/125A Cross section: 35mm² L58/H62/W18 mm | End cover: AP 35 |
Fixed bridge: SAK 35 Q2 | ||
Marker strip: DEK 6 |

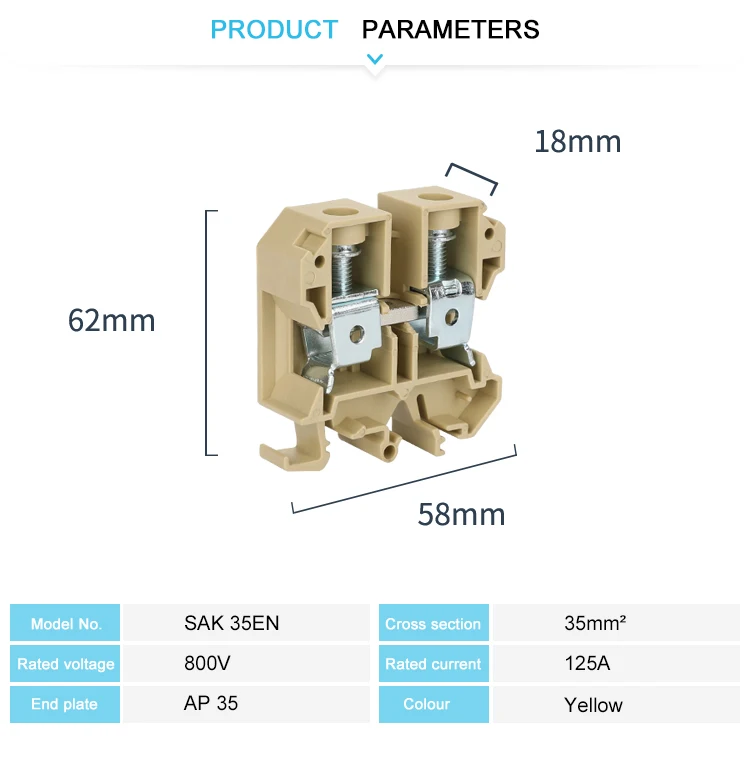

TECHNICAL PARAMETERS
Model Number | SAK 35EN |

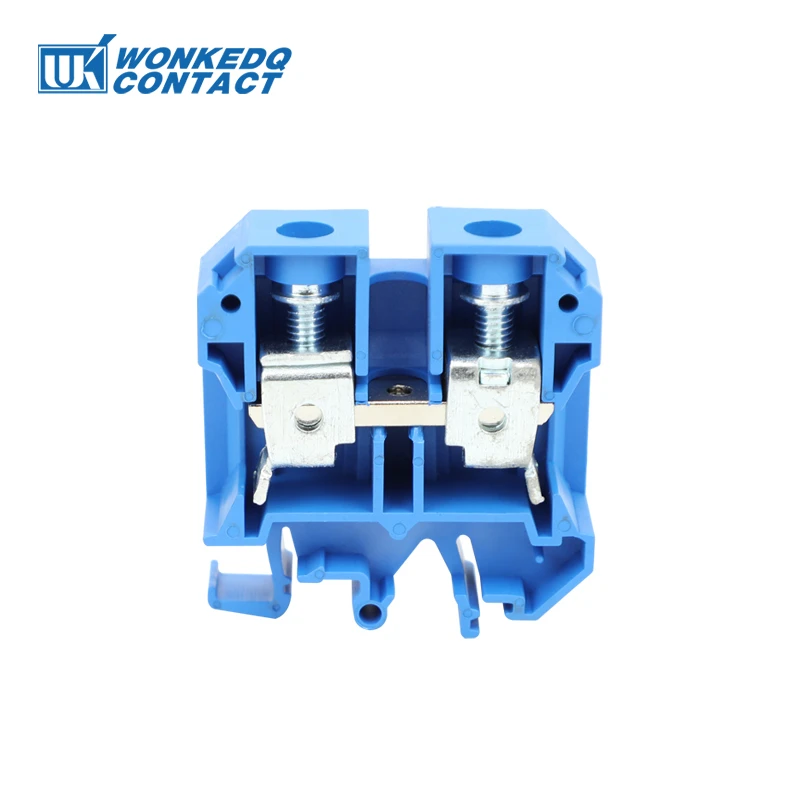

Color | Yellow, other color can be customized |

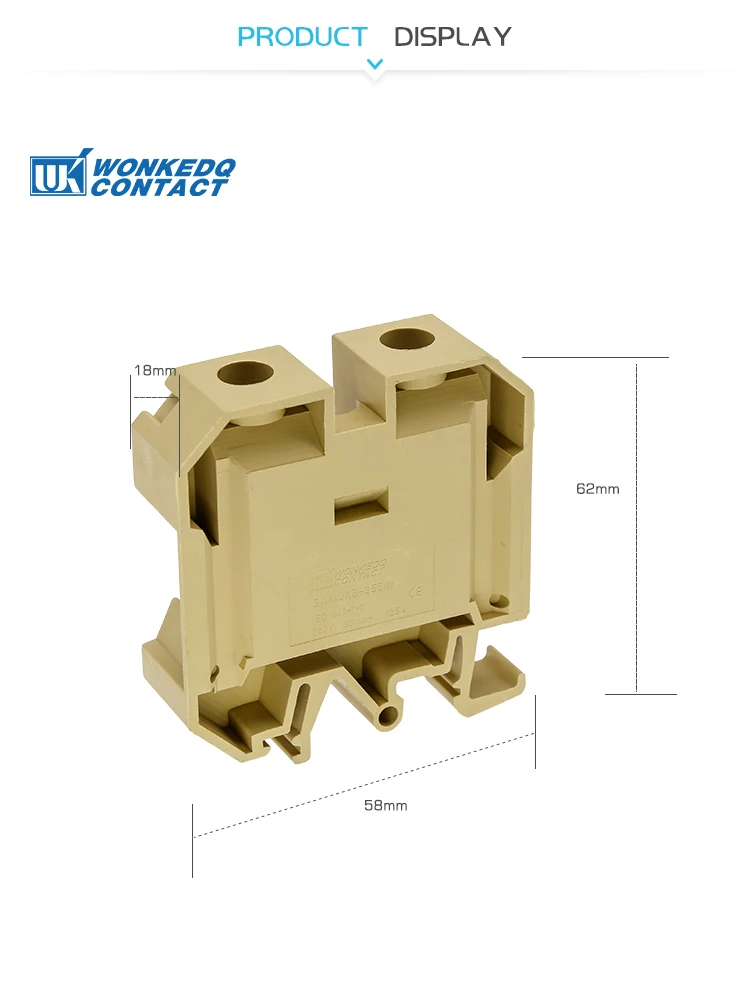

Length/Wide/Height (mm) | 58/62/18 |
Connection method | Screw connection |
Material | Nylon PA66 |
Rated Voltage/Current | 800V/125A |
Rated Cross section | 35 mm2 |
Mounting Type | NS 35/7.5 |
Standard | IEC 60947-7-1 |
LOGO | Customized logo are supported |
Packing Detail | 58.65g/pc, 20PCS/BOX,480PCS/CTN |

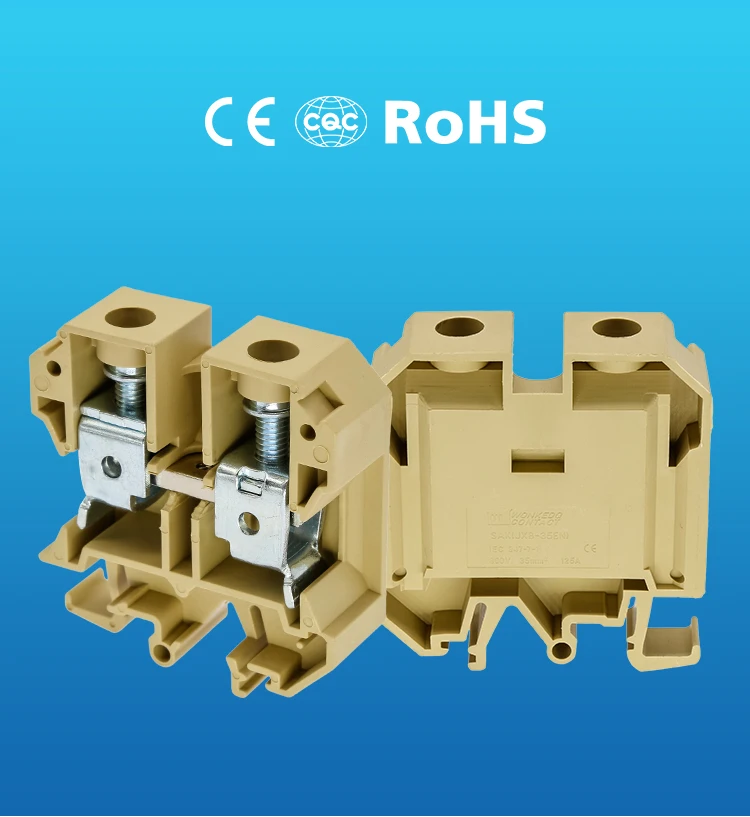

Certification | CE/RoHS/CQC/ISO 9001 |
