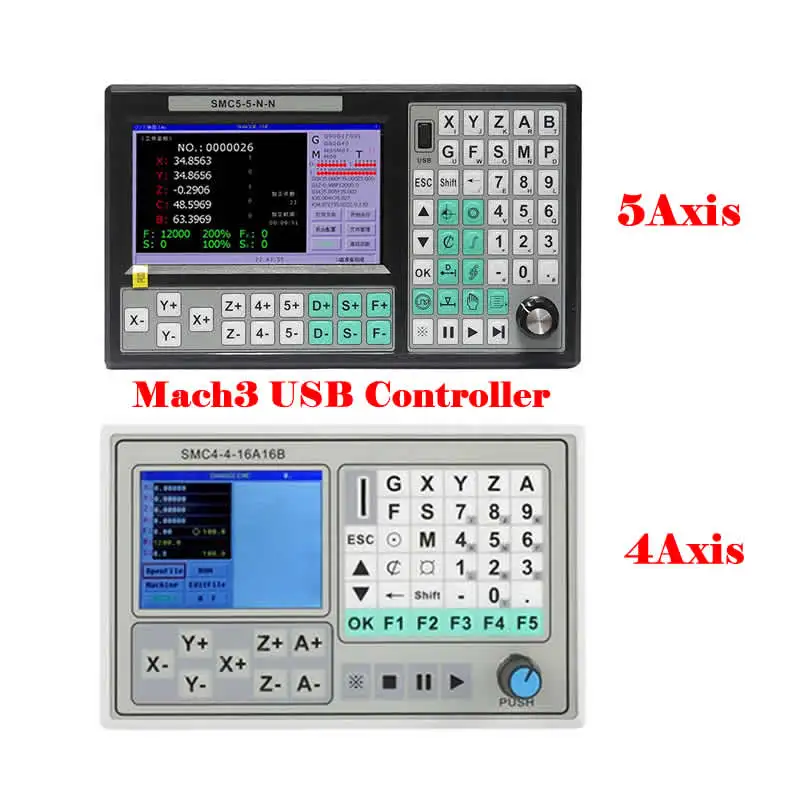

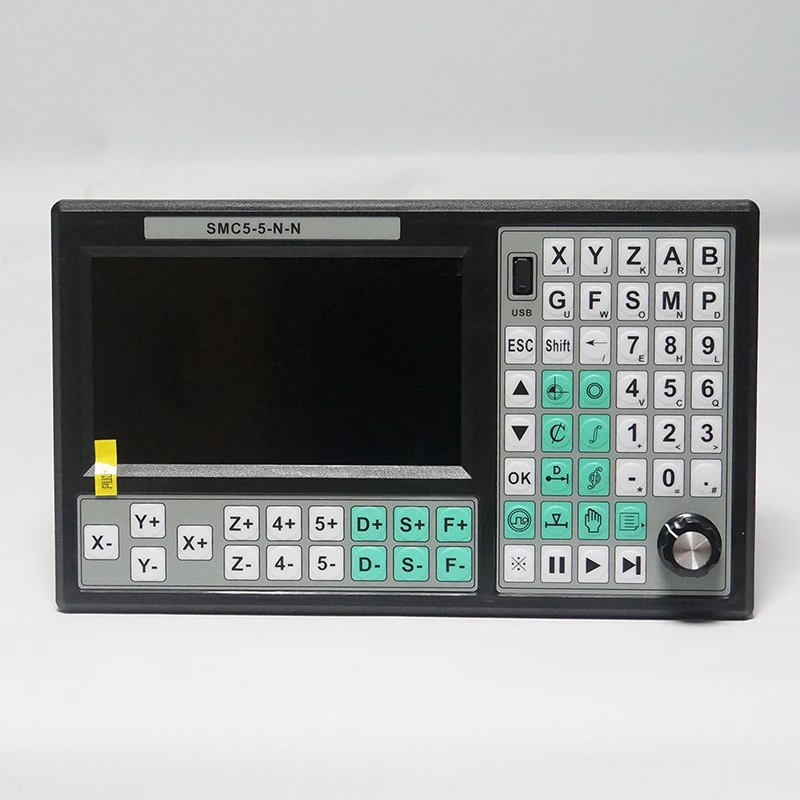

5 Axis Mach3 USB CNC Offline Controller 500KHZ Motion Card SMC5-5-N-N 7 Inch Screen 4 Axis Breakout Board for CNC Router Machine

Features:

Parameter settings: For processing, control parameters related to the operation

Manual operation: can be achieved manually, jog back to the program zero, back to mechanical zero, cleared coordinate operations.

Program management: program can create, delete, modify, read, save, save, automatic processing, continuous, and pause.

External Manual: Manually define a variety of external functions to facilitate the use of Freedom to select the input function: the limited input port can achieve a variety of user needs  System components

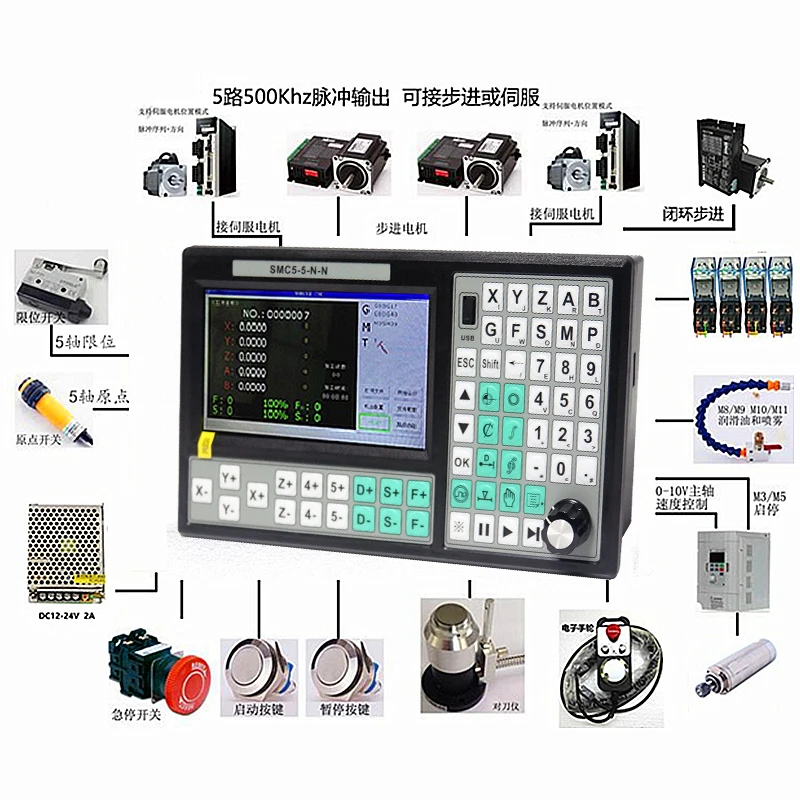

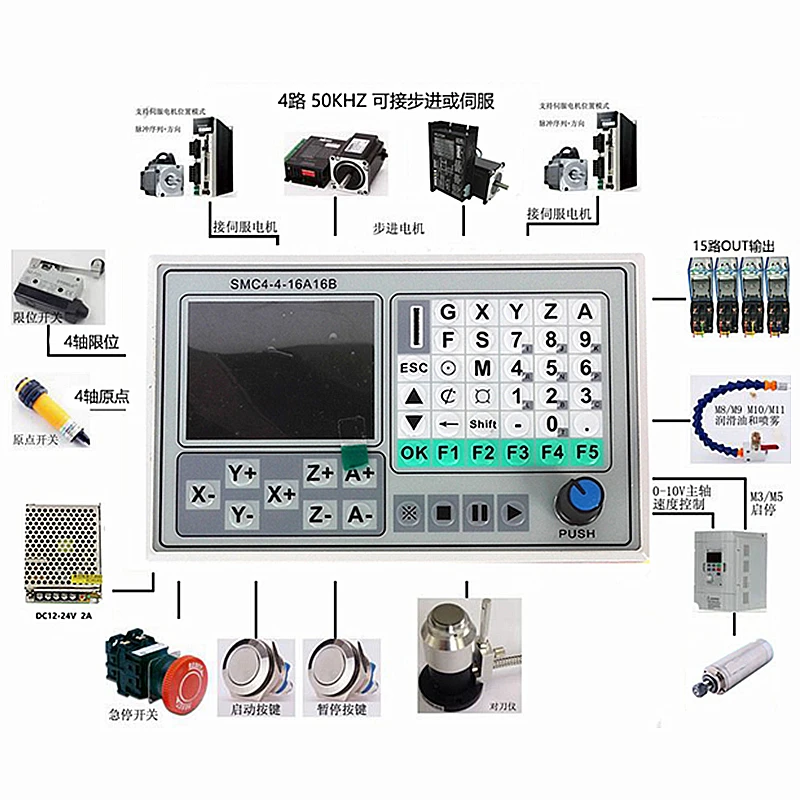

CNC system consists of the following components:

High-performance, high-speed 32-bit ARM CPU

Liquid crystal display (resolution: 320 × 240)

Input / Output (10MA 16 opto-isolated inputs and 16 opto-isolated output pull-down tank flow 500MA)

Users machining program memory can be implemented in any storage TF card

CNC system consists of the following components:

1. High-performance, high-speed 32-bit RM CPU

2. Liquid crystal display (resolution: 320 x 240) , display size:60*45

3. Input / Output (10MA 16 opto-isolated inputs and 16 opto-isolated output pull-down tank flow 500MA)

4. Users machining program memory can be implemented in any storage TF card

5. Support Folder read, each folder maximum support 50 tool path files

Specifications:

1. The smallest date unite: 0.0001mm

2. Thebiggest date unite: ± 99999.999mm

3. The highest frequency of pulse output: 50KHz (The three axises can reach 50KHZ at the same time)

4. Control axis: 4 axis (X, Y, Z, A axis)

5. 4-axis linkage axis and has a micro-multi-multi-axis interpolation control line forward

6. Appearance and Panel: Dimensions: length 165, width 101, height 50 Weight: 611g
