Name: 5 axis cnc router wood carving foam 5axis cnc milling woodworking machine price
SKU: 1005006164131662
Price: 833187.00 BRL
Availability: InStock

R$ 833.187,00

200 em stock

REF: 1005006164131662

Descrição

Descrição

Model Number: 5 axis cnc router
Condition: New
CNC or Not: CNC
Brand Name: IGOLDENCNC
Origin: Mainland China
Working area: 1200*2000*500mm
After-sales Service Provided: Engineers available to service machinery overseas
spindle: 14KW SCM 5axis spindle360°
Inverter: Taiwan delta
Rack: Taiwan XINYUE/Germany WMH HERION
XYZ structure: XYZ ball screw(XY rack and pinion,Z ball screw for big size)
Motor: Japan yaskawa servo motor
Control system: Taiwan syntec 5 axis control system
Vacuum pump: 5.5KW water/5.5KW air
name: 5 axis cnc machine price

Product Description

cheap 5 axis cnc router foam 5axis cnc wood carving machine with automatic tool changer

Features:
(1) Adopt stable numerical control system, powerful, high processing precision and fast speed.
(2) Each component adopts the international brand.
(3) Five-axis linkage with RTCP function (true five-axis interpolation) is suitable for large-scale three-dimensional curved surface machining modeling.
(4) Diversified control can control the processing speed, empty speed, etc. separately.

Model	IGW-5AM-1220
Working area	12002000500mm
Table	steel
gantry	Steel
spindle	14KW SCM 5axis spindle360°
Spindle speed	0—24000r/min
Inverter	Taiwan delta
rail	Taiwan HIWIN/Taiwan PMI
Rack	Taiwan XINYUE/Germany WMH HERION
Motor	Japan yaskawa servo motor
Driver	Japan yaskawa servo driver
Reducer	Taiwan SHIMPO
XYZ structure	XYZ ball screw(XY rack and pinion,Z ball screw for big size)
Working table	Vacuum tablealuminum T slot(optional)
Dust collector	optional
Vacuum pump	5.5KW water/5.5KW air
Oil lubrication	manual(auto optional)
Position cylinder	No
command	G code
Max travelling speed	60000mm/min
Max engraving speed	30000mm/min
voltage	AC220V/380v - 50HZ

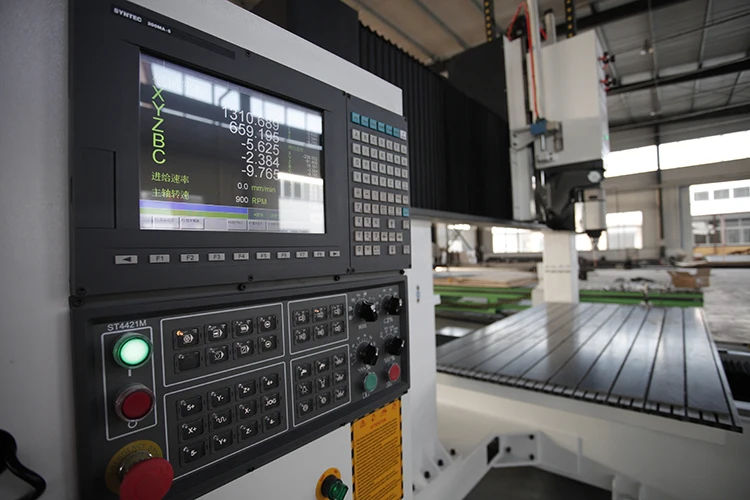

Control system	Taiwan syntec 5 axis control system

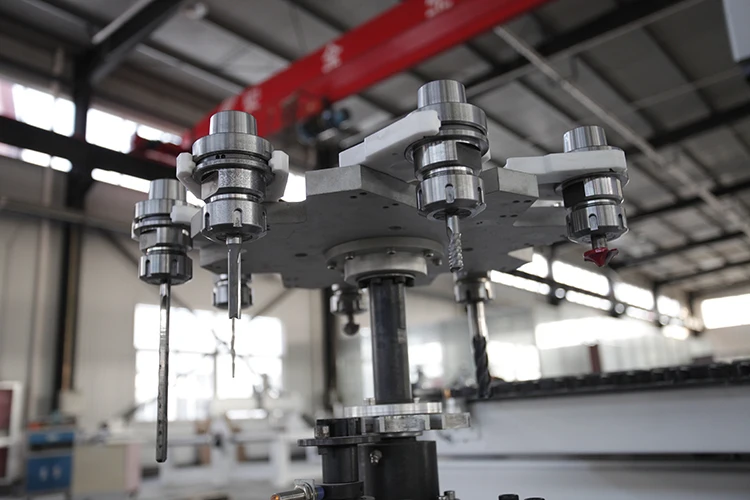

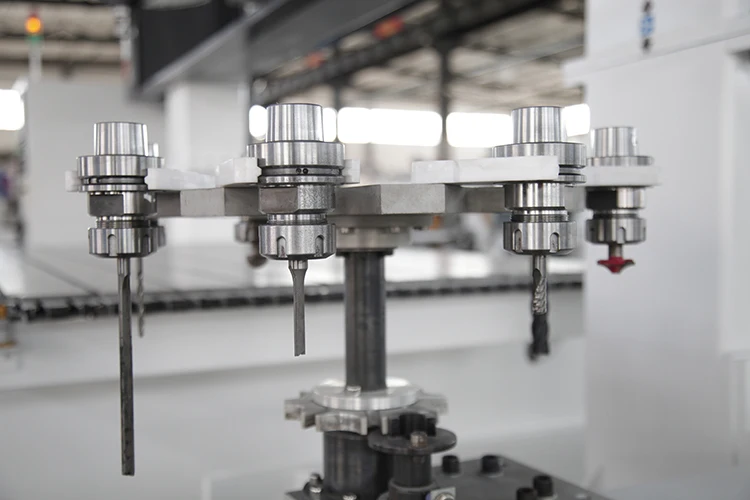

Tool change quantity	8pcs round type
Gross weight	30000KG
Motion positioning accuracy	±0.05mm
Repeated positioning accuracy	±0.02mm

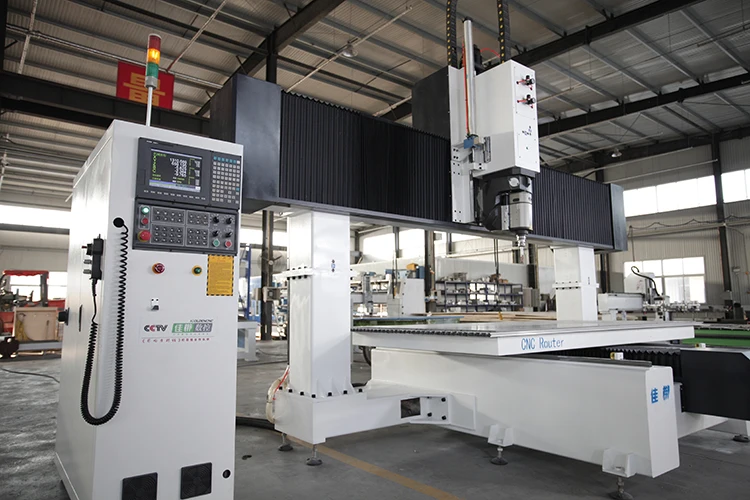

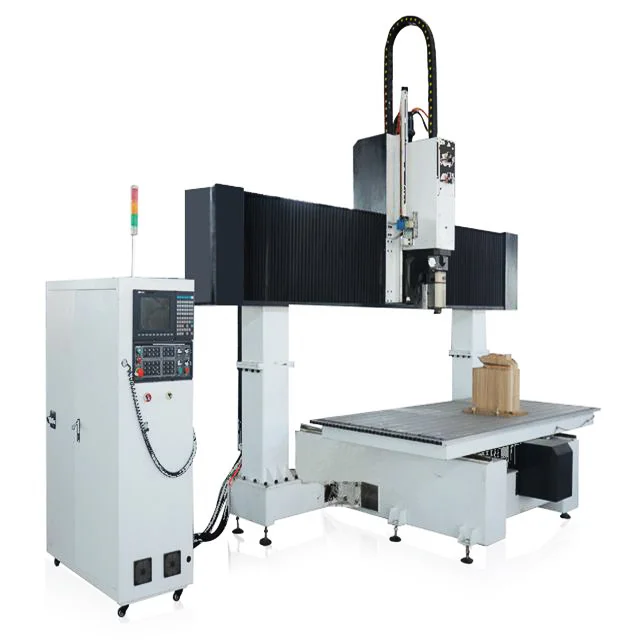

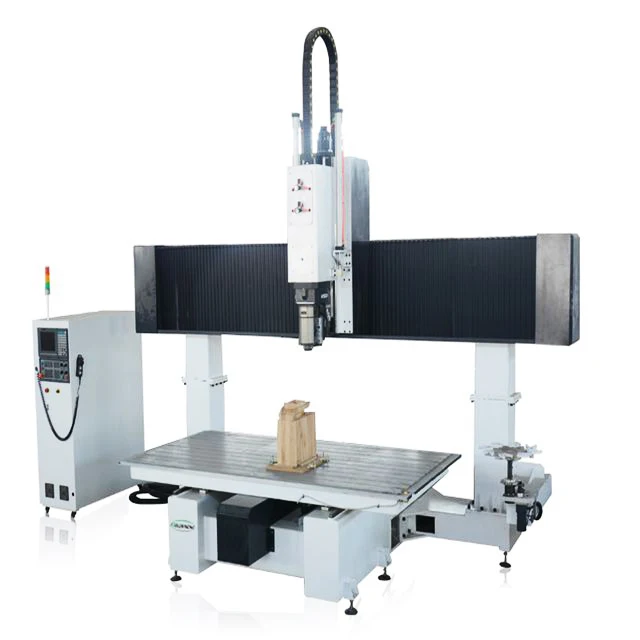

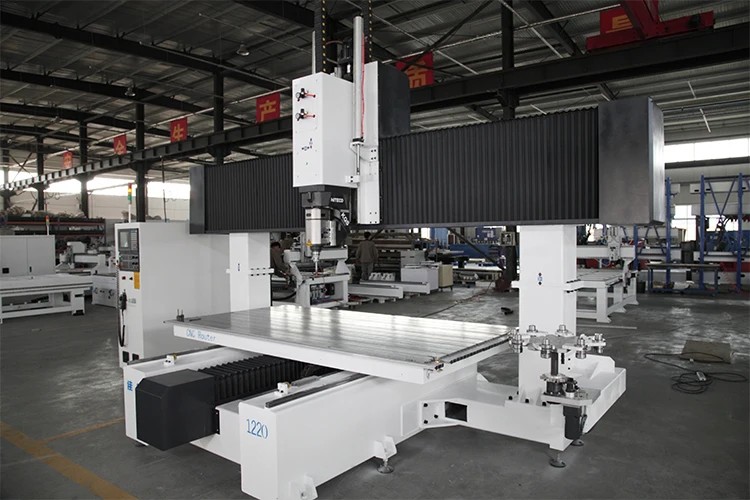

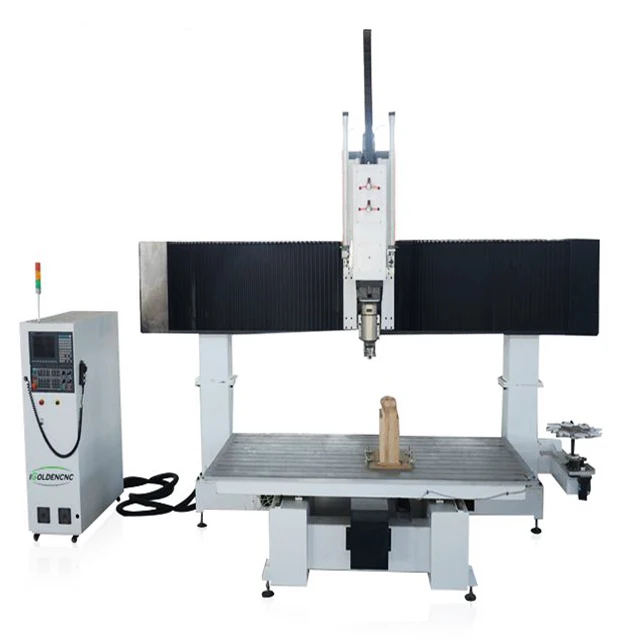

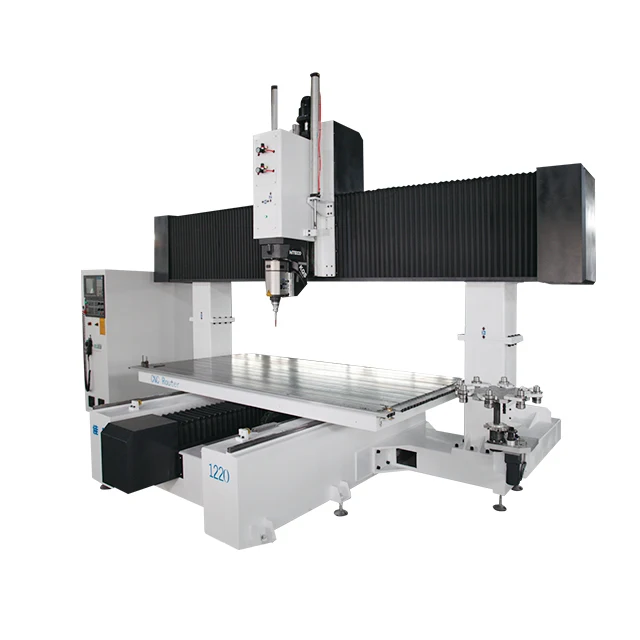

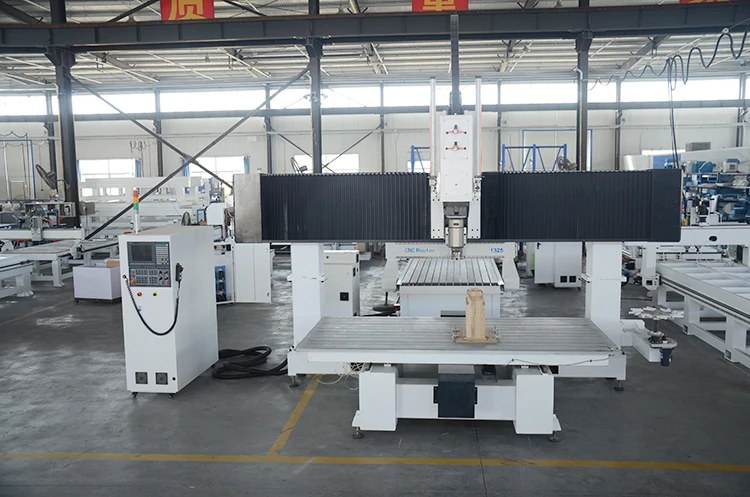

Detailed Images

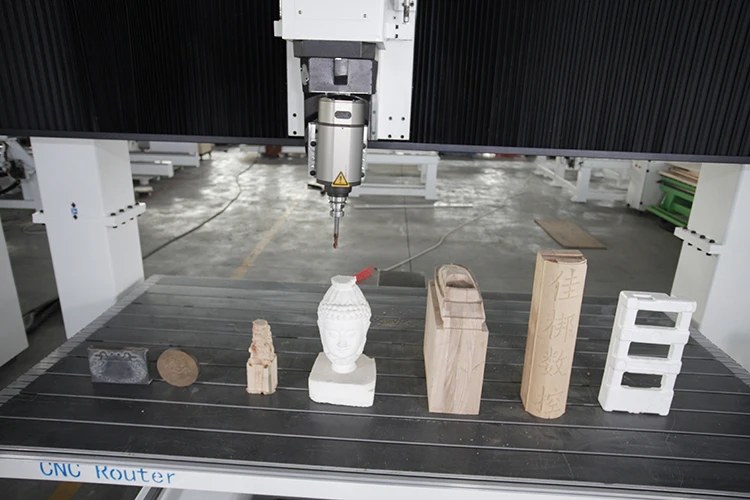

Sample & Application

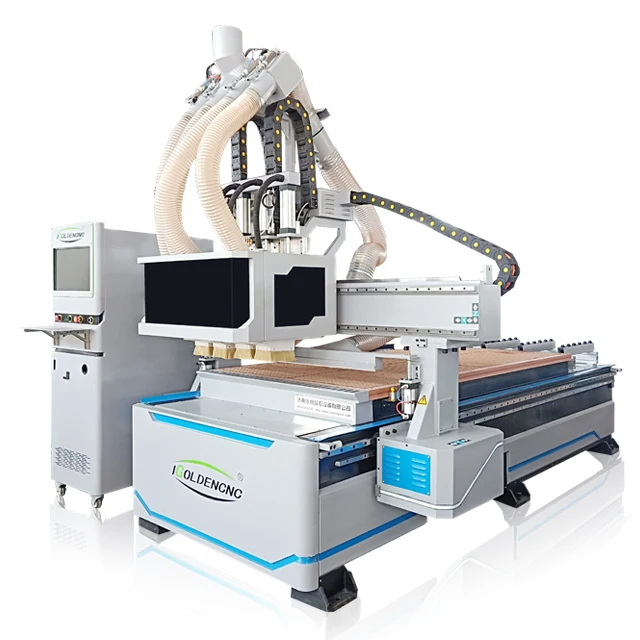

Recommend For You
