- Model Number: 5 axis cnc router
- Condition: New
- CNC or Not: CNC
- Brand Name: IGOLDENCNC
- key words: 5 axis cnc router
- name: 5axis cnc router
- Model: iGW-5AM-3012
- Type: Table moving 5 axis cnc router
- working size: 3000*1200*800mm

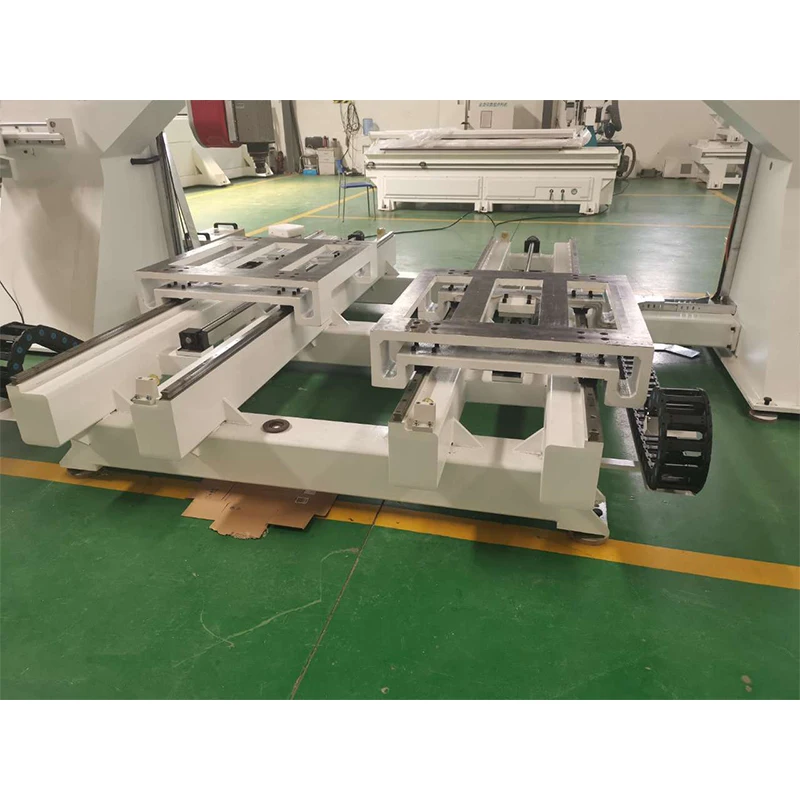

- table structure: Double surface cast iron table moving
- Transmission: Helical rack on X axis, Taiwan TBI ball screw for Y Z axis
- Guide Rail: Three axis #30 Taiwan guide rail
- Tool Change: 10 tool changes (optional double magazine)

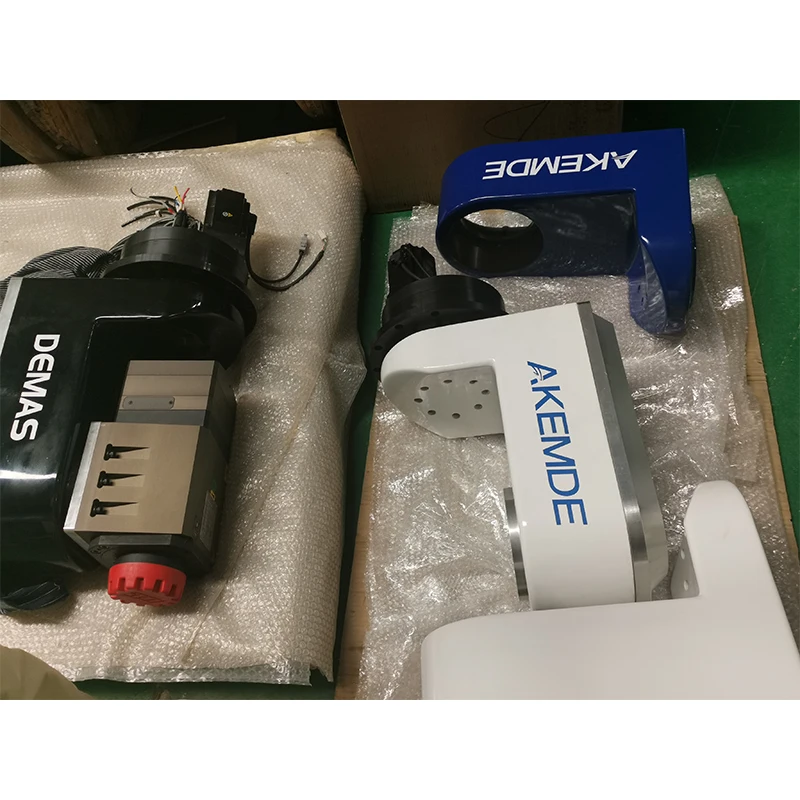

- Spindle: Spanish akemd five axle head and 14.4-17KW spindle
- control system: Taiwan SYNTEC control system
- servo motor: Japan YASKAWA
- function: 5 axis cnc router foam
- use: 5 axis cnc router wood
- feature: 5 axis cnc router machine

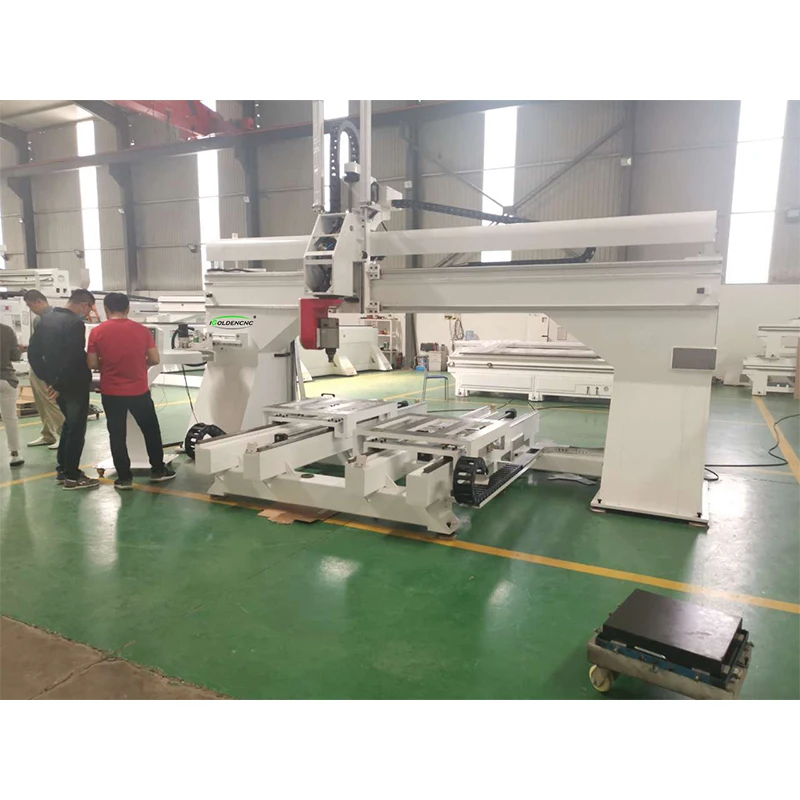

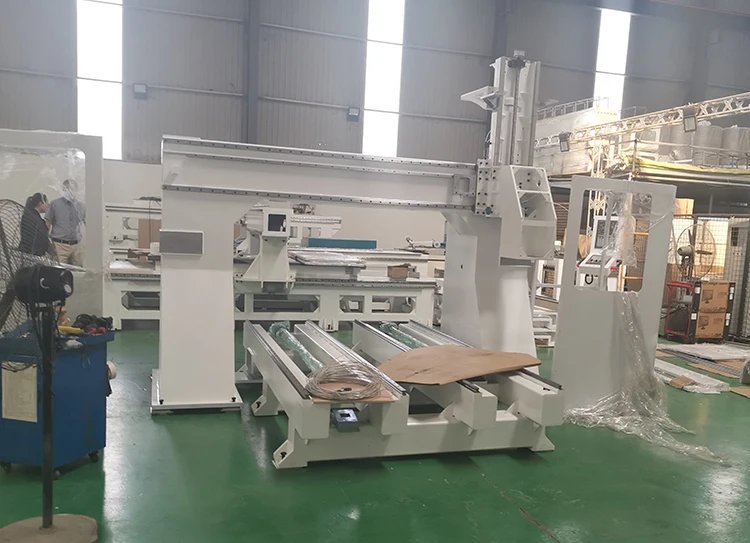

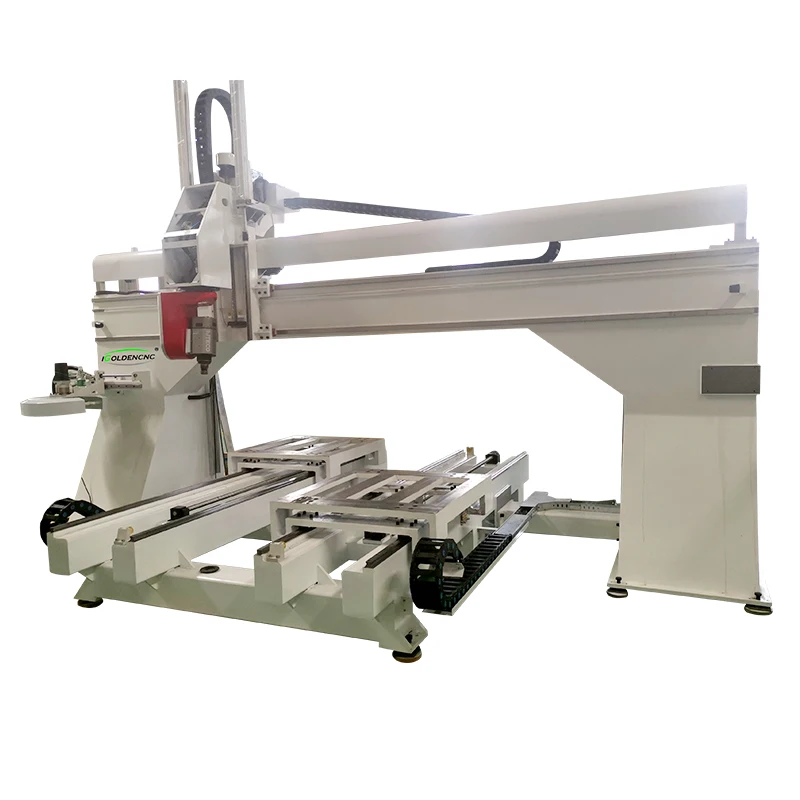

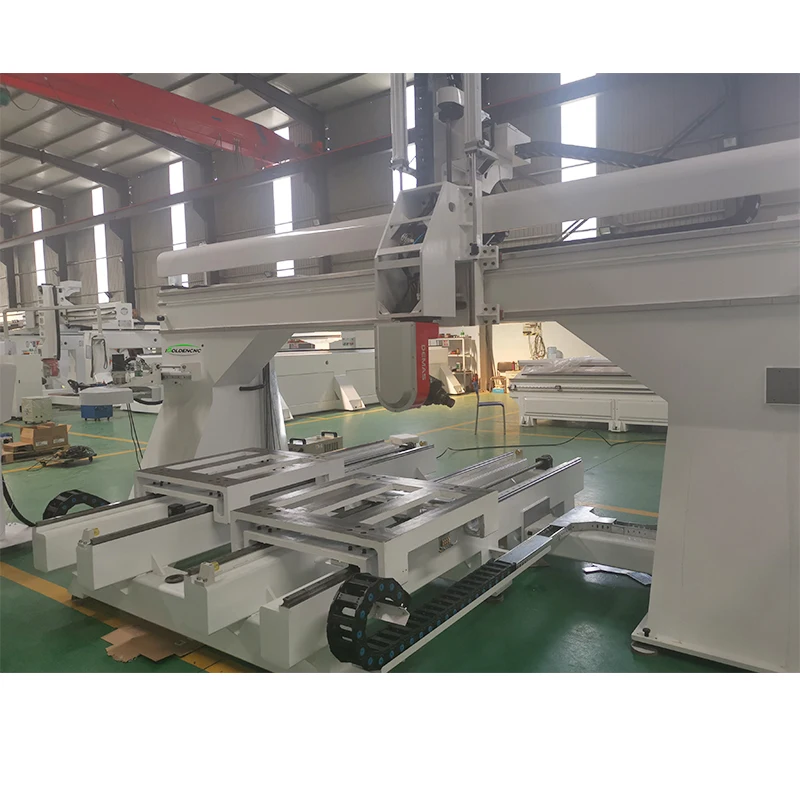

5-axis cnc router 5 axis foam wood carving machine for metal
Features:
(1) Adopt stable numerical control system, powerful, high processing precision and fast speed.
(2) Each component adopts the international brand.
(3) Five-axis (true five-axis interpolation) is suitable for large-scale three-dimensional curved surface machining modeling.
(4) Diversified control can control the processing speed, empty speed, etc. separately.
|
Model |
iGW-5AM-3012 |
|
Type |
Table moving 5 axis cnc router |
|
working area |
3000*1200*800mm |
|
Table structure |
Double surface cast iron table moving |
|
Transmission |
Helical rack on X axis, Taiwan TBI ball screw for Y Z axis |
|
Guide Rail |
Three axis #30 Taiwan guide rail |
|
Tool Change |
10 tool changes (optional double magazine) |
|
Spindle |
Spanish akemd five axle head and 14.4-17KW spindle |
|
Control System |
Taiwan SYNTEC control system |
|
Servo Motor |
Japan YASKAWA |
These machines are all popular among different customers. Why not to take one minutes for clicking to get more details. All the specification of machine can be customized according to your own requirements, and there will be one machine suit for you.
|
|
|
| ATC CNC Wood Machine |
Pneumatic Multi Spindles |
CNC Plasma Cutting |
Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc.
