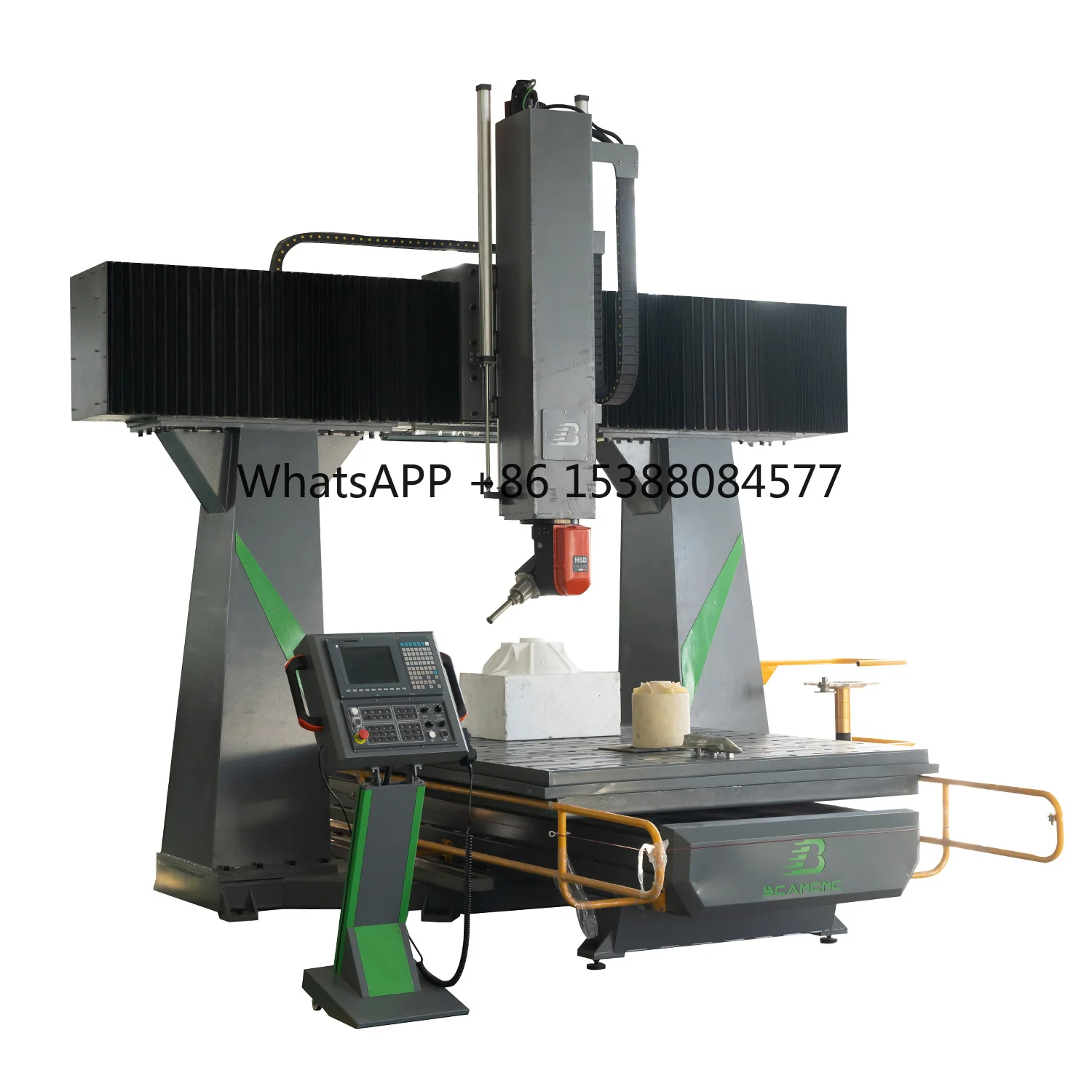

3D Foam CNC Cutting Router Machine 5 Axis Wood Engraving CNC Router Machining Center For Mold Making Equipment
Product Description
1.Constant Tip Speed Machining – Automatically varies the machine feed speed to allow the tip of tool to maintain a constant speed. This feature synchronizes the linear and rotary movements ensuring a constant and smooth cutting motion.
2.. Volumetric 3D Laser Compensation – This procedure is standard on all machines prior to shipment to our customers. This feature compensates for position errors within the three dimensional working envelope of the machine.
3.Linear Compensation – This procedure is standard on all machines during the construction phase and compensates for inherent variances in components during machine construction.
|
Parameters:
|
Standard Specifications BCM1325D 5AXIS
|
|
Spindle Power:
|
Italy 13.5kw
|
|
X,Y,Z Working Area:
|
1300*2500*200mm
|
|
Table Surface:
|
Vacuum table + T-solt table
|
|
Max. Rapid Travel Rate:
|
70m/min
|
|
Max. Working Speed:
|
50m/min
|
|
Drive Motors:
|
4 sets 750W Yaskawa servo motor
|
|
Command Language:
|
G Code
|
|
Operating System:
|
Taiwan Syntec 6MB control system Interface
|
|
USB:
|
Software Compatibility
|

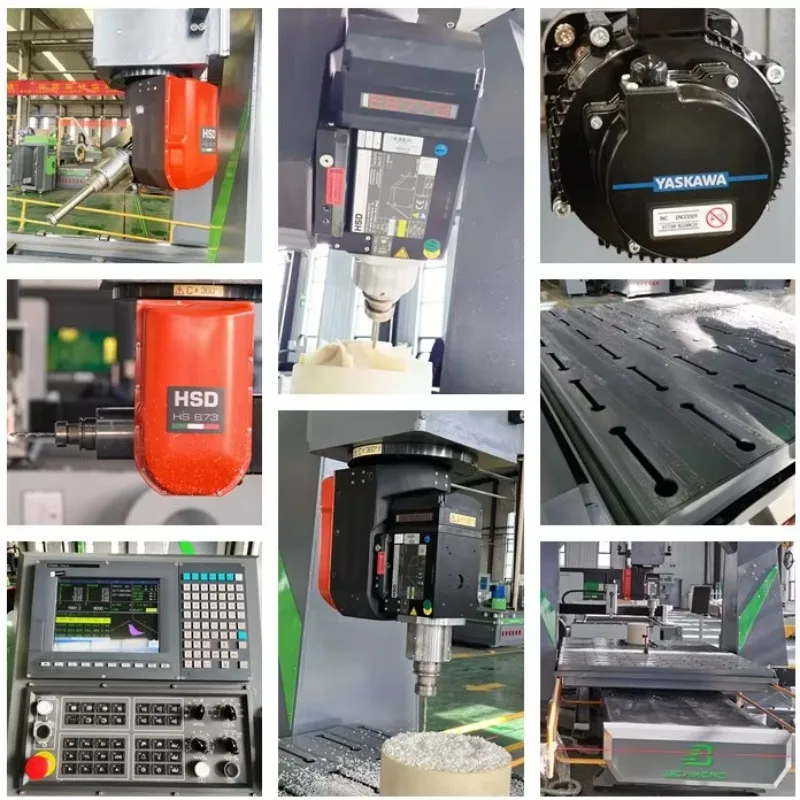

Product Details
Italian HSD 9.5KW(12HP) Electrospindle
with 12-position Automatic Tool Changer(ISO30).
Feed Rate:
X Axis 3150ipm(80mpm) Y Axis 3150ipm(80mpm)
Z Axis 735ipm(18.7mpm) Y Axis 3150ipm(80mpm)
A and C Axes 82.5 degree/sec
Acc/Dec 205in/sec2

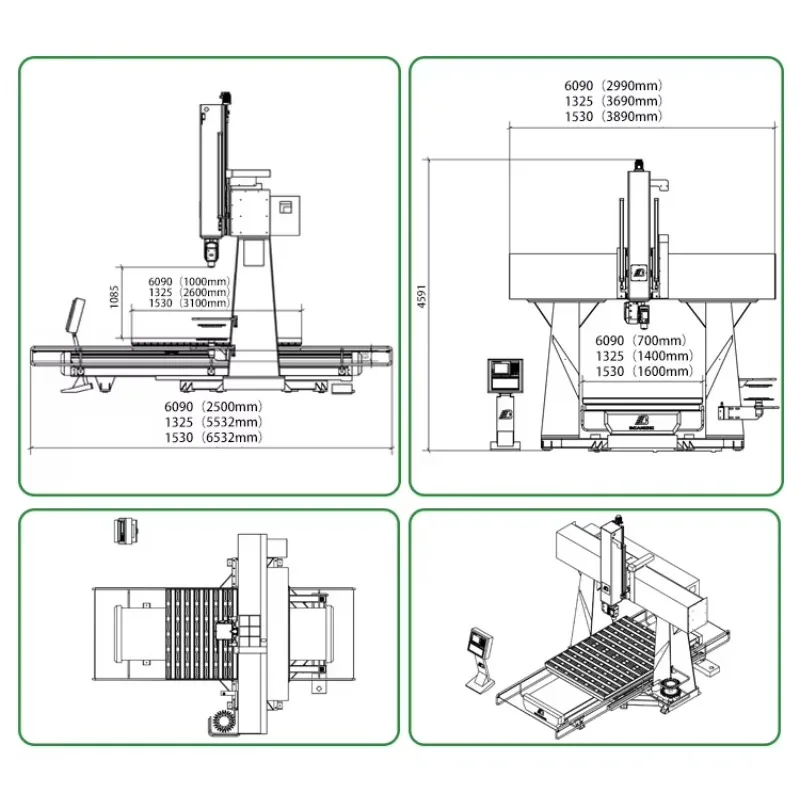

Axis Travel BCM1530 5 AXIS 1500*3000*800MM
A Axis ±120° C Axis ±213°
Feed Rate:
X Axis 3150ipm(80mpm) Y Axis 3150ipm(80mpm)
Z Axis 735ipm(18.7mpm) Y Axis 3150ipm(80mpm)
A and C Axes 82.5 degree/sec
Acc/Dec 205in/sec2
Axis Travel BCM1530 5 AXIS 1500*3000*800MM
A Axis ±120° C Axis ±213°
Panel Loading system
with scissor lift and automatic panel alignment. The system ease of use ensures long term reliability .also Moving the panel with dynamic vacuum sunction cup loading system , A solution that adats to all sureface types.
The control system of BCAM1325D-5 AXIS adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis, 4, 5, 6, 8axis. The Syntec system can work online and WiFi links, greatly increasing the intelligence of the device.

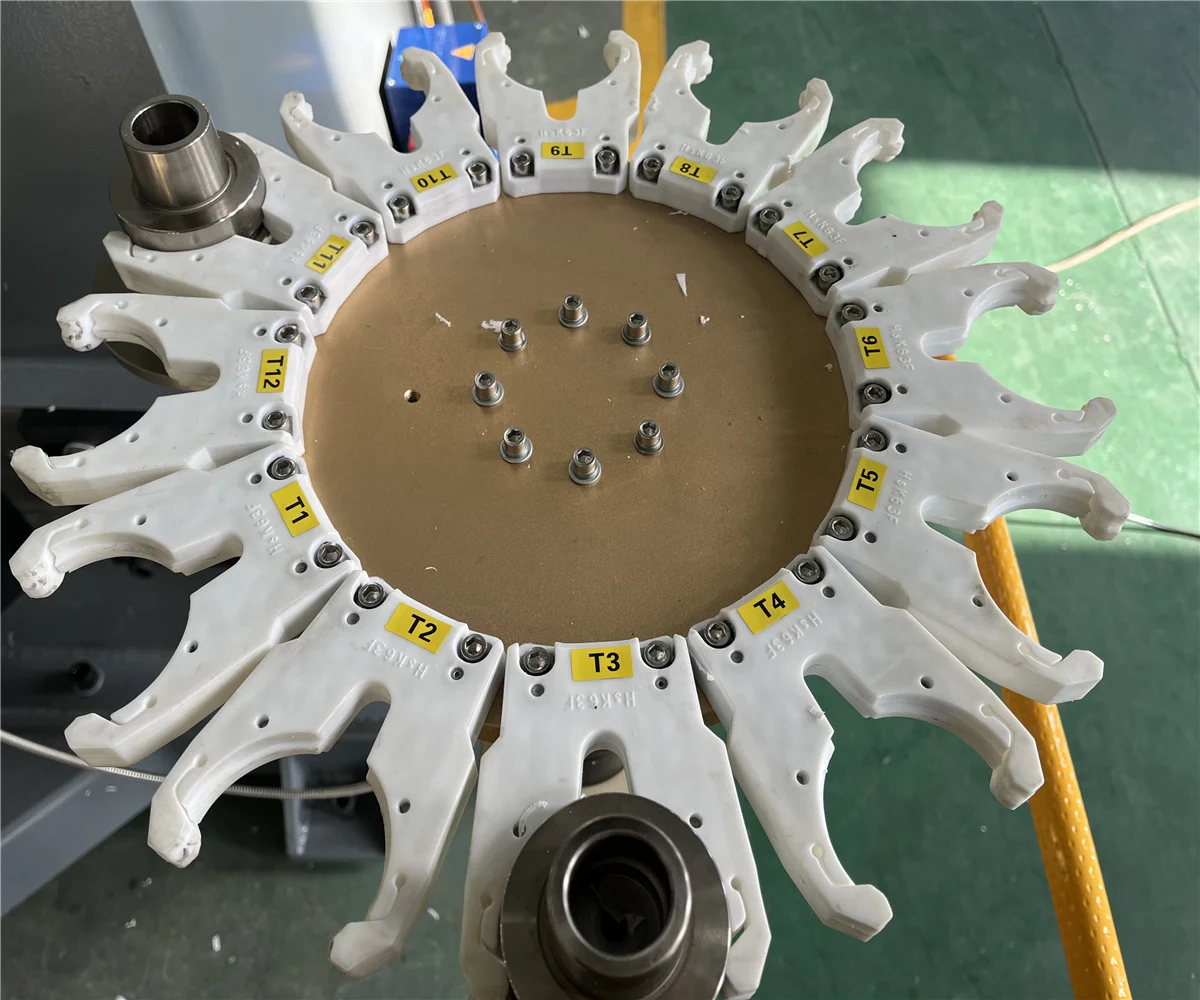

Tool Changer
Max Quantity 15 tools
Max Diameter 3.25" (82mm) positions full; 6.5" (165mm) adjacent positions empty
Max Weight 12 lbs each / 96 lbs total (5.4kg / 43.5kg)
Max Length 11" (280mm)
Max Quantity 15 tools
Max Diameter 3.25" (82mm) positions full; 6.5" (165mm) adjacent positions empty
Max Weight 12 lbs each / 96 lbs total (5.4kg / 43.5kg)
Max Length 11" (280mm)

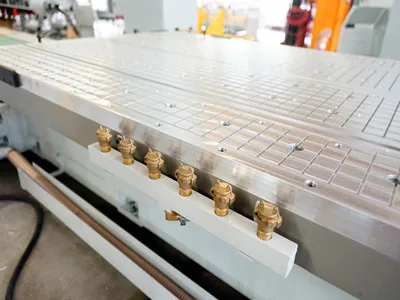

Aviation aluminum vacuum countertop
/cast iron countertop are available for optional ,Support customization of special tooling fixtures according to processed products
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

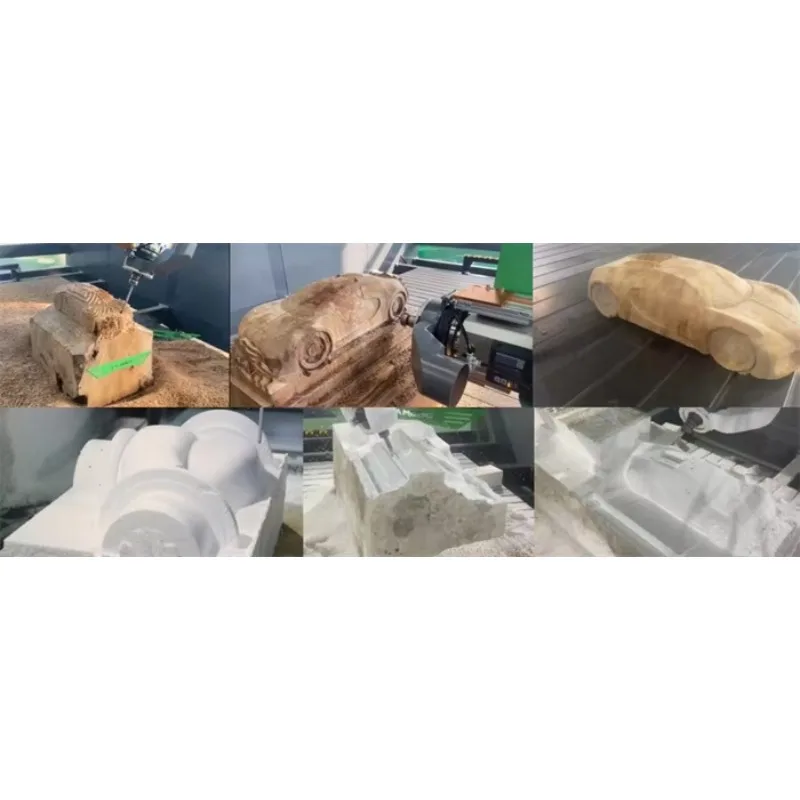

Applications&Samples
Application :
Mould industry, decoration industry, furniture industry,Large metalloid moulds, building model,automotive foam mold, wooden ship model, rail wooden mold ,wooden model aviation, and wooden mold train
Related products
Company information
Jinan BCAMCNC Machinery Co., Ltd., established in 2002, specializing in CNC machinery with rich experience!The company has two factories: CNC Router and laser machine factories and plants.
BCAMCNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficienct CNC machines worldwide. With a strong staff team, "Brand BCAMCNC" gained success in woodworking engraving machine,advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
"BCAMCNC Products are widely used in the fields of advertising, furniture, jewelry pieces, gifts, packaging etc., materials of metal, wood, stone, leather etc."BCAMCNC"is wellknown not only in China, but also in Russia, Southeast Asia, Middle East, Africa, the Americas, India and other foreign countries.
Our Service
3 years guarantee of the whole machine and we give lifetime maintenance free of charge. *Free training to make sure you master the operating of machine at our factory. * 24 hours online services through Whatsapp, Skype, Email or on the phone. *Engineers available for overseas training and after-sale services. * Friendly English version manual and operation video CD disk
Machine parts warehouse: Bcam warehouse 5S managements to make sure every parts is right for our cnc router ,also more efficient to install the machine so it can reduce more cost and time from machine.
Wooden package锛�
The packaging of our fiber lasr cutting machine is three-layer packaging, with pearl cotton inside and plastic wrap, aluminum foil cover outside and steel chassis below.When the frame cabinet is used in transportation of special models, BCAM workshop will pack
them in wooden cases to protect the fuselage.
Praise
FAQ
1. After receiving the machine, how to install and operate our machine?
100% paremeters been set correctly before shipping ,95% of customer can run machine after saw our 100mins "operation vidoes",24th x7 online support avilable.
2. Does your company provide teaching and training?
After receiving the machine, we will provide you our machine user muanul and 100mins operation videos, we can make a support group on whatsap or wechat, onsite support is avilable.
3. How to maintain the machine?
The automatic lubricating oil can set the time by itself, and the lubricating oil system will deliver the oil to the machine by itself. It is generally set for 14 days. (Please consult the engineer for the specific number of days).
4. Can you help me ship machine to my place?
Yes of course, we support home delivery, but you still need to do customs clearance, because we need your help for customs clearance. You can also choose CIF, DDP or DDU transportation methods
5. What machine model suit me?
1)According to the length and width of the material. We will recommend the most suitable models of machine to you. 2)What is the materials you would like to processing? Metal or Non-Metal?
3)What is the processing on the materials? Cutting or engraving? If cutting, please tell us the max thickness of the materials.
