Name: 5 Axis Atc Cnc Router Machinery AccTek AKM1325 with High Working Speed
SKU: 1005001278074044
Availability: InStock

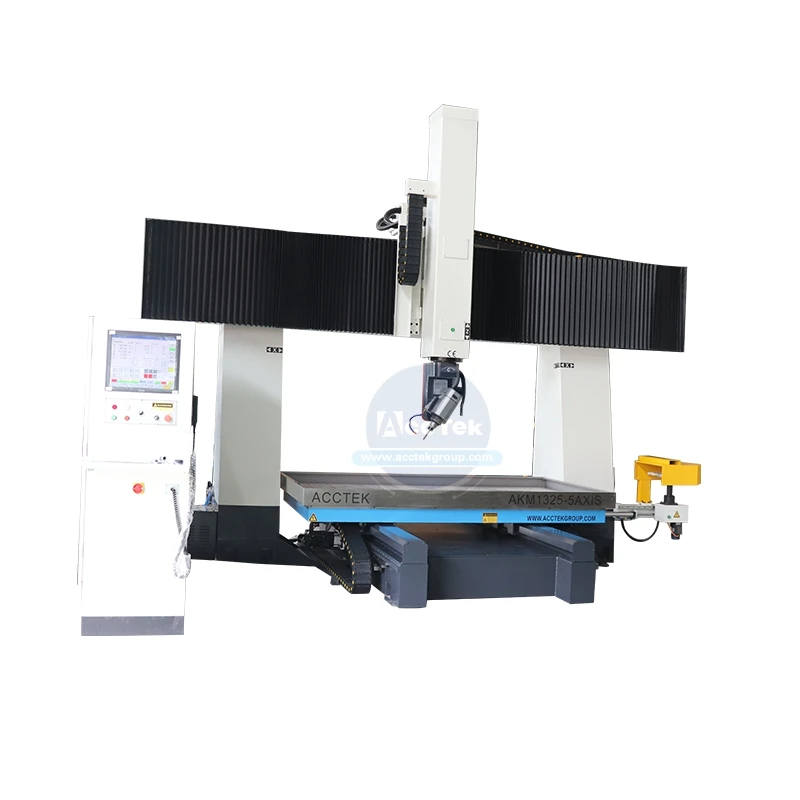

5 Axis Atc Cnc Router Machinery AccTek AKM1325 with High Working Speed

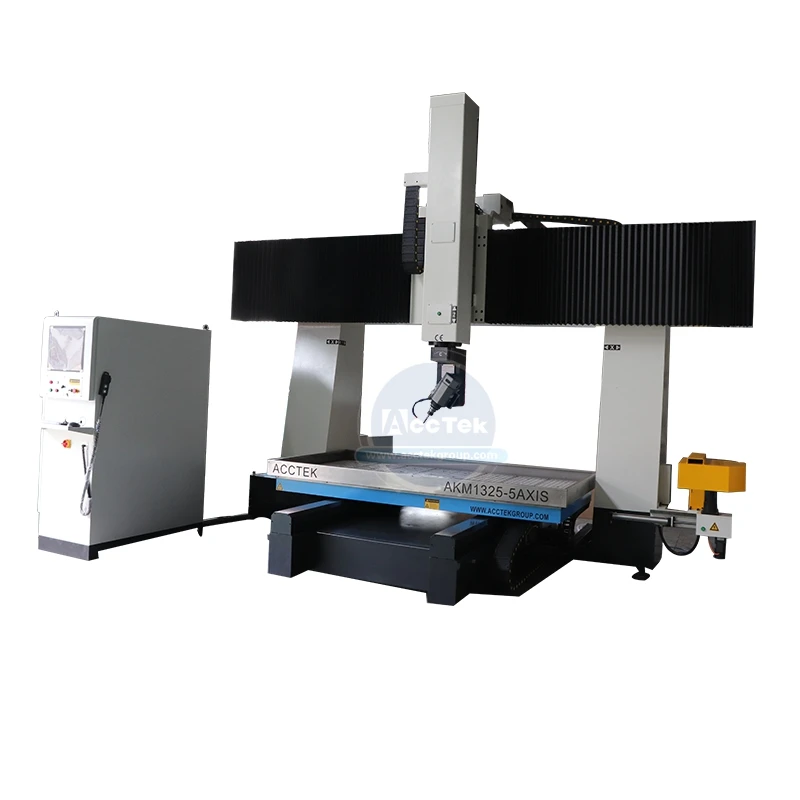

5 Axis Atc Cnc Router Machinery AccTek AKM1325 with High Working Speed - Image 2

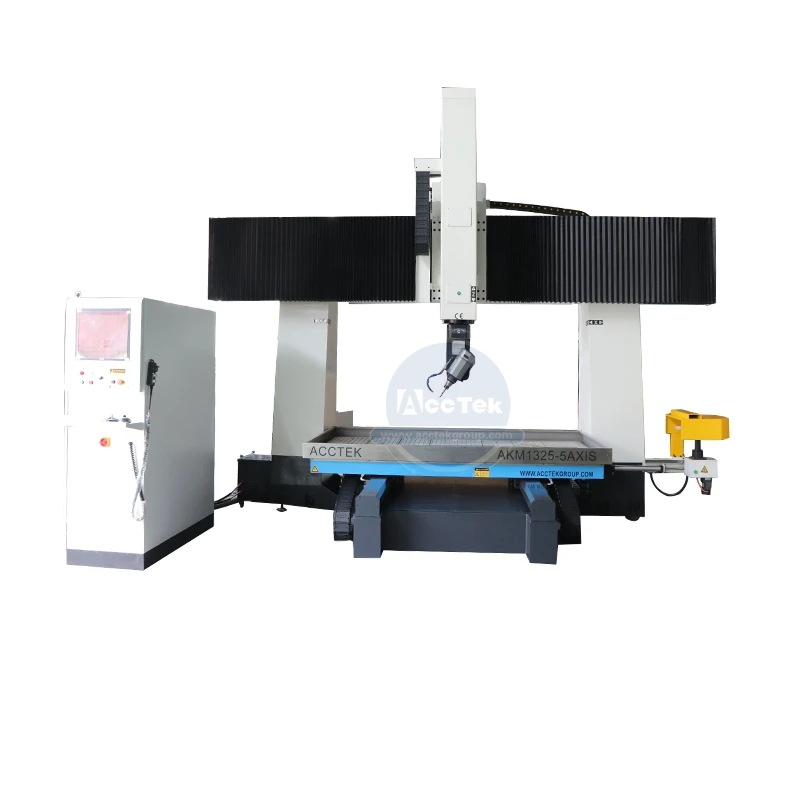

5 Axis Atc Cnc Router Machinery AccTek AKM1325 with High Working Speed - Image 3

R$ 931.278,07

50 em stock

REF: 1005001278074044

Descrição

Descrição

Is Smart Device: no
Model Number: AKM1325-5A atc wood cutting router machine
Condition: New
CNC or Not: CNC
Brand Name: ACCTEK
Origin: Mainland China
product name: 5 axis atc cnc router machinery AccTek AKM1325
Keyword: high working speed 5 axis atc cnc router machine AKM1325
Spindle: Italian Hiteco 12KW 5 axis spindle
motor: YASKAWA servo motor
guide rail: Taiwan Hiwin linear guide rail
control system: Mach3 controller Ethernet connection
X,Y axis transmission: Germany WMH HERION gear and rack transmission
Z axis transmission: Taiwan PMI ballscrew transmission
working table: vacuum and T-slot table
working voltage: 380V,50/60HZ,1 phase
inverter: Taiwan Delta inverter
color: customizable

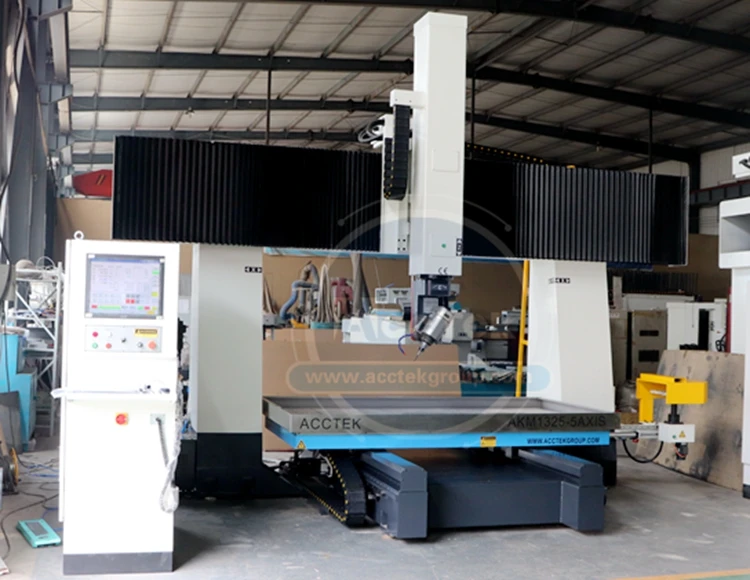

5 axis atc cnc router machinery AccTek AKM1325 with high working speed

Specification

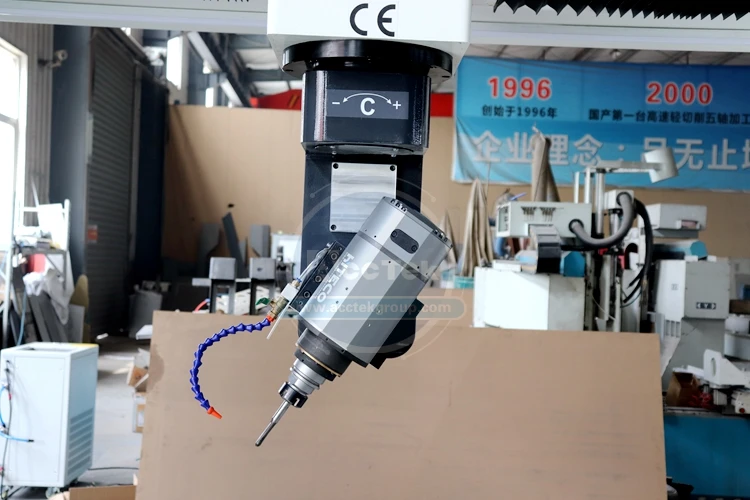

Italian Hiteco 12KW 5 axis spindle

rotating speed 6000~24000rpm/min

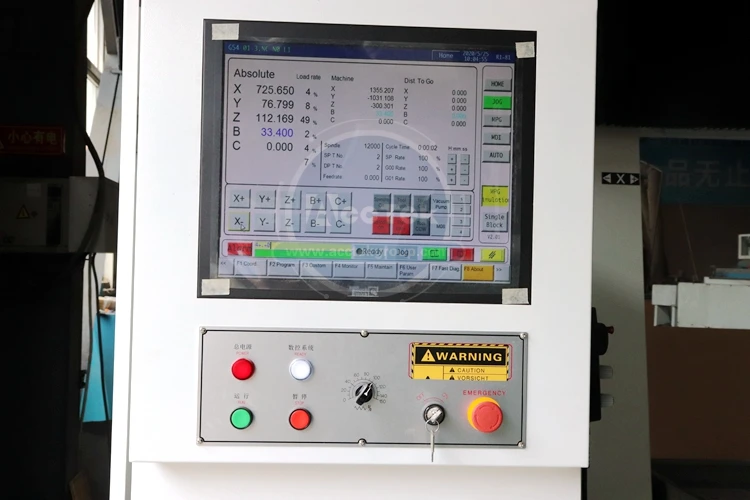

Syntec control system

The system stability is very good, the man-machine operation is friendly, easy to learn and operation, powerful function.

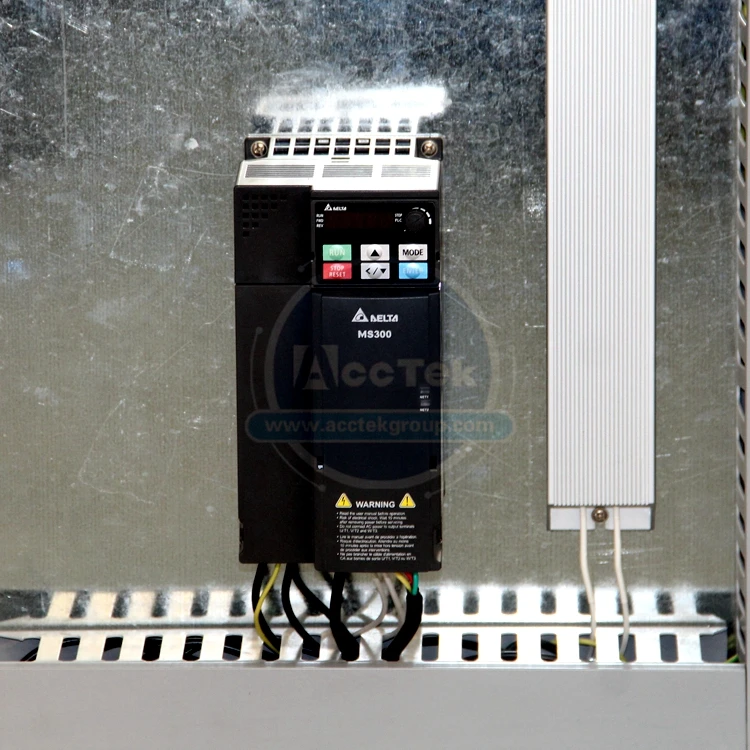

Delta inverter

Control Spindle rotation speed 0-24000RPM, save power.Significantly reduced spindle maintenance costs, even maintenance-free; ensure high efficiency cutting and high machining accuracy, powerful torque output at low speeds and high speeds

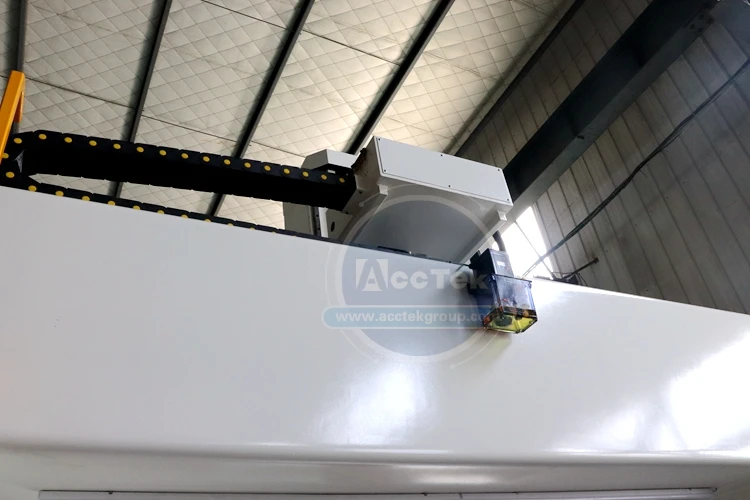

Automatic oil lubrication

Automatic oil lubrication guide rail, guide rail to reduce the possibility of rust, more stable operation.After setting the parameters, no additional manual operation is needed to save time and manpower.

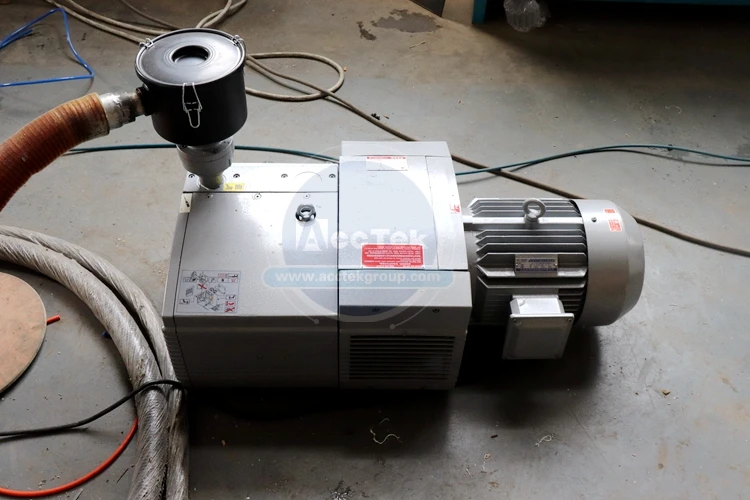

5.5KW oil free vacuum pump

Vacuum workbench surface must be configured. It is used for adsorption and fixation of materials.

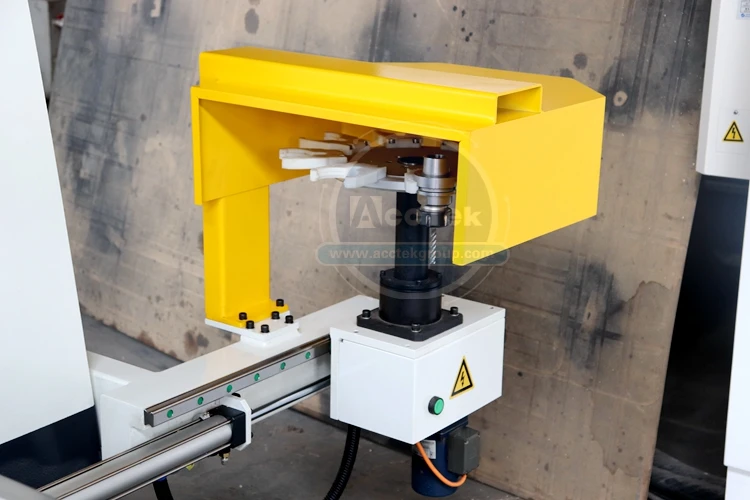

disk tool changer

The tool change speed is faster, do not need to change the tool handle to zero, more efficient.

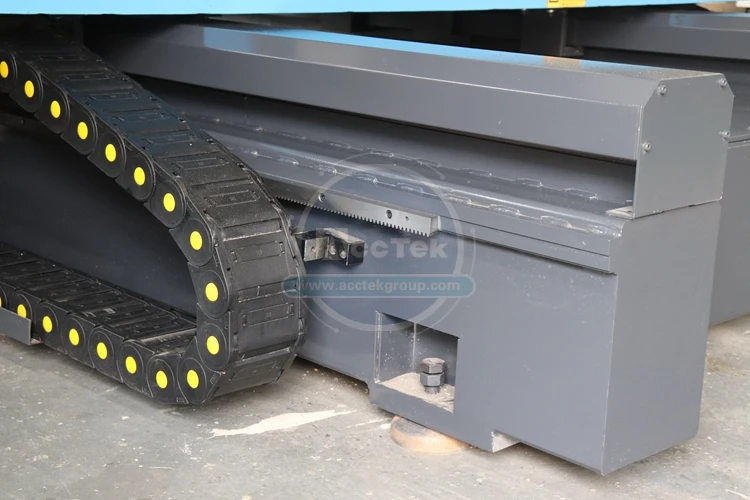

Germany WMH HERION rack

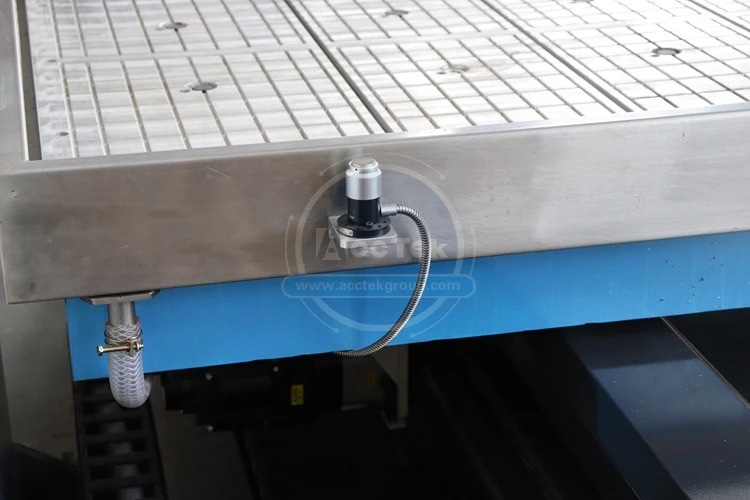

tool sensor

If there is no tool sensor, only by eye observation, the knife may be broken in the place of dislocation, the connection will become difficult.

Description	Parameter
Maximum working size	X Axis:2440mm
	Y Axis : 1220mm
	Z Axis: 600mm
	A Axis: ±100°
	C Axis: ±225°
Orientation precision	±0.05mm
System resolution	±0.001mm
Structure	Welded Steel Structure
X,Z axis transmission	Germany H30 REXROTH Guide rails and import ball screw
Y axis transmission	Germany H30 REXROTH Guide rails and Herion Gear and rack
Spindle	Spindle - 24000rpm, HSK F63, 12kW
Tool Magazine	Disc-type ATC (with 8 tools)
Spindle Speed	24000r/min, variable speed
Working Voltage	AC380V 60HZ 3-phase
Motor and driver	Japan YASKAWA
Inverter	Taiwan Delta inverter
Command	G code
Controller	Taiwan Syntec controller
Software	UG and post processor

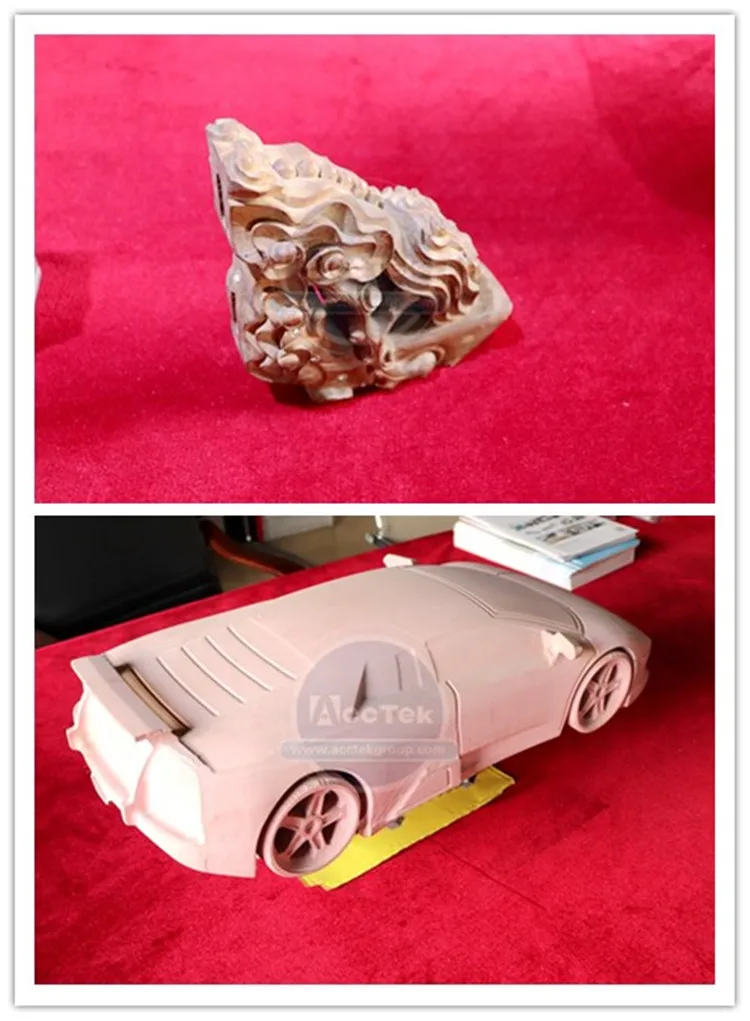

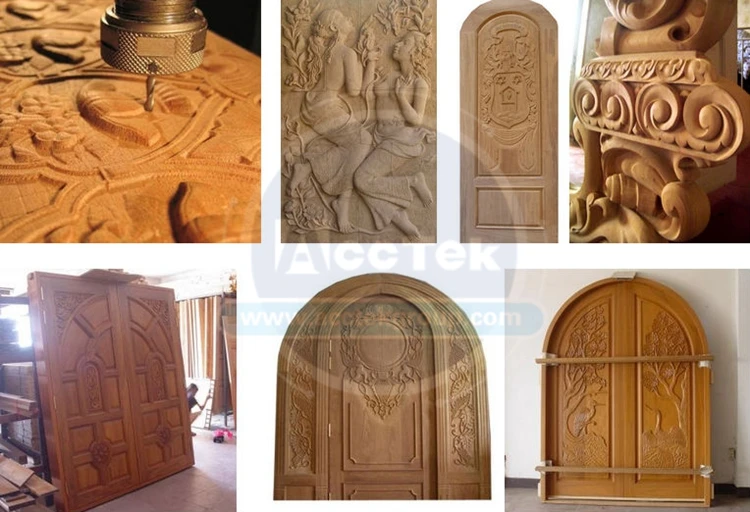

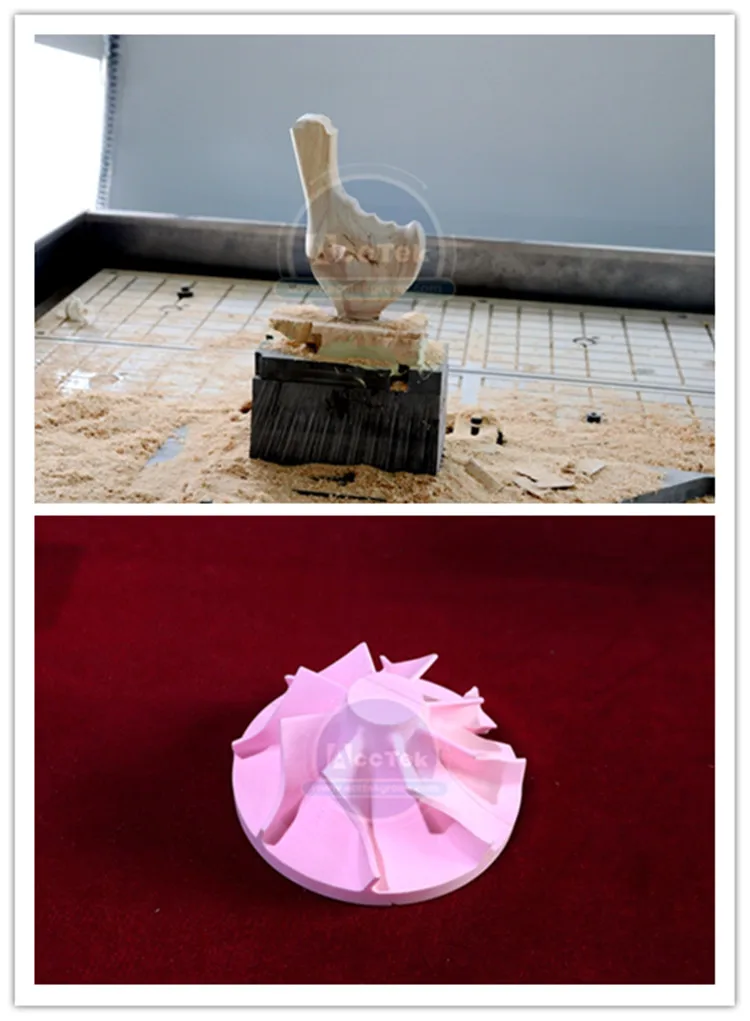

Sample

Package&Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1：About the wattanty

18months guarantee of the whole machine.

2：Equipment installation and debugging
The equipment is aeembled before shipment and can be directly plugged in.Video tutorials on device operation are included.

3：Technical support
Customers can choose to come to the company for free training.Our technician is able to tech you online to run the mechine or eliminate the fault for free.

4, I did not imported before, how should I do?
You only need pay to us, we will arrange all the things to you and teach you how to do we will prepare all the documents for you,you don't need worry, because we know what you need.

5, How about the documents after shipment?
We'll send all original documents to you by DHL, for example: the Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

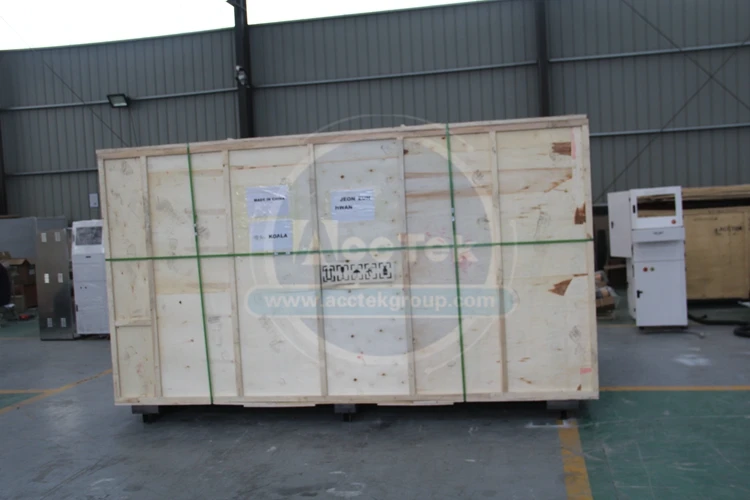

6, How about the packing?
Plywood box
