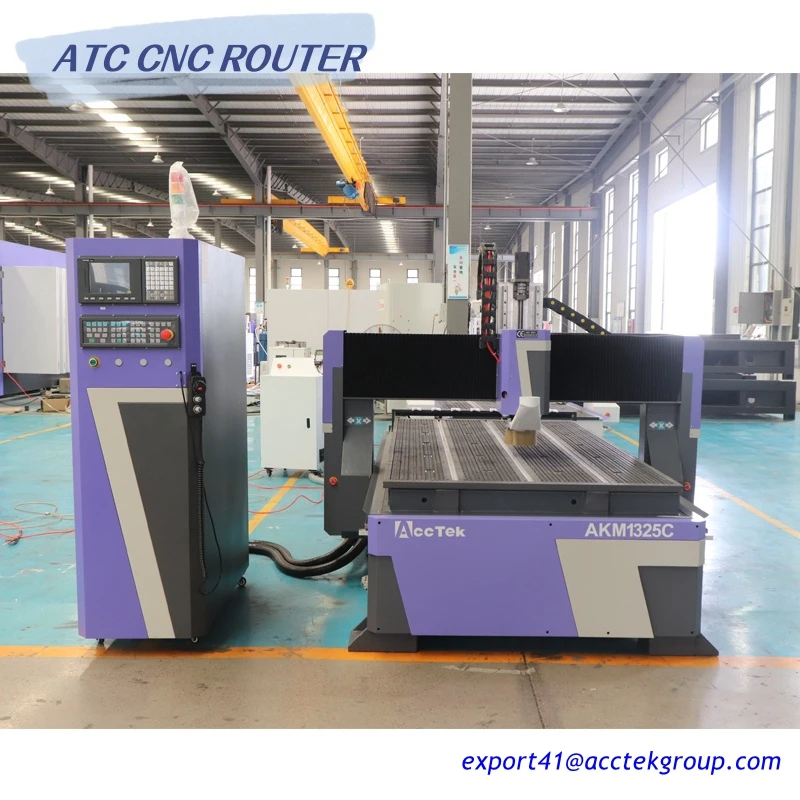

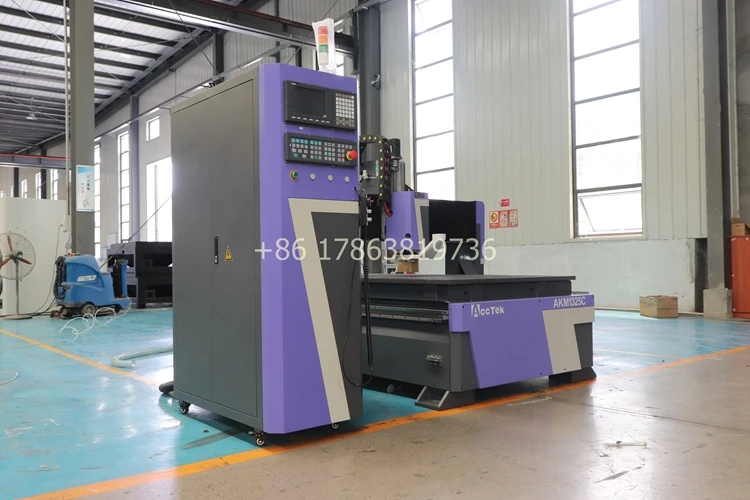

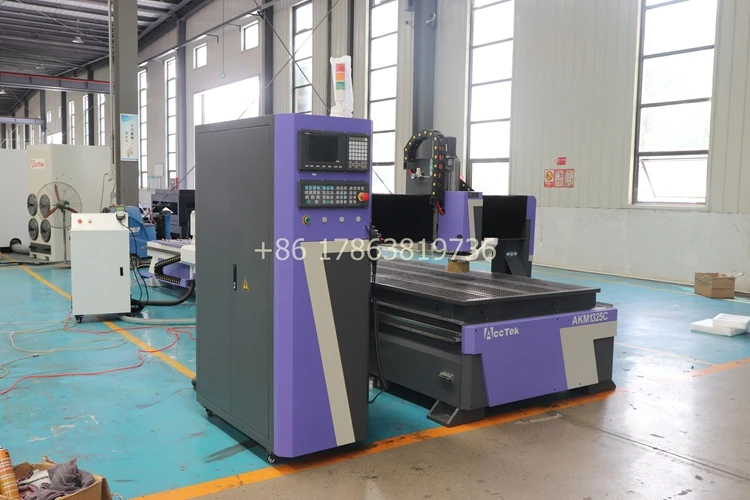

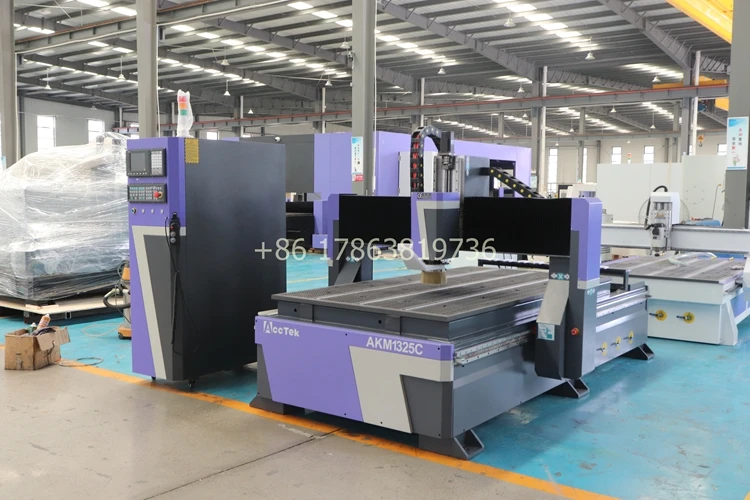

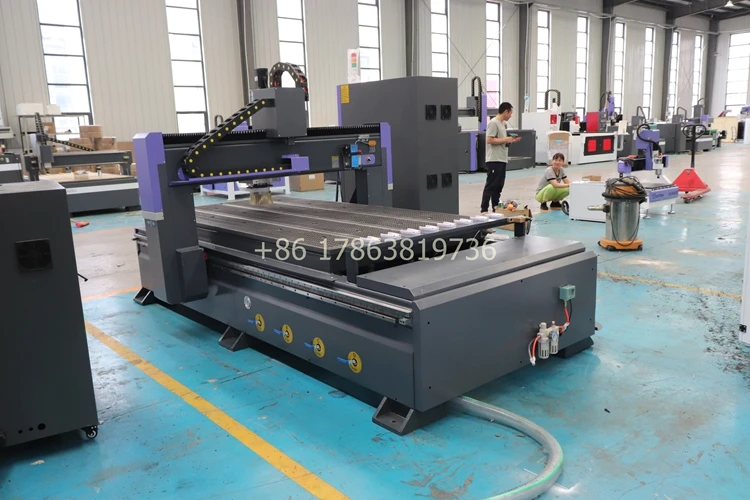

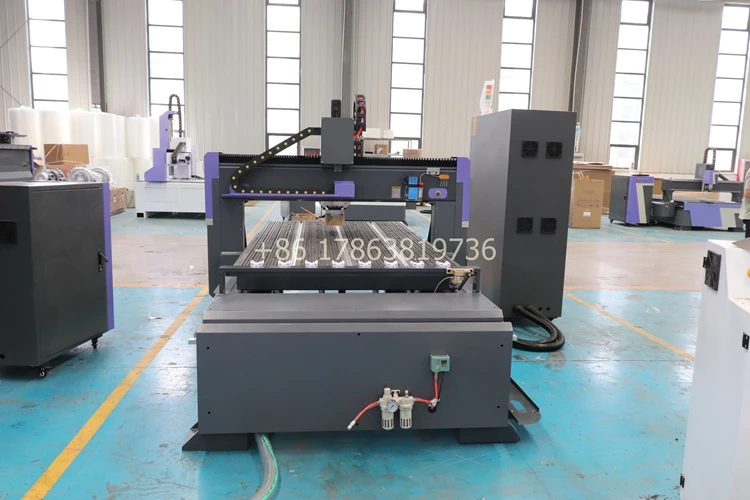

Name: 4*8 Feet Auto Tool Changer CNC Router AKM1325C ATC Wood Router Cabinet Carving Machine
SKU: 1005008125560419
Availability: InStock

Hign-concerned Chemical: None
Controller: MACH3
Is Smart Device: Yes
Origin: Mainland China
Certification: CE
Model Number: AKM1325C
Condition: New
Brand Name: ACCTEK
CNC or Not: Normal
Key word: Auto Tool Changer CNC Router
Name: atc wood router
Working area: 1300x2500x250mm
Spindle: 9.0kw air cooling atc spindle
Linear tool changer: 8pcs of fixed linear tool changer
Controller: Syntec controller
Motor: Janpanese Yaskawa servo motor 750w
Driver: Japanese Yaskawa driver
Worktable: Vacuum worktable
Rails: Taiwan Hiwin rails

Please don't pay directly.

Before you buy, please contact us to confirm the machine detail and shipping detail.

Joy

E-mail: export41@acctekgroup.com

Whatsapp:+86 17863819736

4*8 Feet Auto Tool Changer CNC Router AKM1325C ATC Wood Router Cabinet Carving Machine

ATC wood router feature:

# Super quality 9KW Air cooling Auto-tool changer spindle.

# linear guide rail keep high working precision

# Famous servo motor and driver ensures machine to run with fast speed and low noise.

# With 8 pieces auto-tool changer and Auto tool sensor.

# Vacuum table and vortex vacuum pump, and 3.0kw dust collector.

# Taiwan Syntec ATC controlling system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.

# High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast and high efficiency.

ATC wood router sample show:

1.Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.
2.Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
3.Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.
4.Other industry: image engraving, embossing, craft and gift industry

ATC wood router parameter data:

Name	Specification
X,Y,Z Working Area	1300X2500X200mm
Table Size	1955X3040mm
X,Y,Z,Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z,Repositioning Positioning Accuracy	±0.05mm
Lathe Bed	Strong lathe bed
Gantry	Steel structure gantry design
Guide Rail	Taiwan Square Guid Rail with X,Y,Z axis
X Y Z Transmission	High Efficient 1.5mm Taiwan Helical Rack Gear transmission, X,Y axis Rack and pinion, Z axis Taiwan TBI Ball screws
Spindle Motor	9kw HQD Air cooling spindle special for tool changer
Max. Speed	0-45000mm/min
Max. Working Speed	0-25000mm/min
Spindle Speed	0-24000RPM
Working Voltage	AC/380V, three phase 50/60Hz
Command	G Code, uoo, mmg, *plt
Inverter	11KW BEST inverter
Control System	Taiwan LNC control system
Typeset Software	JDpaint(can support any G-code software)
Motor	Leadshine 1500w Servo Motor
Driver	Servo Driver
Tools cooling	OIL sprayer pump
Lathe Table	Vacuum table with 6 pcs control valve
Vacuum Pump	5.5KW Air Vacuum Pump
Tool Magazine	8pcs ISO30 tool holder
Electricity cabinet	Independent Cabinet
Tool sensor	Auto tool sensor
Collet	ER32
X,Y Working Delicacy	<0.01mm
Running circumstance	Temperature: 0℃～45℃, Relative humidity: 30%～75%
