Descrição
- Origin: Mainland China
- Brand Name: LanYuXuan
- Warranty: 3months-1year
- Place of Origin: Guangdong, China
- Brand Name: ZLTECH
- Model Number: ZLIS42C
- Phase: 2
- Type: Hybrid
- Current / Phase: 1.2A
- Size: Nema17
- step angle: 1.8°
- Input voltage: 24V-48V DC
- Step signal frequency: 200k Hz
- Control signal input current: 10mA
- shaft diameter: 5mmm/8mm
- shaft length: 24mm
- Insulation resistance: 100MΩ
- Motor Total Length: 92.9mm
- Encoder: 2500-wire optical incremental encoder
- Certification: ce, ISO, RoHS

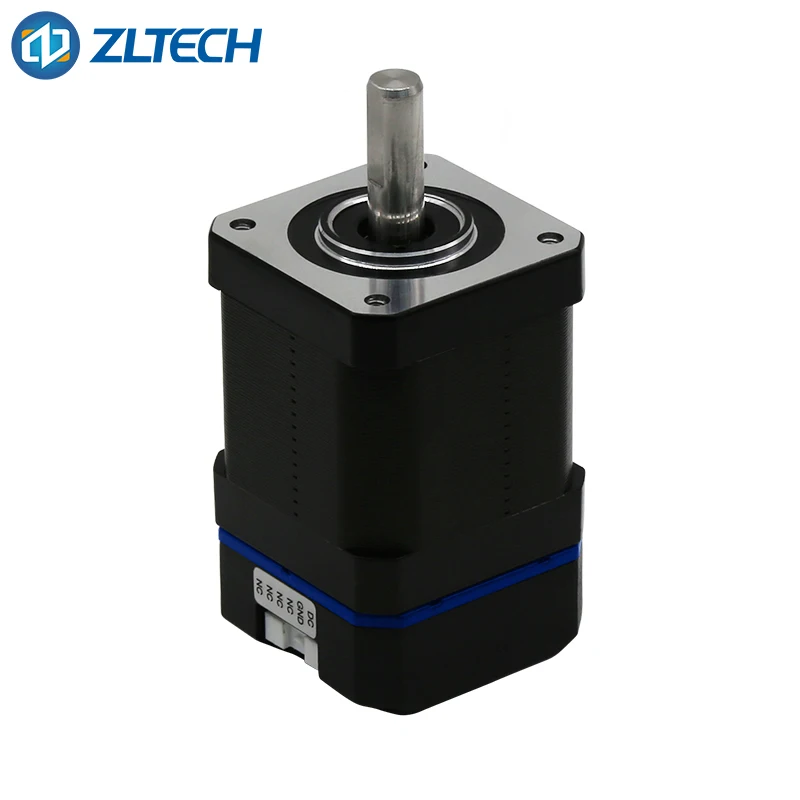

Product Description
Integrated stepper motor integrates stepper motor, driver, encoder(optional) in one, has the advantages of high ease of use, fewer connections, neat appearance, less space occupation, good EMC performance, easy to implement scalable modular design, etc. It not only saves the wiring between driver and motor, effectively reduces the interference caused by the motor cable, but also reduces the problem of electromagnetic interference between the wires. Integrated stepper motor has 2 types: open loop without encoder and closed loop with encoder. Customer could select suitable type based on specific requirement. Integrated stepper motor with encoder can realize precise control of rotation, reduce step loss, and achieve the control precision of servo motor. Besides pulse control, integrated stepper motor also supports CANOPEN bus communication control. Integrated stepper motor is suitable for various point-to-point control automation equipment and instruments with large torque requirements, such as wire stripper, marking machine, cutting machine, laser imagesetter, plotter, CNC machine tool, logistics storage equipment, new energy lithium battery equipment, automatic assembly equipment, etc.
|

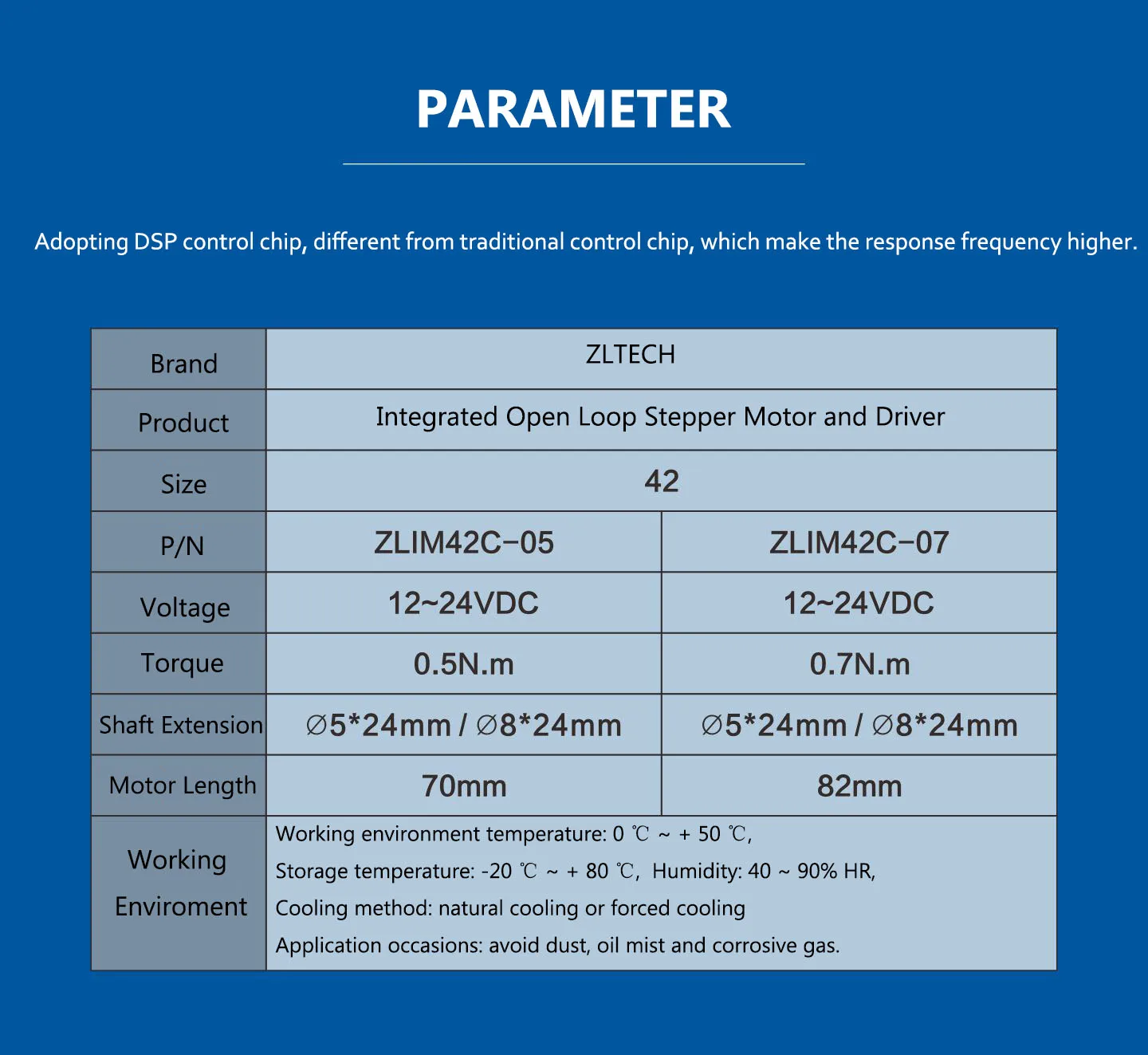

Integrated Open Loop Stepper Motor
|
ZLIS42C
|
|
Shaft
|
Single Shaft
|
|
Size
|
Nema17
|
|
step angle
|
1.8°
|
|
Input Voltage
|
24-48V DC
|
|
Current
|
1.2A
|
|
shaft diameter
|
5mm/8mm
|
|
shaft length
|
24mm
|
|
Holding Torque
|
0.48N.m/0.72N.m
|
|
Speed
|
2000RPM
|
|
Weight
|
430g
|
|
Motor Length
|
70mm/82mm
|
|
Control Method
|
CANOPEN communication
|

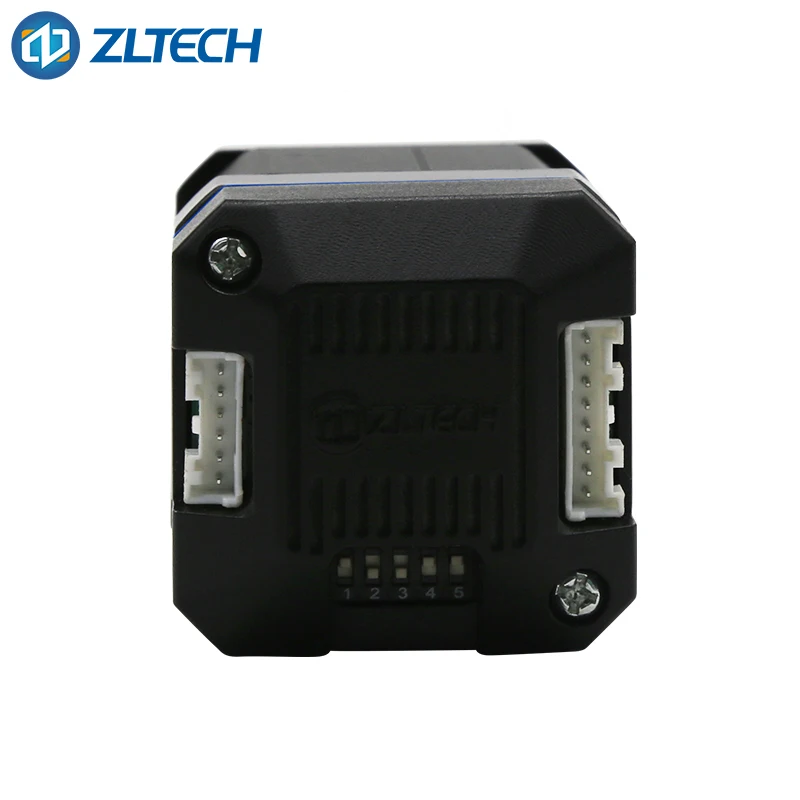

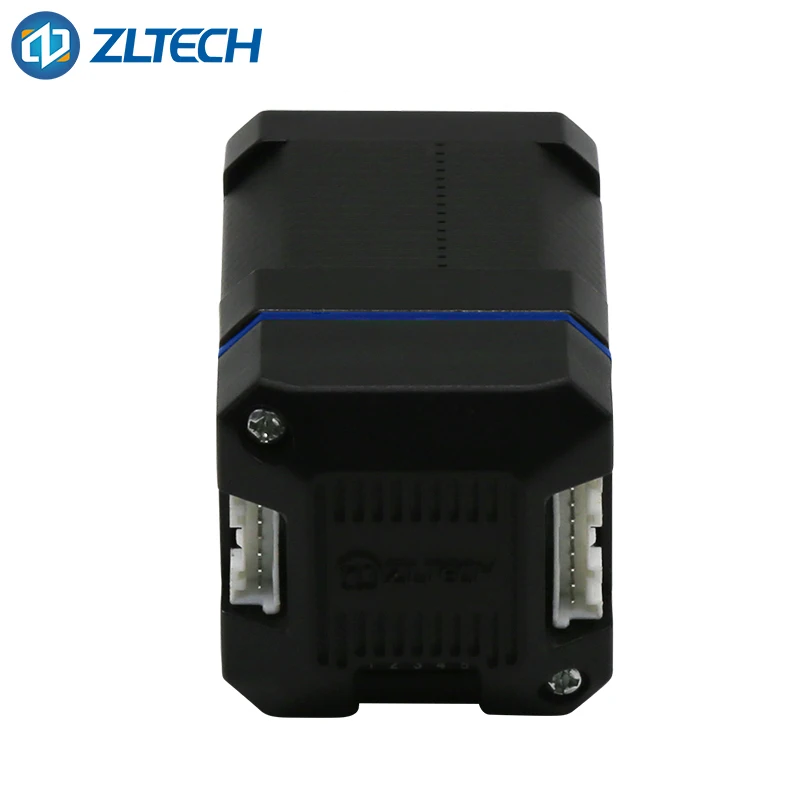

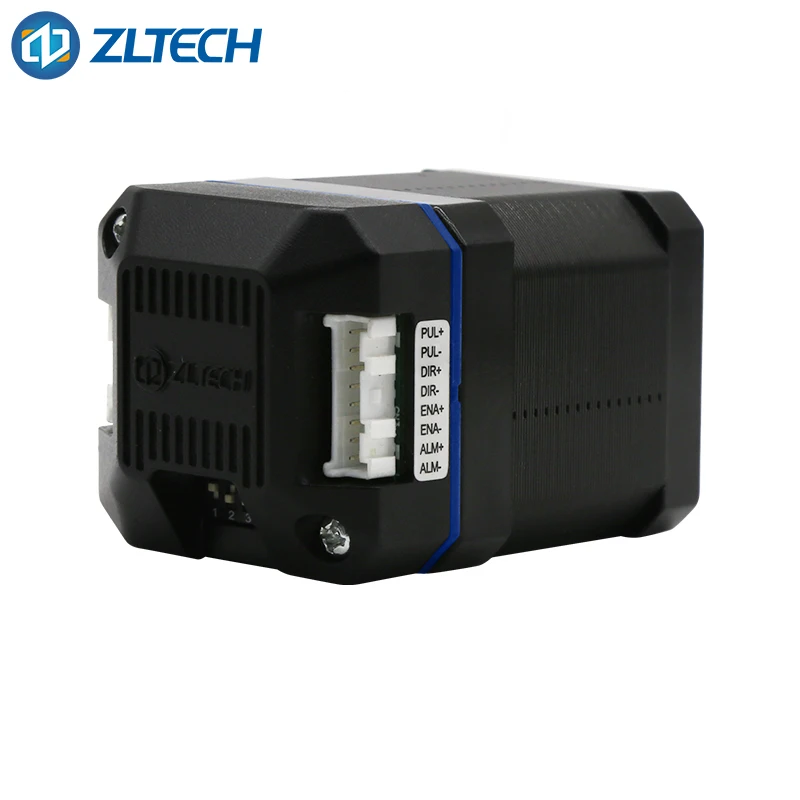

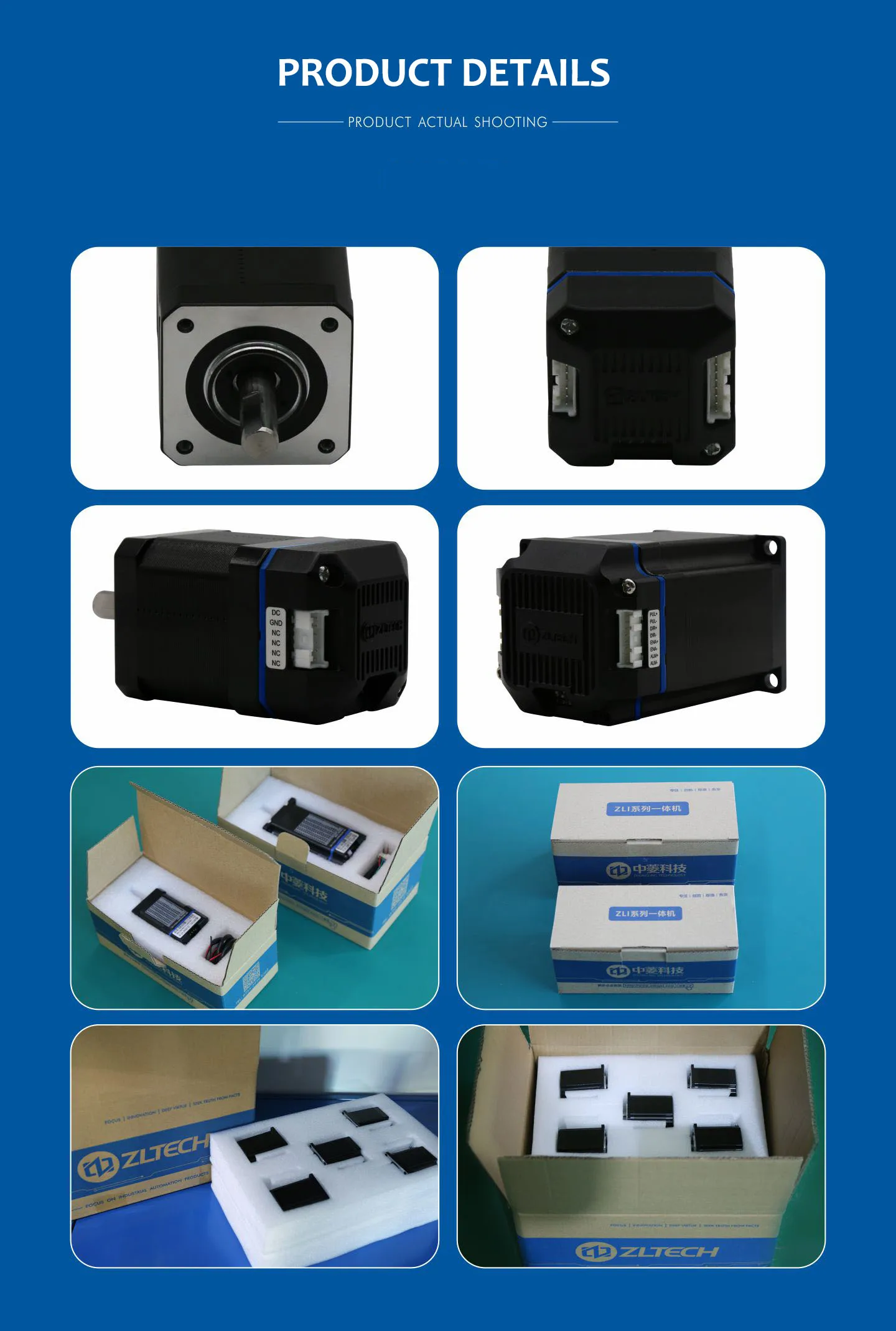

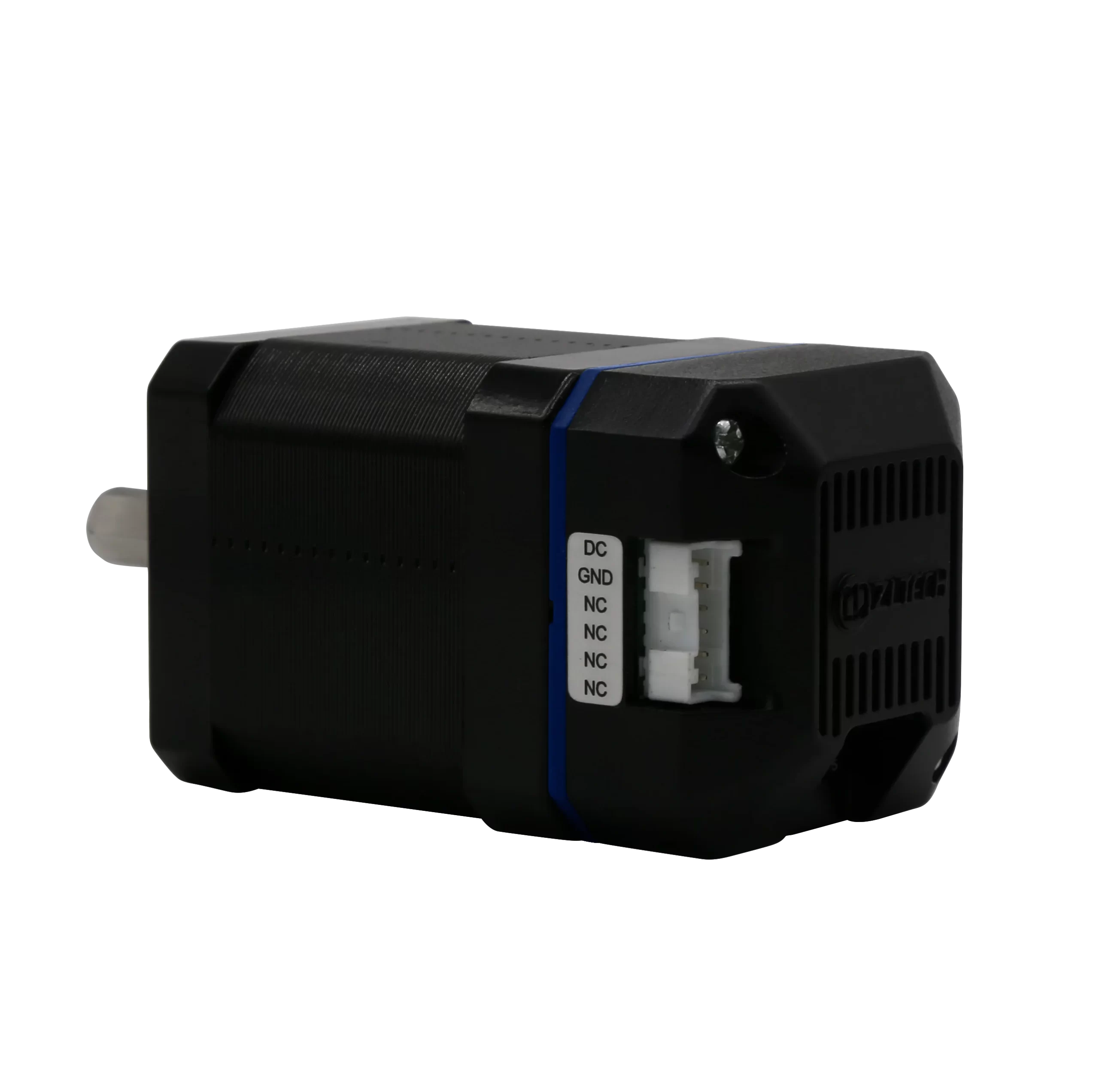

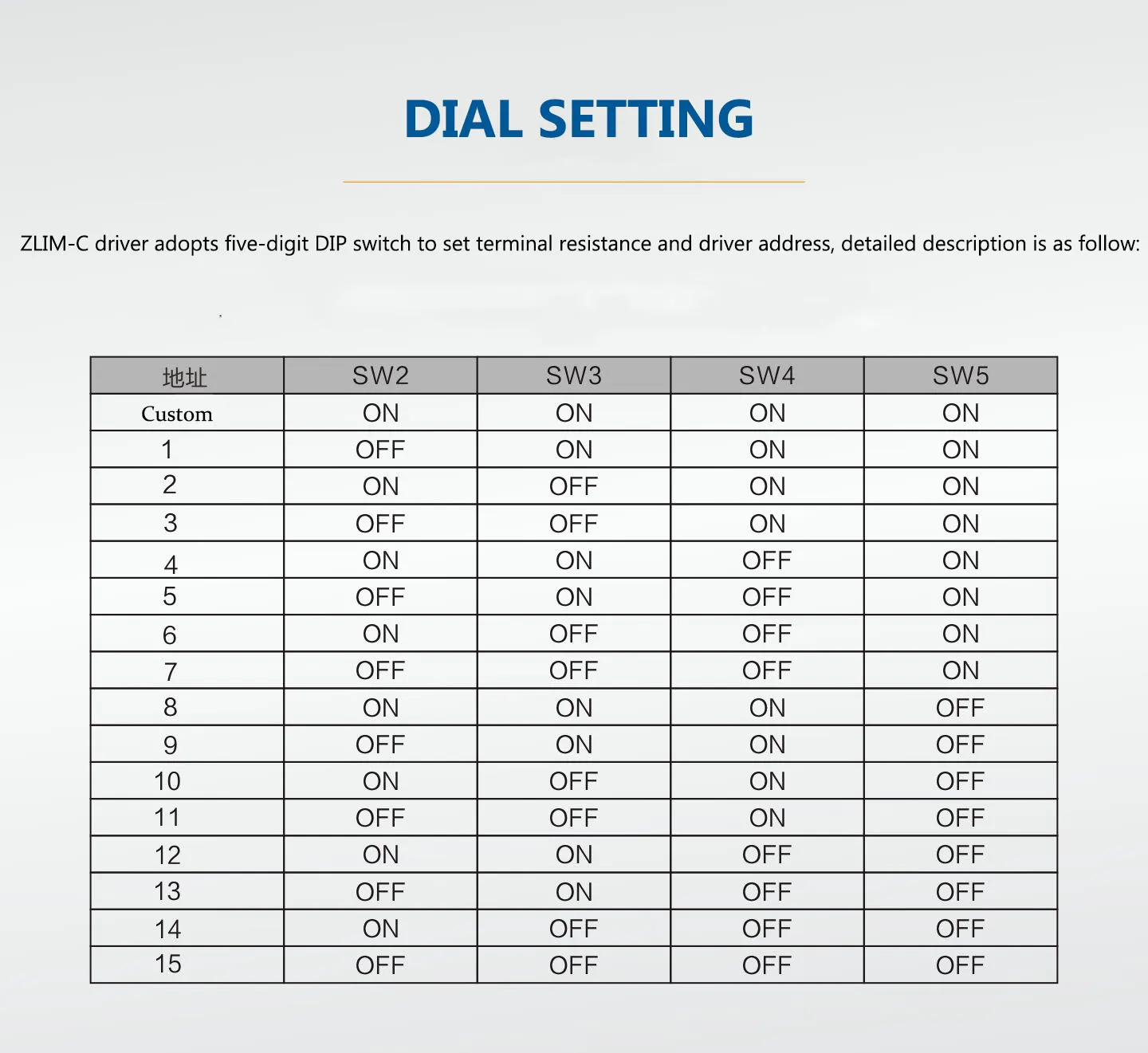

Detailed Images

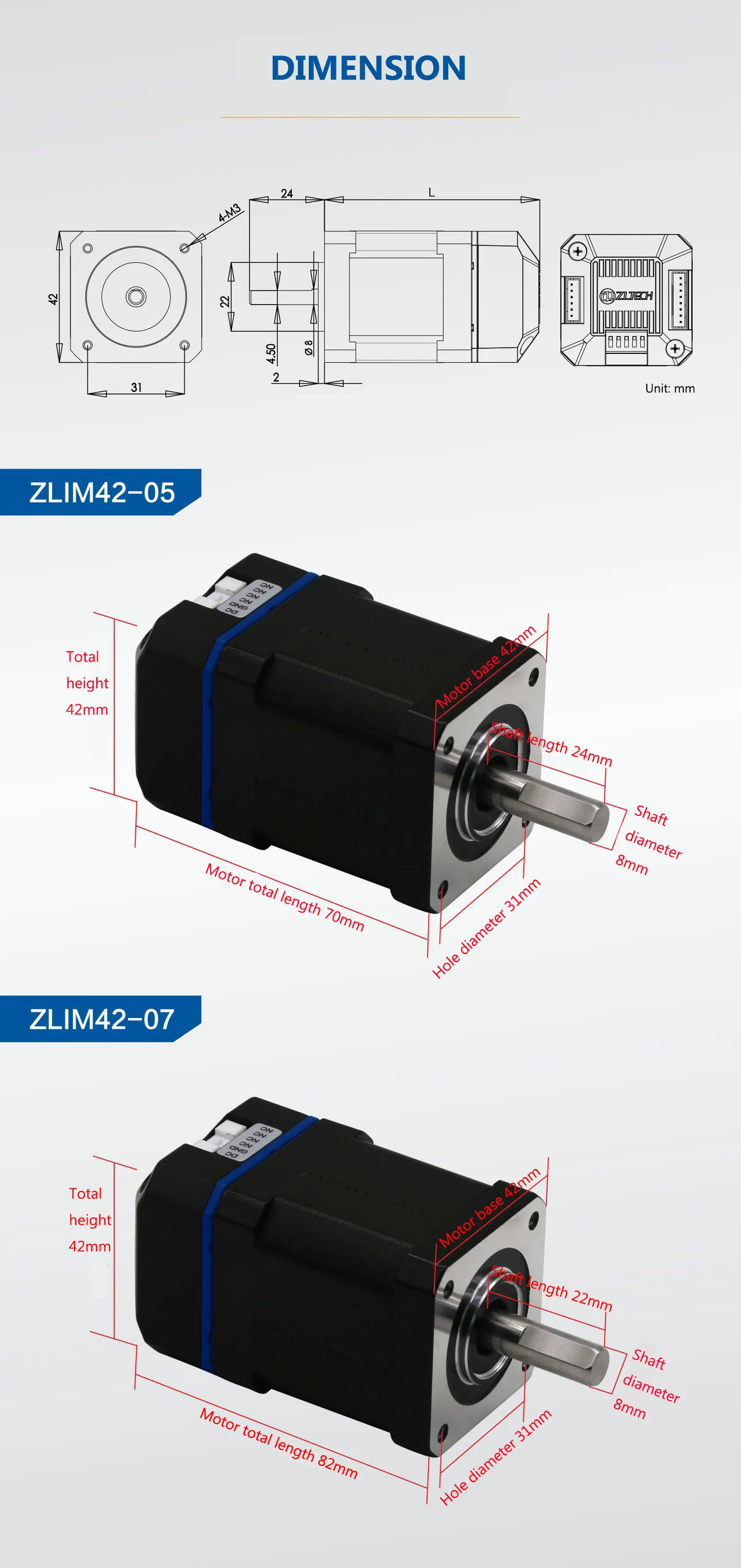

Size Information

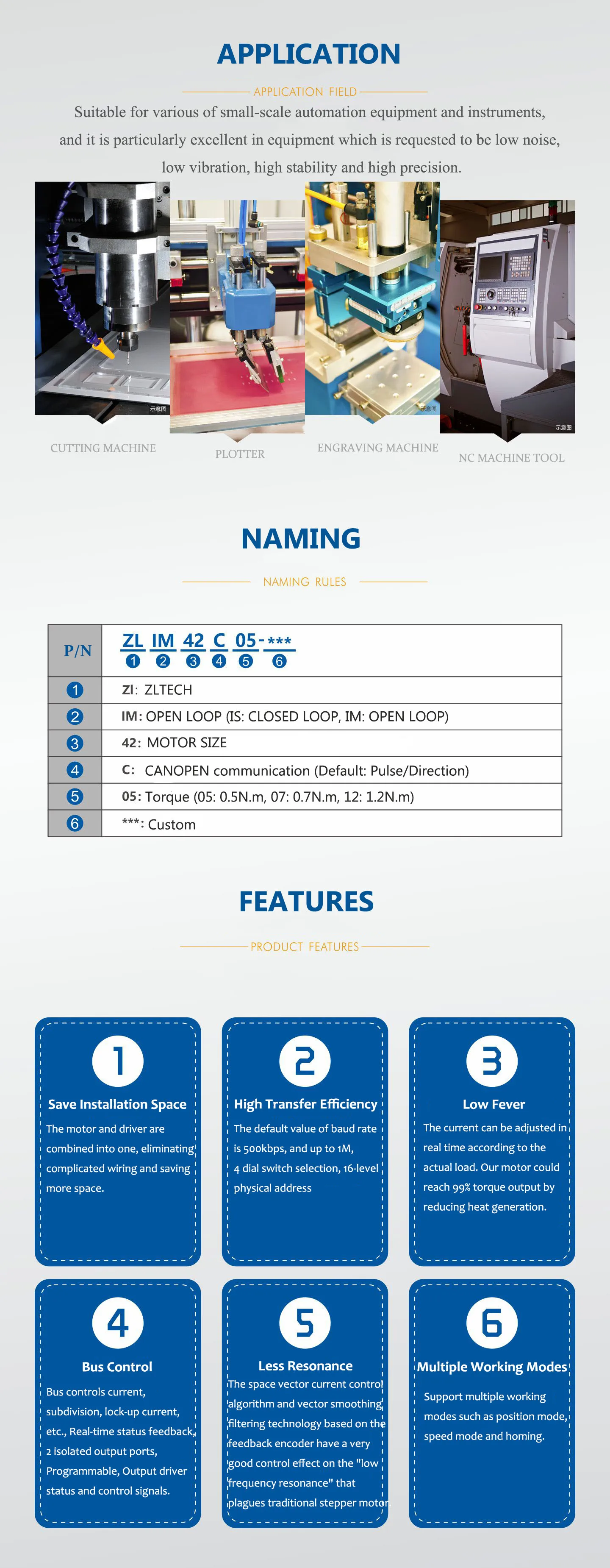

Application
Related Products
Packing&Shipping
Motor weight: 0.43kg
Motor length: 92.2mm
Package: carton with foam, quantity per carton will depend on the motor size.
Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by boat according to your requirements.
Motor length: 92.2mm
Package: carton with foam, quantity per carton will depend on the motor size.
Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by boat according to your requirements.

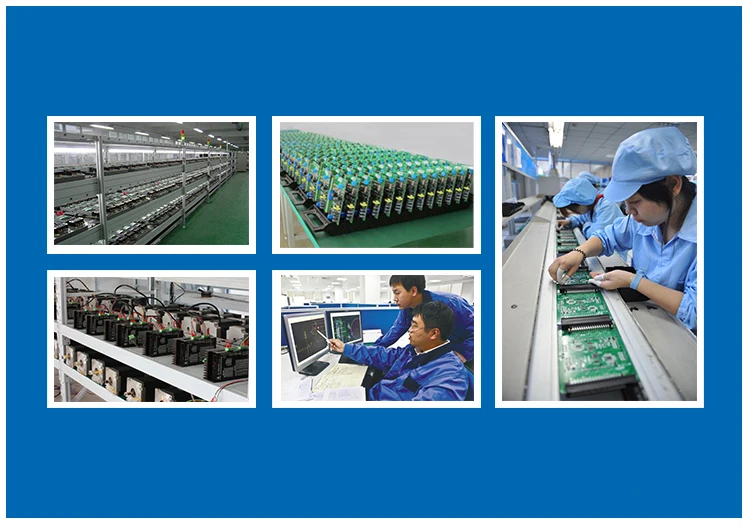

Company Introduction
Shenzhen Zhongling Technology Co., Ltd is a high-tech company integrated R&D, production and sales, has been focusing on industrial automation product since its establishment. Our product including digital stepper motor, integrated open/closed loop stepper motor, standard split closed loop stepper motor, Ethernet TCP/IP stepper driver, low voltage DC servo motor, AGV robot dedicated hub servo motor, high precision DD motor indexing plate, SCARA robot arm, and so on, have been applied by thousands of customers, and provide one-stop service for AGV industry. And our product has been exported to Southeast Asia, Europe, United States and other countries.
FAQ
1. Factory or trader?
-->ZLTECH is a manufacture of hub servo motor, stepper motor, servo motor and driver. We have professional R&D team and factory.
2. How about the delivery?
--> Sample: 7 days.
--> Mass order: 15-30 days.
3. What is your after-sales services?
a. Free maintenance within 12 months guarantee, lifetime consultant.
b. Professional solutions in installation and maintence.
4. Why choose ZLTECH?
-->a. OEM & ODM.
b. Factory Price & 24/7 services.

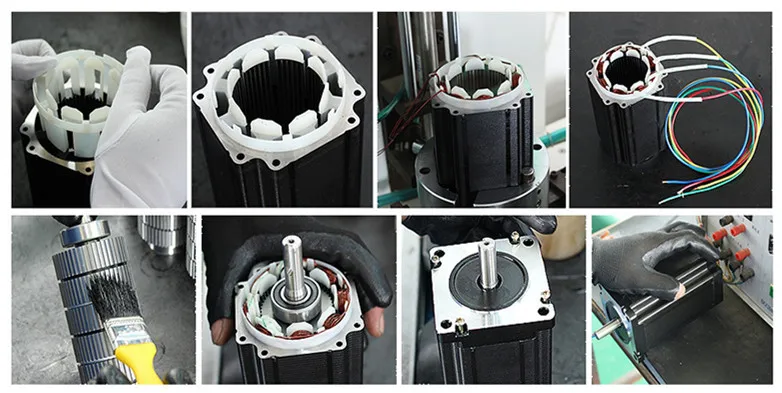

c. From mold customization to material processing and welding, from fine components to finished assembly, 72 processes, 24 control points, strict aging, finished product inspection.
d. One-stop service, from design to after-sale service.
5. Do you get the relevant certification?
-->All products are made according to ISO9001, CE requirements.
