R$ 66.677,46
9 em stock
Credit subject to approval.
Any Questions? Check our Help.
Descrição
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Certification: CE
- Application: Laser Marking
- Working Accuracy: 0.005mm
- Laser Type: Fiber Laser
- Condition: New
- CNC or Not: NO
- Cooling Mode: Air Cooling
- Control Software: EZCAD
- Place of Origin: Guangdong, China
- Brand Name: BEC Laser
- Laser Source Brand: Raycus
- Control System Brand: EZCAD
- Marking Head Brand: SINO
- Weight (KG): 70 KG
- Key Selling Points: Easy to Operate
- Warranty: 2 years
- Marking Area: 175mm*175mm
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Laser generator
- Mode of Operation: Pulsed
- Configuration: gantry type
- Feature: Air-cooled
- Laser power: 30W/50W/100W optional
- Machine type: laser engraving machine for tool
- Laser wavelength: 1064nm
- Minimum line width: 0.02mm
- Marking area: 110*110mm / 160*160mm optional
- Repeated accuracy: ±0.003mm
- After Warranty Service: Spare parts

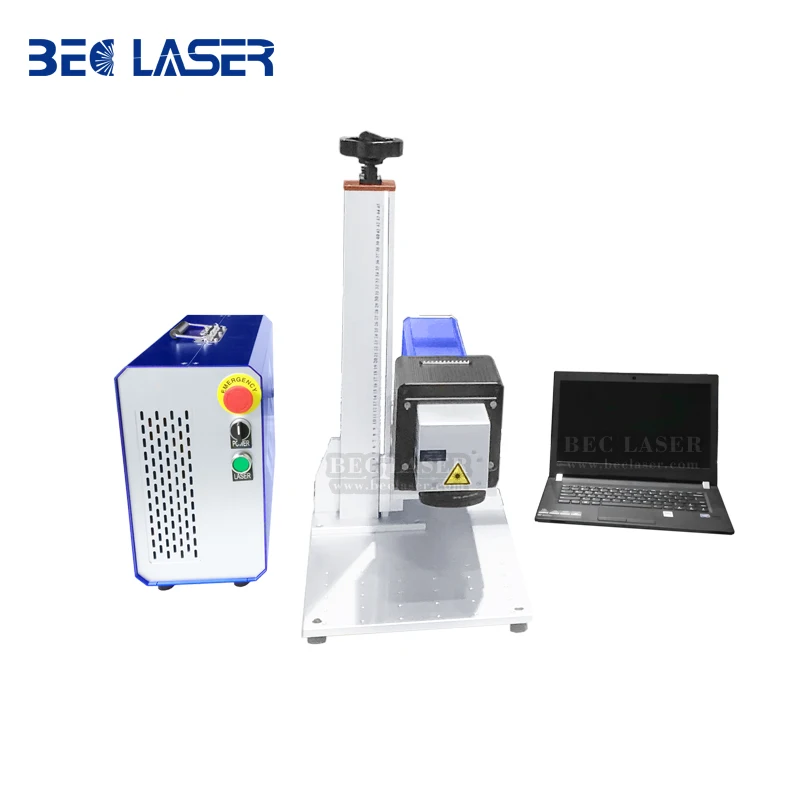

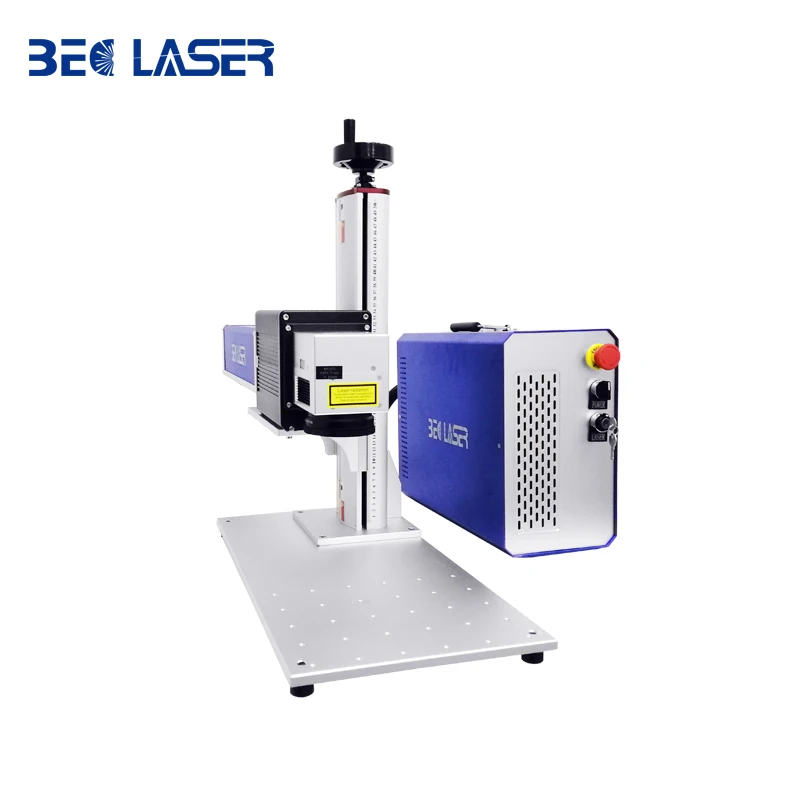

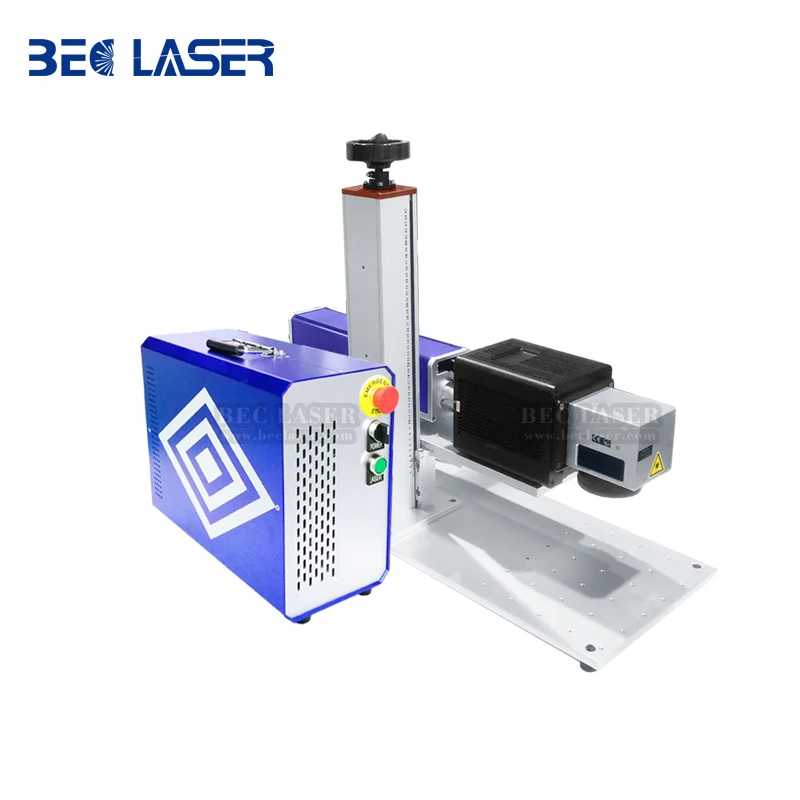

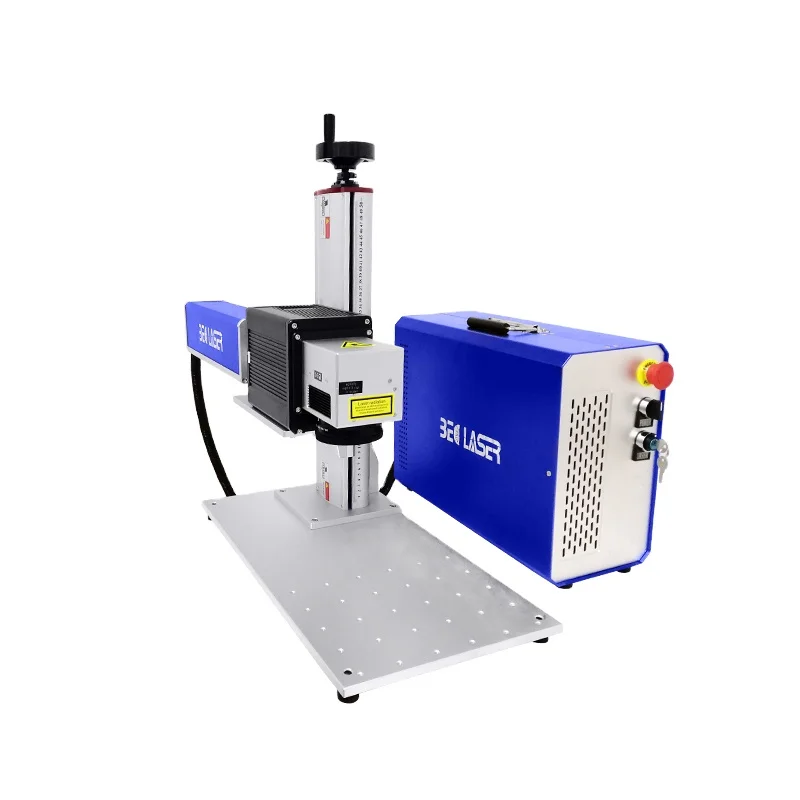

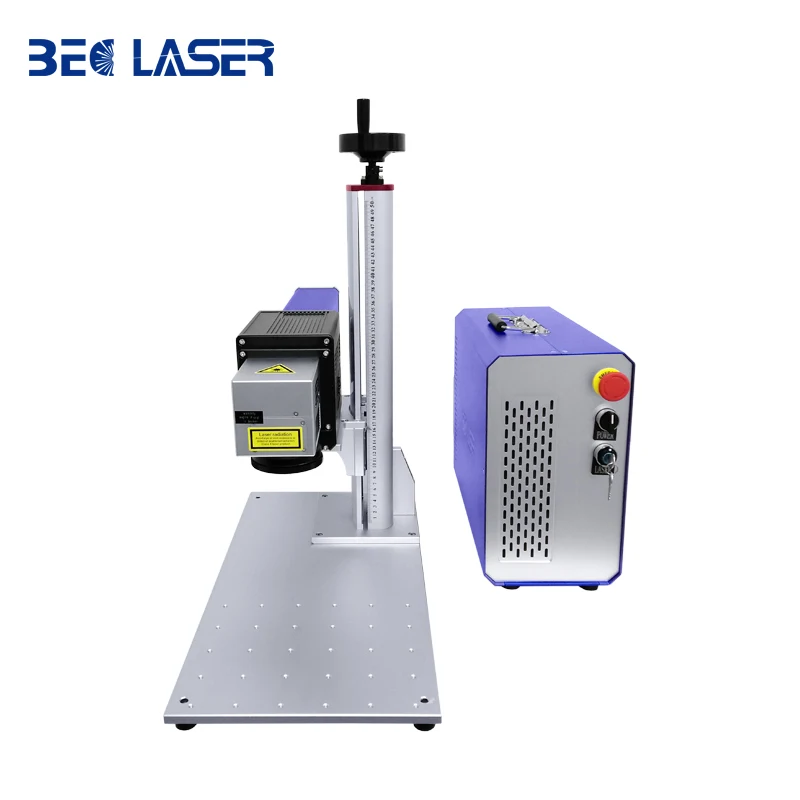

30w 50w 100w 3d fiber laser marking machine for lamps die making engraving metal mold dial curved surface
Youtube Link: https://youtu.be/v8HwO_67N74
>>> Technical Parameters <<<
| Product Name | Industrial 3D fiber laser marking engraving machine for tool die mold making | ||
| Model | BEC-FB30-3D | BEC-FB50-3D | BEC-FB100-3D |
| Power | 30W | 50W | 100W |
| Wavelength | 1064nm | ||
| Processing Range | 110mm*110mm/ 160mm*160mm/ 200mm*200mm / 300mm*300mm optional | ||
| Marking Method | X ,Y, Z three-axis dynamic focusing | ||
| Beam Quality | <1.3M2 | <1.8M2 | <2.0M2 |
| Spot Diameter | 0.03mm | ||
| Repeat Frequency Adjustment Range |
1-400KHz | 1-400KHz | 50-200KHz |
| Power Adjustment Range | 10-100% | ||
| Marking Speed | ≤7000mm/s | ||
| Cooling Method | Air cooling | ||
| Operating Enviornment | 10℃-35℃ ( No condensation) | ||
| Electricity Demand | 220V/50Hz ( 110V/60Hz available ) | ||
| Equipment Size | Portable: 85*65*55 cm Tabletop: 90*60*140 cm | ||
>>> Advantages <<<
- Larger range and finer light effects
Industrial 3D fiber laser marking engraving machine for tool die mold making using pre-focused optical mode and larger X, Y-axis deflection lens. Which can allow the transmission of laser light spot larger, better focusing accuracy, better energy. In the same focus precision work, the marking range with 3D marking can be greater than 2D marking.
- Can mark different height of the object, variable focal length changes more
As 3D marking can quickly change the laser focal length and laser beam position, so it can achieve the surface marking possible. After using 3D, a certain degree of curvature within the cylinder marking can be completed, greatly improving the processing efficiency. Many parts of the surface shape is not regular, some parts of the surface height difference is quite large, this time, the advantages of 3D marking will become more obvious.
- More suitable for deep carving
2D marking is an electric way to carry out the surface of the object deep carving, with the carving process of laser focus on the move, the role of the actual surface of the laser energy will be a sharp decline, seriously affecting the effect and efficiency of deep carving. 3D marking for deep processing, both to ensure the results, but also improve the efficiency, while eliminating the cost of electric lift.
- 3D marking can achieve playing black and white, the effect is more abundant.
For normal metal surfaces, such as anodized aluminum, the use of higher frequency pulses, usually under suitable energy, is marked in a certain out-of-focus condition. Which significantly affects the energy distribution of the laser on the surface of the material and color effect. 3D marking machine for multi-grayscale effect of the plane processing is also very meaningful.
| Model & Power | G.W | Packaging Size(cm) | |
| BLMF-H (20W) | 39 KGS | 78*27*79cm | |
| BLMF-H (30W) | |||
| D65 (Rotary Fixture) | 3 KGS | 13*8cm | |
| C20(Metal Sheet Fixture) | 3 KGS | 23*15*9cm | |
| C100E (Fume Extractor) | 15 KGS | 46*25*46cm | |
Industrial 3D fiber laser marking engraving machine for tool die mold making
>>> Applications <<<
Industrial 3D fiber laser marking engraving machine for tool die mold making is suitable for all kinds of metal and nonmetal materials laser marking on 3D curved surface. It's widely used in mobile manufacture, cubic circuits, medical equipments, moulds, 3C electronics, auto parts, electronic communication, etc.
Applicable Industries:
Mobile phone keypad, plastic translucent keys, electronics components, integrated circuits (IC), electrical appliances, communications products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking itensiles, stainless steel products and other industries.
- Electronic Components: Resistance, capacitance, chips, printed circuit boards, computer keyboard.
- Apparatus And Meter: Panel signs, precision equipment, etc.
- Instrument: Panel signs nameplates, precision equipment, etc.
- Hardware Tools: Knives, tools, measuring tool, cutting tool, etc.
- Automobile Parts: Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.
- Mechanical Parts: Bearings, gears, standard parts, motors, etc.
- Daily Necessities: Handicrafts, zipper, key holder, sanitary ware, etc.
- Jewelry: Rings Jewelry, gold, silver, etc.
- Food, drinking packing: Plastic packings, etc.
Applicable Materials:
Metal ( including rare metals ), engineering plastics, electroplating materials, coating material, plastic, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, copper and other materials.
Industrial 3D fiber laser marking engraving machine for tool die mold making
Industrial 3D fiber laser marking engraving machine for tool die mold making
* Professional Team
We are a professional industrial laser equipment supplier who is committed to integrating R & D, production and testing. Our team have over 15 years experience in laser equipment production field.
* Free Technical Training
If you do not know how to use this machine, as long as you come to China, we will provide you the free training until you have a good command of using the machine. If you are busy, our engineers can go to your country. You only need to pay some fees, such as air tickets, hotels and meals.
Other services:
* 24 h on-line service;
* We have ourself factory;
* Free sample test & Free parts;
* Good package & Quick delivery time;
* Two years warranty and with lifetime service;
* Engineers available to service machinery overseas;
* Training how to install and use the machine and software.
Industrial 3D fiber laser marking engraving machine for tool die mold making
Delivery & Shipping -- Industrial 3D fiber laser marking engraving machine for tool die mold making
1. The delivery lead time would be 7-10 working days after recieving the payment.
2. The customer can choose the shipping by sea, by air and even by international express such as FedEx, DHL, TNT, etc. We will send the cargo by reliable forwarder.
Q1: How can I get the best machine for me?
A1: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your needs or not. Then we can give you the best machine depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
A3: The machine has two years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available?
A4: Yes, we can supply many models, such as portable fiber laser marking machine, table fiber laser marking machine, enclosed fiber laser marking machine, CO2 laser marking machine, UV laser marking machine and so on. Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!
Q5: How long is the delivery time?
A5: In order to ensure the quality of products, so that customers receive high-quality laser machines. Our company has strict process of materials incoming inspection, puting in storage, materials picking, machine production, quality inspection, warehouse-out inspection. For standard machines, it would be 10-12 working days; For non-standard machines and customized machines according to client's specific requirements, it would be 15 to 30 working days.
Q6: How's the payment?
A6: We accept Telegraphic Transfer(T/T). 30% in advance, pay the balance before delivery. You can make the payment on Alibaba Trade Assurance.
Q7: Do you arrange shipment for the machines?
A7: Yes, we have freight agents for sea shipping, air shipping. If you choose our freight agents, you just need to pay the shipping cost to us, our freight agency will arrange the shipment for you. Of course you can choose your own freight agency to arrange shipment, we will prove you the EXW price, your freight agency need to pick up the machine from our factory.
