Descrição
- Model Number: JG-FYC350
- Condition: New
- CNC or Not: CNC
- Origin: Mainland China
- Certification: CE,EPA
- Product Name: Trcuk mounted water well drilling rig
- Application: Water Wells Rock Drill Rig
- Name: Pneumatic Rotary Water Well Drilling Rig Machine Price
- Usage: Multifunction Hydraulic Drilling Rig
- Drilling Depth: 180m/200m/280m/300m/350m/400m/500m/600m
- Drilling Diameter: 140~350mm
- Stroke: 3300mm~6600mm
- Rated pressure: 1.7~3.5Mpa
- Air consumption: 17-42m3/min
- Color: Red
- Feature: High Drilling Efficiency

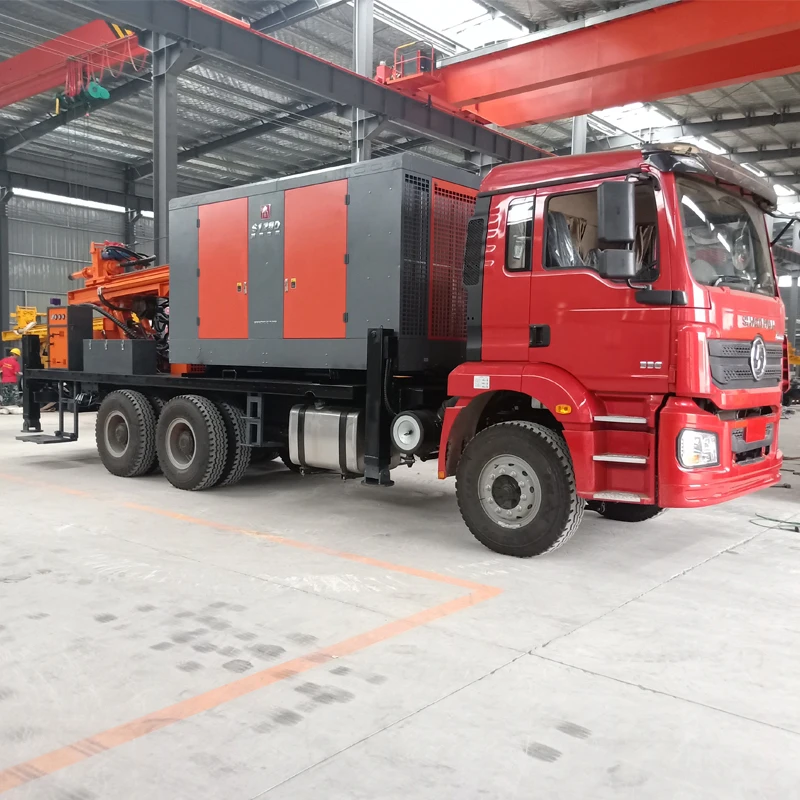

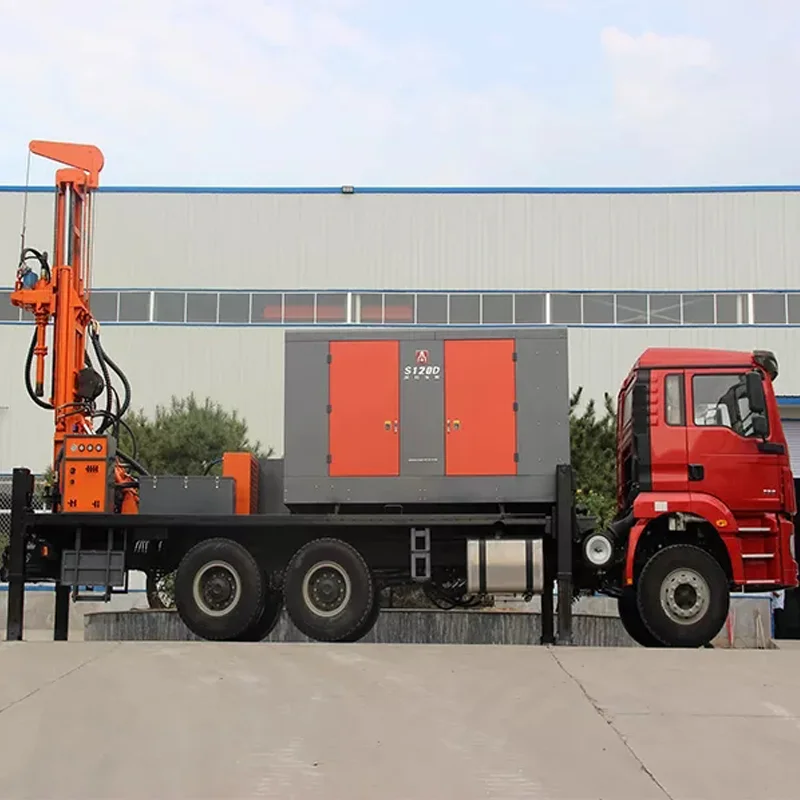

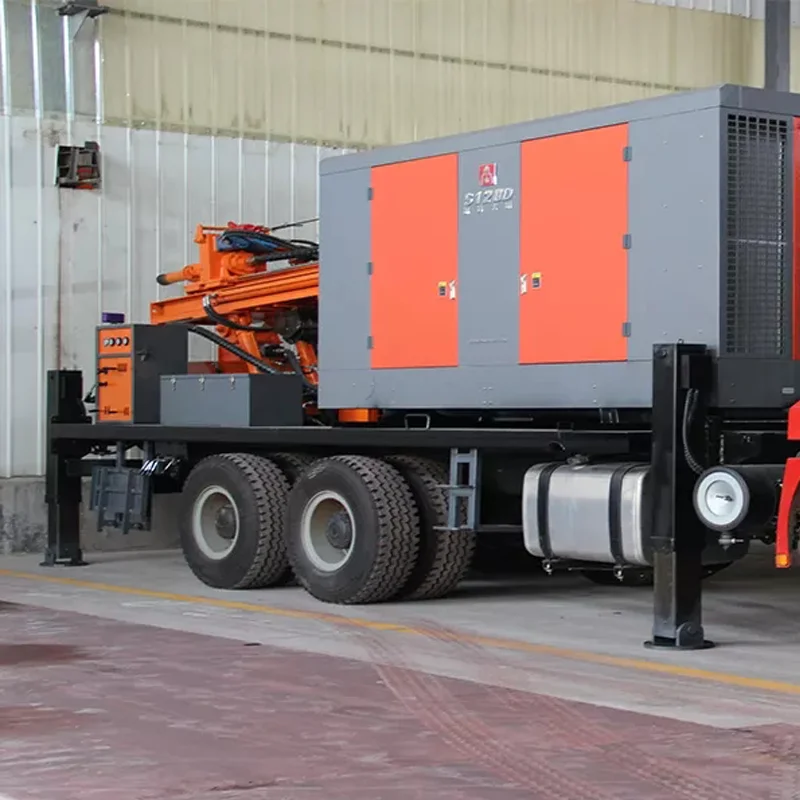

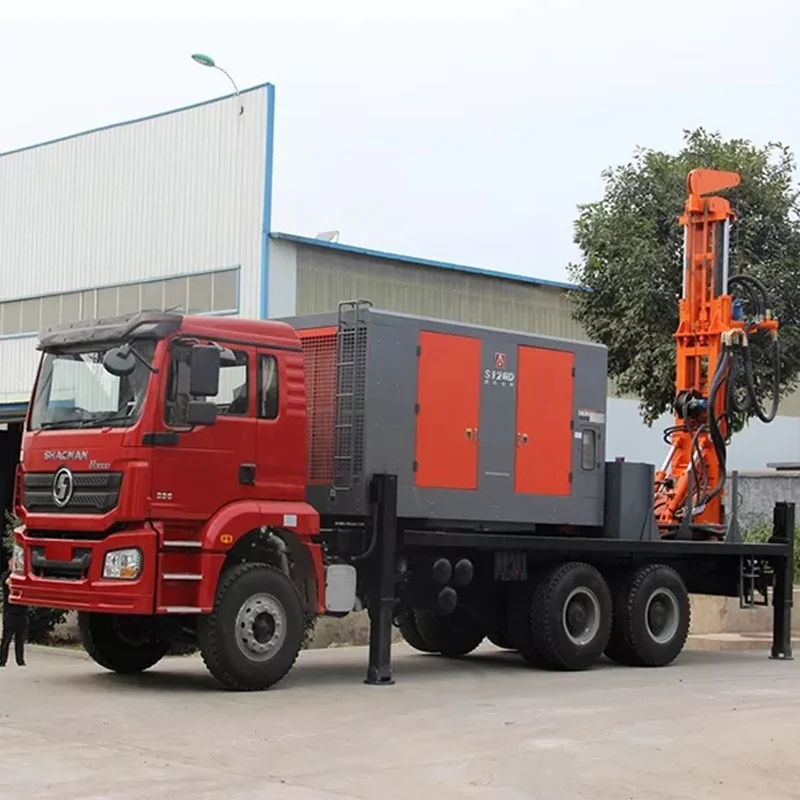

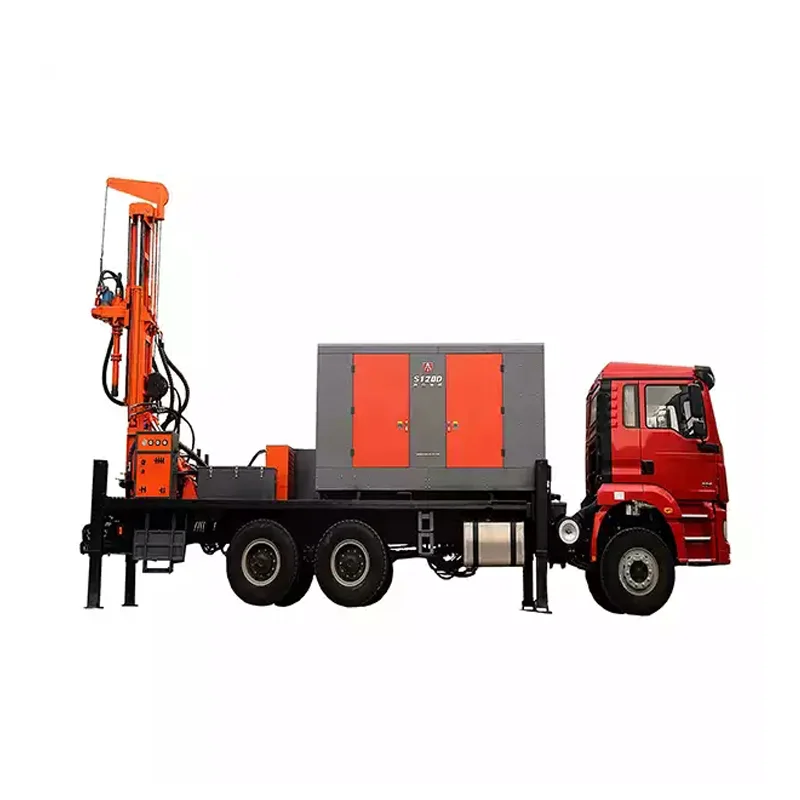

Factory Price 350M Truck Mounted Water Well Drilling Rig Mud Pump Drilling Machine Customized Truck Well Drilling Rig
Product Description
All drilling rigs are multifunctional, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method.
The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose.
They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.
Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
Product Application
This water well rig is a light, efficient and versatile drilling and drilling equipment powered by a diesel engine. It is mainly used for drilling wells, agricultural irrigation wells and other wells, especially for mountainous and rock formations，water intake project. This series of rigs adopts new hydraulic technology, which is equipped with high-torque hydraulic motor rotation and large-bore hydraulic cylinder advancement. Use with air compressor， can drill 180M, 200M, 300M, 400M, 500M ,600M, 800M, etc.
Product Feature
1. The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life
;
2. The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost;
3. It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little
damage to hard road surface;
4. Each hydraulic oil pipe is covered with a thick protective sleeve, which makes the oil pipe have a longer service life
;
5. Dual systems can be installed: 1. Air power system with air compressor 2. Mud pump system with mud pump.
Technical Parameter
Model | JG-FYX180 | JG-FY200 | JG-FY300 | JG-FY350 |
Weight(Ton) | 4.5 | 5.5 | 9 | 7 |
Drilling Diameter(mm) | 140~254 | 140~305 | 140~325 | 140~325 |
Drilling Depth(mm) | 180 | 200 | 300 | 260 |
Walking Speed(Km/h) | 2.5 | 2.5 | 2.5 | 2.5 |
Climbing Angles | 30 | 30 | 30 | 30 |
Power(Kw) | 55 | 65 | 84 | 75.8 |
Pressure(Mpa) | 1.45~2.5 | 1.7~3.0 | 1.7~3.3 | 1.7~3.0 |
Air Consumption(m³/Min) | 17~31 | 17~30 | 17~35 | 17~35 |
Drilling Pipe Diameter(mm) | 76/89 | 76/89/102 | 89/102 | 76/89/102 |
Drilling Pipe Length(M) | 1.5/2.0/3.0 | 1.5/2.0/3.0 | 1.5/2.0/3.0 | 1.5/2.0/3.0 |
Rig Lifting Force(T) | 12 | 18 | 28 | 24 |
Swing Speed(Rpm) | 45~65 | 50~70 | 55~115 | 40~70 |
Swing Torque(N.M) | 3200~4600 | 5000~6500 | 7200~9500 | 7000~9000 |
Dimension | 3800*1500*2200 | 3800*1700*2350 | 5500*1950*2780 | 4100*2100*2850 |
