300W CNC Laser Carbon Steel Plate Engraving Machine Cutter Automatic Programming Head



NOTES: This price is FOB price. Please contact us to confirm the shipping cost before order.



ADVANTAGES



1. Designed with stylish appearance, beautiful modeling and easy operation features.

2. Wide range of application: stainless steel, carbon steel, galvanized steel, iron panel, copper panel, aluminum, gold, silver, etc.

3. The machine lathe has been polished and milled for hundreds of times to reach higher precision; the machine weighs more than 4000KG, strong and never deformed.

4. Major components of the machine all come from world’s famous brands, such as Germany IPG, China Raycus, Japan Fuji, Taiwan PMI, CrpCut, etc.

5. Suitable for mass production, saving money, time and materials.

6. High cutting speed and perfect cutting edge with smooth plane and exquisite texture.

7. Japanese servo motors guarantee the cutting precision.

8. Professional and easy-to-use CYPONE/CYPCUT fiber cutting control system has full functions.

9. The DSP hand controller simplified the machine’s operation.

10. Every MORN fiber laser cutting machine is armed with convenient feeding device, reducing your workloads.

11. With Raycus fiber laser being adopted, MORN promises the machine can work for 100,000 hours.

12. The warranty of whole machine lasts for 3 years with fewer materials consuming and zero





SPECIFICATIONS

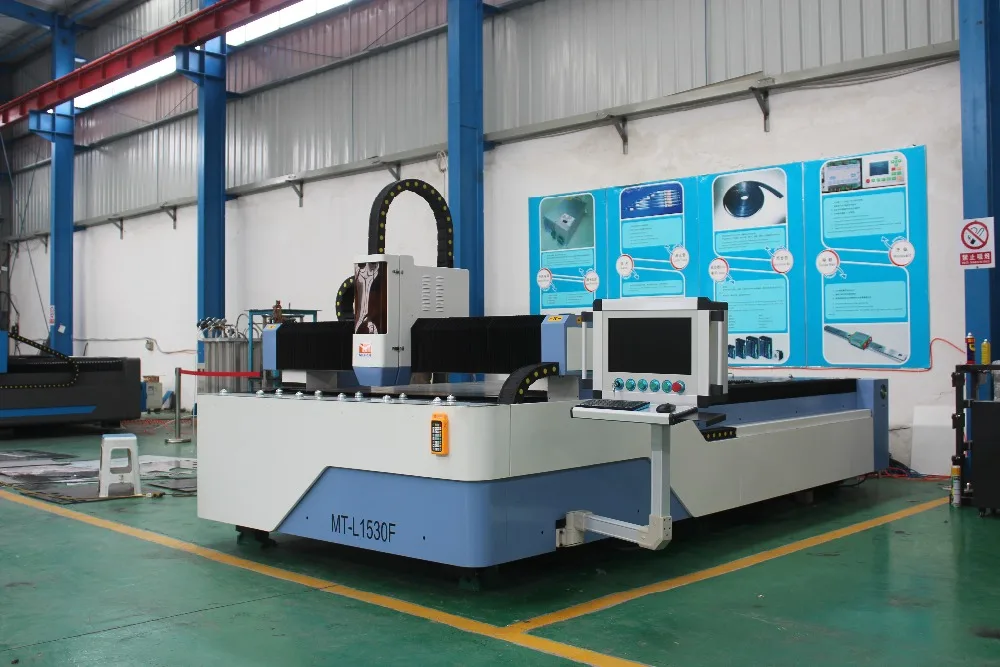

Model	MT-L1530F
Working area	1500*3000mm
Laser Type	Raycus (IPG / Nlight optional) Fiber laser source
Laser Power	300W (500W / 750W / 1KW / 2KW is optional)
Cutting Thickness	0-10mm(depend on materials and laser source power)
Cutting Speed	0-80m/min
Laser Wavelength	1064nm
Positioning Accuracy	≤ ±0.025mm/m
Re-positioning Accuracy	≤±0.02mm/m
Motor	Japan servo driver and motors
Guide rail	TAIWAN PMI square guide rail
Laser head	Domestic laser head(American laser head, switzerland laser head optional)
Max Cutting Speed	80m/min(depending on material and thickness)
Power Supply Rated Voltage	3-phase 380V+/-10% 50Hz or 3-phase 220V+/-10% 60HZ
X-axis Stroke	1300mm
Y-axis Stroke	2500mm
Z-axis Stroke	120mm
Working Table	sawtooth worktable
Water Cooling System	Constant temperature water chiller

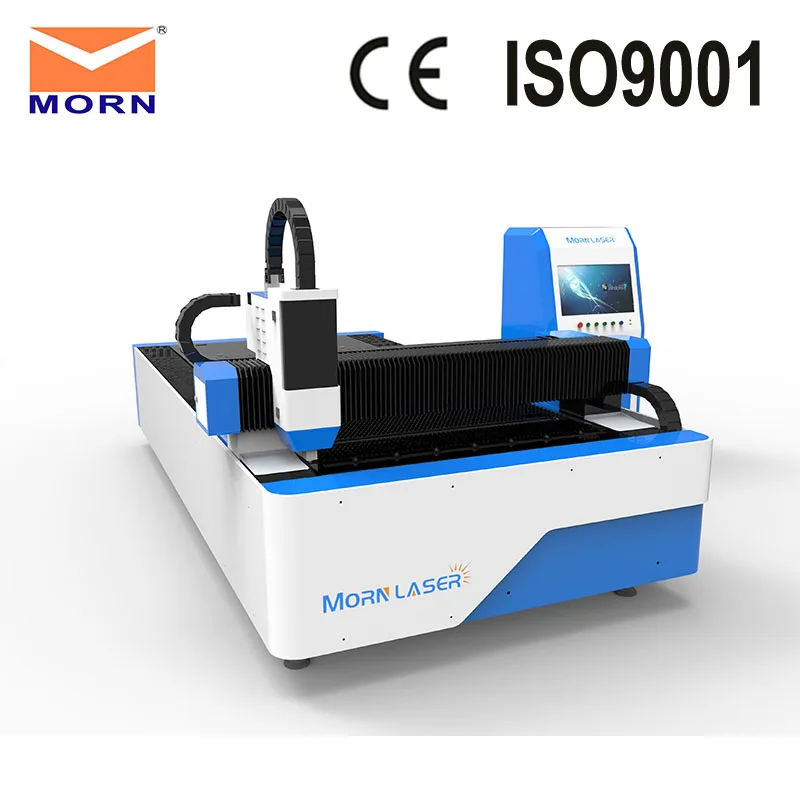

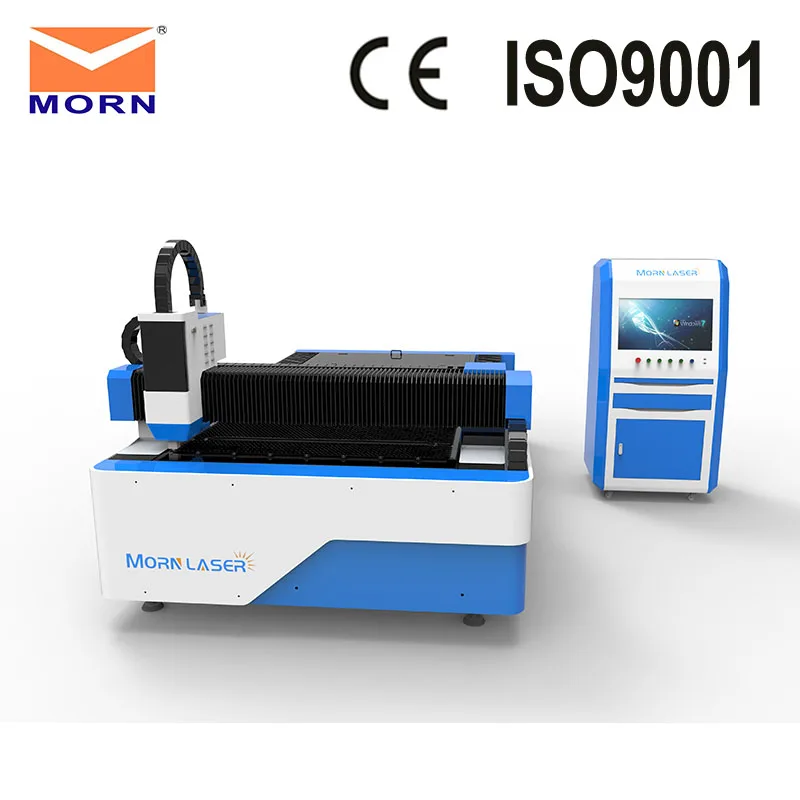

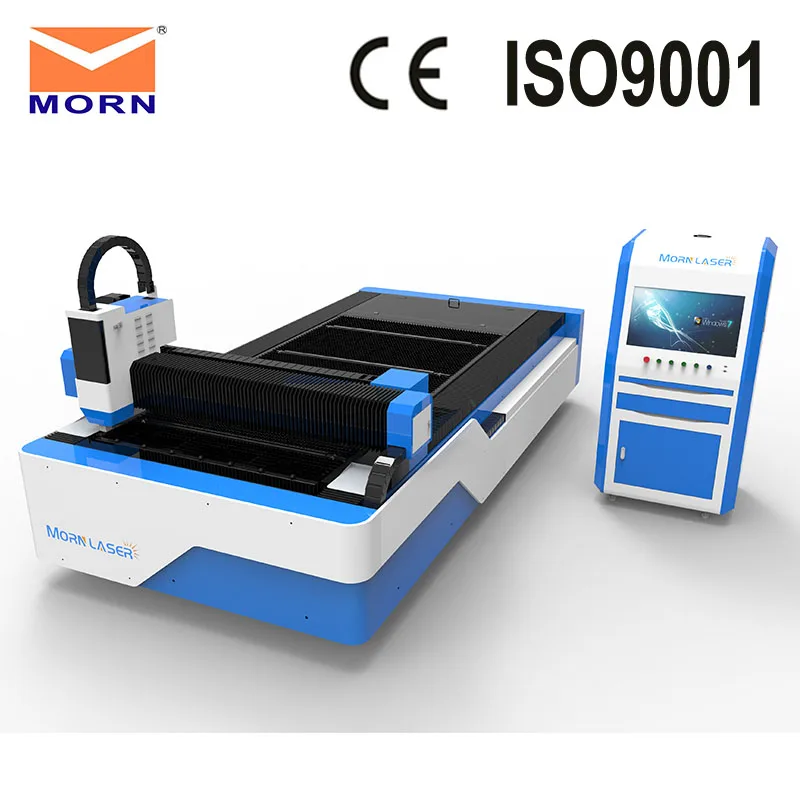

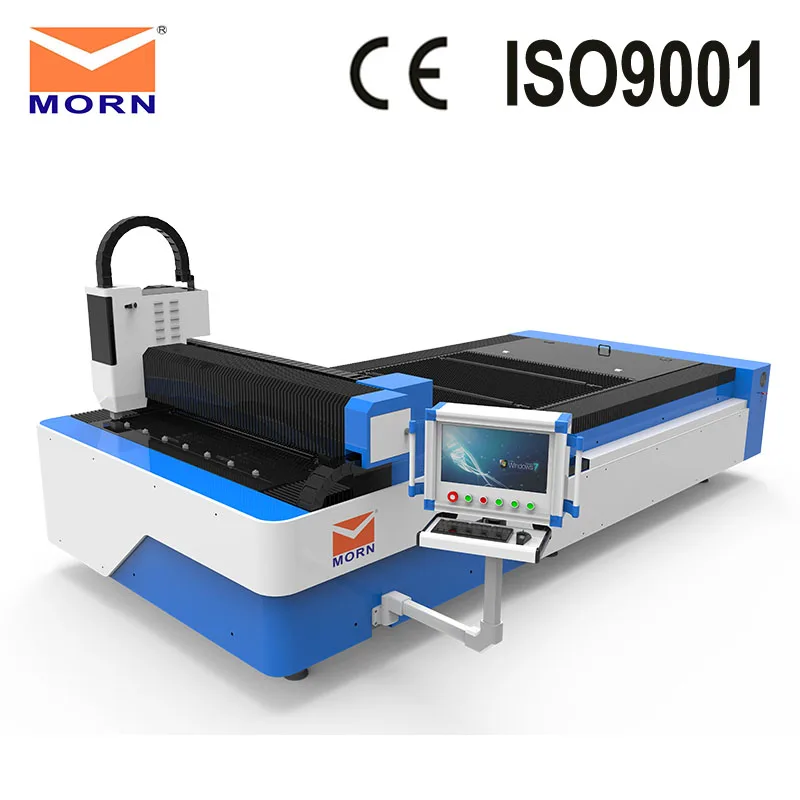

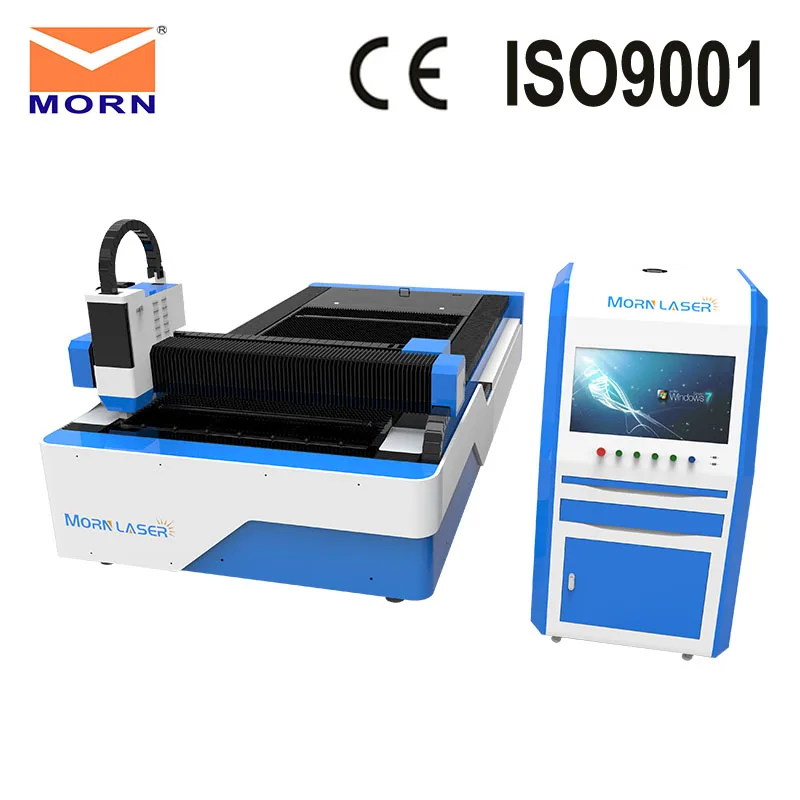

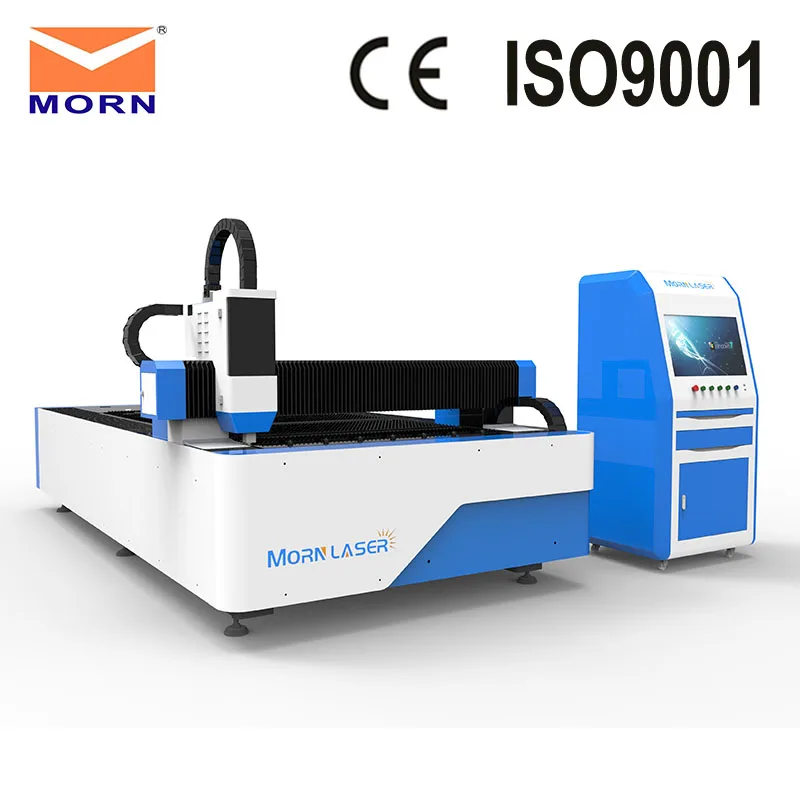

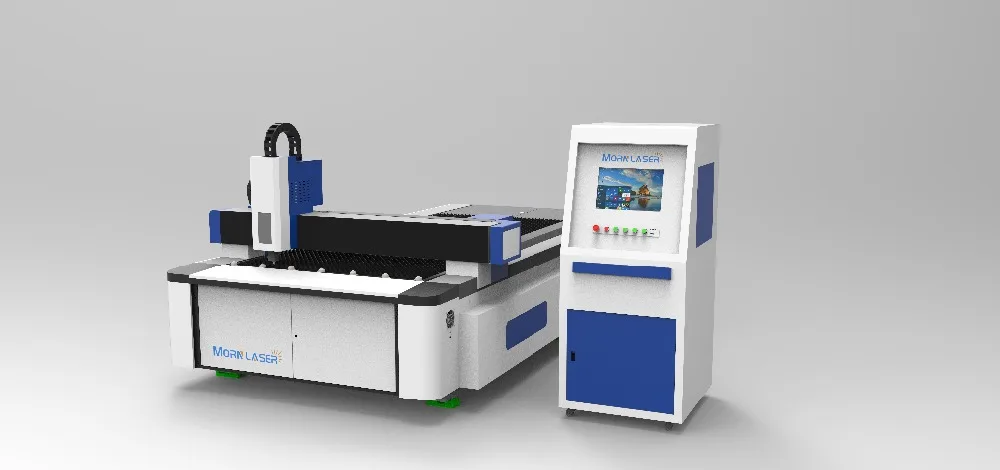

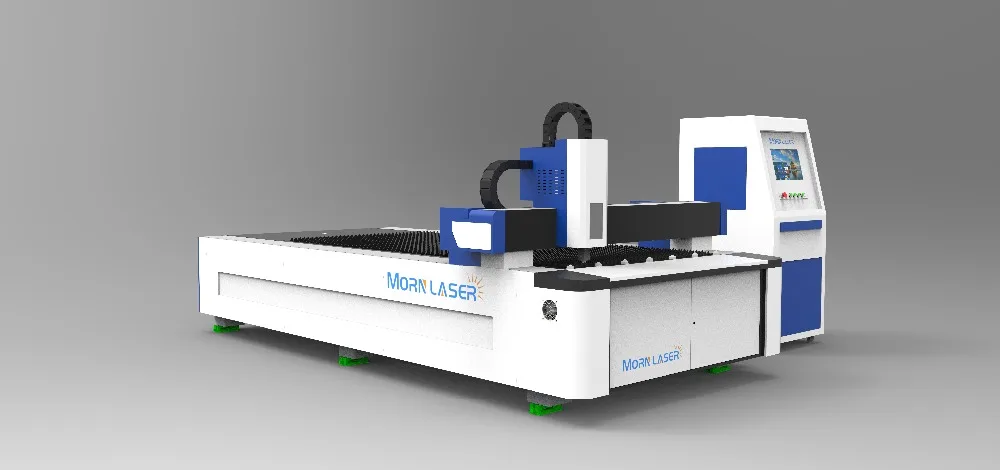

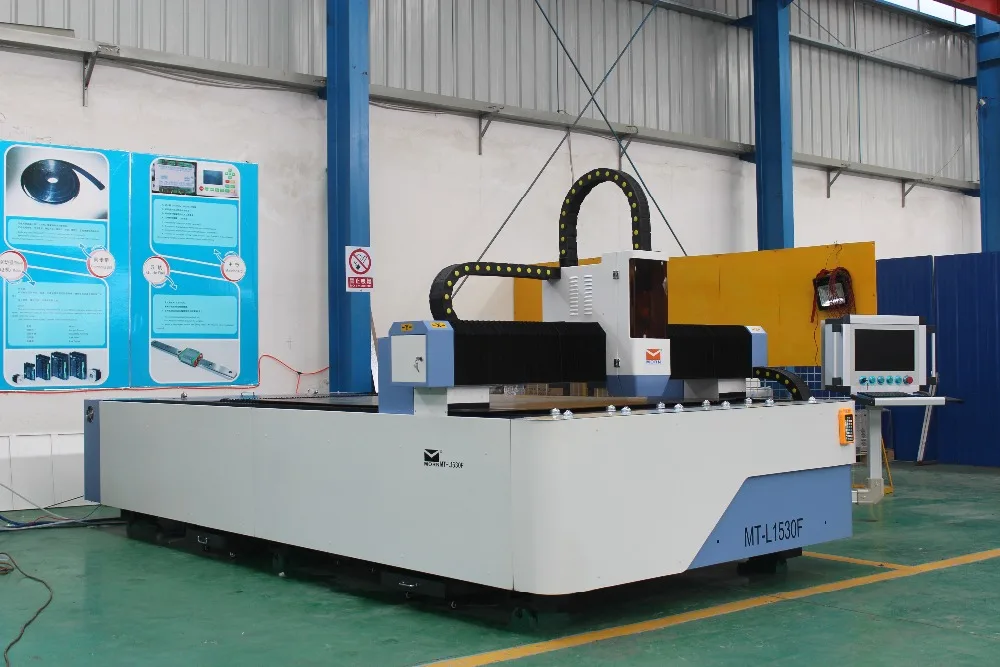

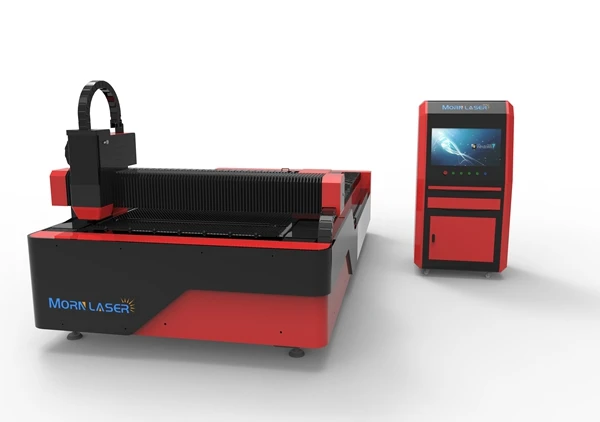

PRODUCT PHOTOS





PRODUCT DETAILS

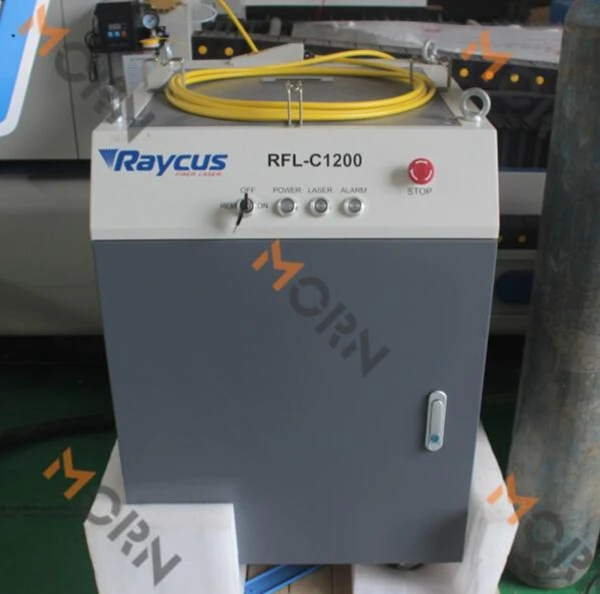

1. High Quality Laser Source:

Low Energy Consumption, save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 machine. The laser source lifetime is more than 100,000 hours and almost free maintenance for life.

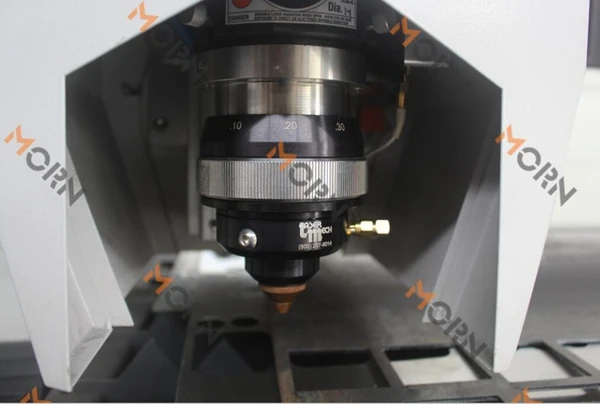

2. Quality Laser Cutting head

Machine with auto focus height follower means if the metal sheet have little wavy surfaces,the focus height follower can ensure constant distance between the focal lens and plate to ensure the cutting accuracy. This laser head is good sealed, high pressure resistant, auto-tracking system and anti-crash and stop system can protect good cutting quality and longer the life of lens.

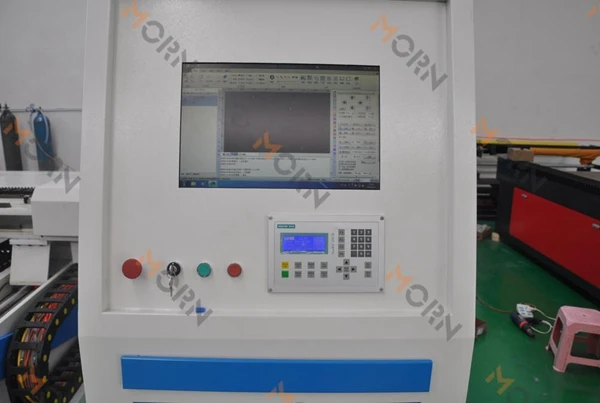

3. Control system:

Industrial PC control with offline function. Easy operation and automatic programming. Including UPS function to protect your computer. When suddenly power off, you will have some time to save your files in the computer.

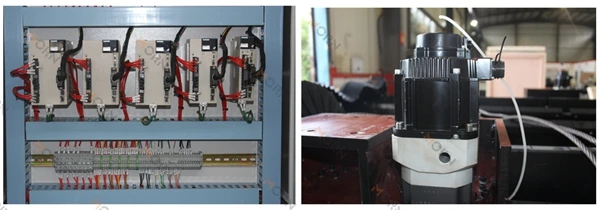

4. Japan Servo Driver and motor system:

Adopt the Japan servo driver and motors. Ensures the possibility of realizing extreme precise positioning with the excellent dynamic response acceleration property and closed loop control method, and that makes moving positioning mechanism operate smoothly, reliably and free of maintenance.

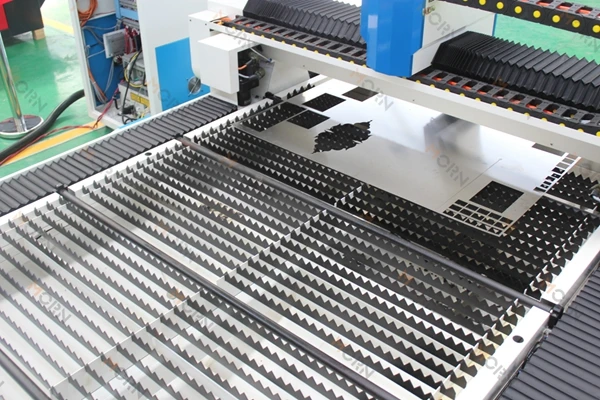

5. Automatic Up-down Worktable:

We equipped this machine with Up-down worktable. Which is more easier opeartion. Especially easier for put and off the thick and heavy metal sheets. It will save the engery of person. Meantime, it is protect the metal materials away from the scratch, when put the materials on the sawtooth table.

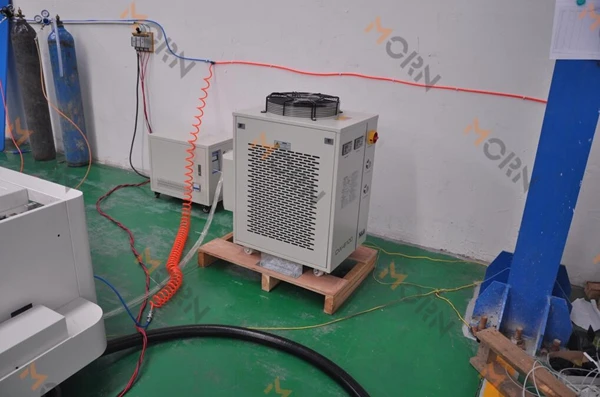

6. Constant Temperature Cooling System:

The temperature of the refrigeration unit in digital chart shows, while water temperature more than a specified temperature, it will automatically refrigeration; while water temperature below a specified temperature it will automatically stop.

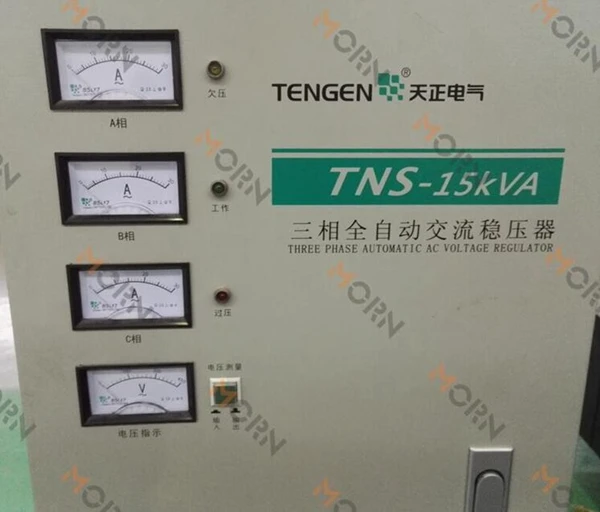

7. Automatic AC voltage regulator (Optional part):

Mainly to prevent the role of interference outside the power grid, and the power supply to adapt to emotional power, capacitive, resistive load, long-term continuous work, to withstand transient overload (rated current 2-3 times). Assist the metal cutting machine working more stability, and ensure the machine nice working performance.

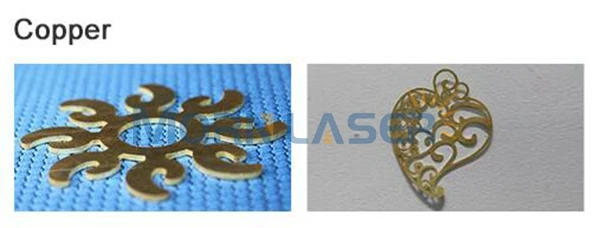

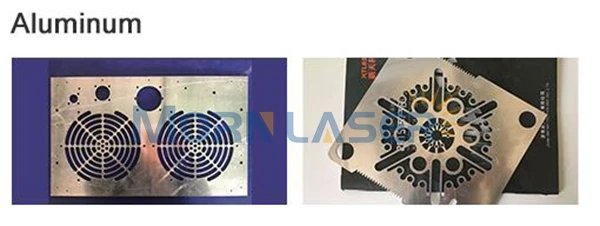

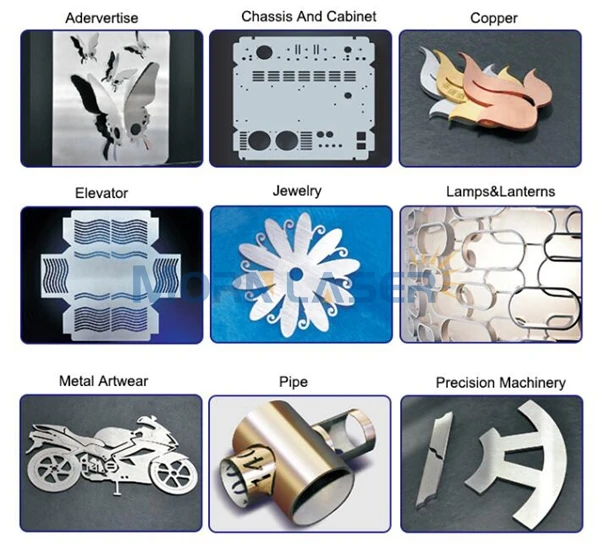

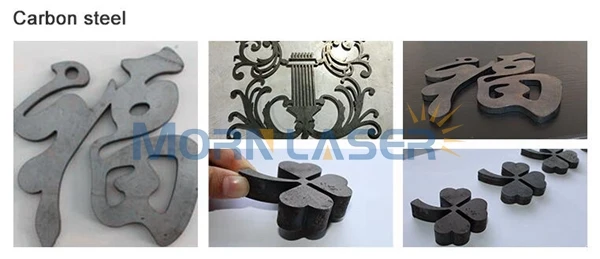

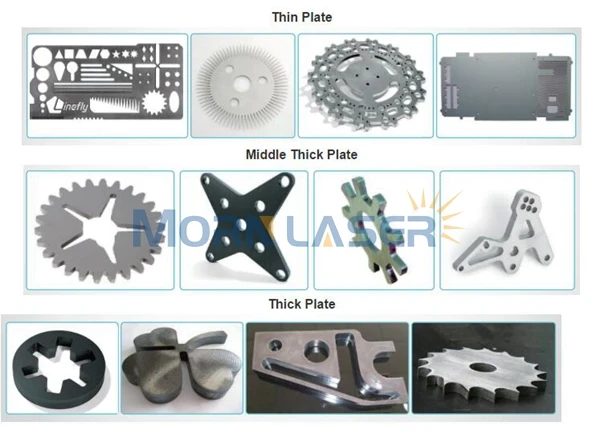

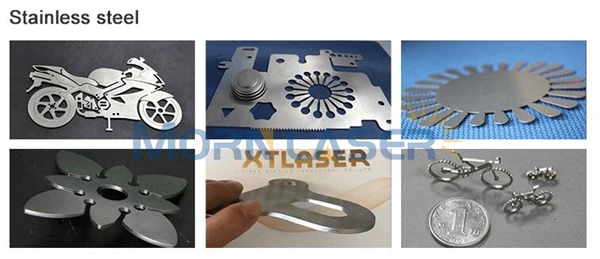

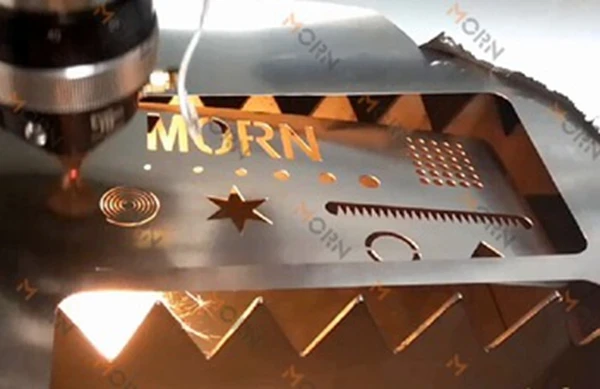

SAMPLES

Sheet metal processing, Die-cutting, Electronic, Electrical appliance, Aviation, Mechanical, Elevator, Cars, Steamer, Cutting tool, Subway accessories, Petroleum machinery, Food machinery, Craft gits, Tools processing, Decoration, Advertisement, Metal external processing and other manufactures.



SERVICE

1.If you choose seller shipping method, please email us your port name to double check if it can be reached and delivery time. Please reconfirm the shipment information: consignee/contact person, detailed address, telephone number.

For Russia and Ukraine, we can ship machine to your city by land transportation. Please contact us to confirm the shipping cost and customs tax.

2. When payment and shipping information are confirmed, shipping will be made within 7 working days.

3. It's CIF trade term (insurance included). The buyer should pay surcharge of port, including handling charges, custom clearance cost and import taxes. EXW and FOB terms are also acceptable. We ship goods by sea to your seaport (you need to find broker to help you clear customs).

4. On arriving at the destination port, the machine should be picked up soon. Or the buyer should pay the relevant demurrage charges.

5. If want other courier like DHL, TNT, UPS, FedEx or EMS, please also provide us with your city name and post code, so we can check the delivery detail and cost.

6. Please check all goods carefully and report to us within one week if there are any parts loss or machine problems (photo evidence needed). The machine is specially customized product with big size, so we do not accept return with pretty high return cost. But we are confident in our products quality. And lifetime tech support and free spare parts (Consumable parts not included) during warranty will be offered for each buyer.

7. If we are not on line, please leave us messages on Aliexpress about any questions on our product or your order, then we will reply you within 24 hours.



FAQ



Q1. How to get the most suitable machine and best price

      Please tell us the material you want to working on ? How to working on it ?Engraving ? Cutting ? Or other ? Mainly engraving or cutting?

    What's the MAX size of these material ?( length ? Width ? Thickness ?)

 Q2. If we don't know how to use the machine,can you teach us?

      Yes, we will, please contact us as soon as you get the machine

 Q3. How about your after-sales service?

      we offer you 7*12 hours service phone,skype or Whatapp.

  Q4. Quality control:

      The whole production procedure will be under regular inspection and strictquality control. The complete machine will be tested to make sure they canwork very well before being out of factory.

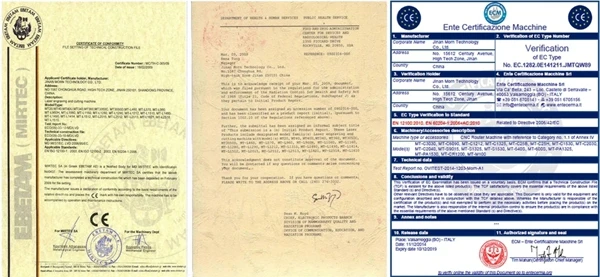

      Our machine passed CE Certificate, meet European and American standard
  were exported to more than 100 Countries.

  Q5. Machine configuration

      Complete computer and free Ezad software are included.

   Q6  How we pay you?

      Please contact us, after confirm machine and optional parts to order, we will give you the link to order.

  Learn more about MORN laser machine? Want to get more discount? Please do not hesitate to contact us! We will reply you with 12 hours, thank you!
MORN

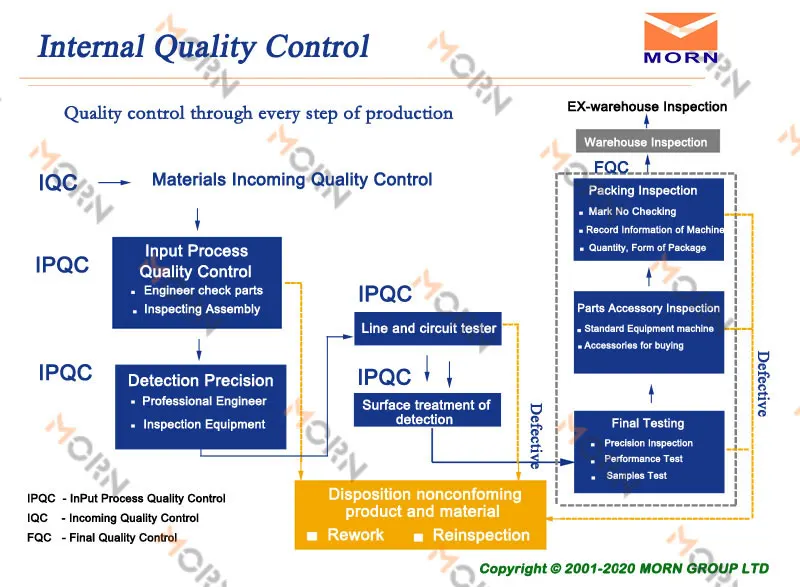

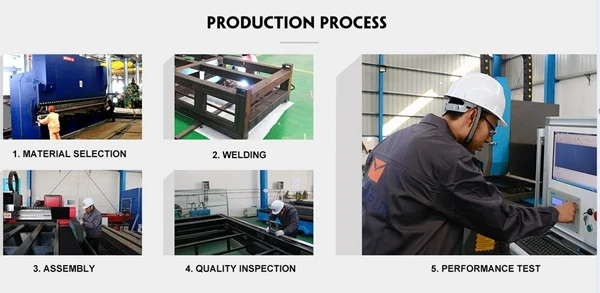

MORN strictly controls the quality of each laser product to be really responsible for the safe work of every customer. To adhere to the quality and safety standard, each MORN product has to experience strict test procedures in the factory:

1.Machine Appearance:

Standard size, good spray and welding, clear circuit system assembly, and complete parts;

2.Pre-installation:

All machine parts and components will be pre-installed at the factory to remove the potential installation problems customers may come across.

3. Trial Running:

Trial running of laser machine is implemented by sample processing, in which processing speed and precision will be confirmed by customers. Also the machine runs smoothly and steadily, and the control system can accurately control the machine. Tested product that may not meet the expectation will be readjusted until they meet the requirements.

4.Packing:

After the machine is tested successfully, the parts and components will be disassembled into the packing process. Protective film, wooden box and iron frame will be used to tightly pack the machine to avoid being crashed or damaged during transportation.
