Descrição
- Type: Hand Tool Parts
- Origin: Mainland China
- Warranty: 1year, 1 Year
- Customized support: OEM
- Place of Origin: Guangdong, China
- Brand Name: SOBEKK
- Model Number: LA500
- Product name: Vision Measuring System Coordinate Measuring Machine
- Model: LA400
- Application: Optical Equipment
- Function: Testing
- Weight: 200kg
- Type: Laboratory Optical Equipments
- Material: Granite
- Name: Automatic Video Measuring Machine
- Usage: Optical System
Hello, my friend. Welcome to our store. Nice to meet you. I am Sofia from China. In order to better answer your question, please let me know your specific product requirements. I will reply to you promptly after seeing the information. Thank you very much! If you need me to reply to you now, you can add my Whats.app:+86 15575927835 (or email: 2804230264@qq.com) so that I can reply to you in a timely manner. Thank you again! Wishing you a happy life!
Product Introduction
Sobekk Precision Instruments Co.,Ltd
2D/3D High Precision CNC Optical Video Measuring System Vision Measuring System Coordinate Measuring Machine for Lab
Being a professional manufacturere and exporter in the field of metrology measuring instruments, Sunpoc group(Sobekk Precision Instruments Co.,Ltd)mainly supplys optical profile projectors, video measuring machines, toolmakers microscopes,digital readout,linear scales,hardness tester,digital caliper and measuring software,etc. the products are widely applied in the industry of mechanic,electronic,mold and hardware for quality control etc.
Features
2D/3D High Precision CNC Optical Video Measuring System Vision Measuring System Coordinate Measuring Machine for Lab
1)Height measure: using the measuring head can measure the height of the characteristics of the workpiece surface to measure the height difference;
2)Measuring sphere and cylinder: using the multi-direction point contact of the measuring head can measure the position beyond the image measuring;
3)Measuring flatness: Using the height and speed of the measuring head to quickly measure the flatness of the workpiece surface.
Specification
|
Model
|
LA300
|
LA400
|
LA500
|
||
|
Measuring Range (mm)
|
300*300*300
|
400*400*300
|
500*500*300
|
||
|
X, Y axis precision(μm)
|
1.6+L/200
|
1.8+L/200
|
2.0+L/200
|
||
|
Z axis accuracy (μm)
|
3.5+L/200
|
3.5+L/200
|
3.5+L/200
|
||
|
X, Y vector precision(μm)
|
2.5+L/200
|
2.8+L/200
|
3.0+L/200
|
||
|
Max load weight (kg)
|
25kg
|
30kg
|
|
||
|
Resolution
|
0.1um metal linear scale
|
|
|
||
|
X, Y axis max speed
|
500mm/s
|
|
|
||
|
X, Y max acceleration
|
1400mm/s
|
|
|
||
|
Z axis maximum speed
|
30mm/s
|
|
|
||
|
Optical zoom
|
0.6 ~ 8 X (1:13) Automatic telecentric coaxial lens 44x-588x
|
|
|
||
|
Imaging device
|
5.0 Mpexl (2/3inch) Gigabit color digital camera
|
|
|
||
|
Motor
|
Ultra silent linear digital camera
|
|
|
||
|
Light source
|
programmable :4 ring 8 partition LED cold light source
spherical integral parallel light source
liftable light source
|
|
|
||
|
Expansion and upgrade (Optional)
|
Laser sensor /3D probe system
|
|
|
||
Software Interface

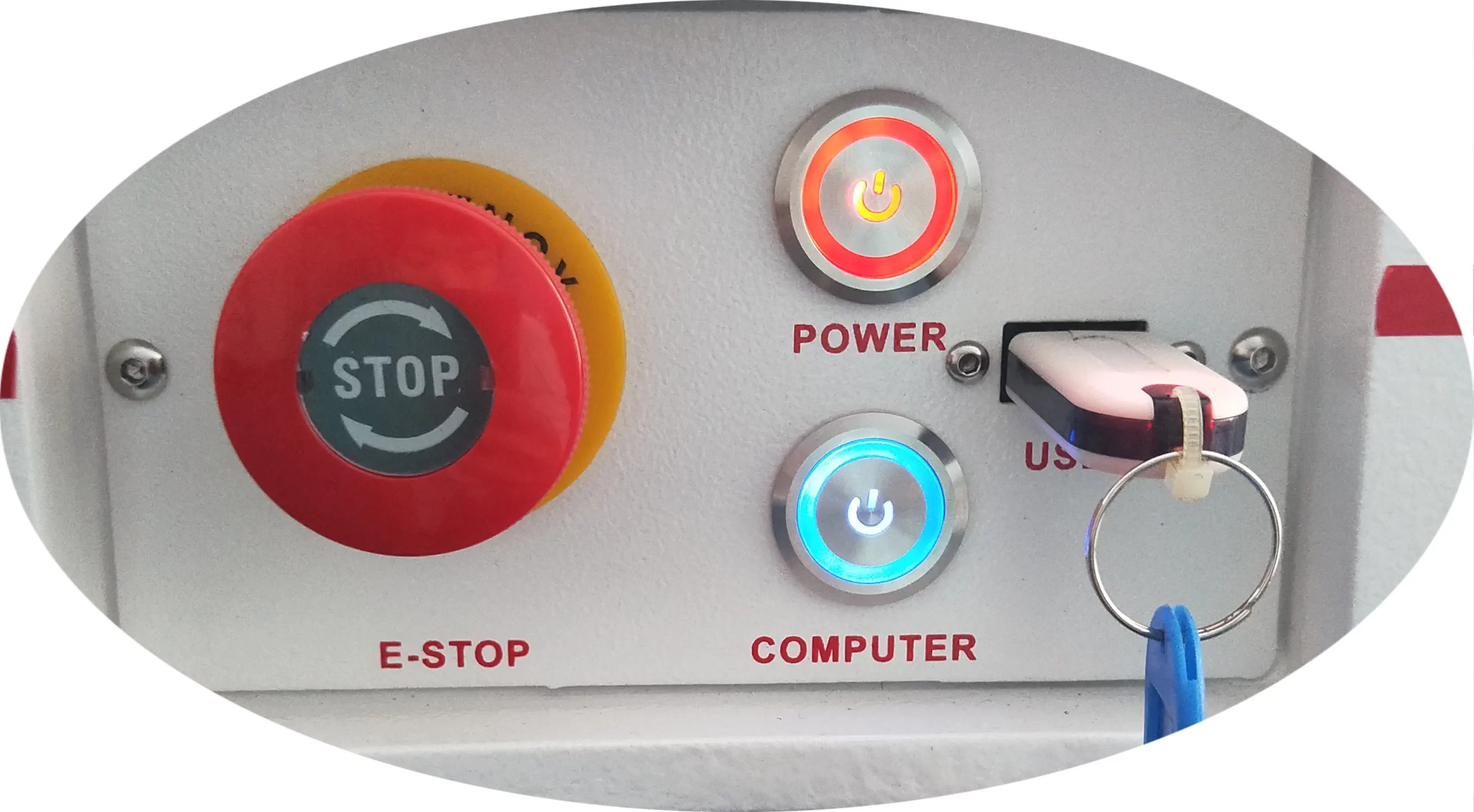

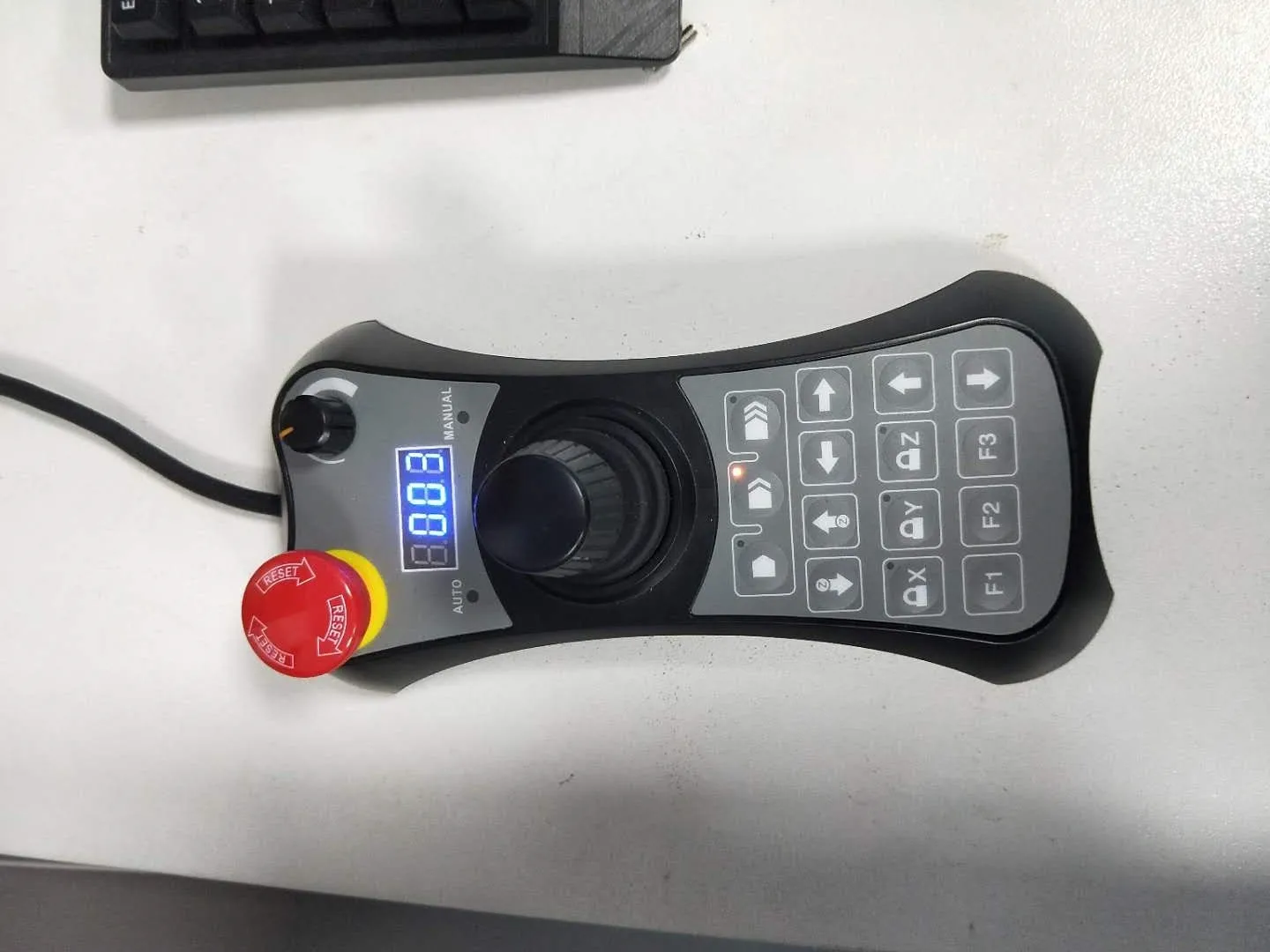

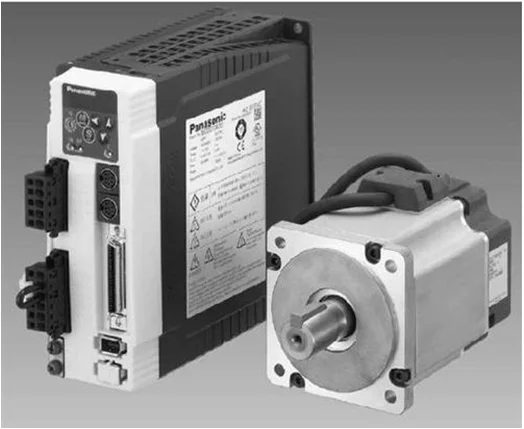

Main Parts
Optional Parts
Certifications

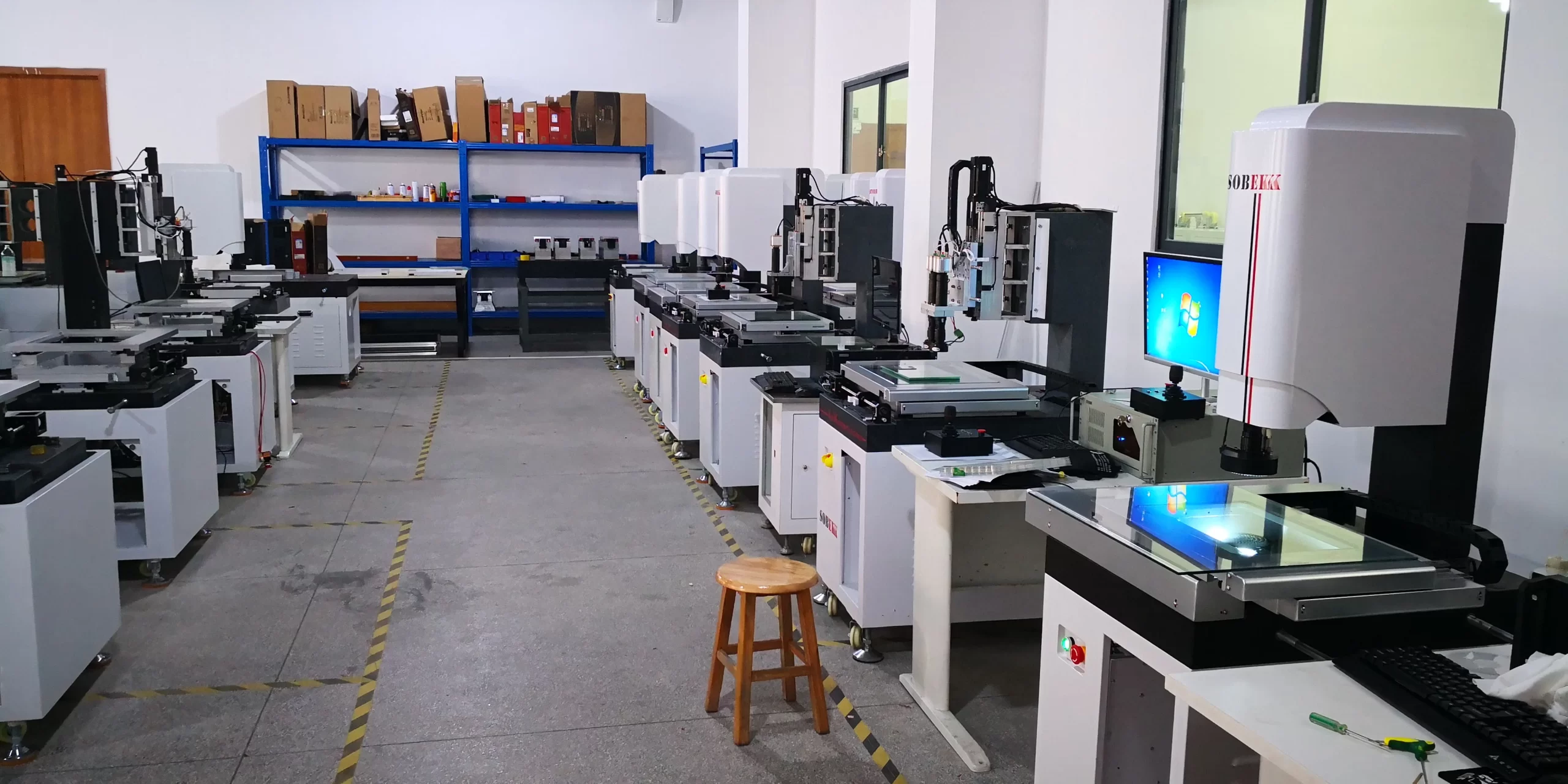

Company & Customer
As the branch of SUNPOC group, SOBEKK Precison Instrument is a professional manufacturer for video measuring machine from China with more than 15 years experience, we are made up of 1 factory, 6 after sales service centers, 1R&R center and 1 foreign sales department. we meet the standard of ISO9001,products with CE certificate. now we are service the customers from more than 30 countries and
regions . such as :USA, Poland, Hungary, Korea, Vietnam, Thailand, Malaysia ...
Company Goal: to be the most stable supplier for video measuring machine in China
Company Goal: to be the most stable supplier for video measuring machine in China
Packing & Delivery
Contact us
