Name: 1500w 2000w 3000w 6000w Metal Cnc Fiber Laser Cutter Laser Cutting Machine for Iron Steel Aluminum Copper Plate Sheet Cut
SKU: 1005008684677822
Availability: InStock

Hign-concerned Chemical: None
Certification: ce
Origin: Mainland China
Brand Name: ACCTEK
Model Number: AKJ1530F1
Certification: CE
Key word: 1500w 2000w 3000w 6000w Metal Cnc Fiber Laser Cutter Laser Cutting Machine for Iron Steel Aluminum Copper Plate Sheet Cut
Laser source brand: Raycus/Max/JPT/IPG
Guide rail brand: Taiwan Hiwin guide rail
Cutting head: Raytools cutting head
Control system: Cypcut cotroller
Servo motor brand: Yaskawa servo motor
Reducer brand: French Motoreducer reducer
Cooling method: S&A water cooling
Lsaer power: 1500W/2000W/3000W/6000W/12KW...

1500w 2000w 3000w 6000w Metal Cnc Fiber Laser Cutter Laser Cutting Machine for Iron Steel Aluminum Copper Plate Sheet Cut

Product Introduction

Cutting table size options:

1500x3000mm, 1300x900mm, 600x900mm...Custom sizes available

Model Number	AKJ1530F
Working Scope	1500x3000mm
Laser power	1500W/2000W/3000W/6000W/12kw...
Power Supply	AC220V 50/60Hz
Fiber Laser Source	Raycus/JPT/Max/IPG optional
Cutting Head	Au3tech/RayTools/Boci optional
Servo Motor	Japanese Yaskawa
Servo Motor Power	X,Y axis 850w,Z axis 400w,Total 4 sets Servo Motor
Reducer	French motoreducer
Control System	Au3tech/Cypcut Control System
X/Y axis repetition positioning accuracy	0.02mm
positioning accuracy	0.03mm
Max.Speed	100 m/min
Max. acceleration	1.5 G
Graphic Format Support	BMP, AI,DST, CDR, PLT, DXF, JPG, PGN
Water Chiller	S&A

Cutting ability of different laser power (for reference):

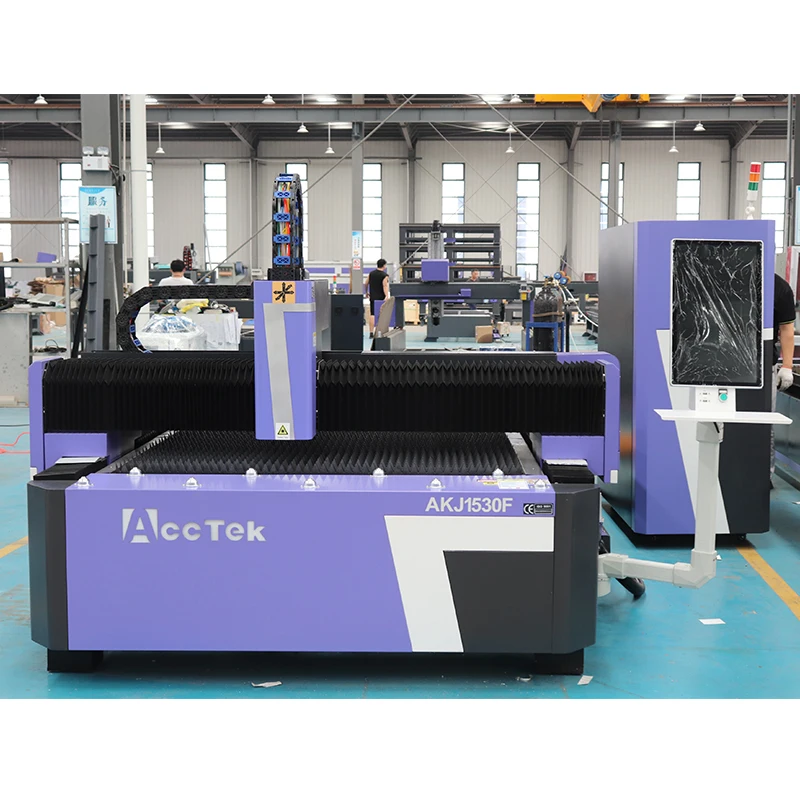

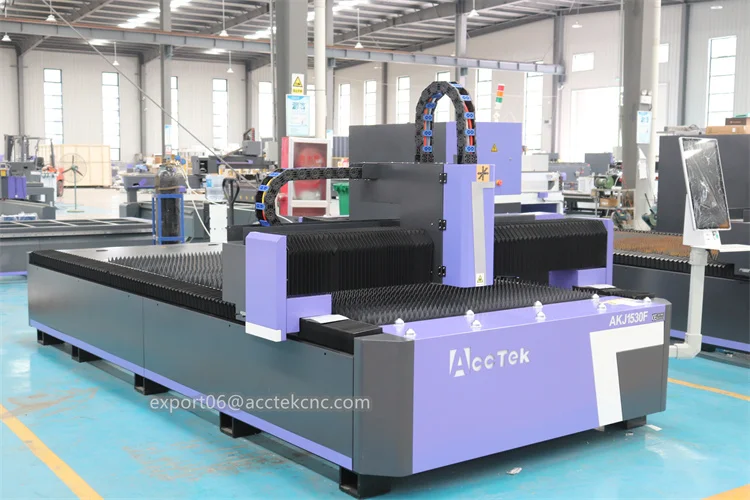

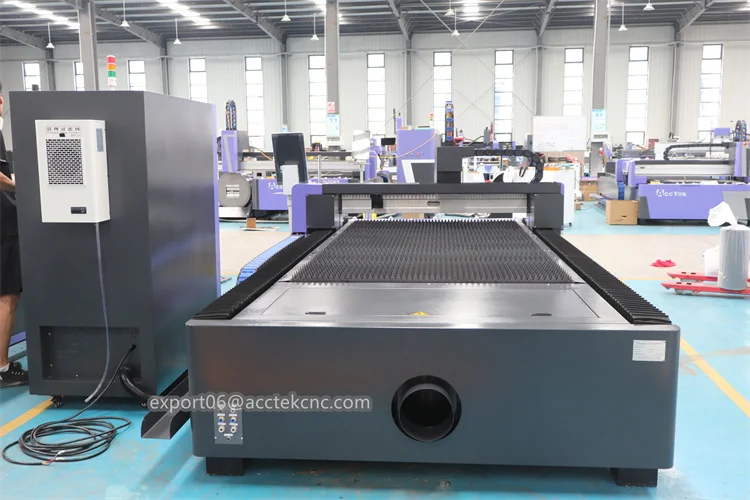

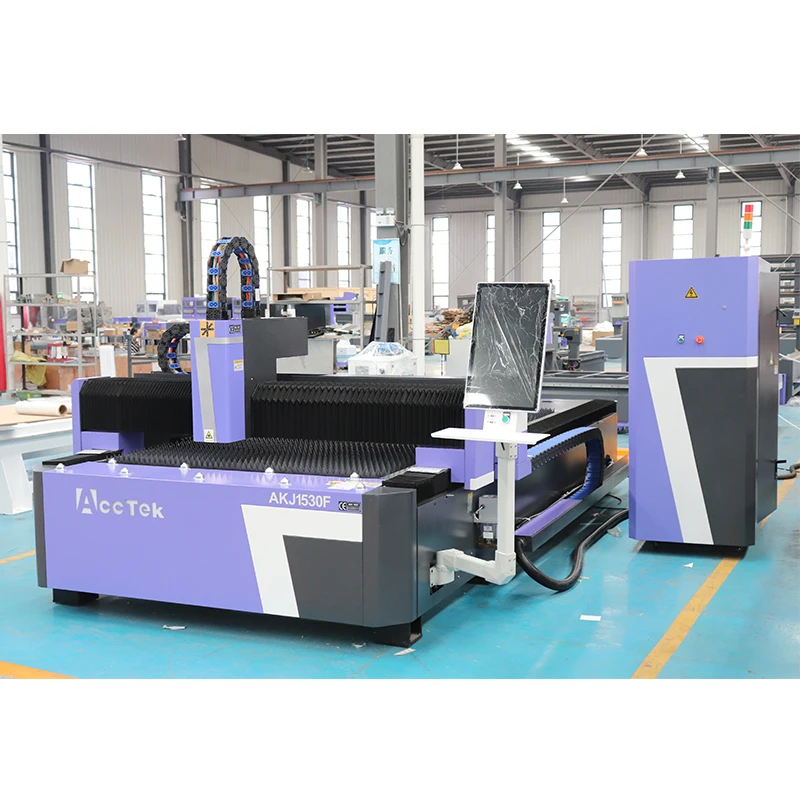

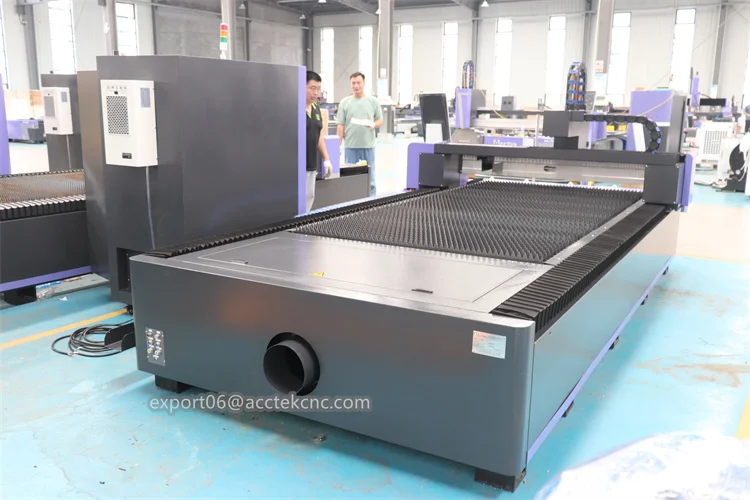

Machine detailed pictures

Main features

Fiber laser cutting machine head

> Raytools Laser CuttingHead, the focus can be adjusted automatically, the operation is simple, convenient, fast and accurate.
Shorten piercing time, improve piercing quality, high-speed cutting, and save time. Porad, Pretic, can be optional.

MAX Laser Generator

> Higher photoelectric conversion efficiency, more stable beam quality, stronger anti-high-reflection ability, to achieve better cutting results

Transmission system

> The guide rail and rack are calibrated by a precision collimator with an accuracy of ±0.02mm.Using Taiwan YYC rack, grinding on all sides. And there is a positioning pin design to prevent the rack from shifting.Using Taiwan HIWIN guide rail, and use oblique pressure block design to prevent displacement of guide rail.

Yaskawa servo motor and driver

> Yaskawa servo motor and driver, Adjustment-free function, realize instant-on-use, automatic tuning function, improve performance.

Application

Applicable Industry:

Automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising logo,car decoration, sheet metal production, lighting hardware, display equipment, precision parts, hardware products, subway accessories, decoration, textile machinery, food machinery , Construction machinery, ships, tooling, metallurgical equipment, aviation, aerospace and other manufacturing and processing industries.

Applicable Materials:

Laser Cutting machine is suitable for variety of metal plates/tube, stainless steel, carbon steel, galvanized sheet/tube, brass plate/tube, aluminum plate/tube, manganese steel, all kinds of alloy plates/tubes, rare metals etc.

What is the cutting effect？Please refer to the pictures.

Our service

Safe package
1. Thick layer of plastic wrap
2. Six-sided pearl cotton
3. High-strength wooden box
4. Packing belt and then fix the machine to ensure the safety of the machine during transportation.

Warranty
1. 3 years quality guaranty for the machine and online service everyday day, free technical support.
2. Free training to guarantee you can operate machine correctly.
3. We will provide the consumable parts at an agency price when you need replacement.
4. Our staff can be sent to your company to install or adjust if necessary.
5. The processing demo video and E-catalogue will be mailed as your request.

Technical service
1. Professional instruction for the operation of machine
2. Completed machine manual and CD will be provided together with machine.
3. Machine has been adjusted before delivery.
4. 24-hour technical support by email or calling.

Overseas after-sales service

Why choose Acctek?

MORE Cost-saving!

MORE Flexible!

MORE Safer!

Consider Everything for Customers, Create More Value for Customers!
