- Hign-concerned Chemical: None
- Size: Cutting Machine for Wood
- Type: Surfboard Shaping Machine
- Model Number: Engraving and Cutting Machine
- DIY Supplies: Woodworking
- Brand Name: WMWMNU
- Origin: Mainland China
- Output Voltage: Sculpture Machine CNC
- Style: Marble Granite Stone Cnc
- Max Cutting Length: 2500mm
- Type: CNC Router
- Use: Marble
- Place of Origin: Shandong, China
- Brand Name: UBO
- Voltage: 380V
- Power: 7kw
- Dimension(L*W*H): 3300*2150*2000mm
- Weight: 1800 kg
- Warranty: 3 years
- Key Selling Points: Easy to Operate
- Cutting thickness (max): 150mm
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Core Components: motor, Other, Bearing, Gear, Pump, Gearbox
- Product name: Stone CNC Router
- Function: stone Cutting Engraving Carving Milling
- Application: Stone Marble Granite Quartz Sandstone
- Transmission: Helical Rack Pinion
- Control system: NcStudio Control System
- Guide rail: HIWIN Square Guide Rail(option PMT. CSK
- Table structure: Aluminum Table Structure
- Z axis transmission: Taiwan PMI Ballscrew Transmisson
- Inverter: Fuling Inverter
- Software: Ucancam / ArtCam/TYPE3/Power Mill
Dear customer, I am in charge of this series of products and I serve as the company manager. You can contact me to obtain more discounts and other new product information. I can arrange training and use of the products for you to ensure that you can use them quickly and efficiently. This is my contact information. Please contact me before placing an order to obtain the correct price, which includes details of transportation and shipping costs. This is my business card information: Manager: Violet Ms WhatsApp:+86 18966023528 Email:qianruitrading@gmail.com
Product Description

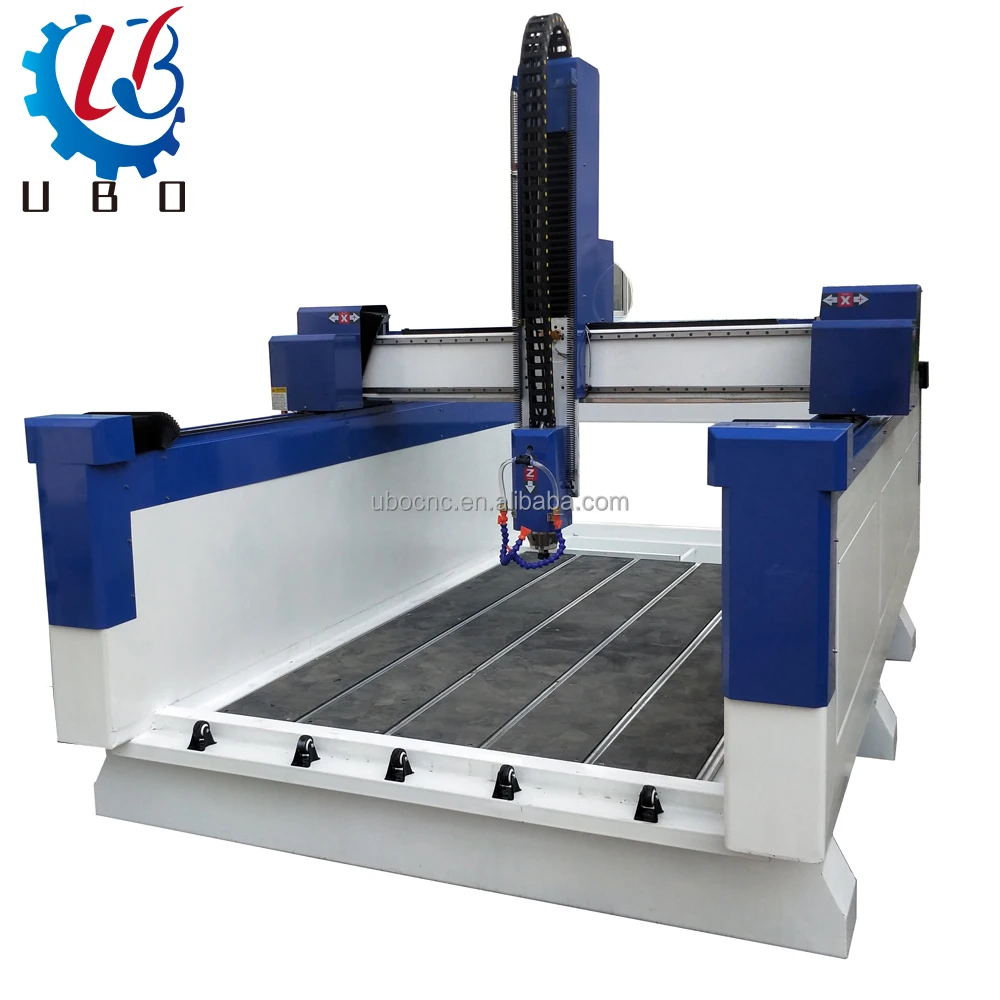

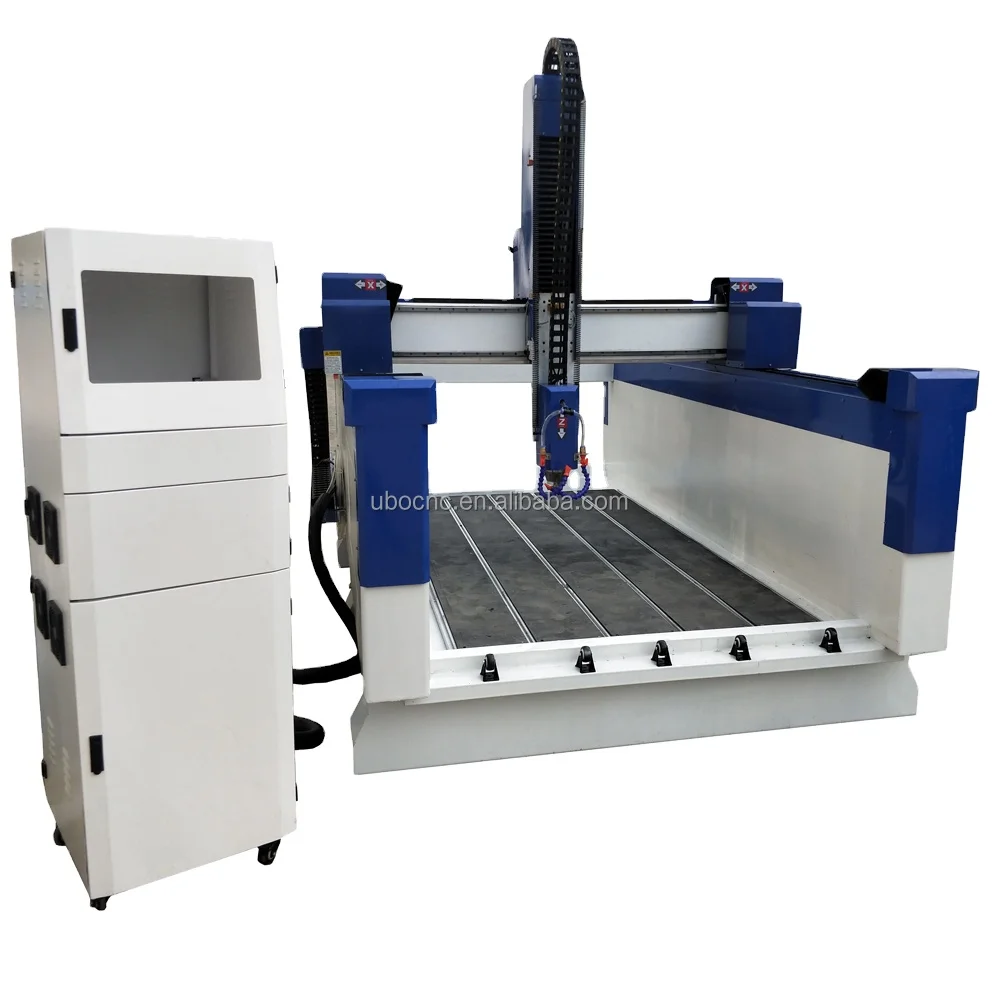

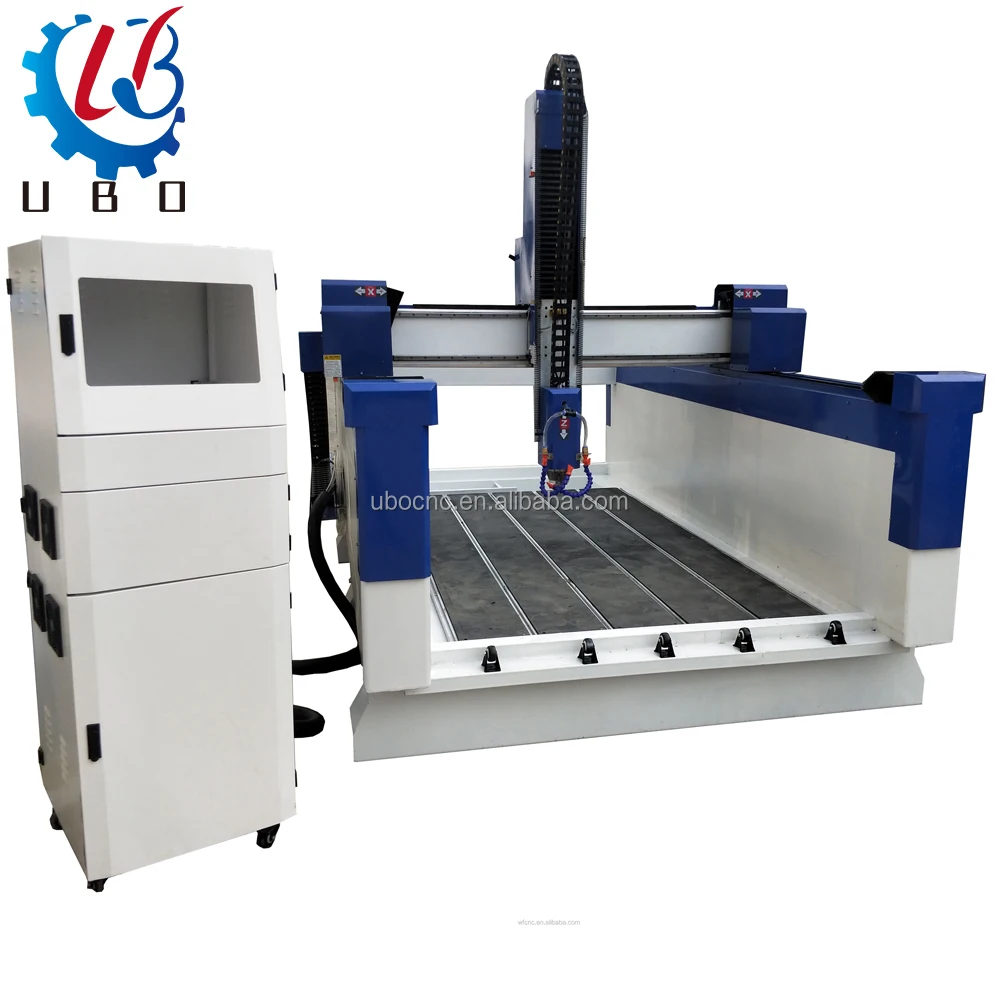

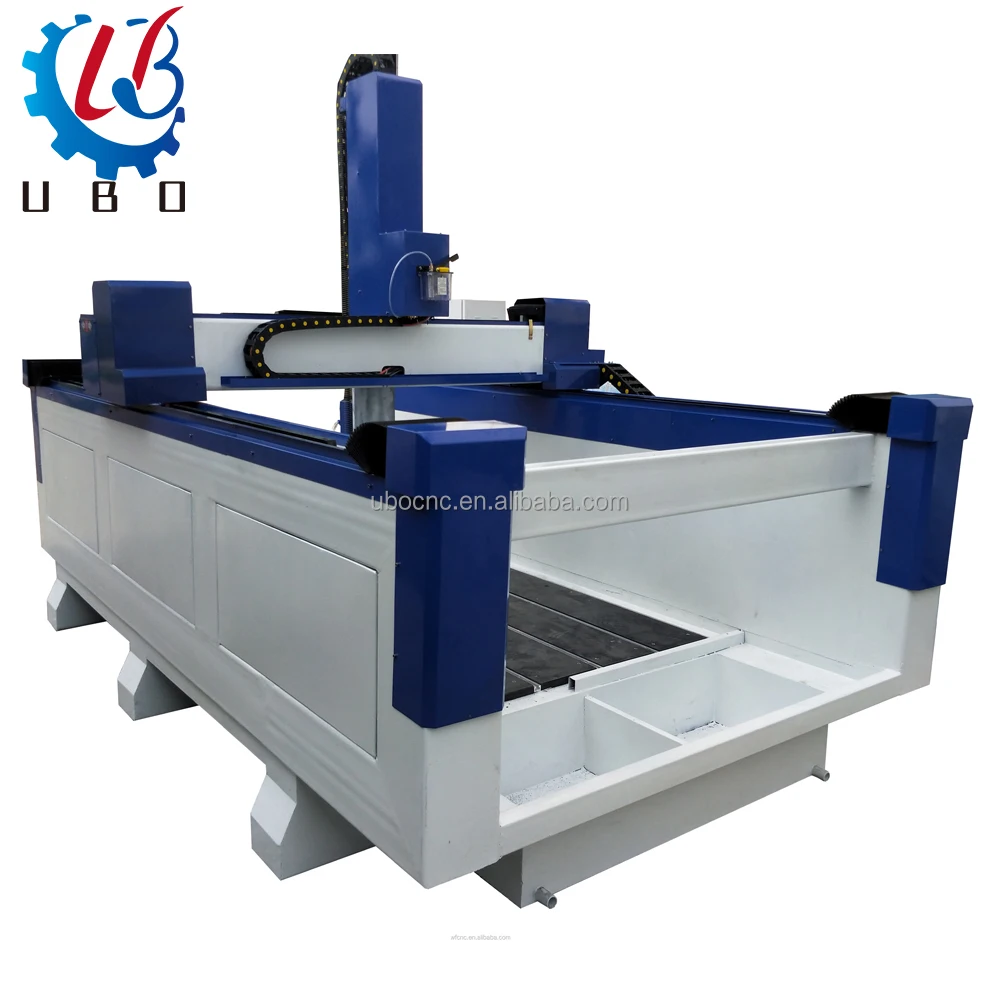

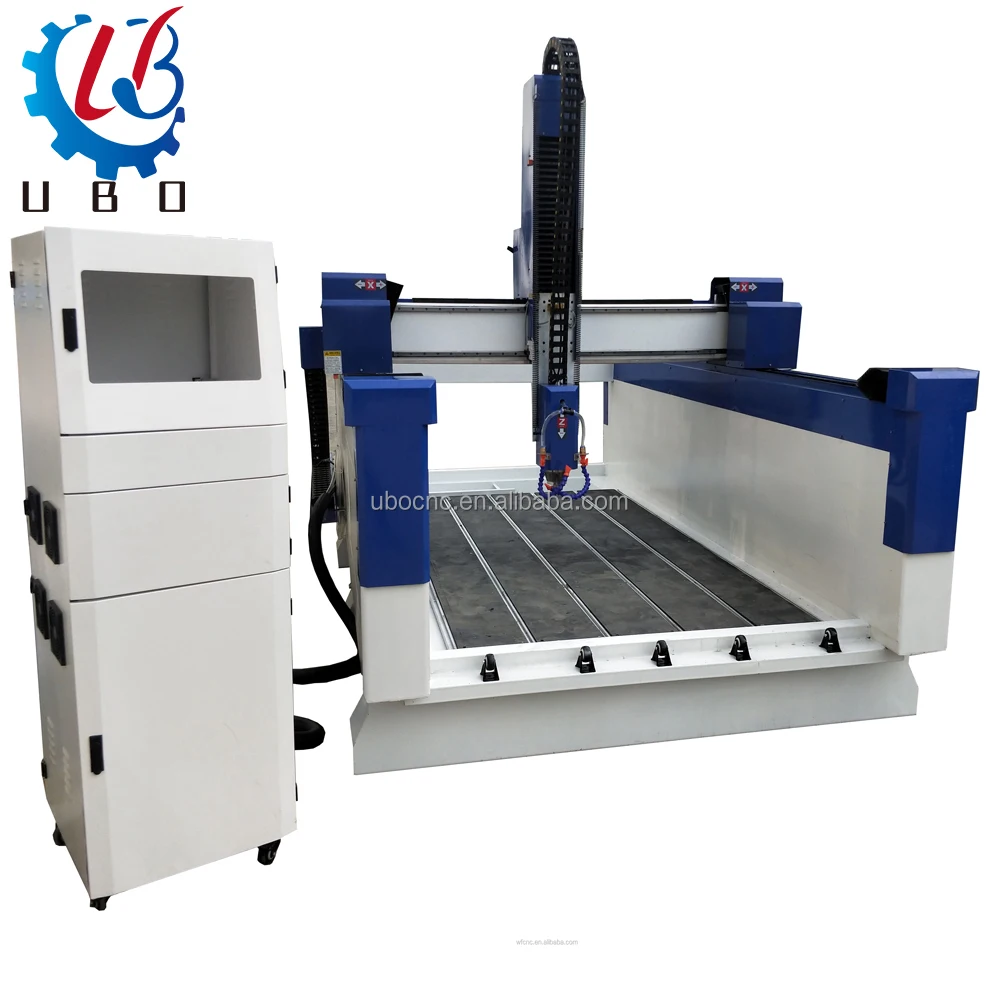

Stone cnc router US-1325 is widely used in the stone industry to Engrave and process tombstone and stone furnitures which can be also used in the advertising to process models with various picture. It's widely used in marble engraving , marble cutting ,wood engraving, wood cutting ,bamboo engraving, bamboo cutting, acrylic engraving, acrylic cutting, plastic engraving, plastic cutting and metals such as copper engraving, cooper cutting and aluminum engraving , aluminum cutting. It can be also used for lettering,
embossment,and characters cut in relief, etc.
embossment,and characters cut in relief, etc.
Feature
The whole machine adopts robust structure, powerful spindle motor, precise and efficient control system, coming with professional software. It is easy to install and operate.
Gantry movement, casting table is more durable. It will not bend after long time use. The position precision is much better.
Take the water cooling system for marble tool when works for marble ,granite ,stone and so on.
The square sliding blocks are of good dust proof effect. Automatic oil feeding and lubricating system makes the regular maintenance very easy.
Superior high power watercooling spindle could keep working at low noise level, safeguarding stability for longtime operation.
Adopt Hiwin square guide rail, smooth operation and high precision, long life.
The sign making carving fine without serrated, the bottom surface smooth and the outline clear.
Adopt to imported high precision helical rack drive, to ensure the machine runs stably with high accuracy.
Good structural design of the whole machine, ensures long service life.
Gantry movement, casting table is more durable. It will not bend after long time use. The position precision is much better.
Take the water cooling system for marble tool when works for marble ,granite ,stone and so on.
The square sliding blocks are of good dust proof effect. Automatic oil feeding and lubricating system makes the regular maintenance very easy.
Superior high power watercooling spindle could keep working at low noise level, safeguarding stability for longtime operation.
Adopt Hiwin square guide rail, smooth operation and high precision, long life.
The sign making carving fine without serrated, the bottom surface smooth and the outline clear.
Adopt to imported high precision helical rack drive, to ensure the machine runs stably with high accuracy.
Good structural design of the whole machine, ensures long service life.
Specification
|
Model
|
US-1325
|
|
|
|
|||
|
Working area
|
1300x2500x300mm
|
|
|
|
|||
|
Spindle type
|
water cooled spindle/air cooled spindle optional
|
|
|
|
|||
|
Spindle power
|
5.5 kw -9.0kw
|
|
|
|
|||
|
Spindle rotating speed
|
18000rpm/24000rmp
|
|
|
|
|||
|
Power (except spindle power)
|
6.8KW (include powers of: motors, drivers, inverters and so on)
|
|
|
|
|||
|
Power supply
|
3phase 380v/220v, 50 Hz
|
|
|
|
|||
|
Worktable
|
T slot table with water tank
|
|
|
|
|||
|
Locating precision
|
<0.03mm
|
|
|
|
|||
|
Min shaping character
|
Character:3x3mm,letter:1x1mm
|
|
|
|
|||
|
Operating temperature
|
5°C-40°C
|
|
|
|
|||
|
Working humidity
|
30%-75%(without condensed water)
|
|
|
|
|||
|
Working precision
|
±0.03mm
|
|
|
|
|||
|
System resolution
|
±0.001mm
|
|
|
|
|||
|
Control configuration
|
Mach3/ DSP/ NK260/ Syntec 6MA control system optional
|
|
|
|
|||
|
Data transfer interface
|
USB/PC
|
|
|
|
|||
|
System environment
|
Via computer/ its own panel
|
|
|
|
|||
|
Spindle cooling way
|
Water cooling by water pump/ Air cooling by fan inside spindle
|
|
|
|
|||
|
Graphic format supported
|
G code: *.u00, * mmg, * plt, *.nc
|
|
|
|
|||
|
Compatible software
|
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares….
|
|
|
|
|||
|
Cutting thickness
|
0-40mm also (depends on different material)
|
|
|
|
|||
|
Z tool sensor
|
yes
|
|
|
|
|||
|
Positioning pins
|
Optional
|
|
|
|
|||
|
packing
|
Plywood case (veneer wood case for export)
|
|
|
|
|||
|
Optional parts
|

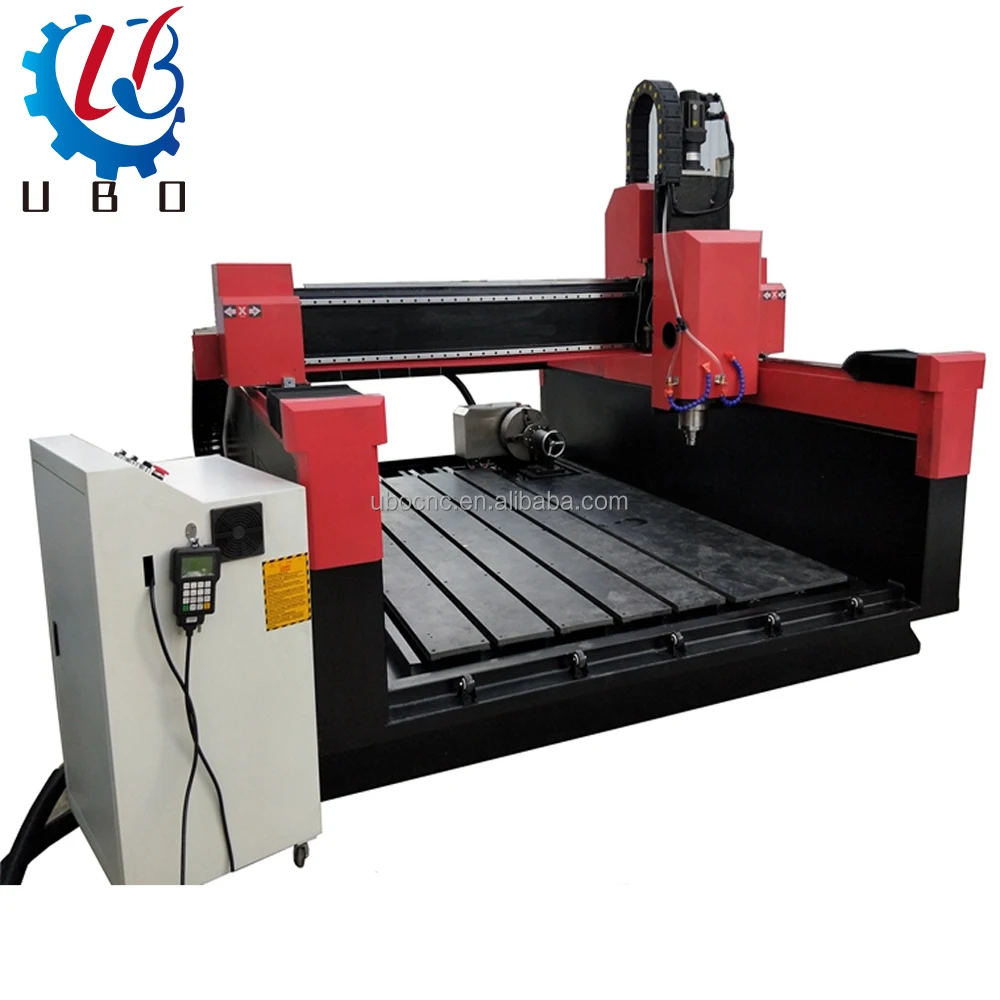

1 Rotary device model professional for cylinder stone colomn
2. Oil spray cooling system for metal 3. Dual-heads or more heads 4. Servo motors (Taiwan brand or Japanese brand) 5. Other custom features |
|
|
|
|||
Main Parts
Application:
Stone lettering, stone relief, stone round carving, stone positive carving, stone inverted carving, stone line carving, stone cutting, stone hollow
Application industry:
Stone industry, stone monument processing industry, tombstone processing, artistic relief, advertising industry, decoration industry, ceramic industry
Title goes here:
Marble, granite, jade, bluestone, black stone, etc., as well as ceramics, glass, plexiglass, pvc board, aluminum-plastic board,bamboo and wood and other materials.
Samples
Packaging and delivery
Customer Feedback
Our Advantages
1. service before sales: our sales will communicate with you to know your requirements about the cnc router specification and what kind of work you will do, then we will offer our best solution for you. So that it can confirm each customer get their real needed machine.
2. service during production: we will send photos during manufacturing, so customers can know more details about the procession of making their machines and give their suggestions.
3. service before shipping: we will take photos and confirm with customers the specifications of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will write to customers in time when the machine departs, so customers can make enough preparation for the machine.
5. service after arrival: we will confirm with customers if machine is in good condition, and see if there is any spare part missing.
6. service of teaching: there are some manual and videos about how to use machine. If some customers have further question about it, we have professional technician to help install and teach how to use through Skype, calling, video, mail or remote control,etc.
7. service of warranty: we offer 12 month warranty for whole machine. If any fault of the machine parts within warranty period, we hope every customer can use our machine easily and enjoy using it. If customers have any problems of machine in 3 or more years, please contact us freely.
2. service during production: we will send photos during manufacturing, so customers can know more details about the procession of making their machines and give their suggestions.
3. service before shipping: we will take photos and confirm with customers the specifications of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will write to customers in time when the machine departs, so customers can make enough preparation for the machine.
5. service after arrival: we will confirm with customers if machine is in good condition, and see if there is any spare part missing.
6. service of teaching: there are some manual and videos about how to use machine. If some customers have further question about it, we have professional technician to help install and teach how to use through Skype, calling, video, mail or remote control,etc.
7. service of warranty: we offer 12 month warranty for whole machine. If any fault of the machine parts within warranty period, we hope every customer can use our machine easily and enjoy using it. If customers have any problems of machine in 3 or more years, please contact us freely.
FAQ
Q1: How can I get an accurate price?
Please tell us your cutting material and the working size.
Q2: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.
Q3: How long is the delivery time?
Generally 10 ~ 15 working days.
Q4: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
Q5: If my machine is broken. Can you repair it for me?
Yes. We have free traning online. If there is big trouble with your machine in the warrenty time, we can repair it.
Q6: How is the quality of your machine?
Our machine adopts heavy lathe bed, and each part is processed by CNC machining center, which greatly improves the accuracy of machine operation.
Please tell us your cutting material and the working size.
Q2: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.
Q3: How long is the delivery time?
Generally 10 ~ 15 working days.
Q4: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
Q5: If my machine is broken. Can you repair it for me?
Yes. We have free traning online. If there is big trouble with your machine in the warrenty time, we can repair it.
Q6: How is the quality of your machine?
Our machine adopts heavy lathe bed, and each part is processed by CNC machining center, which greatly improves the accuracy of machine operation.
