- Hign-concerned Chemical: None
- Origin: Mainland China
- Warranty: 1 year or 1000 hours
- Place of Origin: Guangdong, China
- Brand Name: LONGHONG
- Model Number: 12KW
- Rated Voltage: 110V, 220V, 230V, 240V, 380v, 400V, 480V, Customizable
- Rated Current: 21.6A
- Speed: 3000rpm
- Frequency: 50/60hz
- Starting system: 12V DC Electric Start
- Type: Silent type, Silent
- Weight: 200kg
- Cooling System Type: Air cooling System
- Phase number: Single phase/Three Phase
- Start mode: Electric start
- Adjustment method: AVR
- Certification: CE;ISO

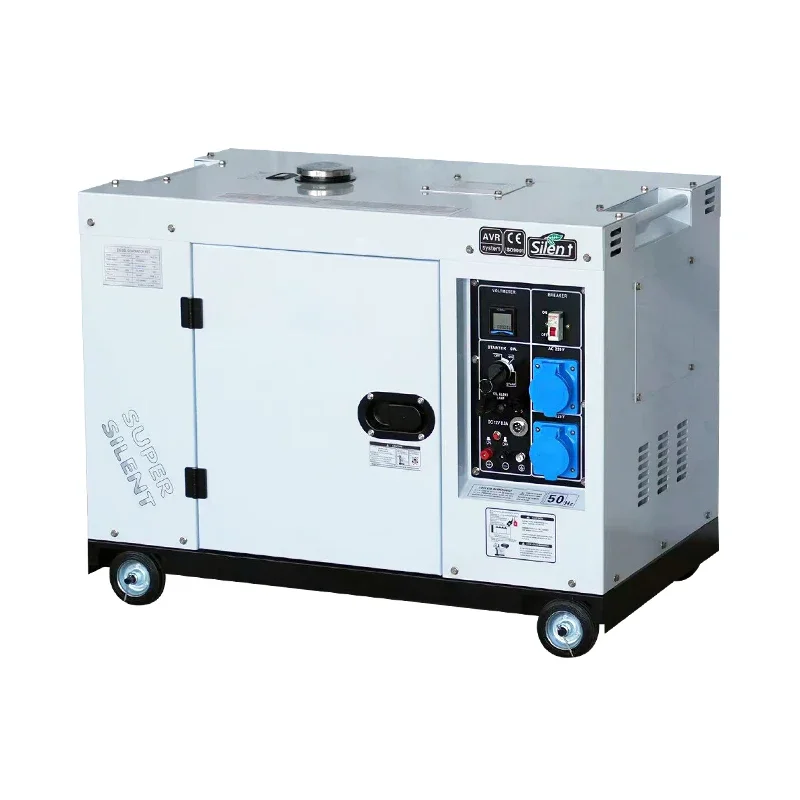

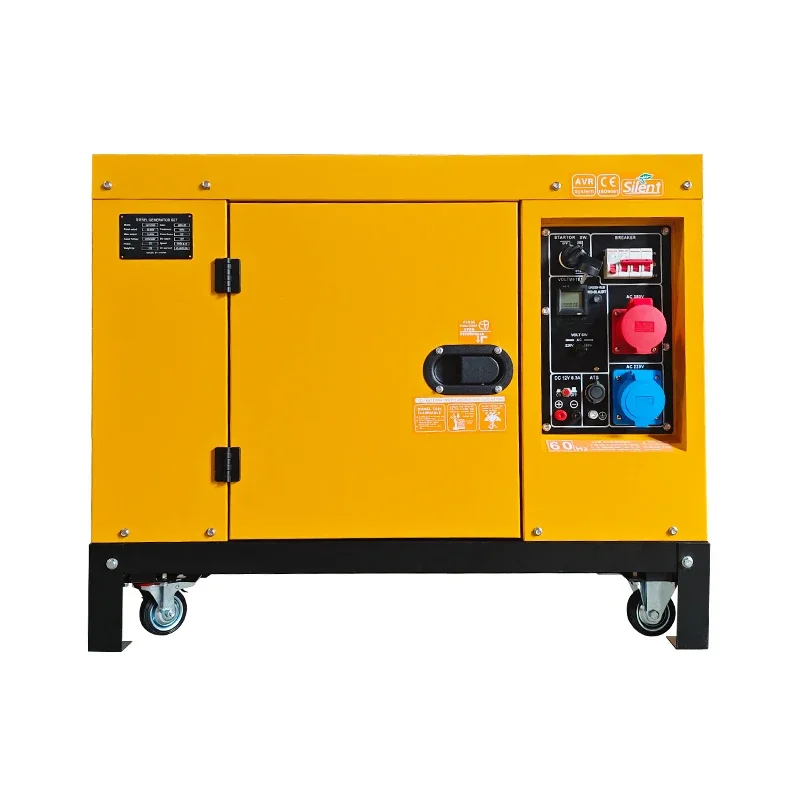

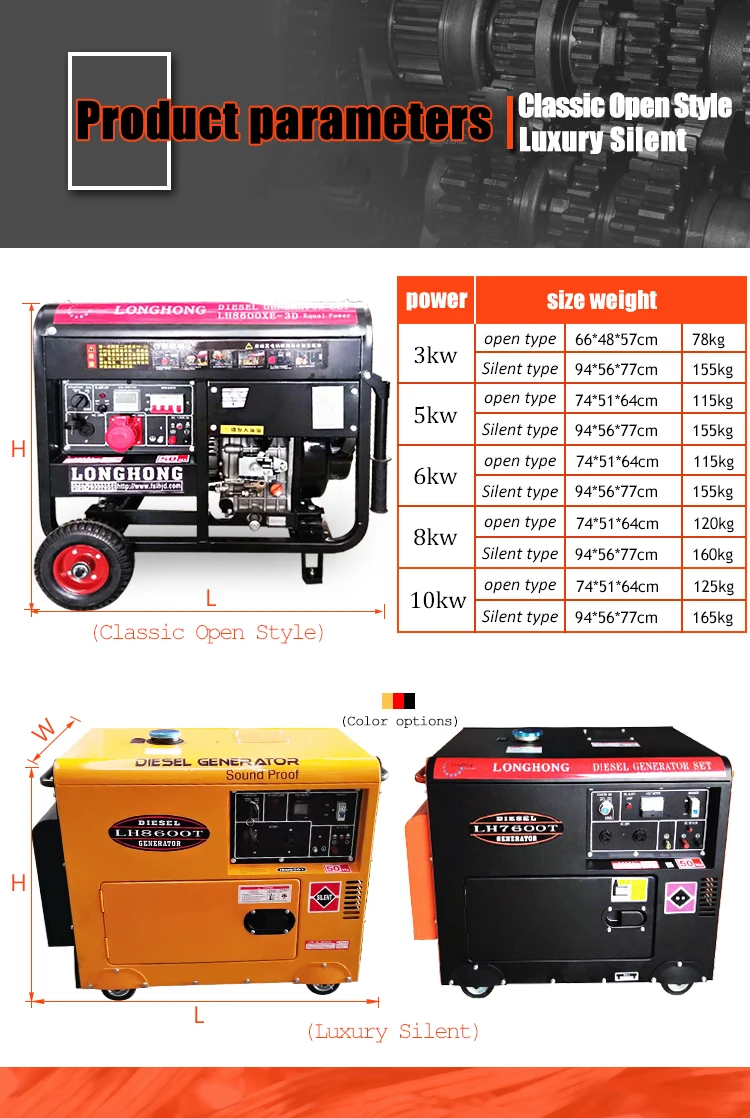

| 12KW/15KVA Silent Diesel Generator Set Technical Specifications | |||
| Power series | 12KW/15KVA | ||
| Model | HTW11250T | ||
| Frequency Hz | 50 | 60 | |
| Cont.AC output KW | 9.5 | 10.0 | |
| Max.AC output KW | 10.0 | 10.5 | |
| Voltage(A.C) V | 110/220,115/230,120/240,127/220,220/380,230/400,240/415 | ||
| DC output V-A | 12-8.3 | ||

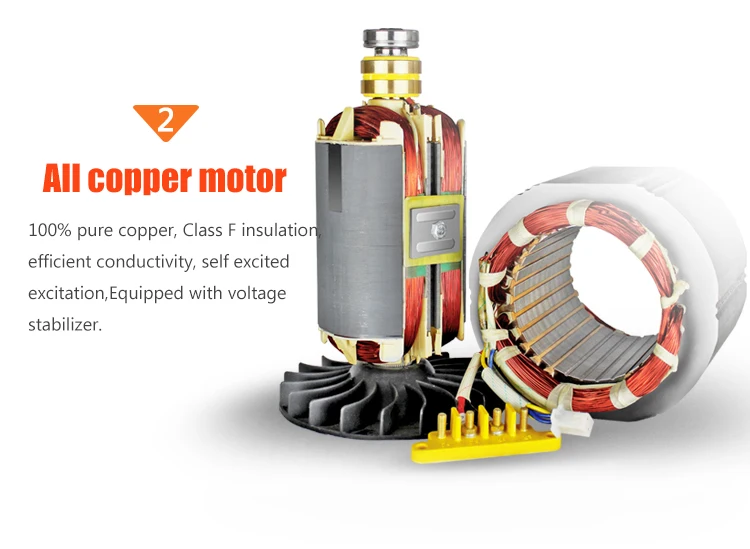

| Generator | Type | Self excitation,constant voltage,field rotating,2 pole generator | |
| Stator size mm | φ204-165 | ||
| Phase | Single phase/3-phase/Equal power | ||
| Power factor CoSφ | 1.0/0.8 | ||
| Insulation | H(Stator/rotor) | ||

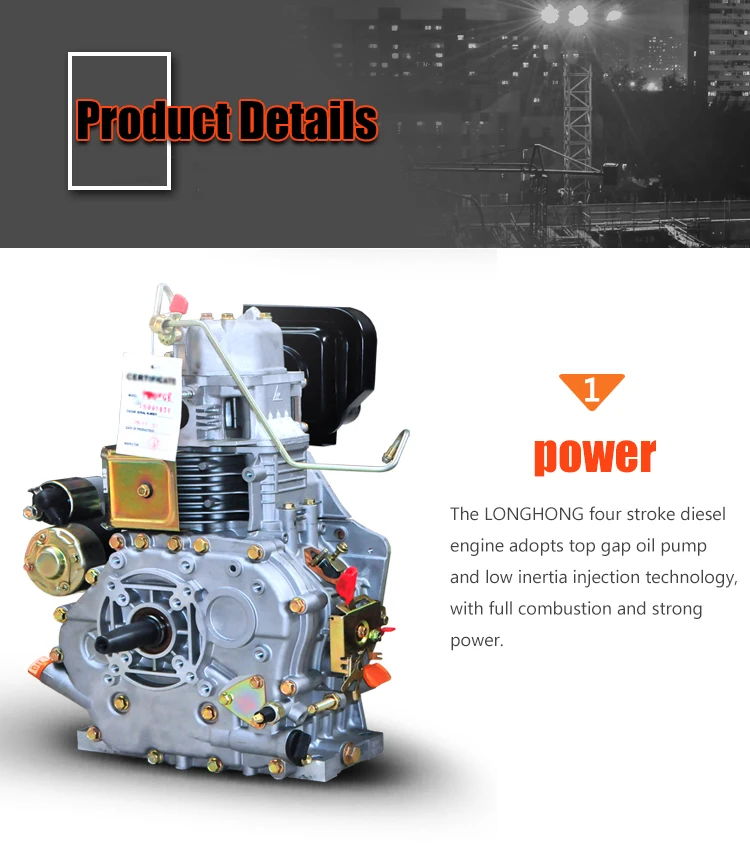

| Engine | Type | V-twin/L-single,4-cycle,air-cooled diesel engine | |
| Model | 1100F | ||
| Bore×stroke mm | 100*78 | ||
| Displacement L | 0.655 | ||
| Compression ratio | 20:1 | ||
| Engine speed rpm | 3000 | 3600 | |
| Rated output kW | 11.5 | 12.7 | |
| Combustion system | Direct injection | ||
| Starting system | Electric starter | ||
| Lube oil capacity L | 2.1 | ||
| Lubrication oil | CD grade or higher (SAE10W/30, SAE15W/40) | ||
| Fuel oil | Diesel fuel(BS 2869 A1 orA2) | ||

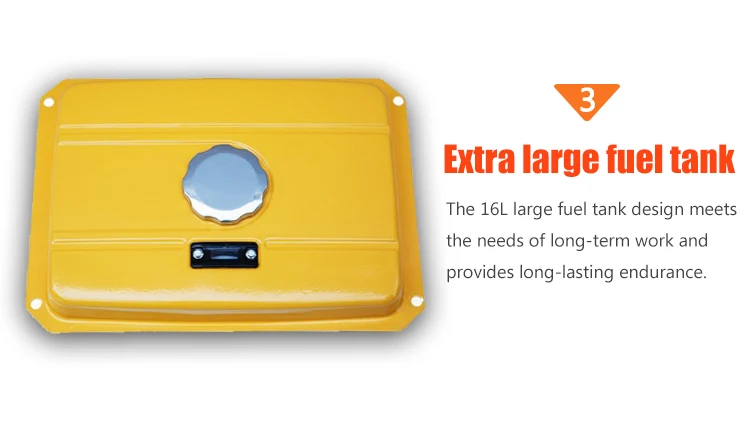

| Unit | Fuel tank capacity L | 15 | |
| Fuel consunmption L/h | ≤2.3 | ≤2.6 | |

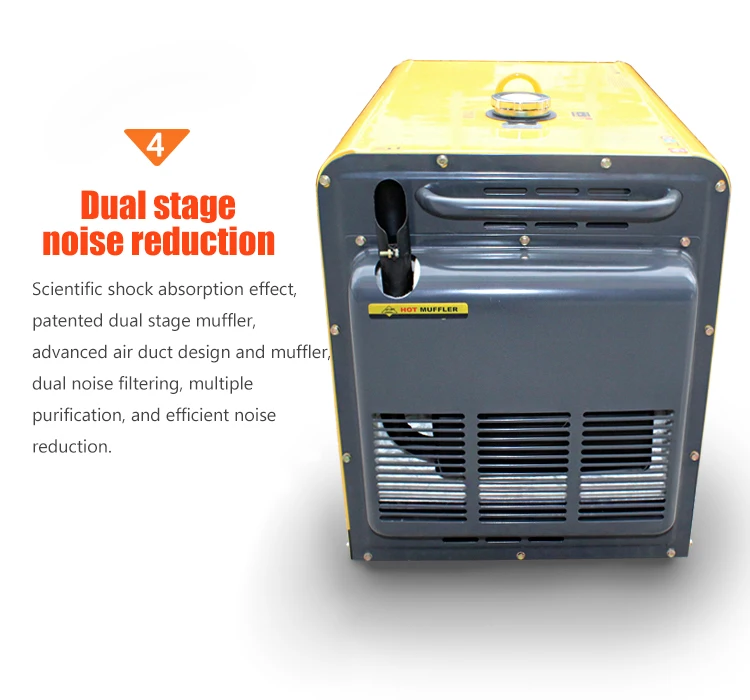

| Noise level at 7 m dB(A) | 72~74 | ||
| Product dimensions (L×W×H) mm | 970×555×725 | ||
| Packing dimension(L×W×H) mm | 980×560×765 | ||
| N.W/G.W kg | 180/190 | ||
 |

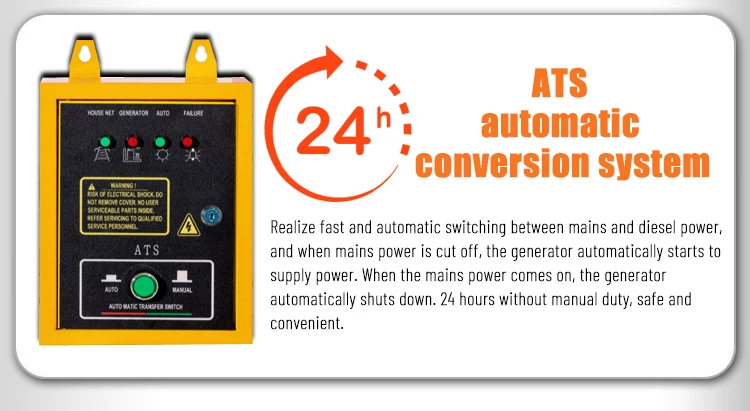

ATS automatic conversion system Realize fast and automatic switching between mains and diesel power, and when mains power is cut off, the generator automatically starts to supply power. When the mains power comes on, the generator automatically shuts down. 24 hours without manual duty, safe and convenient.
The ATS automatic control system cabinet is an additional configuration and needs to be purchased separately! Please consult customer service for more information. |

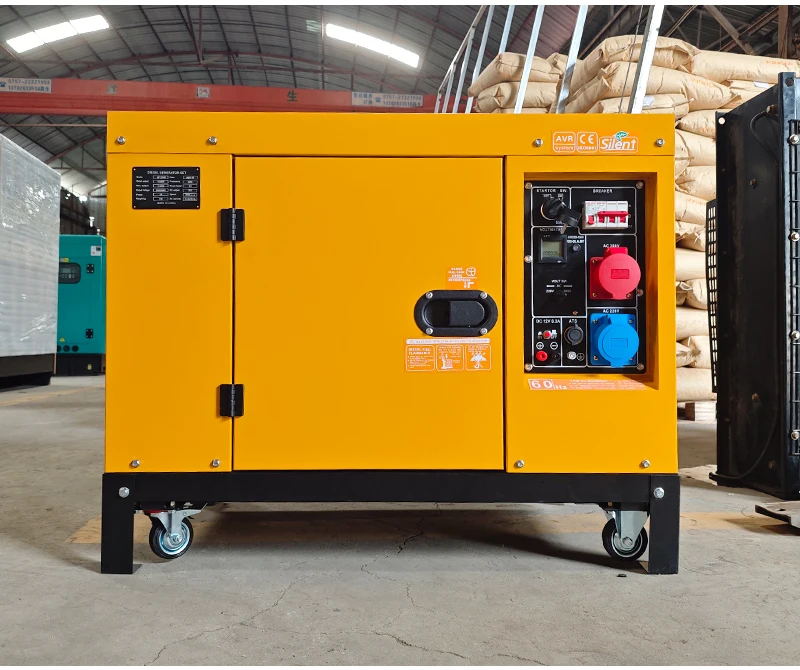

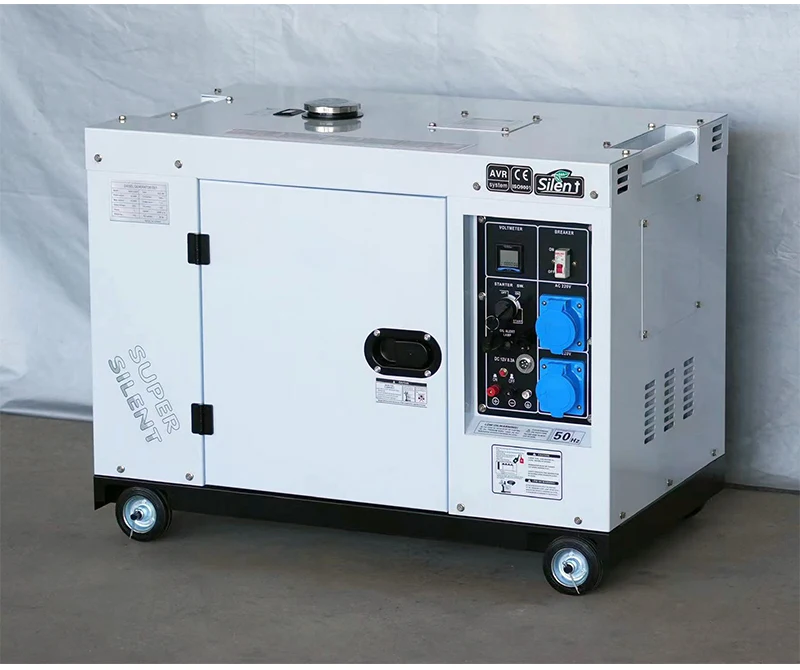

Real shot quality:

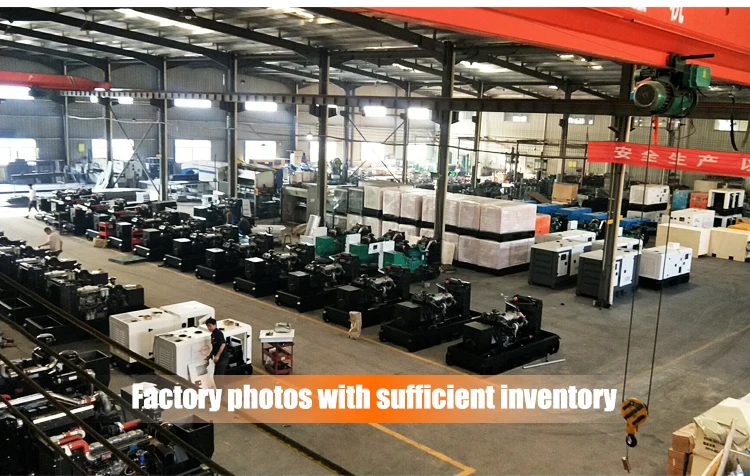

Q: Are you a trading company or a manufacturer?
A: We are a local manufacturer in China.
Q: What diesel generators can you provide?
A: We can supply Cummins, Weichai, Yuchai, Yangdong, Chinese brand engines and so on.
Q: What is the power range of your generator sets?
A: We can supply 3 KW to 1600KW with 50Hz and 60Hz frequency.
Q: Do you do 100% testing before delivery?
A: We will show our customers the testing video of each product.
Q: Can your diesel generator sets be customised?
A: Yes, we support customisation.
Q: What payment terms can you accept?
A: T/T, 30% deposit, 70% payment before delivery; or T/T, 30% deposit, 70% sight L/C; or 100% sight L/C.
Q: What is the warranty period for diesel generators?
A: 12 months or 1000 working hours, whichever comes first. But according to some special projects, we can extend the warranty period.
