- Hign-concerned Chemical: None
- Controller: MACH3
- Is Smart Device: Yes
- Origin: Mainland China
- Certification: CE
- Model Number: AKM1325C
- Condition: New
- Brand Name: ACCTEK
- Name: 12 Knife Line Type Tool Change CNC Nesting Router Door Panel Machining Center Custom Door Panel Cnc Cutting
- Key word: Atc Wood Carving CNC Router
- Spindle: 9.0KW HQD air cooling ATC spindle
- Ball screw: TBI ball screw
- Guide rail: Taiwan Hiwin 25 rails
- Controller: Syntec controller
- Motor: Taiwan Delta servo motor
- Inverter: Fuling inverter
- Oil lubrication: Auto oil lubrication
- Working area: 1300*2500*250mm
12 Knife Line Type Tool Change CNC Nesting Router Door Panel Machining Center Custom Door Panel Cnc Cutting
How to contact us?
Machine Features:
Machine model | AKM1325C ATC CNC Router Machine | |||
XY working area | 1300*2500mm (working area can be customized) | |||
Z axis | 250mm（option） | |||
Warranty | 3 years | |||
Transmission system | XY axis: Rack and Pinion Z: TBI Ball Screw | |||
Guide rail | Taiwan Hiwin 25mm Linear rail | |||
Working Table | T slot Vacuum table 6/8 | |||
Spindle | 9.0kw ATC air cooling spindle | |||
Motor | Servo motor | |||
Control system | SYNTEC control system | |||

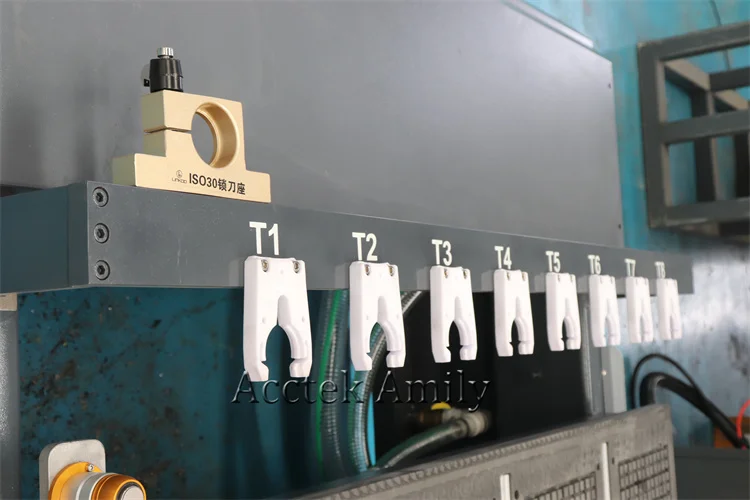

Auto Tool Change | Linear type | |||
Reudcer | Japan Shimpo | |||
Drive system | Delta / Leadshine / servo motor and driver | |||
Air pump | 5.5KW | |||
Dust collector | 3KW, double bags | |||
Inverter | Fuling / HPMANT 11KW | |||
Voltage | 380V 3 phases | |||

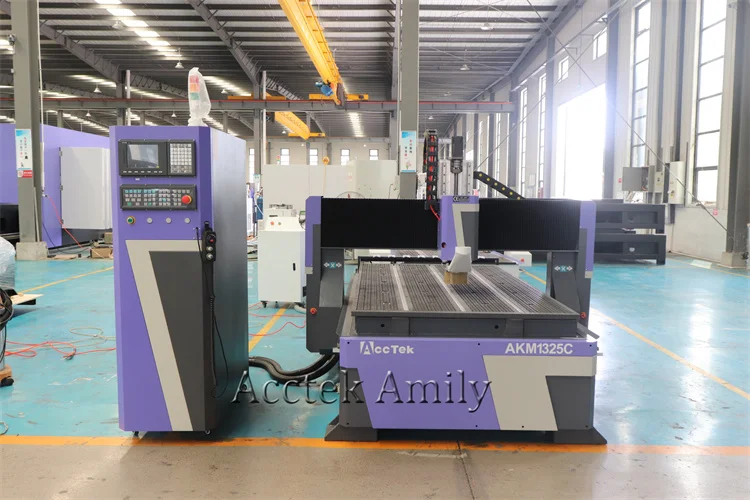

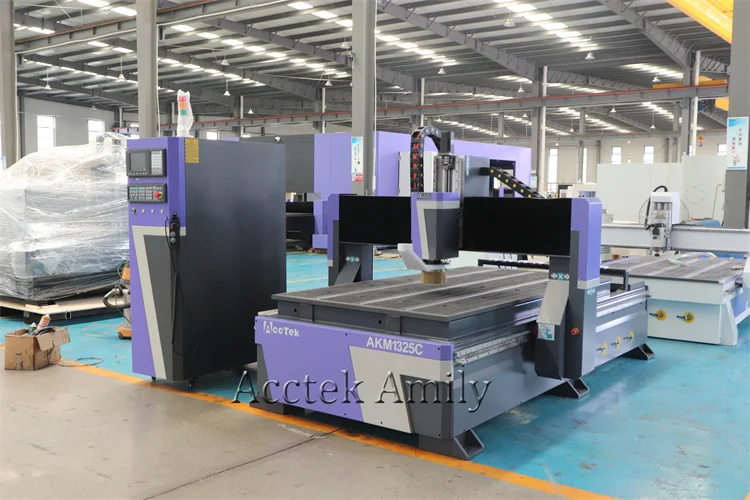

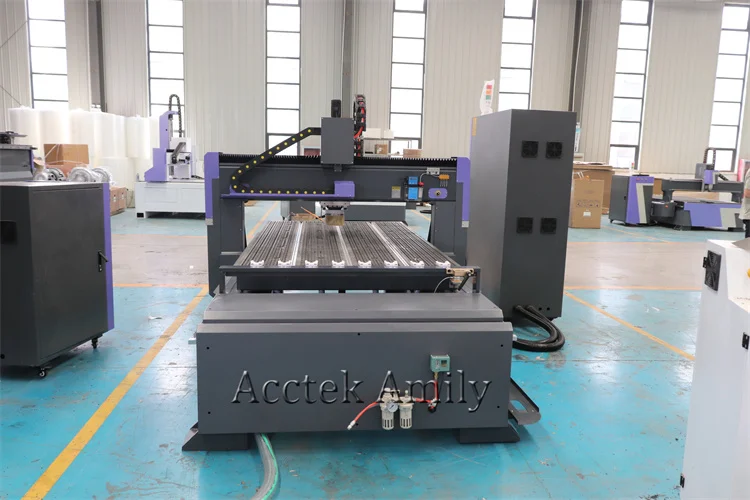

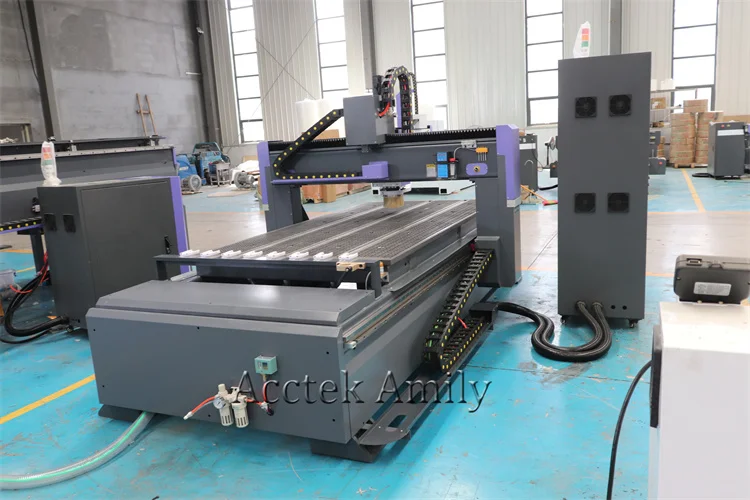

Machine details display
Application
ATC CNC woodworking machine tool is specially designed for users with high standards, high requirements and high degree of automation for CNC machine tools.
It is suitable for batch processing of various solid wood, medium density fiberboard, composite board, hard plastic, artificial marble, acrylic and other materials.
It is mainly used for mass production, such as coffins, reliefs, artwork and assembly of wooden toys, furniture inlay art and decoration. Advertising, mold, wooden door, furniture, carpentry building model, marking industry, teaching, enterprises and institutions, etc
Package
1) Whole film packaging machine.
2) Anti-collision package edge.
3) Fumigation-free plywood wooden box with an iron-binding belt.
4) According to the customer's requirements for loading the whole container or LCL at Qingdao Port.
Delivery Terms
1) The machine will be produced after received your deposit, its need about 15-25 working days to produce the machine after get your deposit.
2) After the machine is ready, we will test it very carefully, and ensure everything is OK.
3) Then we will show you the machine photos and the testing video.
4) After you agree, please finish the balance payment.
5) Finally, all things are tested well, then we arrange the delivery.
AccTek specializes in manufacturing CNC Router and Laser machines.Since 2005 we have been based in the Industrial Zone of Jinan City, Shandong Province south of Beijing. Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty.Components for our machines are sourced from world class suppliers and innovators in machine control.These machines are used in many industries, crafts and arts businesses around the world. These include woodwork, metal and stone work, aluminum fabrication, boat building, shop fitting, mold making, to name a few. Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence. We welcome customers and potential business associates from around the world. We can work together cooperatively for mutual benefit.
"Our business is to improve your business"
