- Hign-concerned Chemical: None
- Model Number: UKK-5 UKKB-5
- is_customized: Yes
- Brand Name: WONKEDQ
- Type: Screw Terminal
- Origin: Mainland China
- Certification: CE,RoHS
- Cross section solid cable: 0.2-4mm²
- Cross section soft cable: 0.2-4mm²
- Current: 32A
- Voltage: 500V
- Mounting Type: Din Rail
- Usage: Electrical Wiring terminal
DESCRIPTION
ACCESSORIES ( Click the pictures to the links)
|
|
|
|

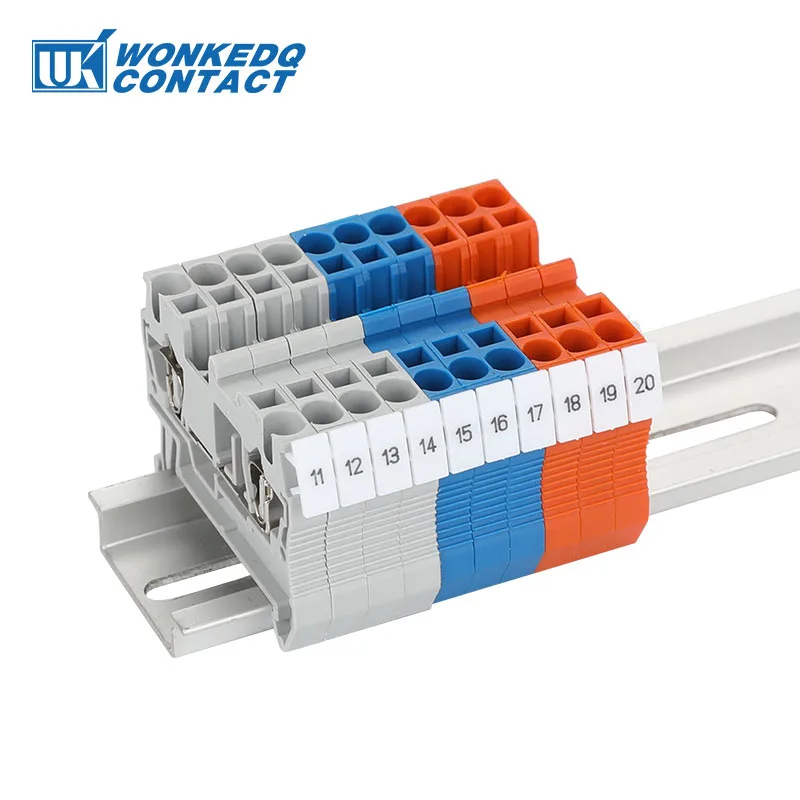

END COVER | Fixed BRIDGE | Insertion bridge | Marker Strip |
|
|
|
|

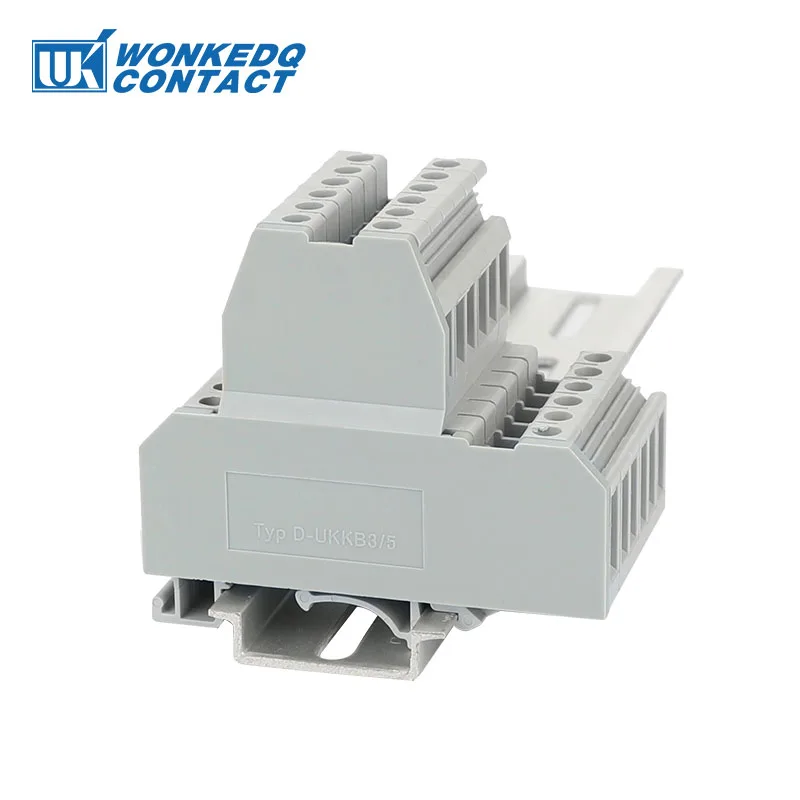

END COVER D-UKK 3/5 | MARKER CLIPS | DIN RAIL | END STOP |
Type No. | Details | Accessories |
UKK5 | 500V/32A 0.2-4mm²/0.2-4mm² L57/H62/W6.2 mm | End cover: |
Fixed bridge: | ||
Insertion bridge: | ||
Marker strip: |
Type No. | Details | Accessories |
UKKB 5 | 500V/32A | End cover: |
Fixed bridge: | ||
Insertion bridge: | ||
Marker strip: |
Technical Parameters

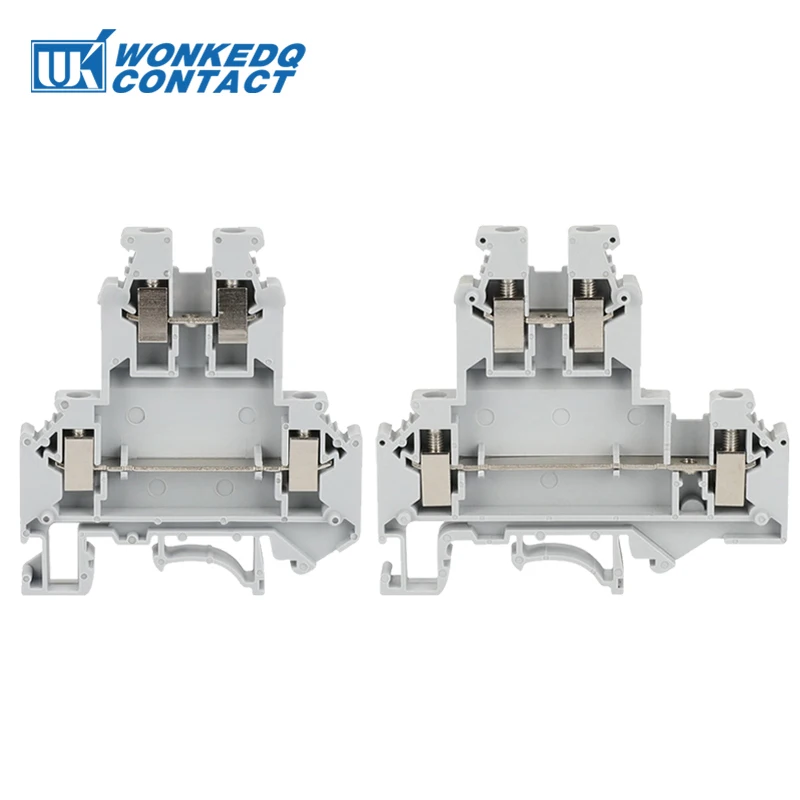

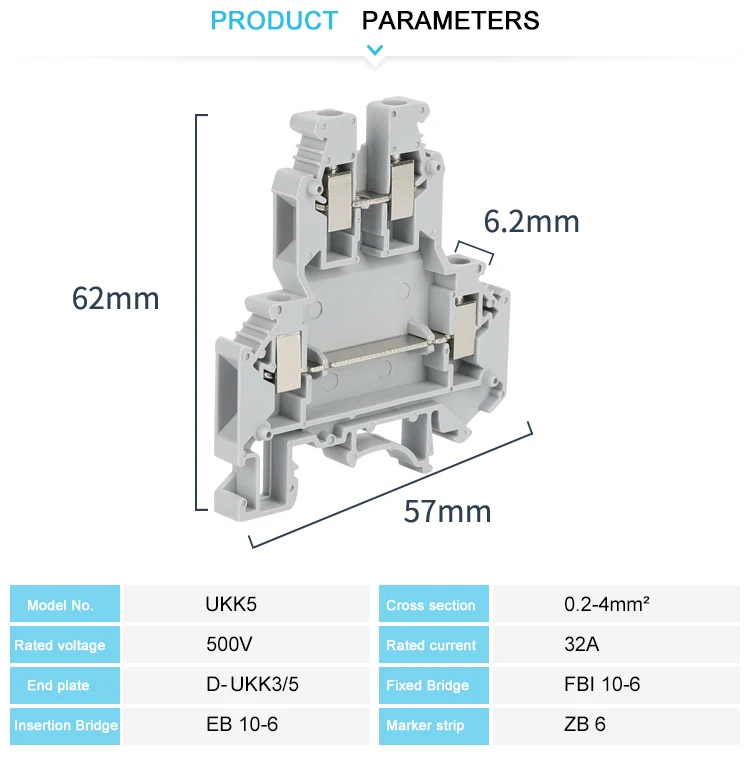

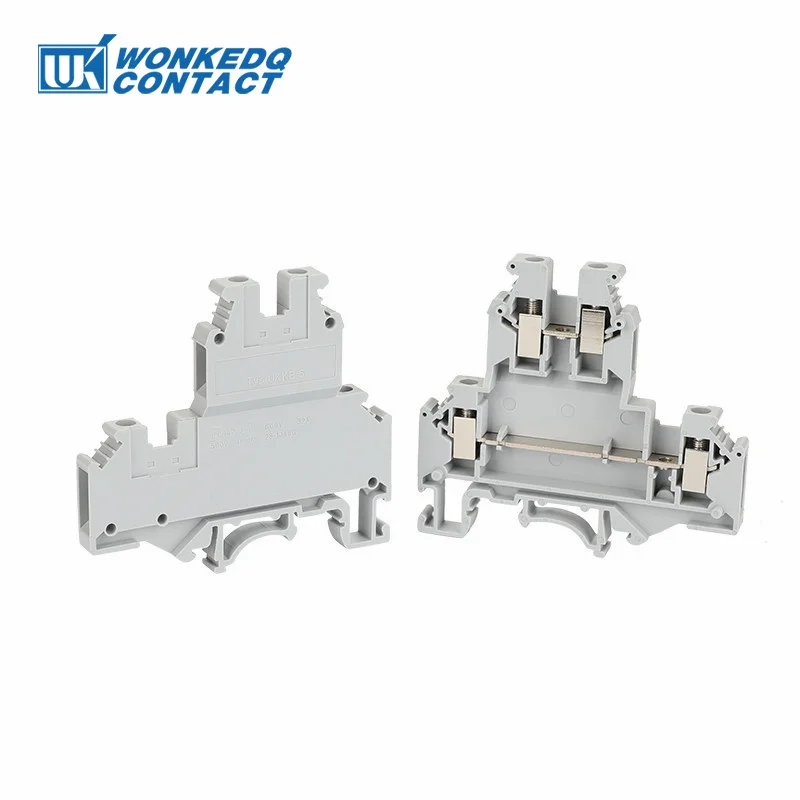

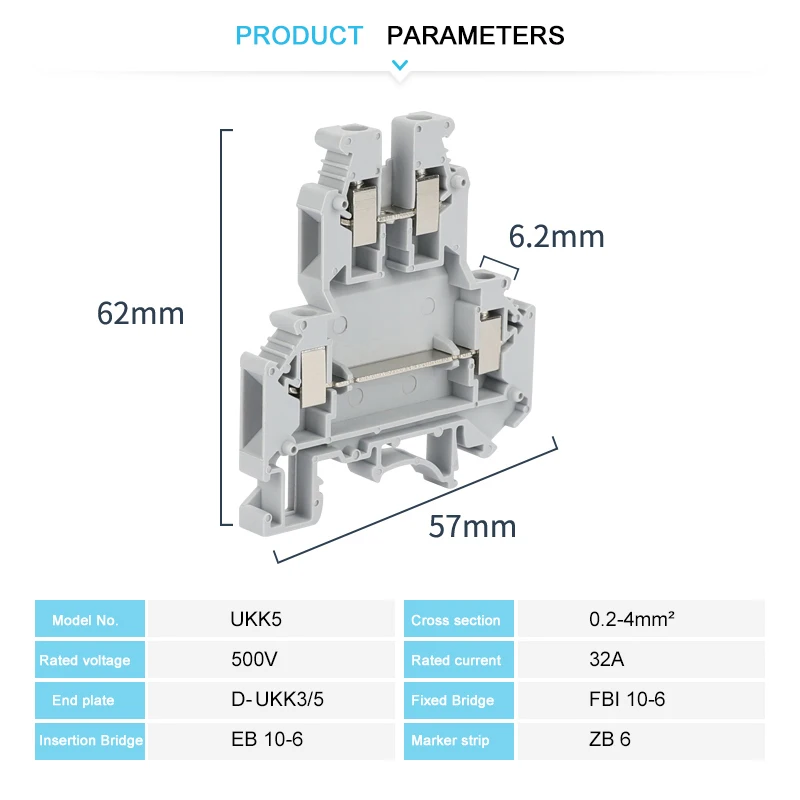

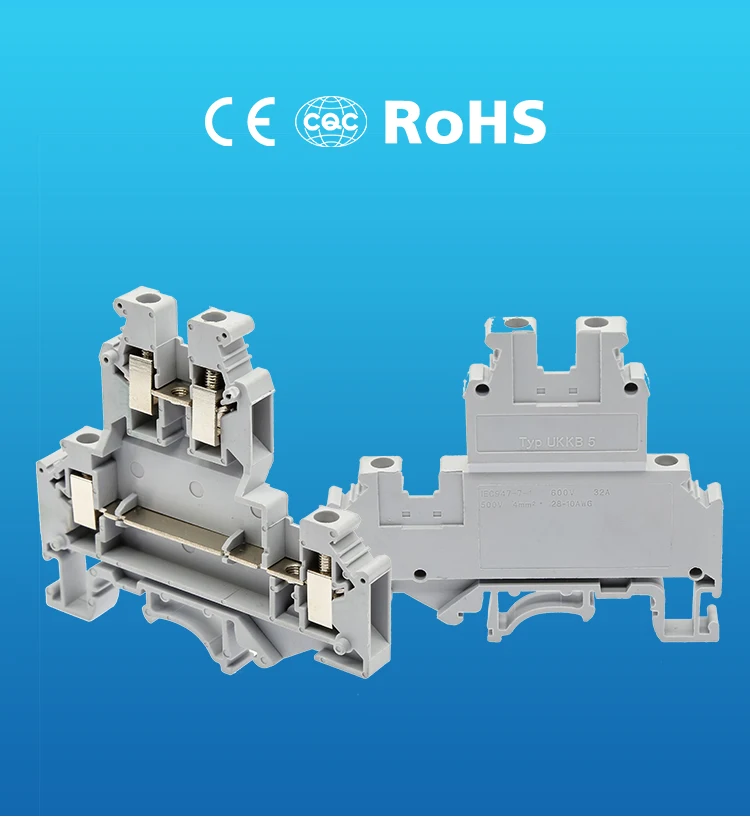

Model Number | UKK 5, Multi Levels Terminal Blocks |
Color | Grey, Blue, other color can be customized |
Length/Height/Wide (mm) | 57/62/6.2 |
Connection method | Screw connection |
Material | Nylon PA66 |
Rated Voltage/Current | 500V/32A |
Cross section, solid/soft Cable | 0.2-4mm²/0.2-4mm² |
Conductor Size | 24-12 AWG |

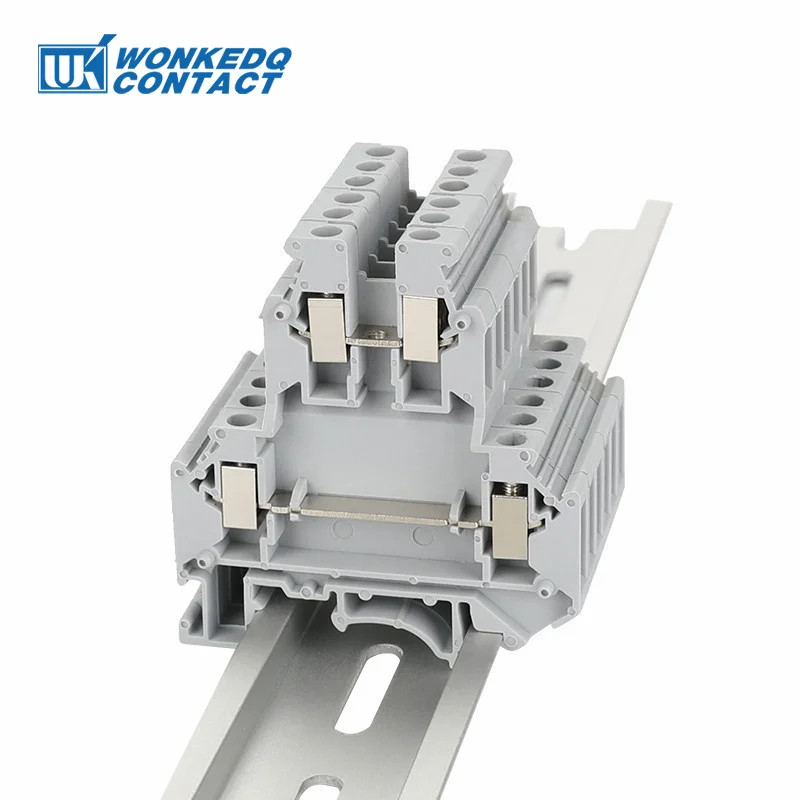

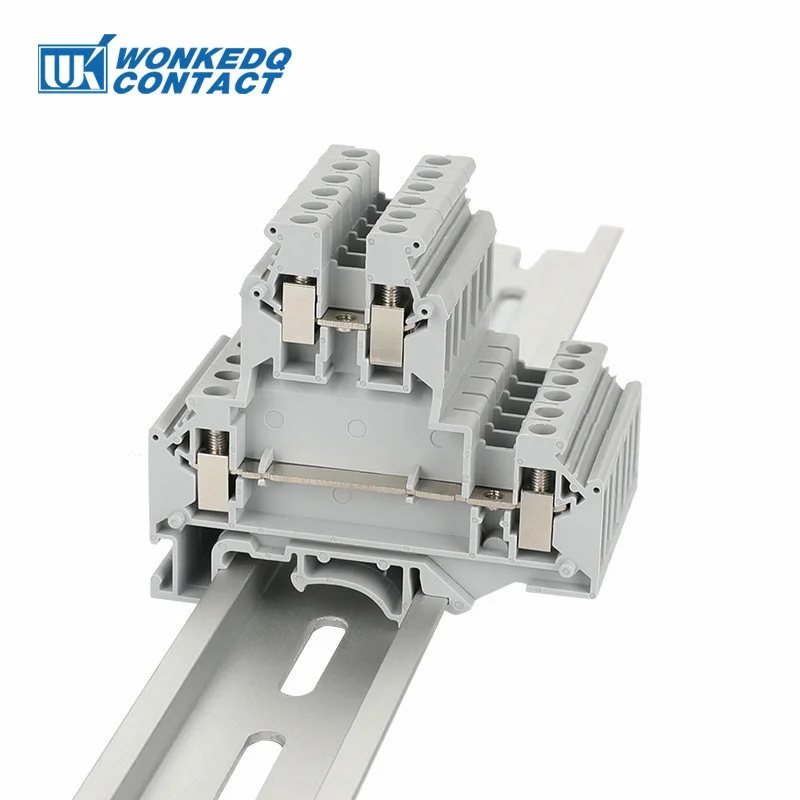

Mounting Type | NS 35/7.5 |
Standard | IEC 60947-7-1 |
LOGO | Customized logo are supported |
Packing Detail | 13.66g/pc, 50PCS/BOX, 2000PCS/CTN |
Certification | CE/RoHS/CQC/ISO 9001 |

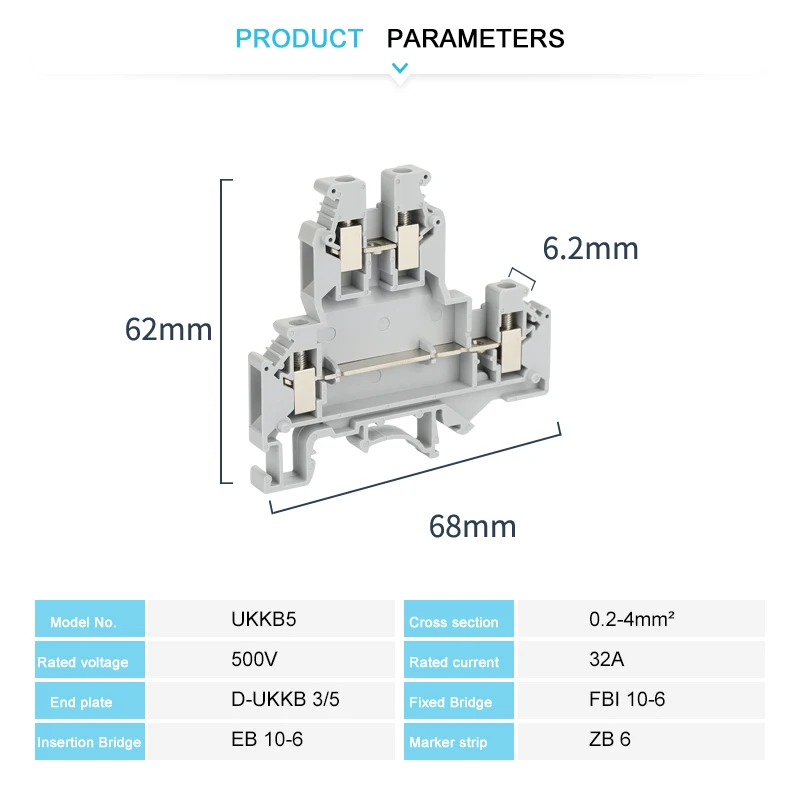

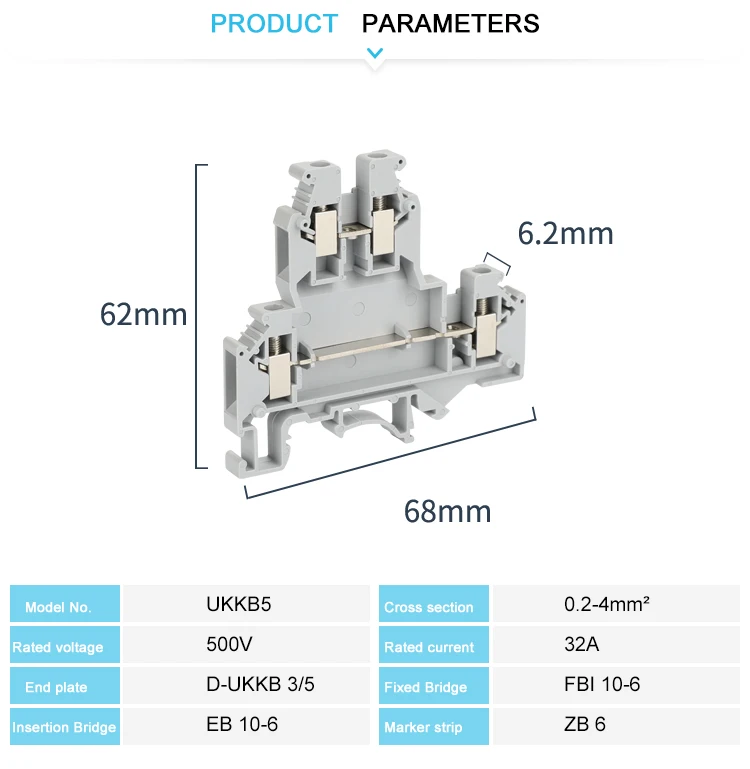

Model Number | UKKB 5, Multi Levels Terminal Blocks |
Color | Grey, Blue, other color can be customized |

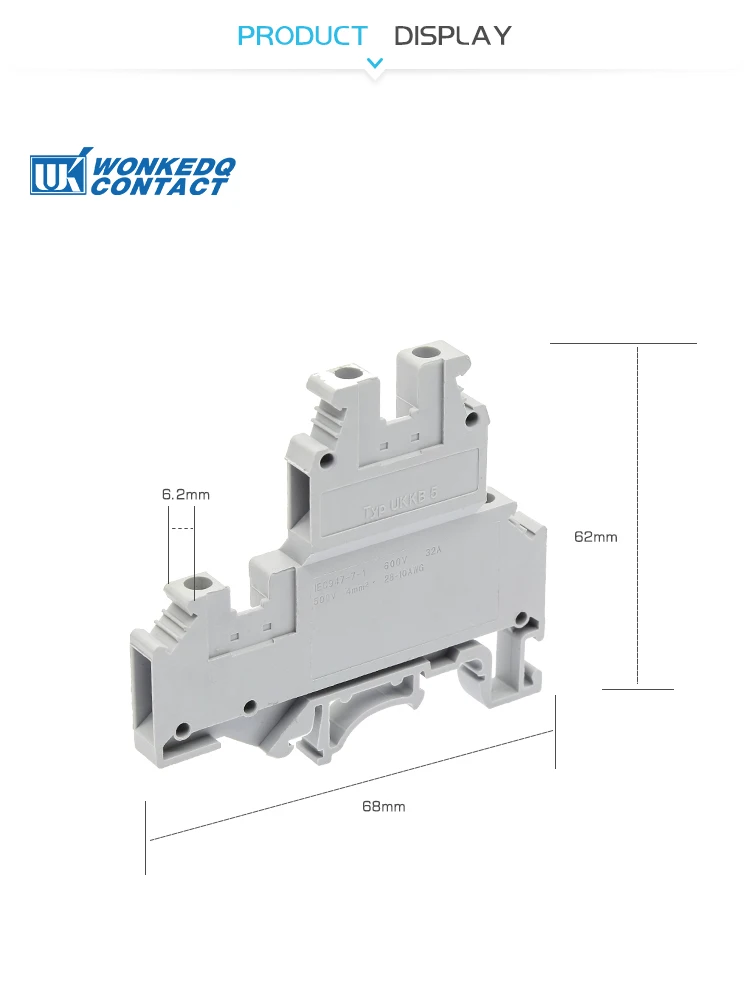

Length/Height/Wide (mm) | 68/62/6.2 |
Connection method | Screw connection |
Material | Nylon PA66 |
Rated Voltage/Current | 500V/32A |
Cross section, solid/soft Cable | 0.2-4 mm2/ 0.2-4mm2 |
Conductor Size | 24-12 AWG |
Mounting Type | NS 35/7.5 |
Standard | IEC 60947-7-1 |
LOGO | Customized logo are supported |
Packing Detail | 14.51g/pc, 50PCS/BOX |
Certification | CE/RoHS/CQC/ISO 9001 |
