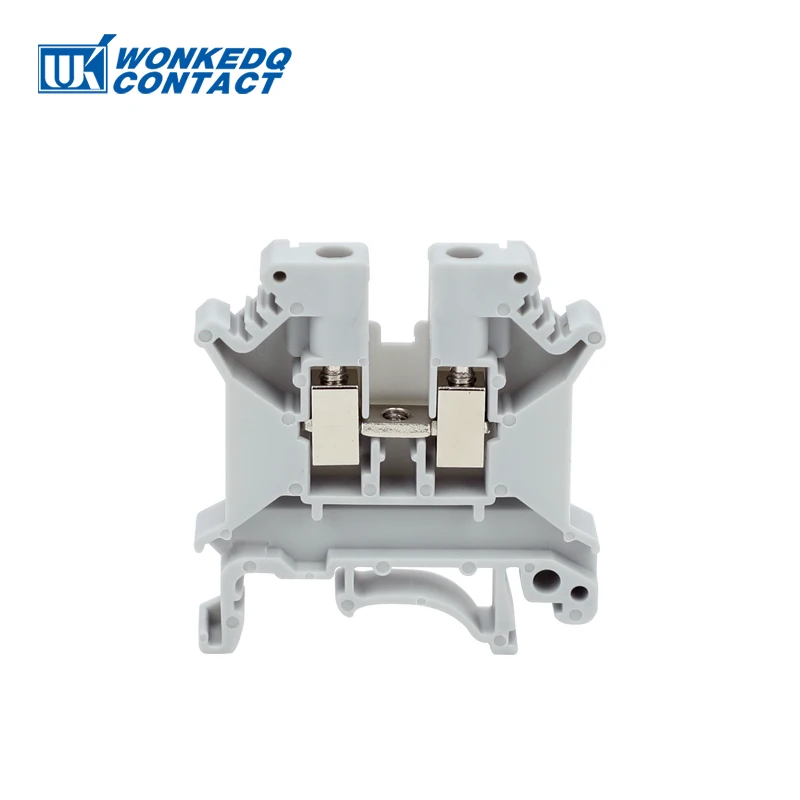

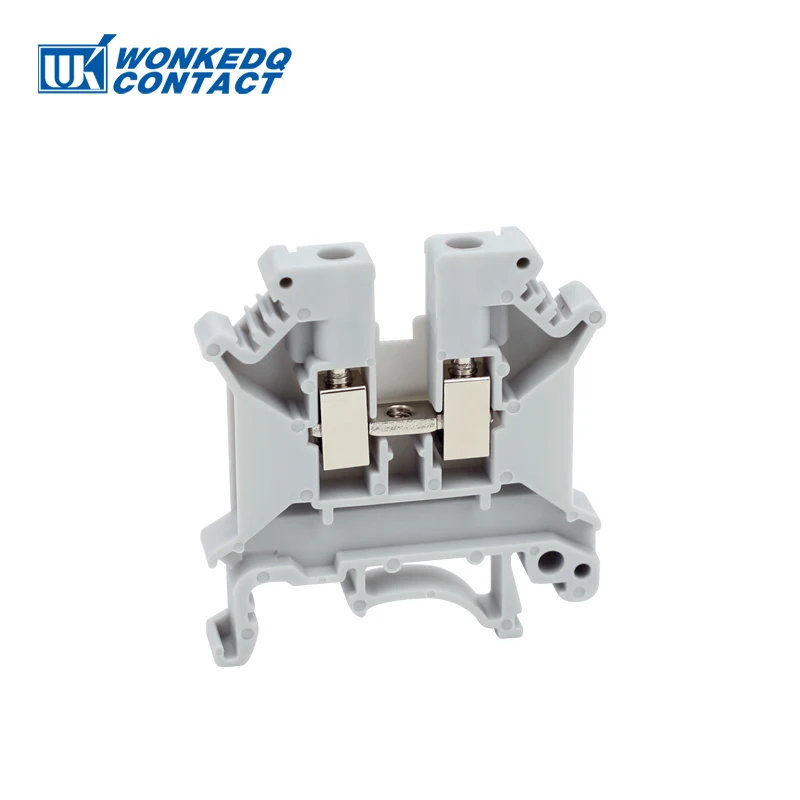

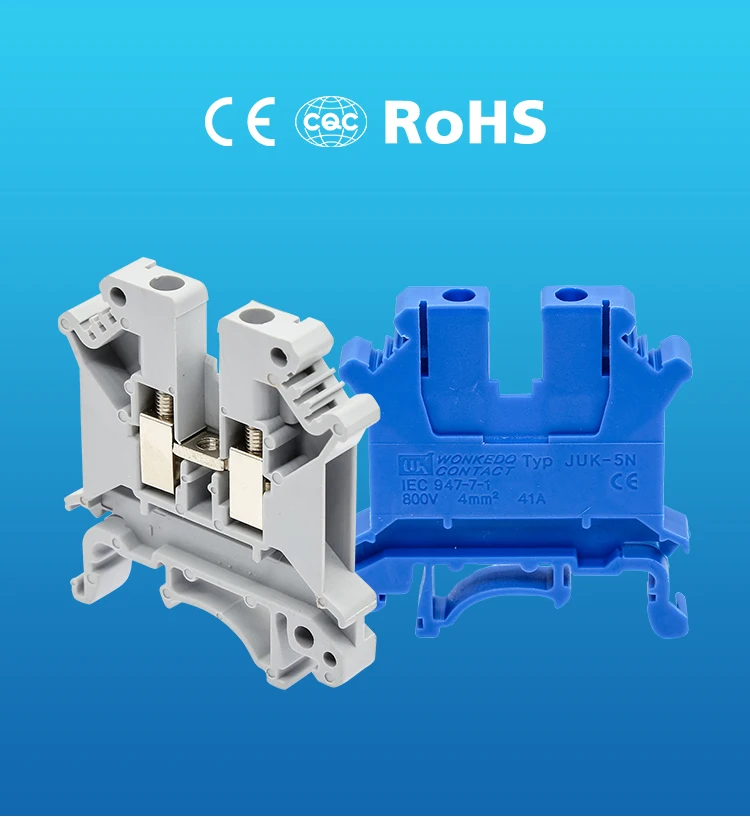

Name: 10Pcs UK5N Screw Wire Connector 4mm Cable 4mm² Feed-through Connection 12AWG Plug Electrical Mount DIN Rail Terminal Block UK 5N
SKU: 32873473230
Availability: InStock

10Pcs UK5N Screw Wire Connector 4mm Cable 4mm² Feed-through Connection 12AWG Plug Electrical Mount DIN Rail Terminal Block UK 5N

REF: 32873473230

Hign-concerned Chemical: None
Model Number: UK5N UK5
is_customized: Yes
Brand Name: WONKEDQ
Type: Screw Terminal
Origin: Mainland China
Certification: CE,RoHS
Usage: Electrical Wiring
Application: Distribution Cabinet/panel
Connection Method: Screw

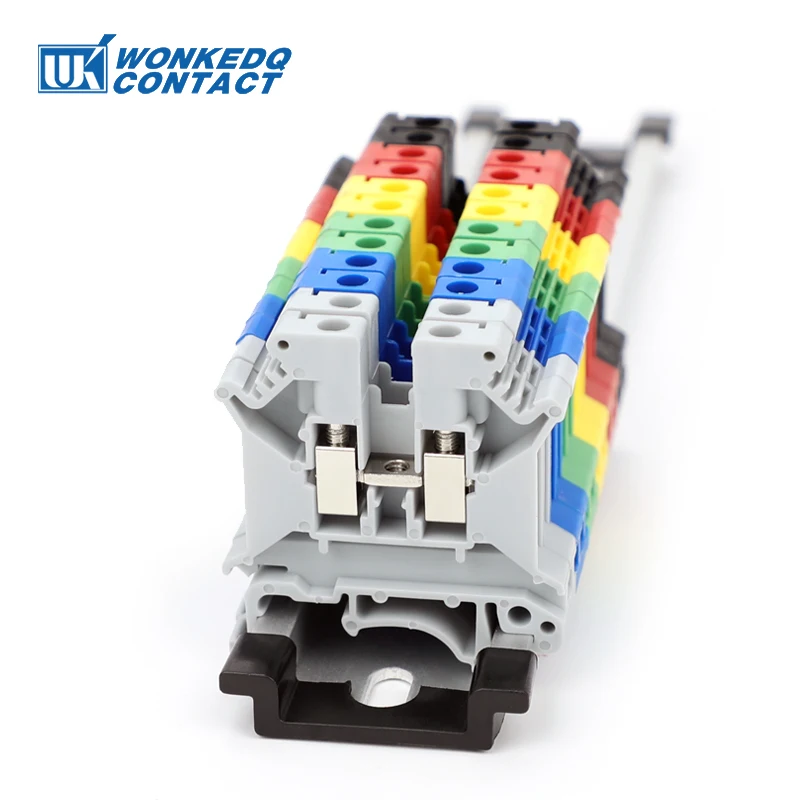

Mount Type: Din Rail
Cross section solid cable: 0.2-6 mm2
Cross section soft cable: 0.2-4 mm2
Voltage: 800V
Current: 41A
Size L/H/W: 42.5/46.2/6.2mm

DESCRIPTION

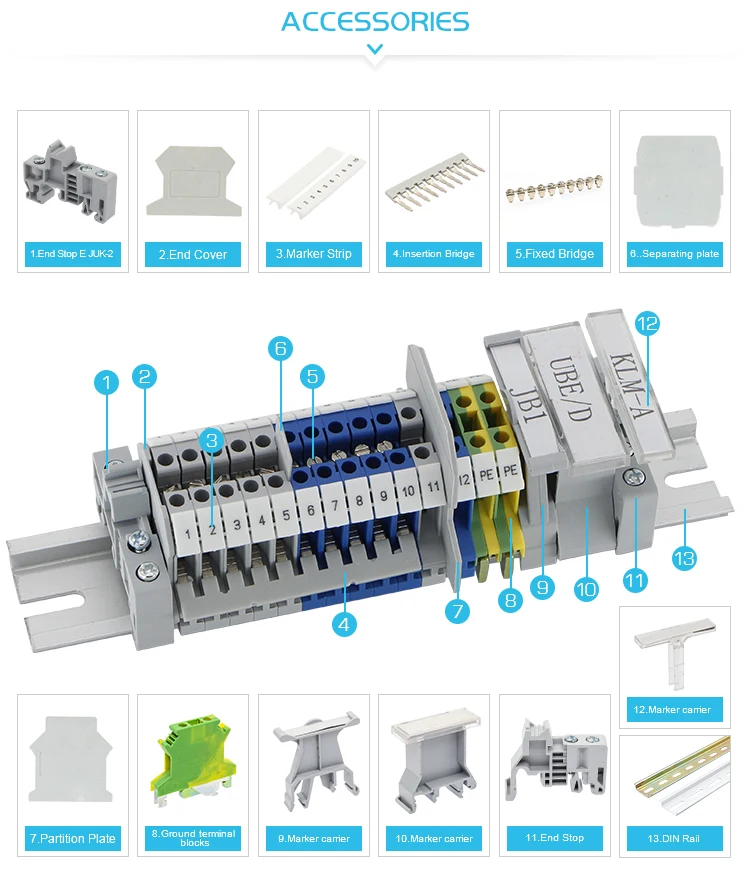

ACCESSORIES ( Click the pictures to the links)


END COVER D-UK 4-10	FIXED BRIDGE FBI 10-6	PLUG-IN BRIDGE EB 10-6	MARKER STRIPS ZB 6

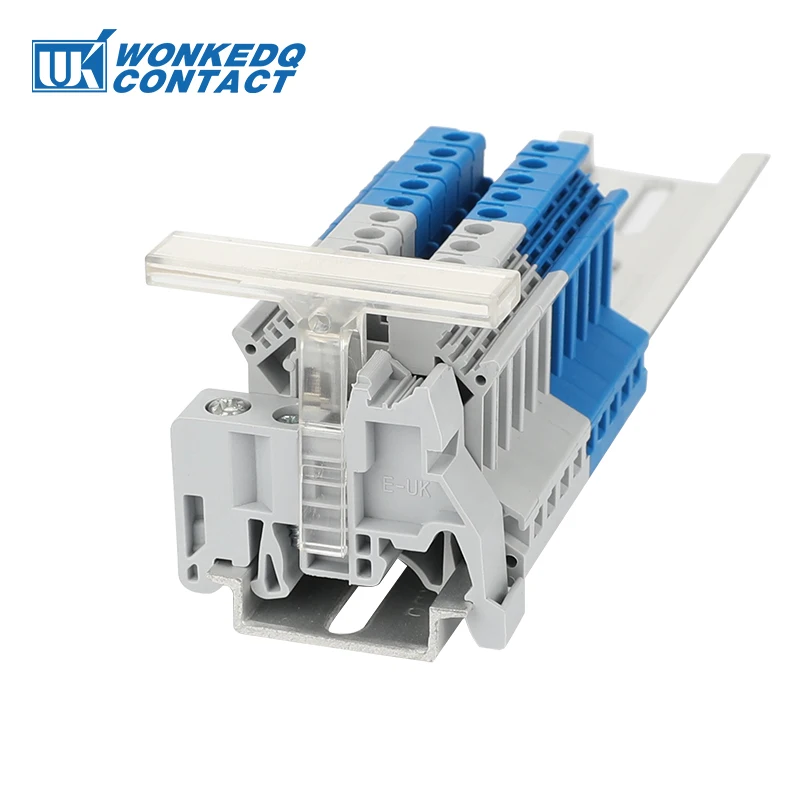

END STOP E-UK	MARKER CARRIER B1	MARKER CLIPS KLM-A	DIN RAIL NS35-S

Type No.	Details	Accessories

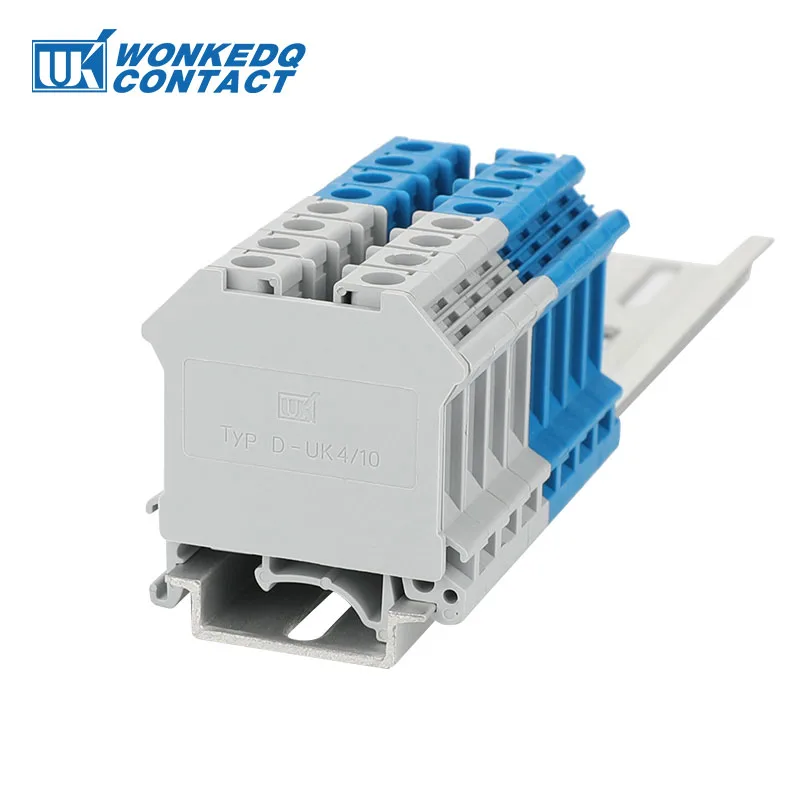

UK 5N	800V/41A 0.2-6mm²/0.2-4mm² L42.5/H46.2/W6.2 mm	End cover: D-UK 4/10

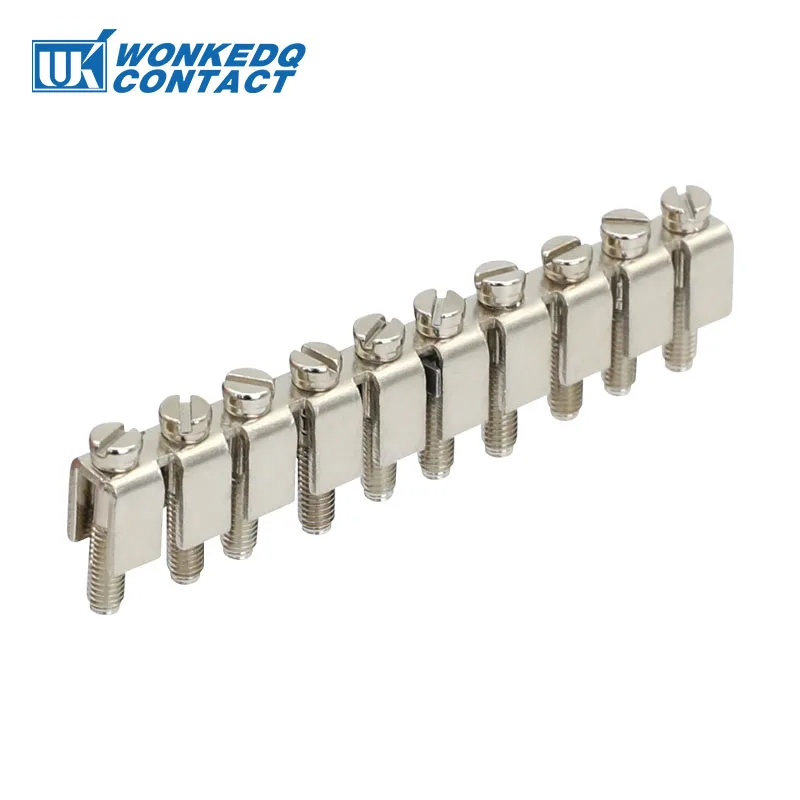

		Fixed bridge: FBI 10-6

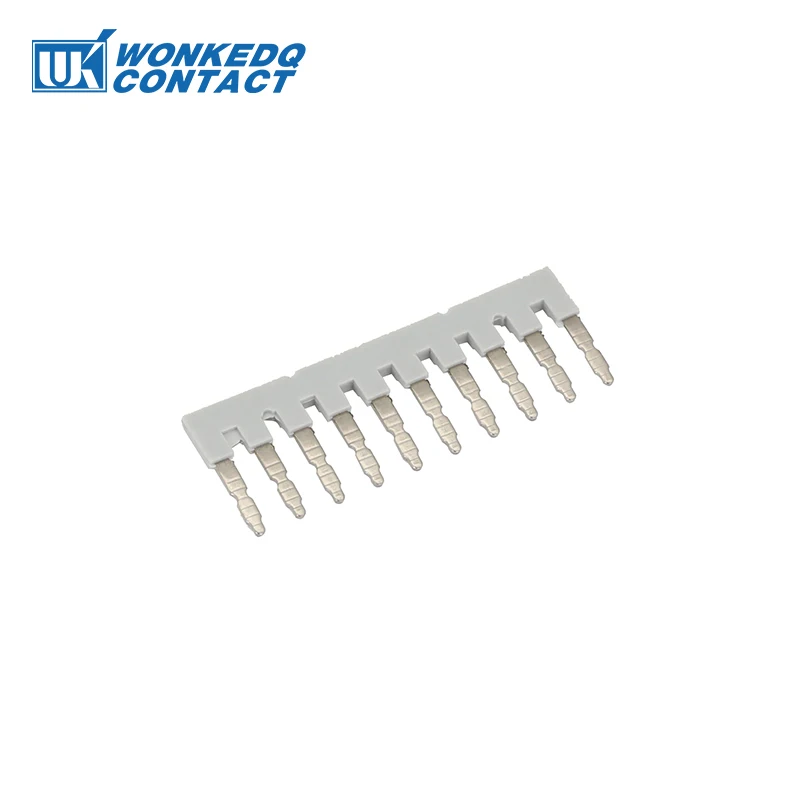

		Insertion bridge: EB 10-6

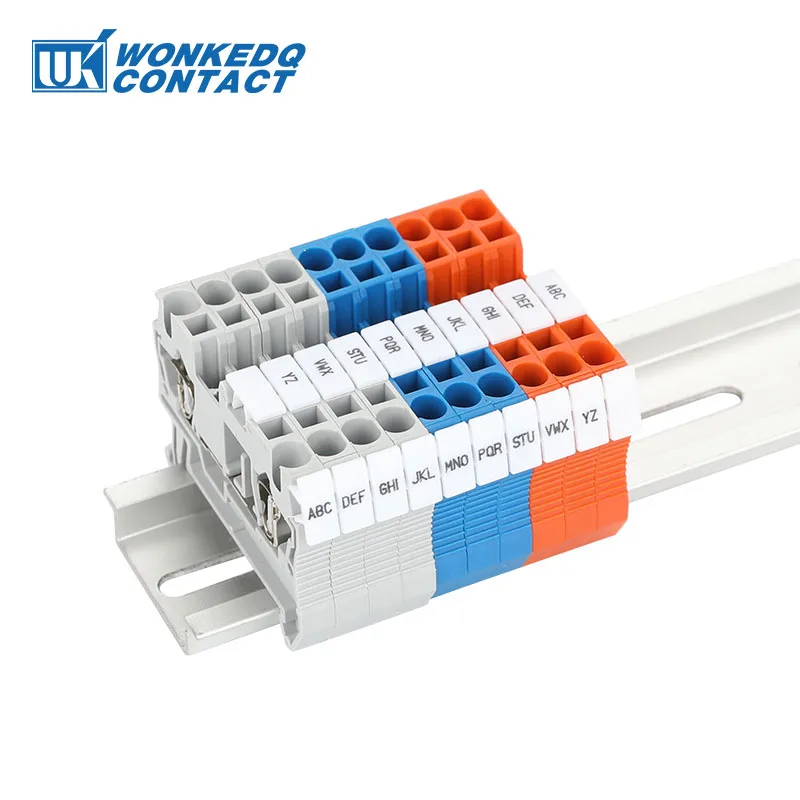

		Marker strip: ZB6

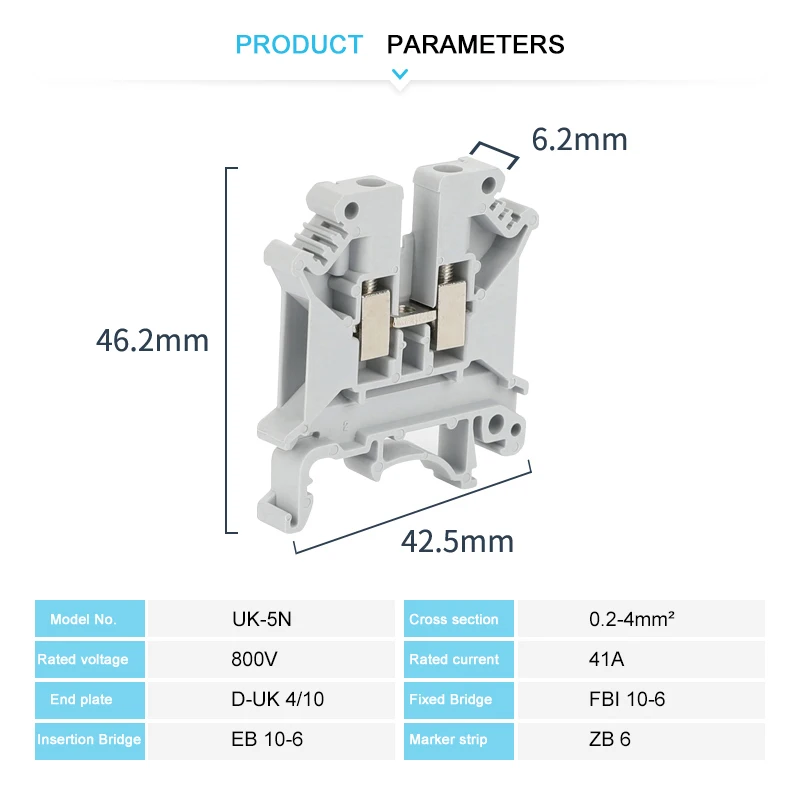

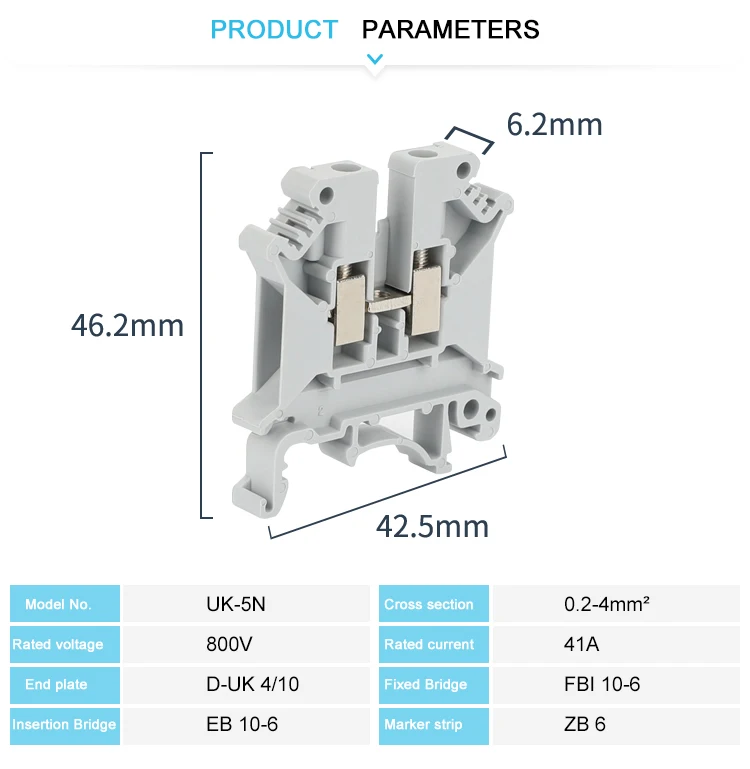

TECHNICAL PARAMETERS

Model Number	UK 5N

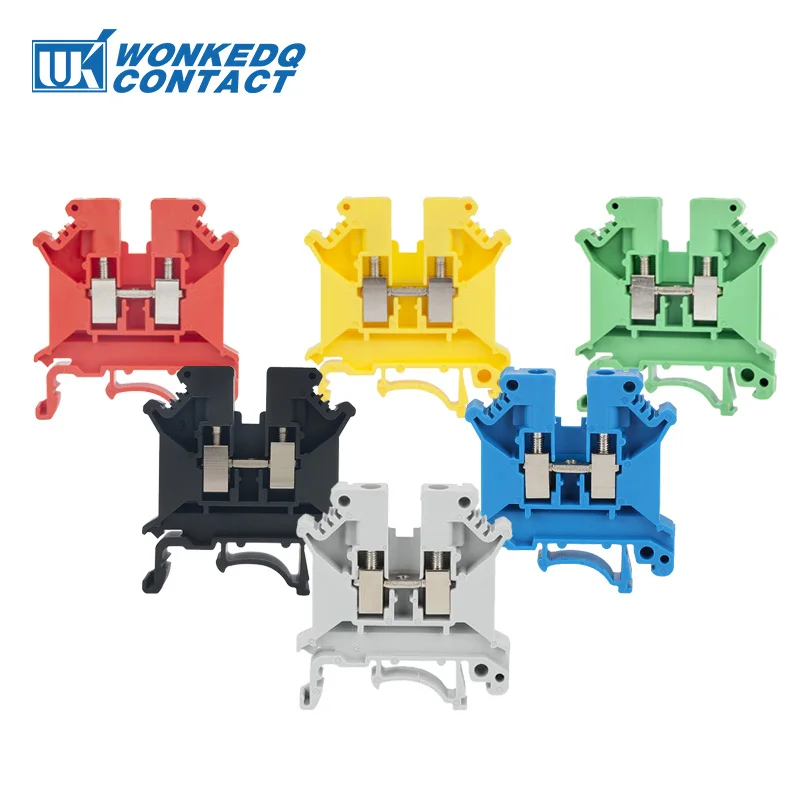

Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/46.2/6.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	800V/41A
Cross section, solid/soft Cable	0.2-6 mm2/ 0.2-4 mm2
Conductor Size	24-10 AWG
Mounting Type	NS 35/7.5

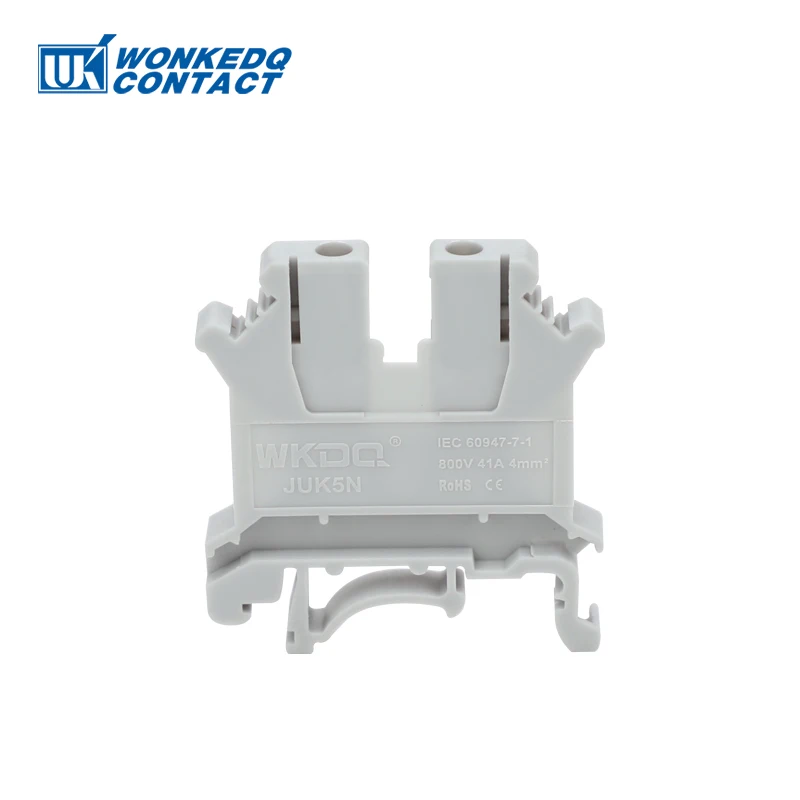

Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	8.45g/pc, 50PCS/BOX,3000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
