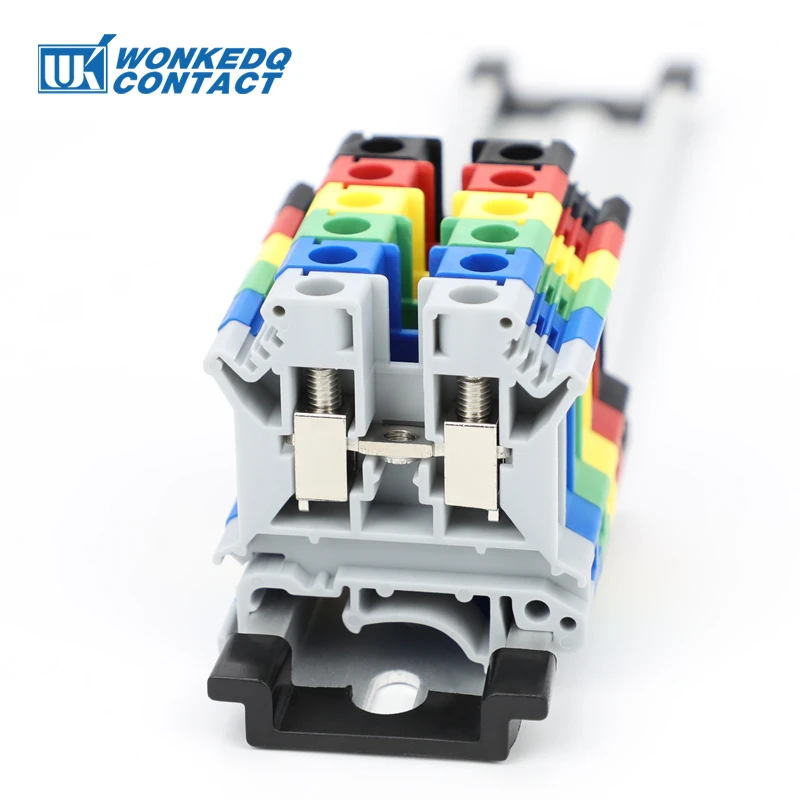

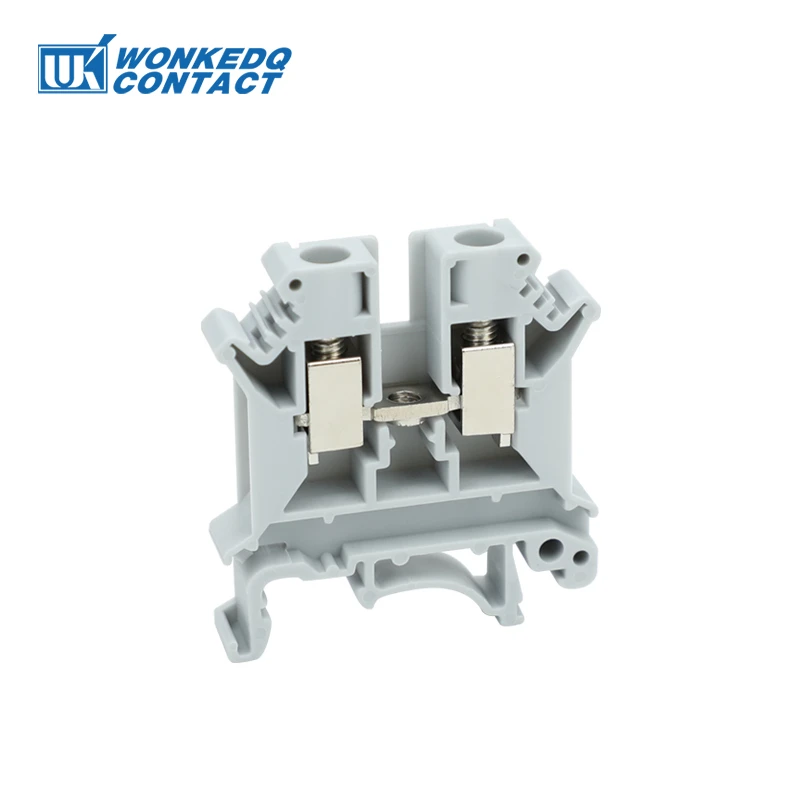

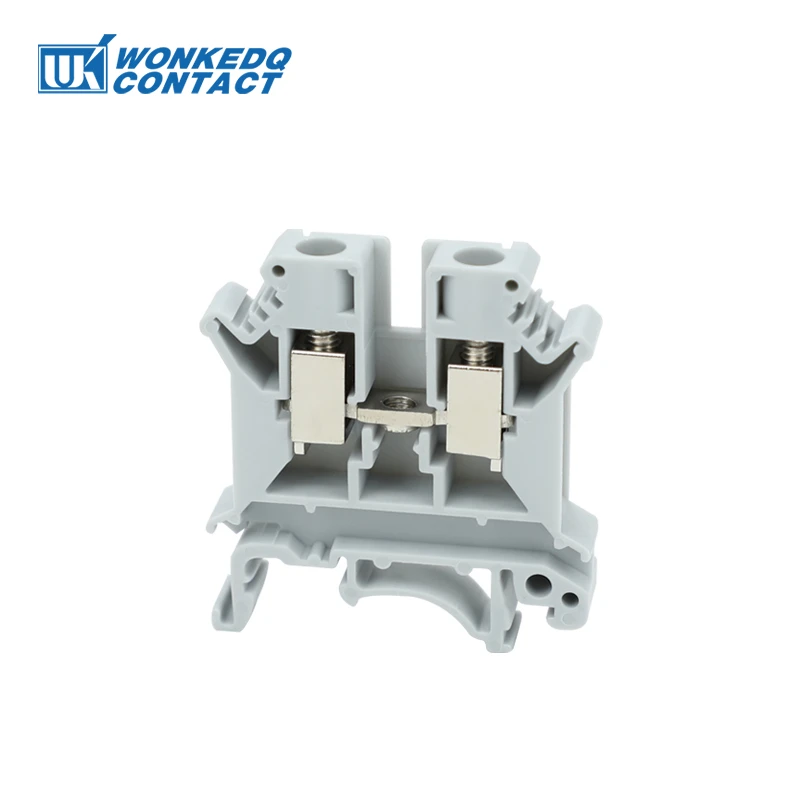

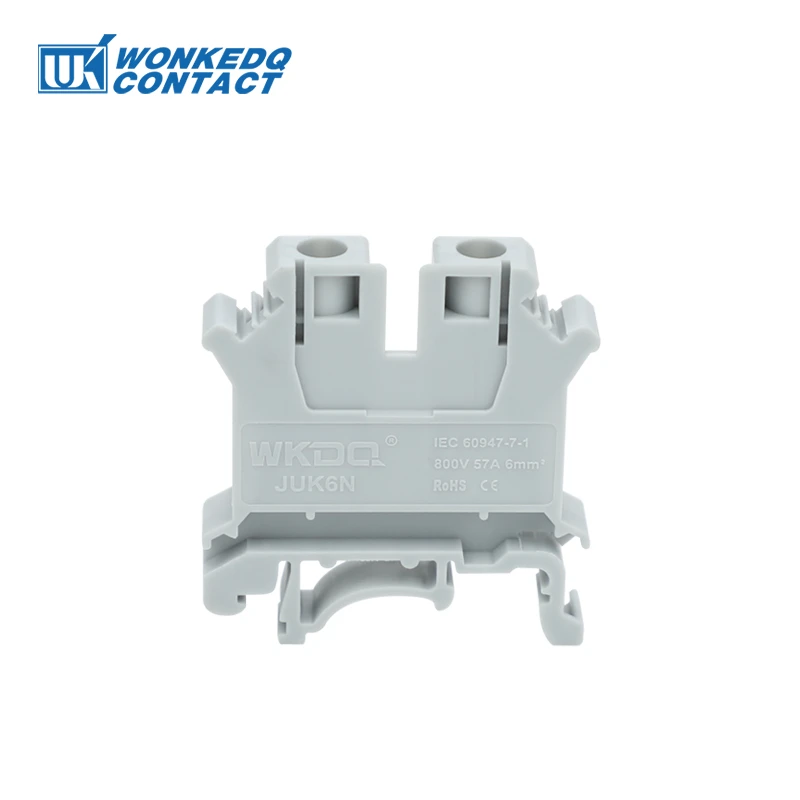

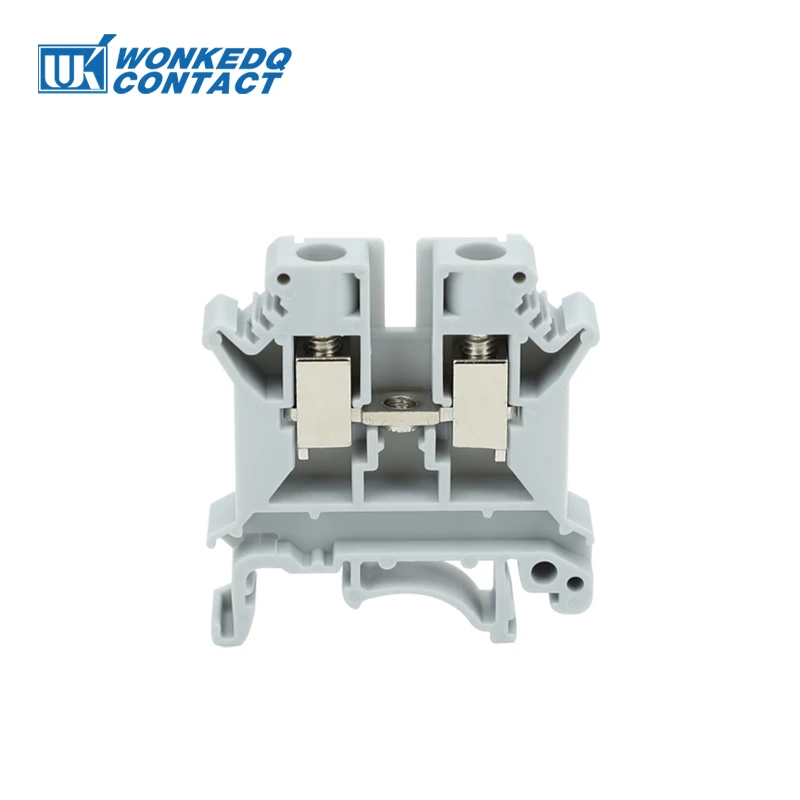

Name: 10Pcs UK 6N Screw Feed-through Wire Connector UK 6 mm² Universal Plug Multi-Color Electrical DIN Rail Terminal Block UK6N
SKU: 32873469520
Availability: InStock

10Pcs UK 6N Screw Feed-through Wire Connector UK 6 mm² Universal Plug Multi-Color Electrical DIN Rail Terminal Block UK6N

REF: 32873469520

Hign-concerned Chemical: None
Model Number: UK6N UK6
is_customized: Yes
Brand Name: WONKEDQ
Type: Screw Terminal
Origin: Mainland China
Certification: CE,RoHS
Usage: Electrical Wiring
Application: Distribution Cabinet /panel
Current: 57A
Voltage: 800V
Size: L42.5/H46.2/W8.2 mm
Cross section solid cable: 0.2-10mm²
Cross section soft cable: 0.2-6mm²
Mounting Type: Din Rail

DESCRIPTION

ACCESSORIES ( Click the pictures to the links)


END COVER D-UK4-10	FIXED BRIDGE FBI 10-8	PLUG-IN BRIDGE EB10-8	MARKER STRIPS ZB8

MARKER CARRIER B1	MARKER CLIPS KLM-A	DIN RAIL NS35-S	END STOP E-UK

Type No.	Details	Accessories
UK 6N	800V/57A 0.2-10mm2/0.2-6mm2 L42.5/H46.2/W8.2 mm	End cover: D-UK 4/10
		Fixed bridge: FBI 10-8
		Insertion bridge: EB 10-8
		Marker strip: ZB 8

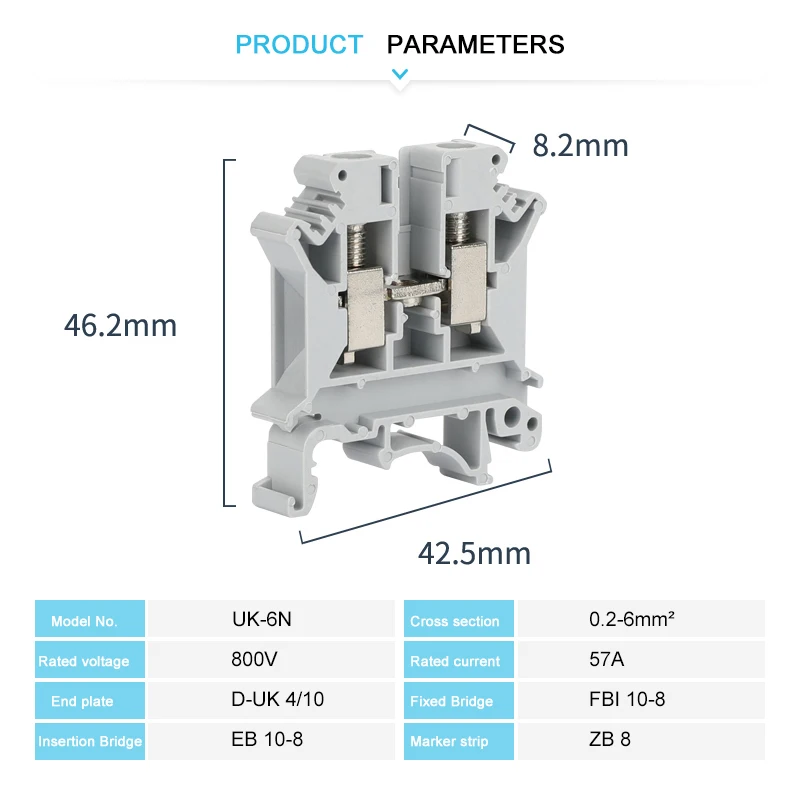

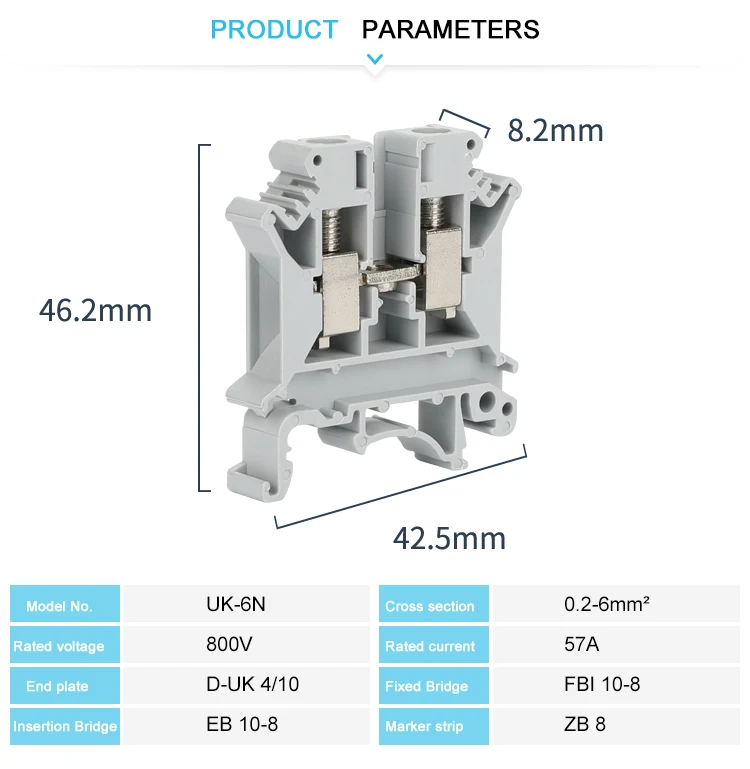

TECHNICAL PARAMETERS

Model Number	UK 6N
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/46.2/8.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	800V/57A
Cross section, solid/soft Cable	0.2-10 mm2; / 0.2-6 mm2;
Conductor Size	24-8 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	12.94g/pc, 50PCS/BOX,1500PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
