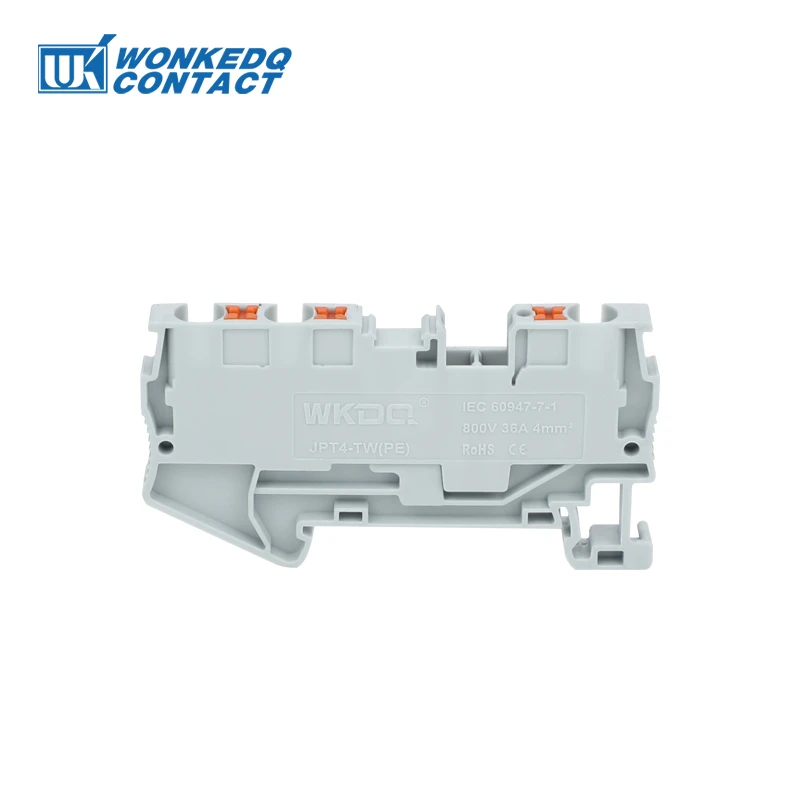

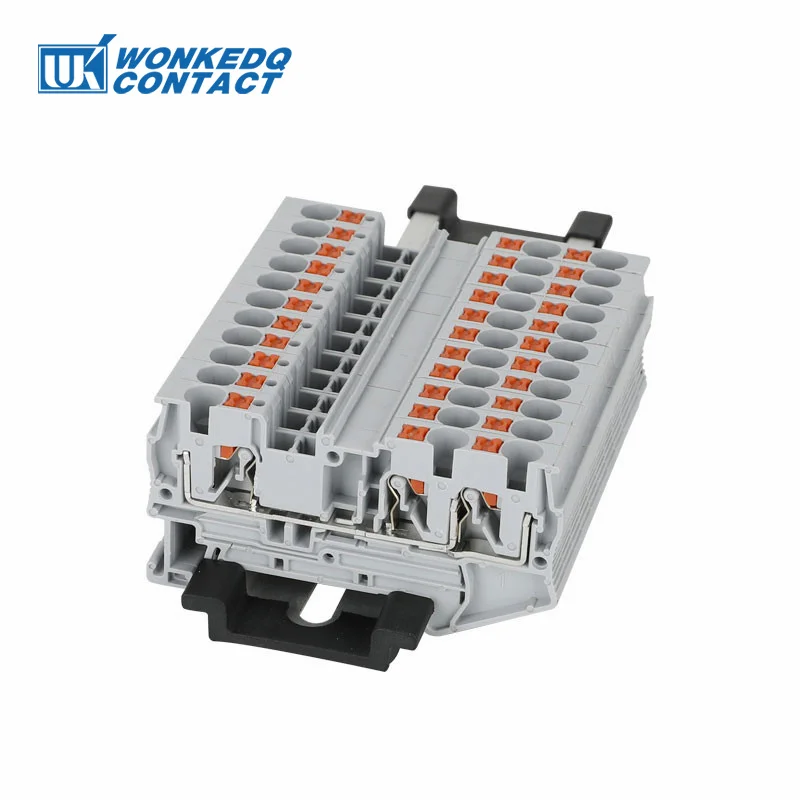

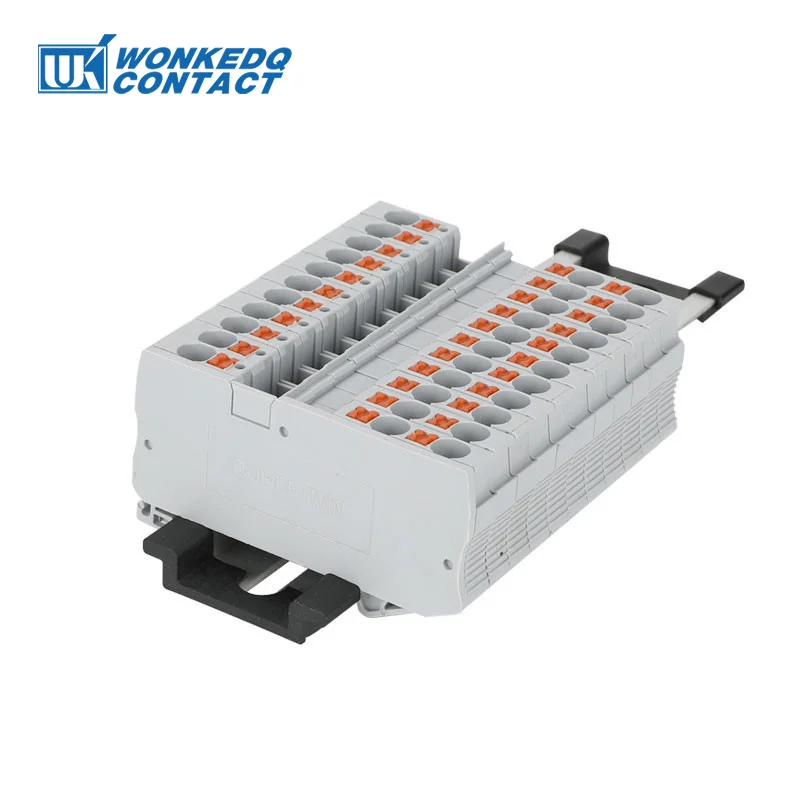

Name: 10Pcs PT4-TW PT Series 3 Conductor Push-in Terminals 4 mm² Twin PT 4-TW Wire Electrical Connector Din Rail Terminal Block
SKU: 1005003440292410
Availability: InStock

10Pcs PT4-TW PT Series 3 Conductor Push-in Terminals 4 mm² Twin PT 4-TW Wire Electrical Connector Din Rail Terminal Block

REF: 1005003440292410

Hign-concerned Chemical: None
Model Number: PT4-TW
is_customized: Yes
Brand Name: WONKEDQ
Type: Push-in Terminal
Origin: Mainland China

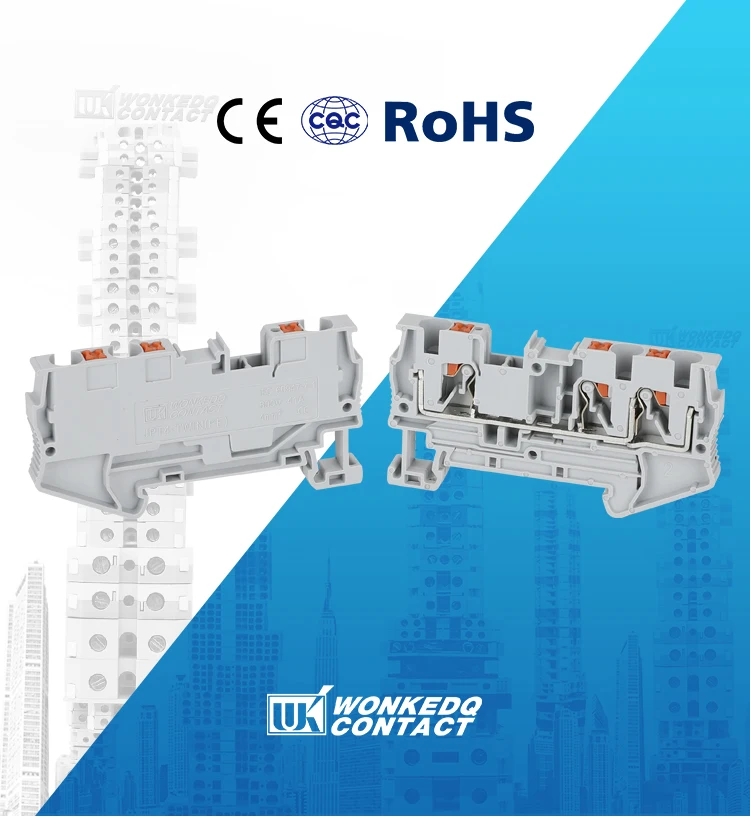

Certification: CE,RoHS
Conductor Size: 20-10 AWG, 20-10 AWG
Color: Grey, Blue, other color can be customized

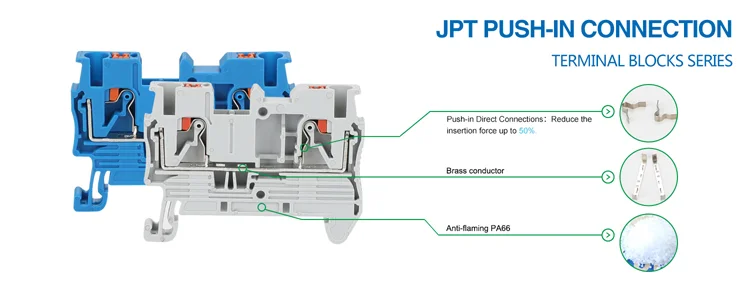

Connection method: Push-in connection
Rated Voltage/Current: 800V/32A
Mounting Type: DIN Rail NS 35
Certification: CE/RoHS/CQC/ISO 9001

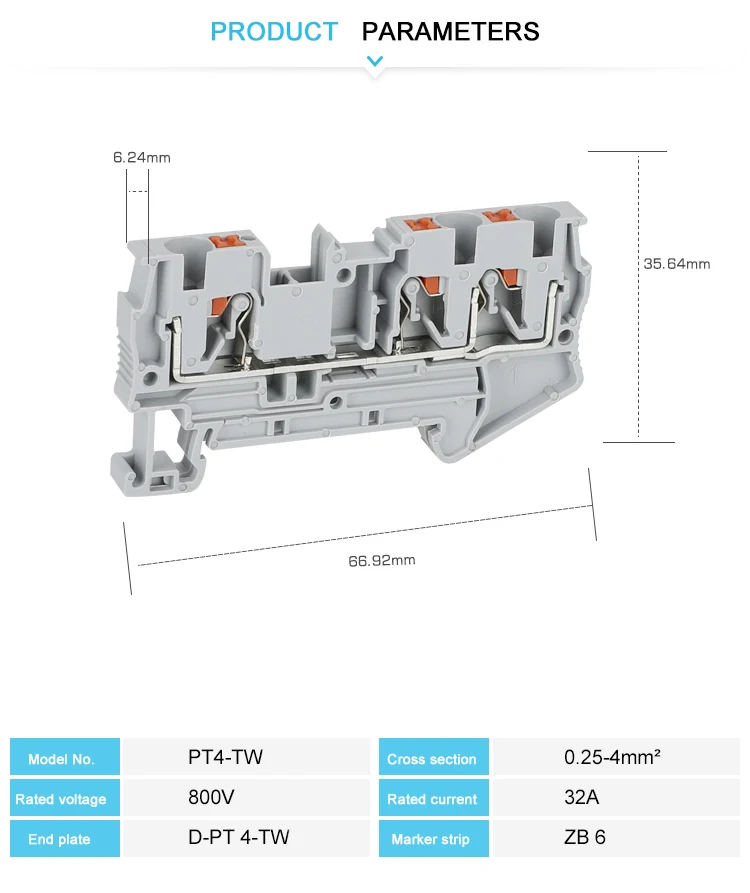

Length/Wide/Height (mm): L66.5/H36.5/W6.2 mm

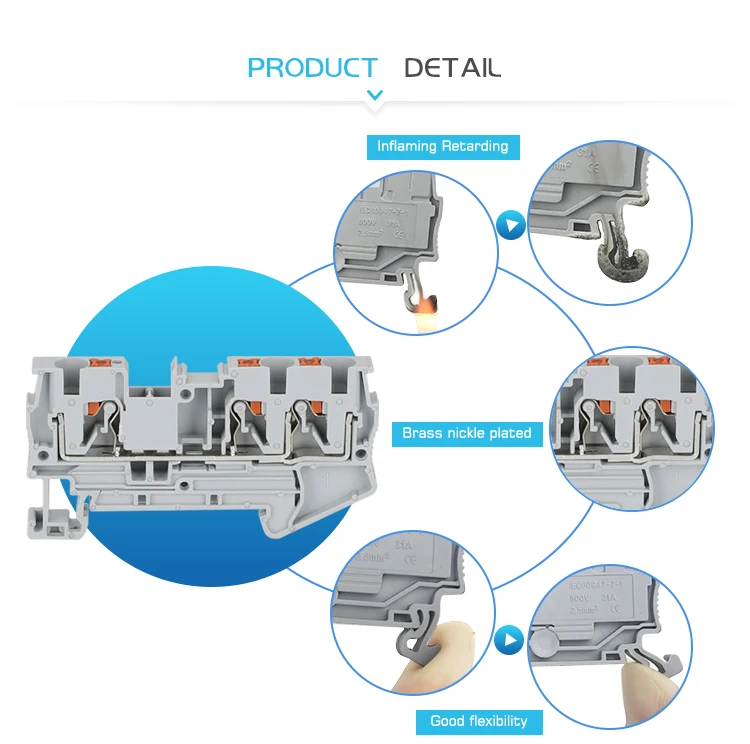

Material: Flame resistant Nylon PA66, Tin plated brass conductor
Cross section, solid/soft Cable: 0.2-6mm2/0.25-4mm2
Standard: IEC 60947-7-1

DESCRIPTION

ACCESSORIES ( Click the pictures to the links)


END COVER D-PT4-TW	JUMPERS BRIDGE FBS 2/3/4/5/10-6	MARKER STRIPS ZB6	END STOP E-UK

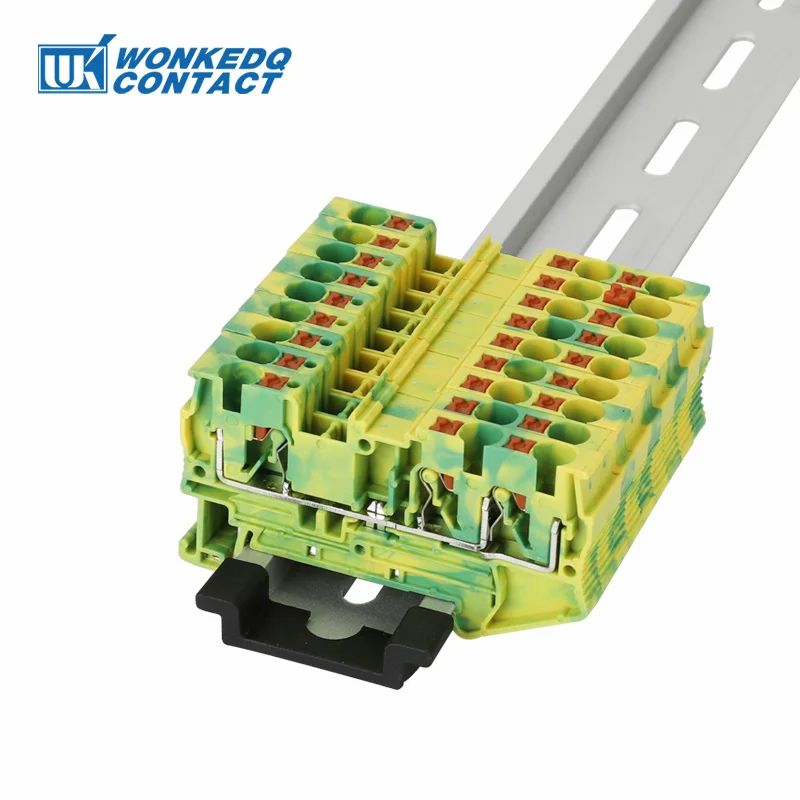

MARKER CARRIER B1	MARKER CLIPS KLM-A	DIN RAIL NS35-S	GROUND TERMINAL BLOCK PT-4-TW-PE

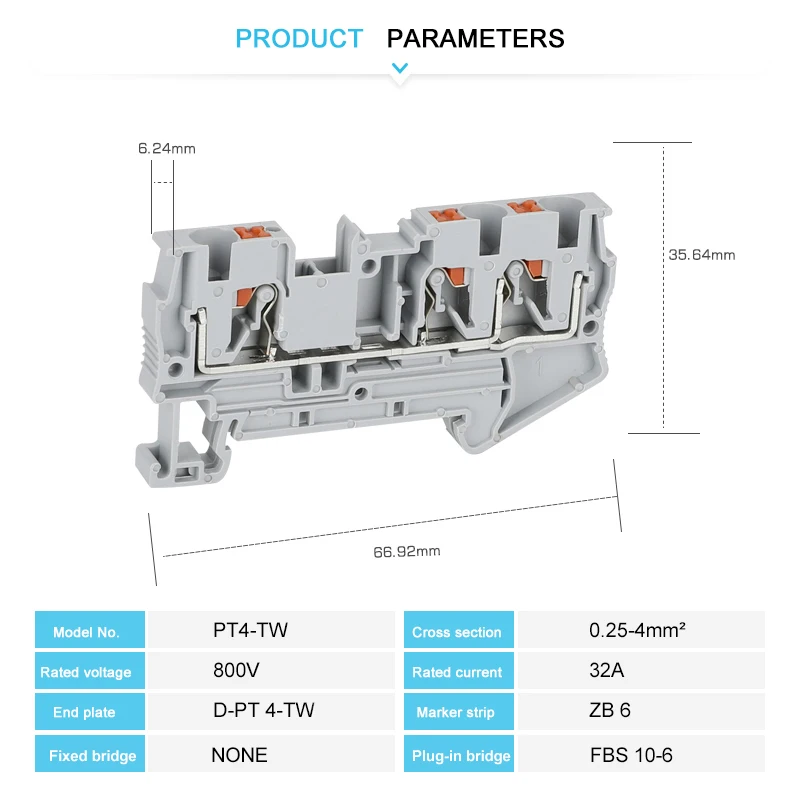

Technical Parameters

Type No.	Details	Accessories
PT-4-TW	800V/32A 0.2-6mm²/0.25-4mm² L66.5/H36.5/W6.2 mm	End cover: D-PT4-TW
		Plug-in bridge: FBS2-6 , FBS3-6, FBS4-6, FBS5-6, FBS10-6
		Insertion bridge: NONE
		Marker strip: ZB6

Model Number	PT 4-TW
Color	Grey, Blue, other color can be customized
Length/Wide/Height (mm)	L66.5/H36.5/W6.2 mm
Connection method	Push-in connection
Material	Nylon PA66
Rated Voltage/Current	800V/32A
Cross section, solid/soft Cable	0.2-6mm²/0.25-4mm²
Conductor Size	20-10 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Certification	CE/RoHS/CQC/ISO 9001
