- Hign-concerned Chemical: None
- is_customized: Yes
- Conductor Size: Other
- Number of Contacts: Other
- Model Number: AP-2.5
- Type: Other
- Brand Name: WONKEDQ
- Origin: Mainland China
- Certification: CE,RoHS
- Usable: Distribution Cabinet
- Application: Electrical wiring conductor
- Mount Type: Direct mounting
DESCRIPTION

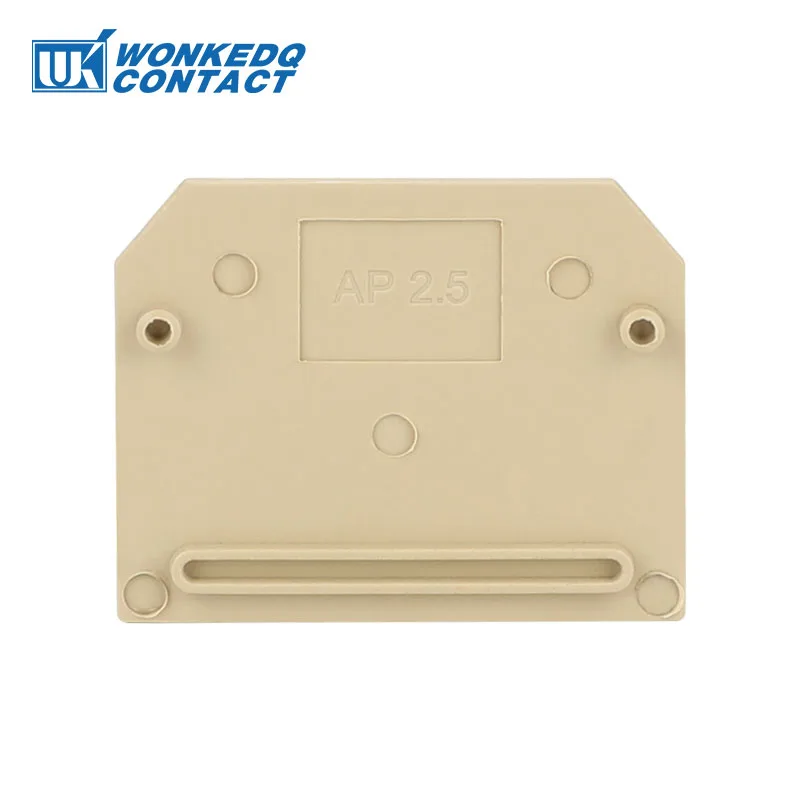

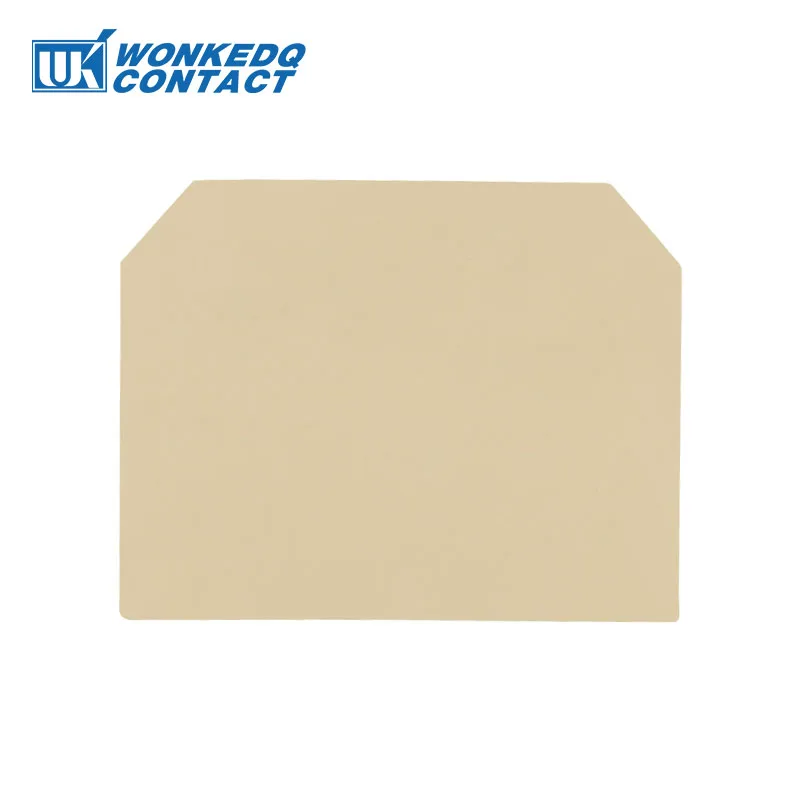

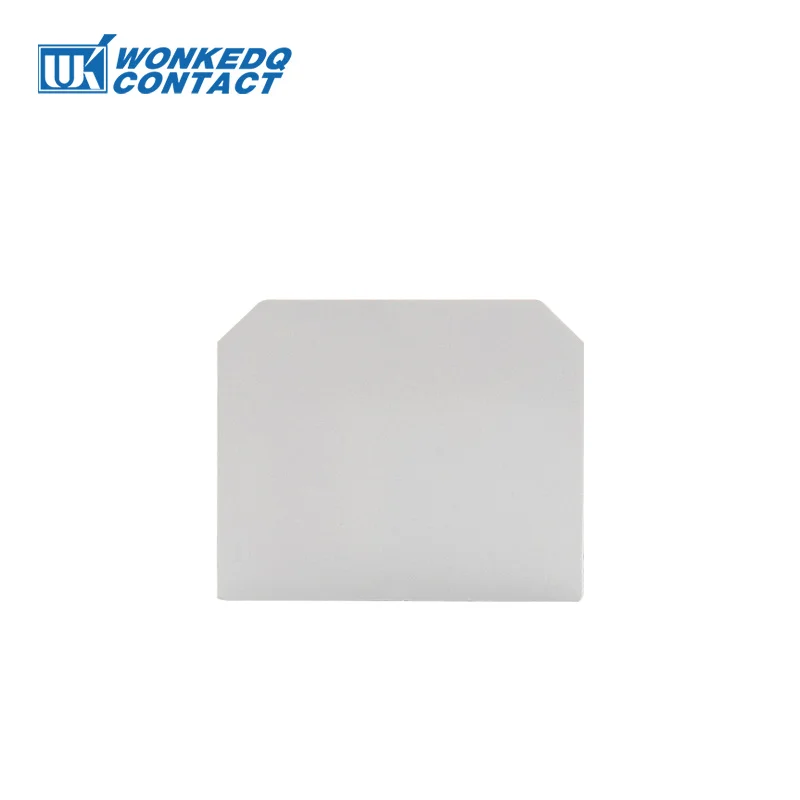

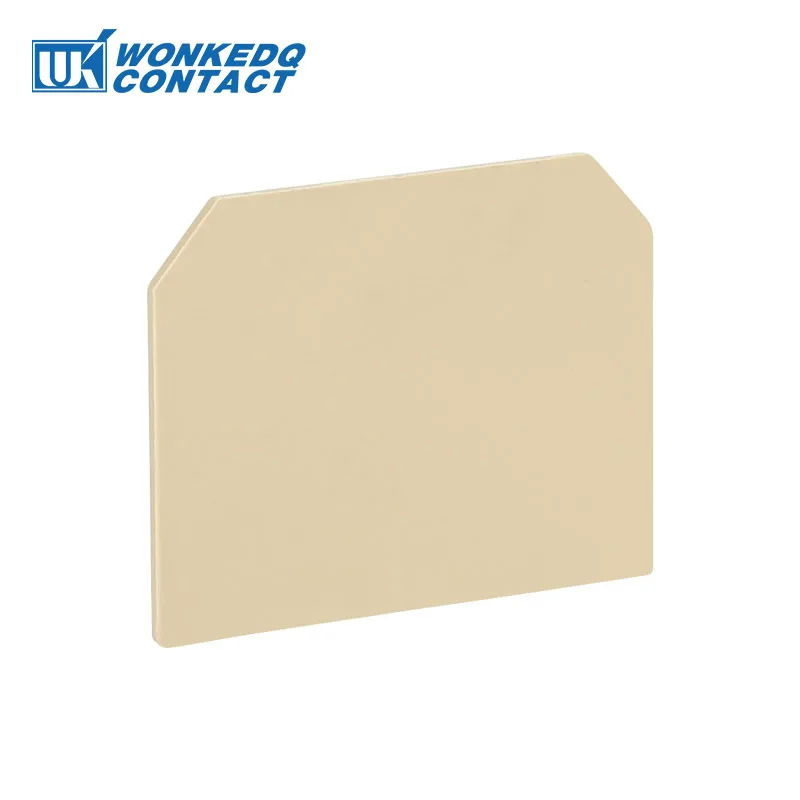

End Cover/plate for SAK DIN rail terminal blocks.

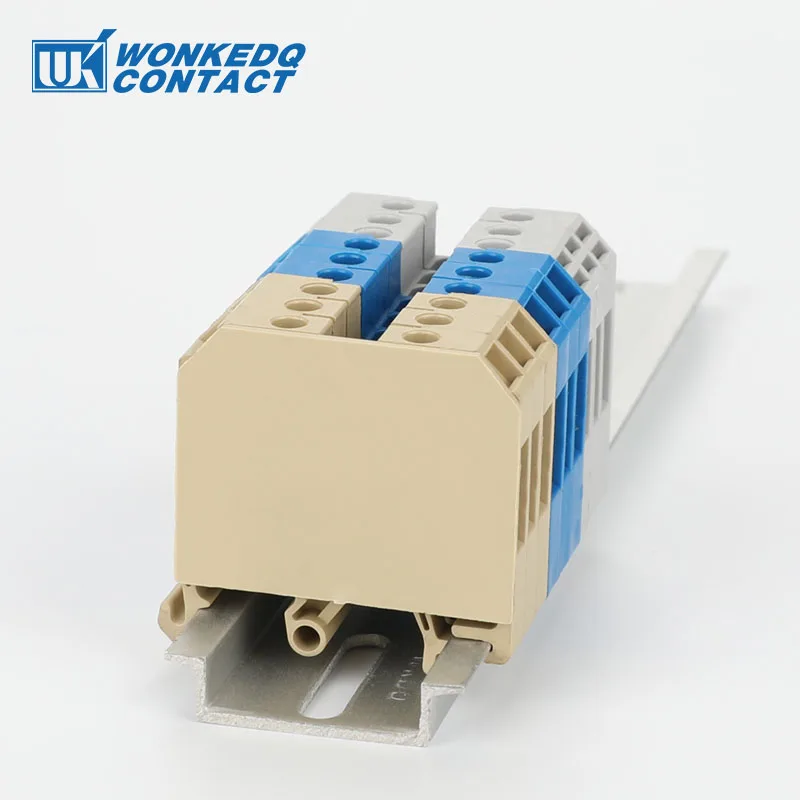

For each type and cross section of the terminal block, there is a specific insulating and closing end section to be placed on the open element of each terminal block assembly.
This end section may also be used to separate different phases of adjoining terminal blocks linked by cross connections or to increase insulation distances where specific circumstances may require it.
The end sections have the same overall dimension as the related terminal block.
Model Number |
AP 2.5 |
Color |
Yellow, other color can be customized |
Length/Wide/Height (mm) |
L40/H31.5/W1.5 mm |
Connection method |
Screw connection |
Material |
Nylon PA66 |
Mounting Type |
NS 35/7.5 |
Standard |
IEC 60947-7-1 |
LOGO |
Customized logo are supported |
Certification |
CE/RoHS/CQC/ISO 9001 |
TECHNICAL PARAMETERS
Terminal BlocksModel Number |
End Cover Model Number |
Dimension(mm) |
SAK 2.5EN |
AP-2.5 |
40x31.5x1.5 |
SAK 4EN |
AP 4/10 |
40x37.2x1.5 |
SAK 6EN |
||
SAK 10EN |
||
SAK 16EN |
AP 16 |
50.5x35x1.7 |
SAK 35EN |
AP 35 |
59x47x1.9 |
SAK70/35 |
AP 70 |
71.5x66.5x2 |
DK 4Q/35 |
AP DK4Q |
54.7x40x1.5 |
DK 4QV/35 |
||
WTL 6/1S |
AP WTL 6/1 |
66x36x1.8 |
ASK1 EN |
AP ASK1 |
52.4x24x1.5 |
