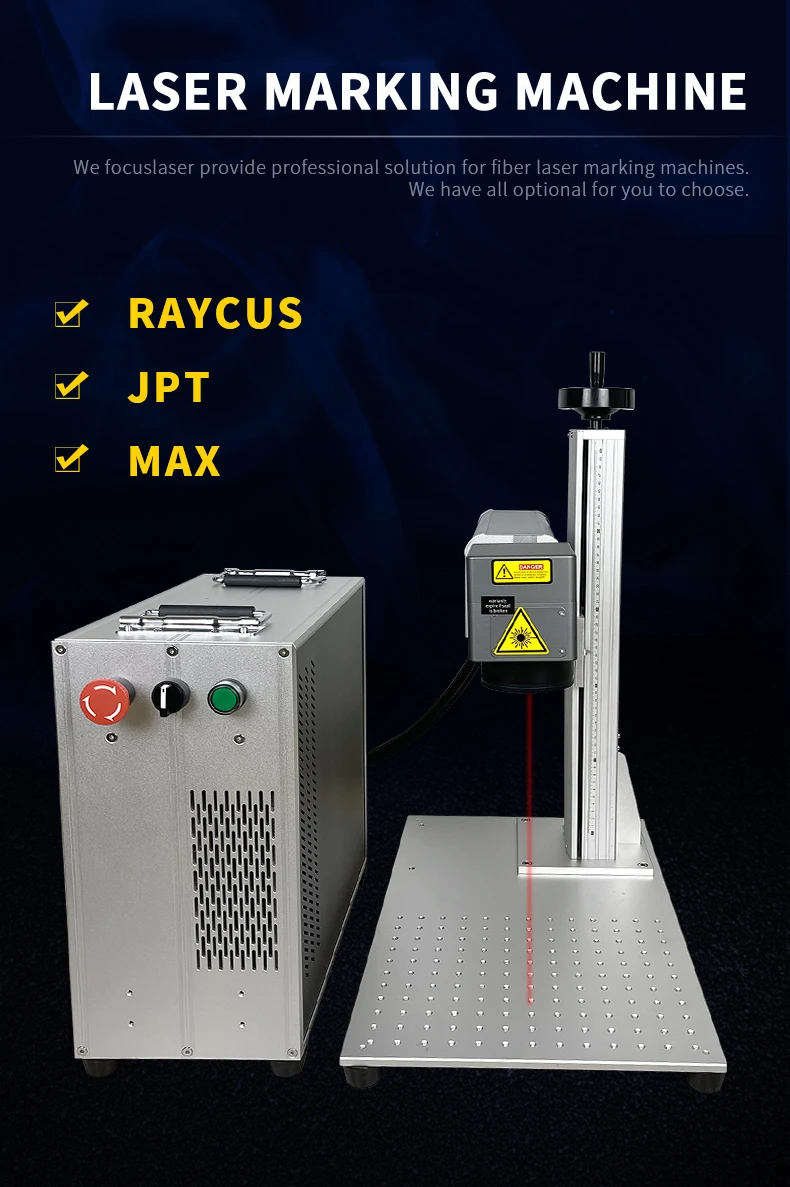

How to choose a fiber laser marking machine? Raycus, JPT or MAX？

We focuslaser provide professional solution for fiber laser marking machines. We have all optional for you to choose.

Here are some differences of Raycus, JPT and Max.

Raycus is one of the most famous brand here in China which produce laser sources earliest in China.

JPT is famous for MOPA structure design if for fine engraving we can choose JPT.

Max is another brand and popular in China.

If we want engrave deep and has feel with finger touch same power you can choose a Raycus, if we want a fine engrave result，we can choose a JPT. If we think MAX is good choice we can choose a Max. But mostly customers choose Raycus or JPT.

Data sheet/ Configuration

Data sheet/ Configuration

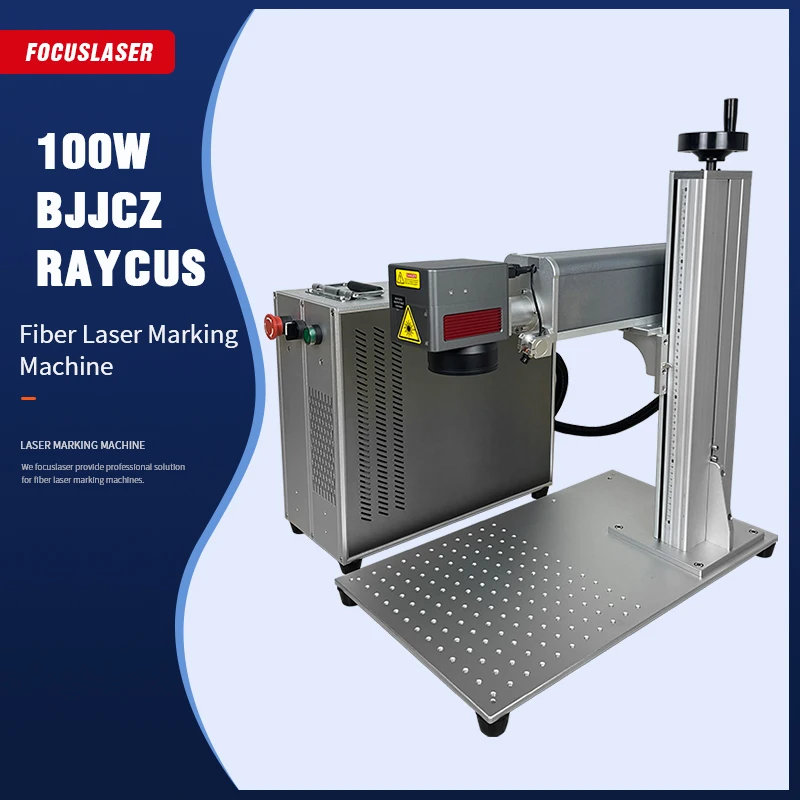

Model FLFB100GJ
Laser Source Power 100W
Laser module Brand Raycus
Scanner Focuslaser
Power supply Taiwan Brand
F-lens Singapore Wavelength
Key switches CE imported components made
Pulse Repetition Rate 30-60KHZ
Operation Windows WIN 7, WIN8, WIN 10 32 bit/64bit
Control software Genuine EZCAD2
Format Supported BMP, JPG, GIF, TGA, DXF, PLT, PNG, TIF, AI, DXF, DST, etc.
Beam Quality ㎡ <1.1
Operating Voltage AC 110V/220V 50/60HZ 5A
Laser Wavelength 1064nm
Engraving Range
110*110/175*175/200*200/300*300mm
Repetition Precision ±0.003mm
Engraving Speed ≤9000mm/s
Minimum Line Width 0.01mm
Character Size 0.5-110mm
Cooling System Air Cooling
FLmark control software 1 copy
Working Temperature Range 10-30℃
Driver for rotate Yes
Net Weight of Machine 40kg
Packing Weight 60kg

Heat Dissipation

We Installed Heat Transfer Sheet（Red One），This Will Release The Heat As Soon As Possible. In This Way Will Make Sure Inside Scanner Head Temperature Is Cooling Faster To Get A Better Performance.

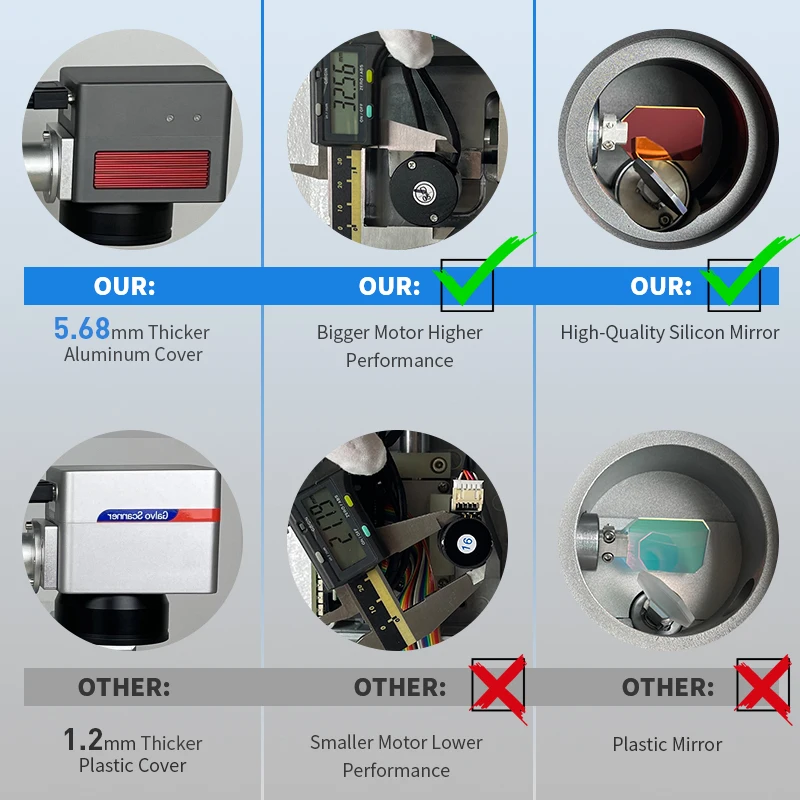

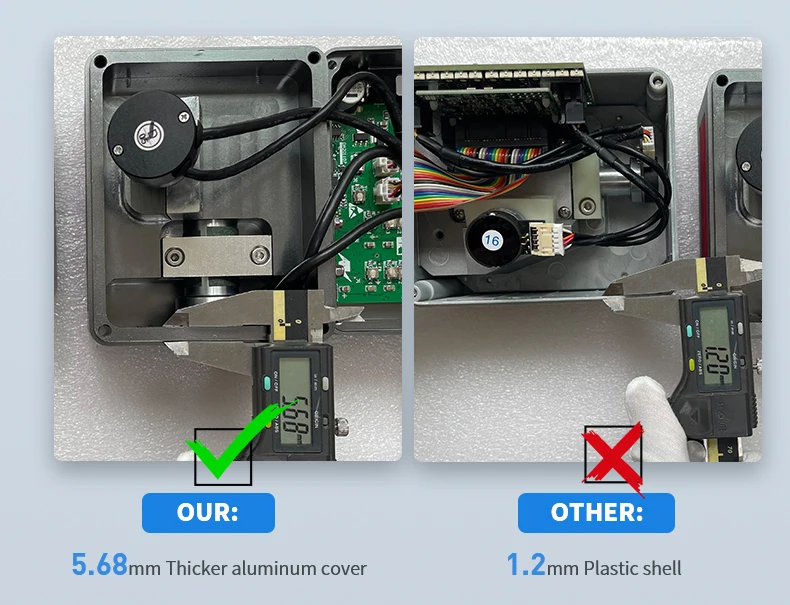

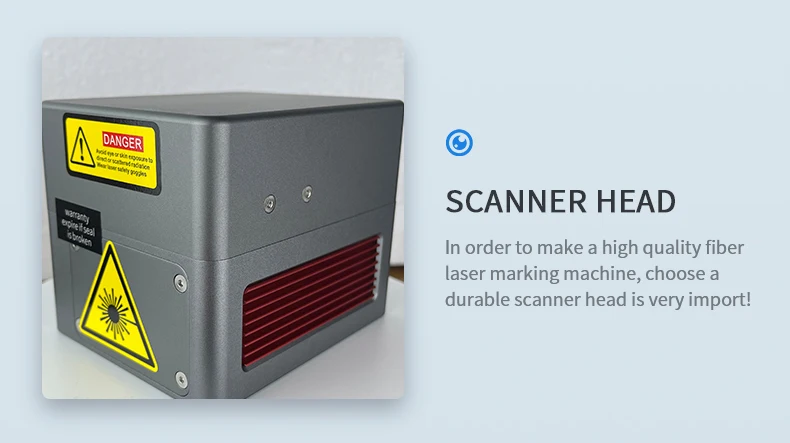

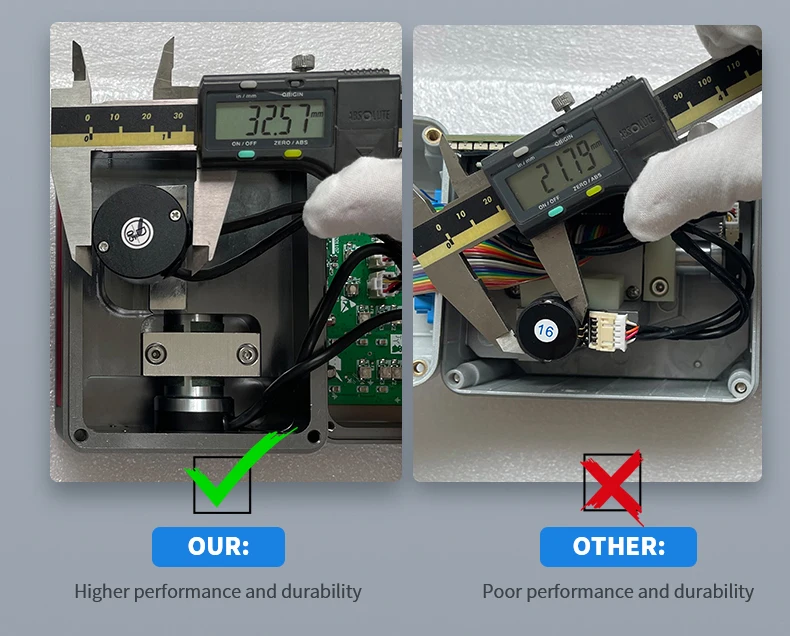

Thick Aluminum Scanner Head

We Make The Scanner Head With High Quality Aluminum And Connection Wall Thickness Up To 5.68mm，Other Scanner Wall Is Only Nearly Up To 1mm.

Fast Speed 9000mm/s

Bigger High Quality Motor To Ensure Higher Performance，Make Our Machine More Faster And Durable Compare With Other Scanner Head.Digital Galvanometer Scanning Head Fast Speed ＜9000mm/S With Focuslaser Brand Selected High Scanning And Accuracy.

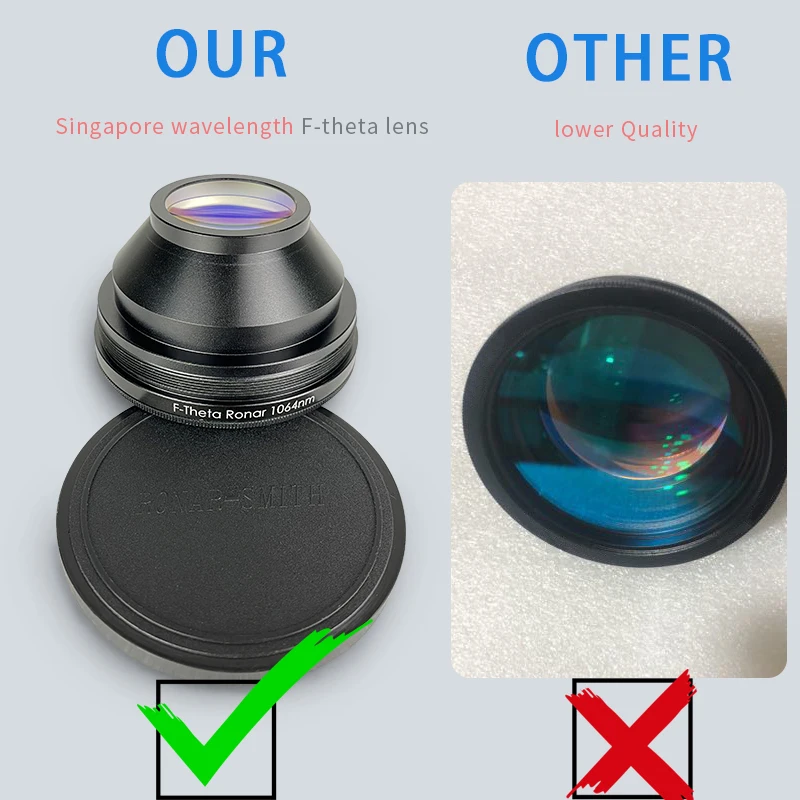

F-theta Lens

We choose famous “Singapore wavelength”focus flied lens to ensure best coating materials on the lens to get a best engraving result. If use unknown brand lens can not ensure better engraving

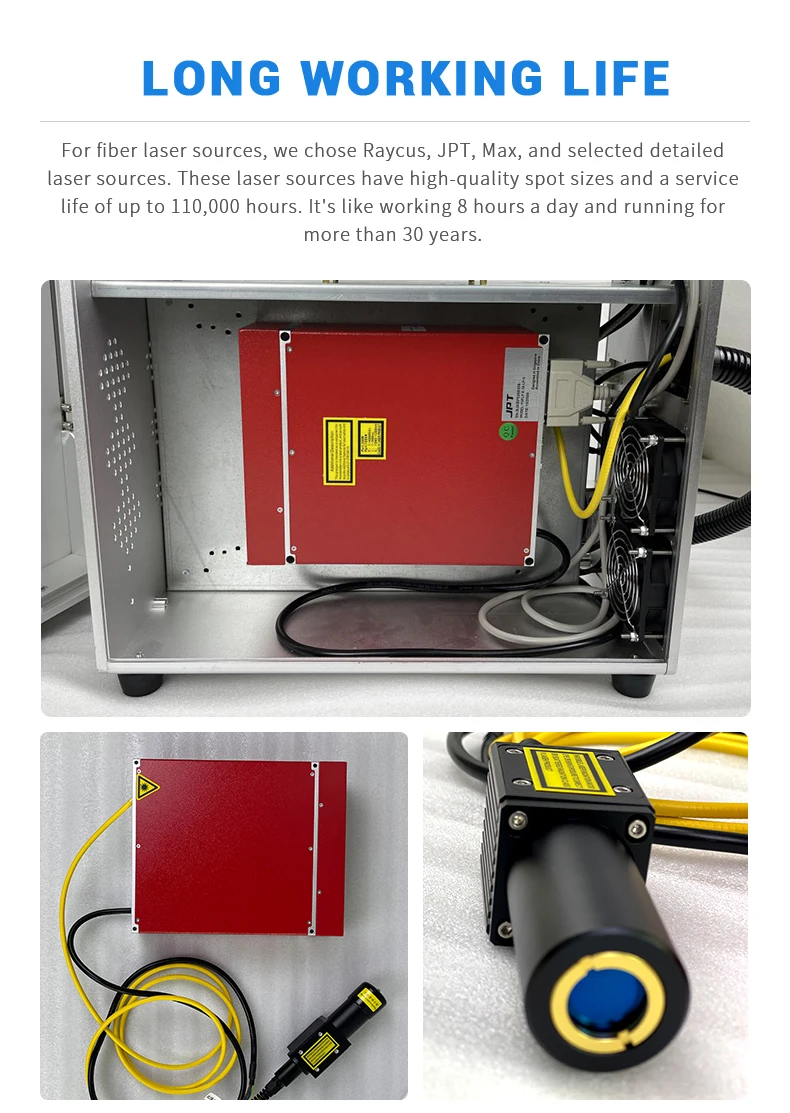

Laser Source

Fiber laser source we choose Raycus, JPT, Max with detail selected laser source with high quality spot size and long lifetime over 110,000 hours running. Like 8 hours a working day running more than 30 years.

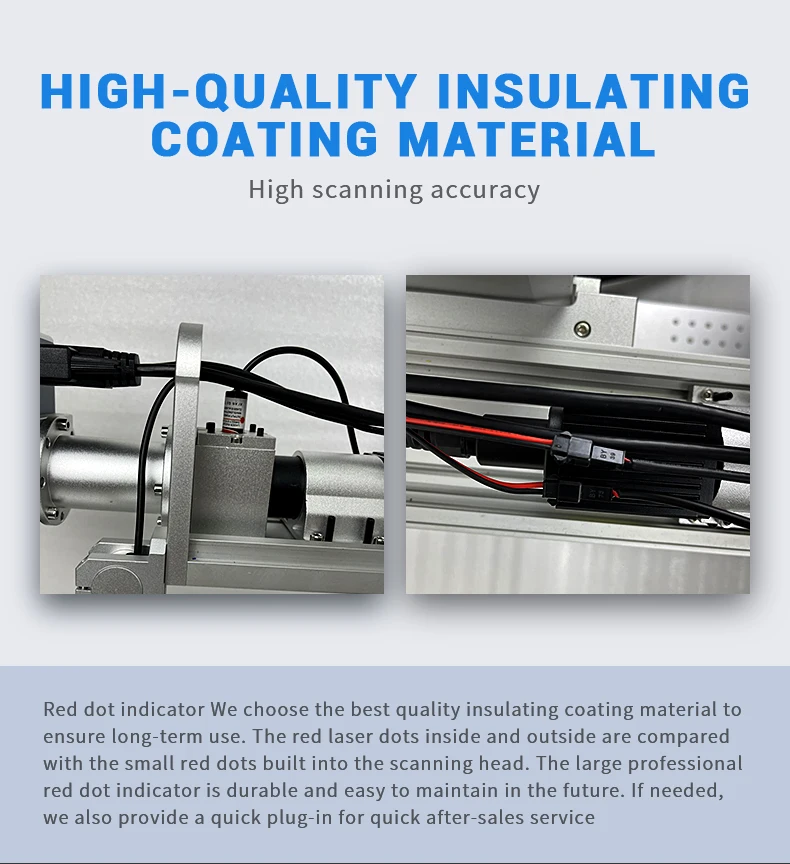

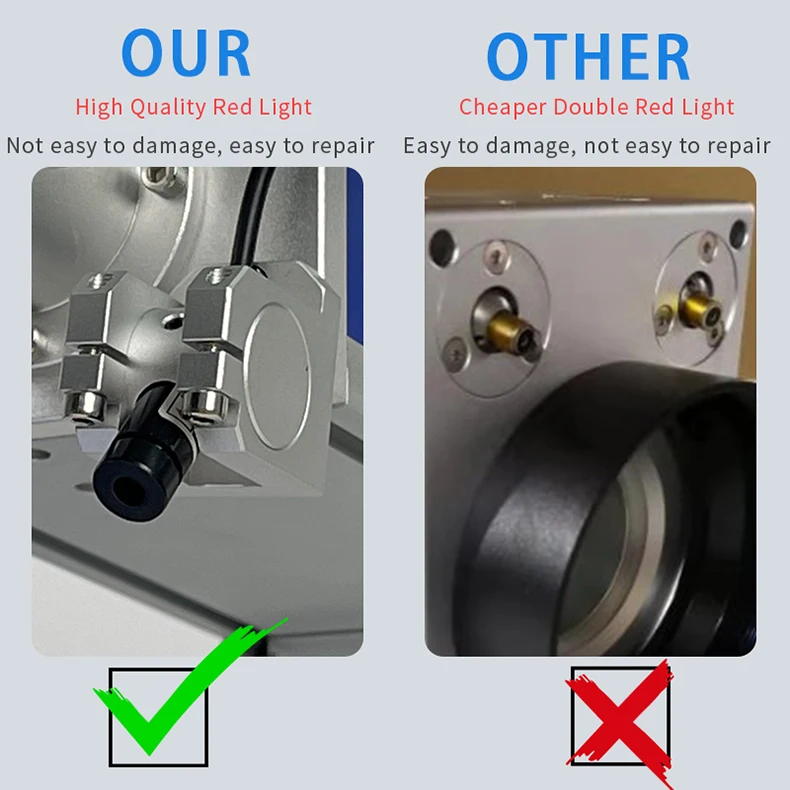

Red Dot Pointers

Red dot pointers we choose best quality with insulation out coating materials to ensure long time use, with inner and outer red laser dot which compare with scan head inbuilt type small red dot. Big professional red dot pointers are durable and easy for future maintain. We also make a fast plug for fast after sales service if needed.

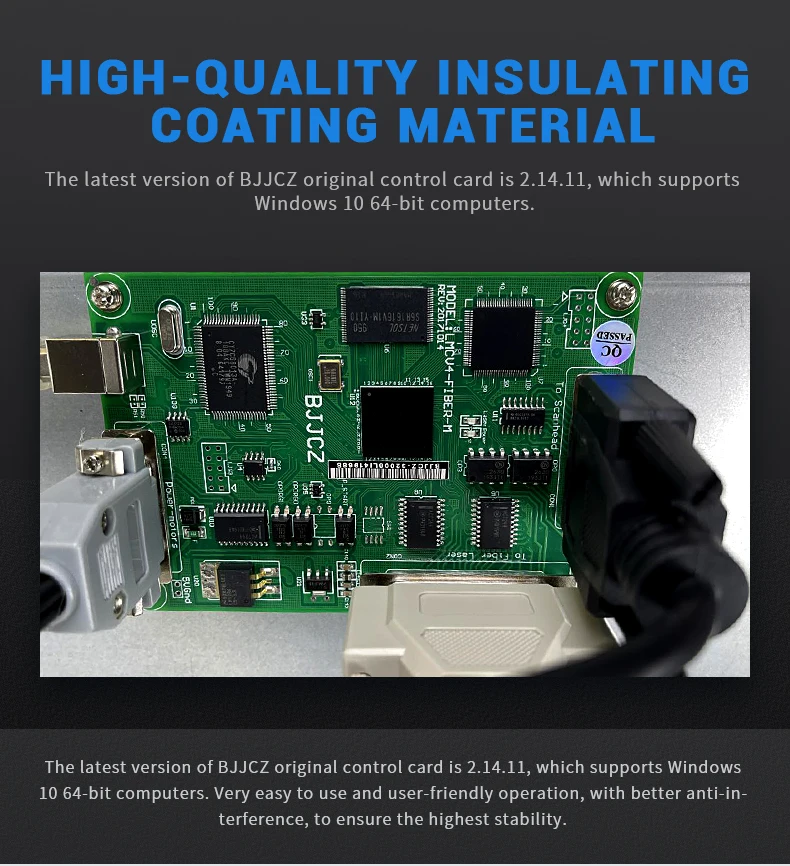

BJJCZ original control card

BJJCZ original control card with lasted version 2.14.11 support windows 10 64 bits computer. Very easy use and user friendly operation with a better anti interference ensure highest stability.

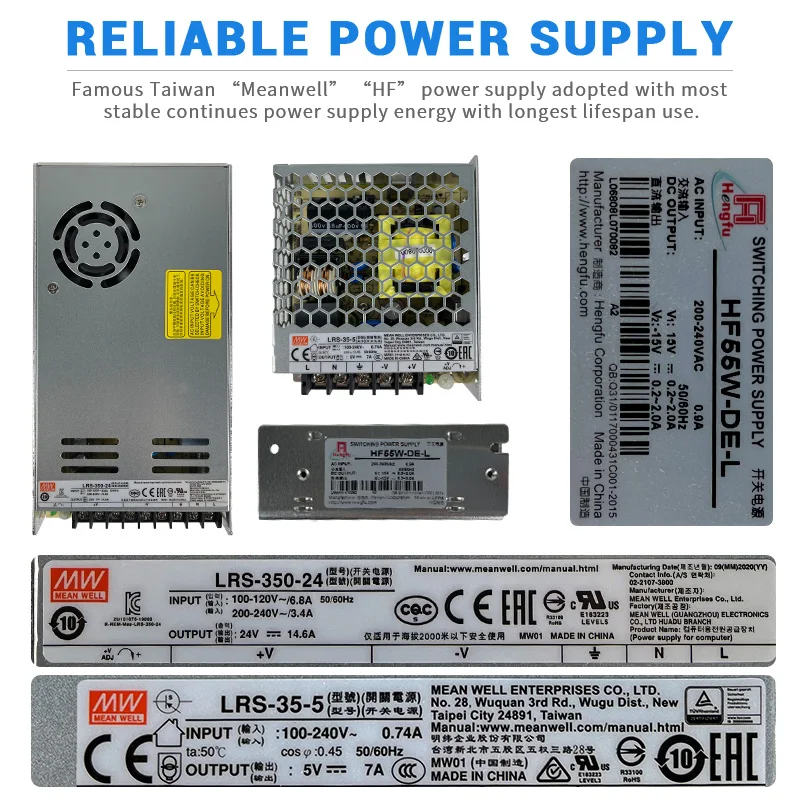

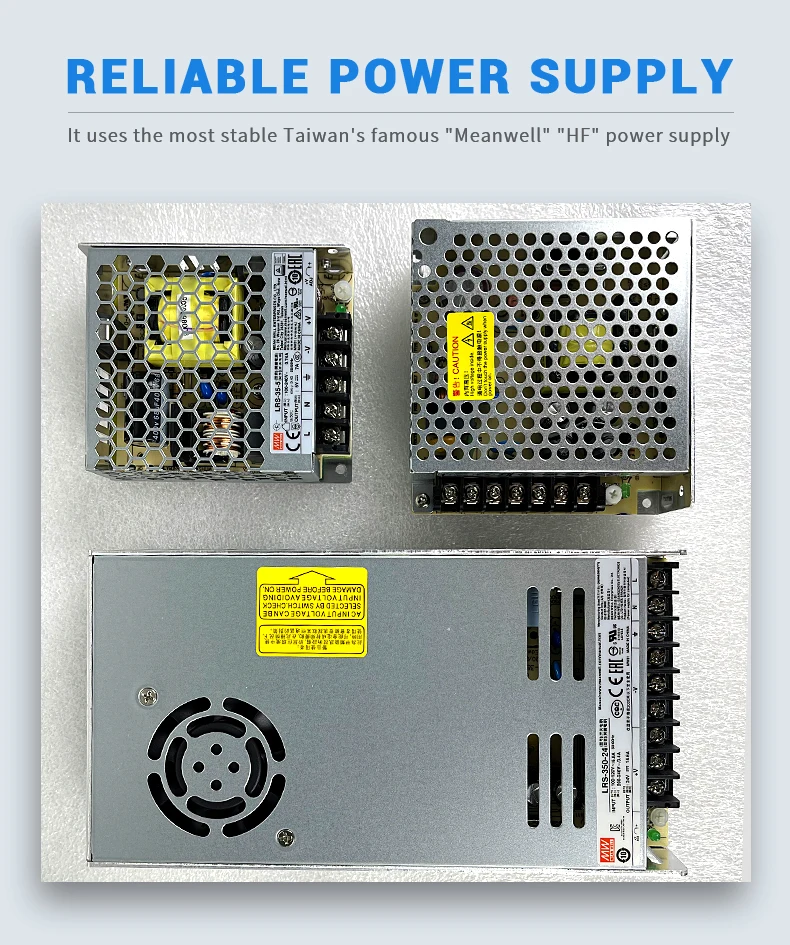

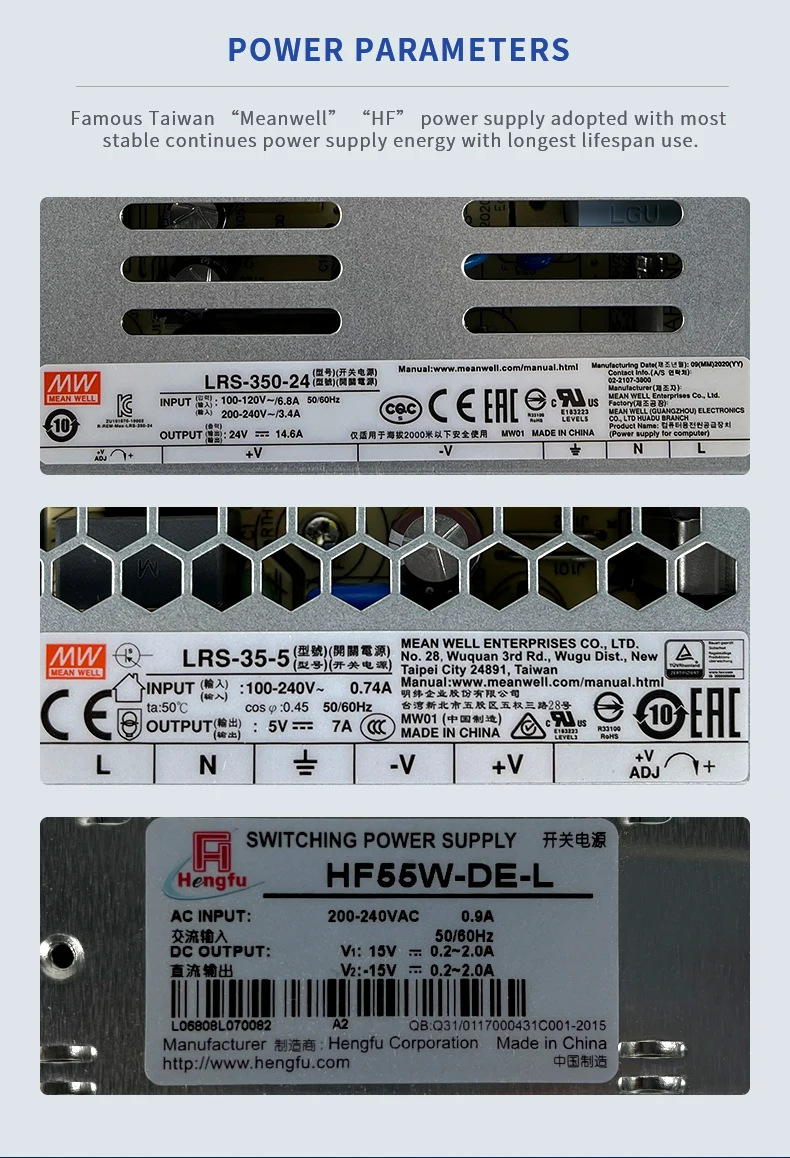

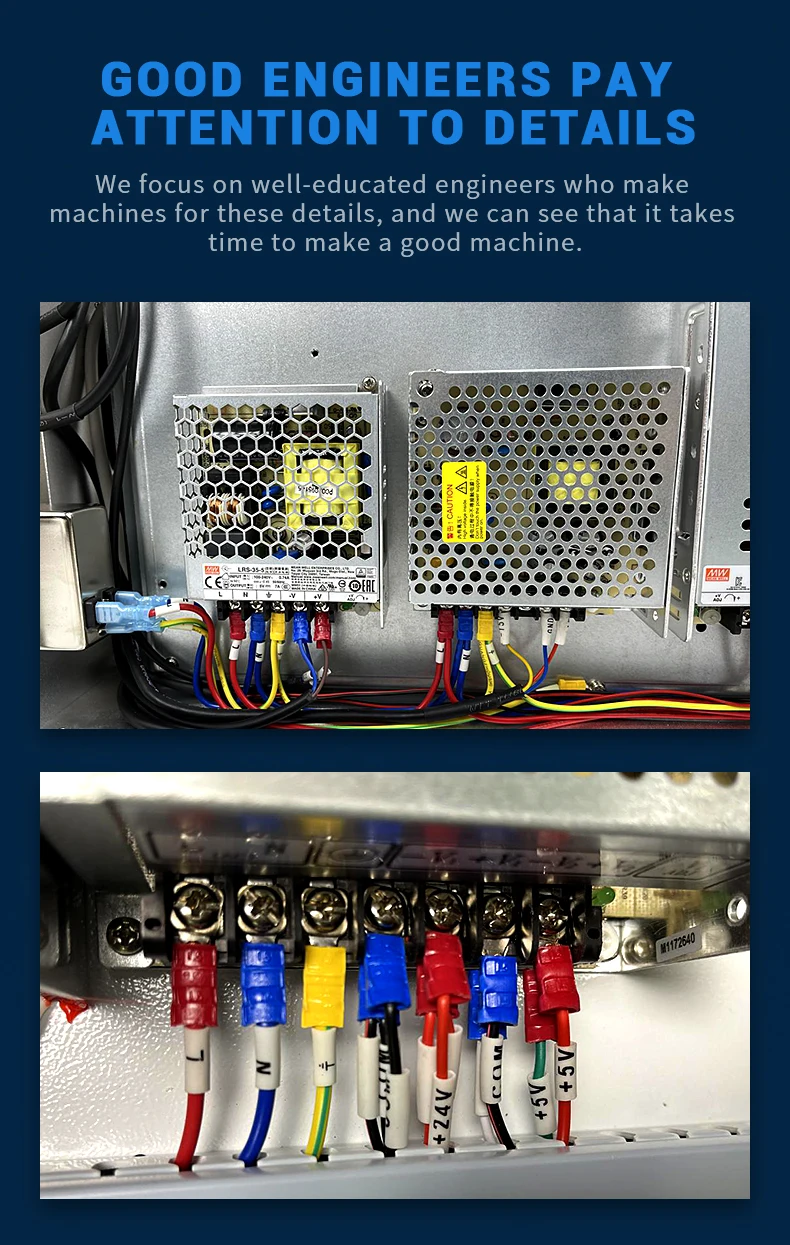

“Meanwell”“HF”power

Famous Taiwan “Meanwell”“HF”power supply adopted with most stable continues power supply energy with longest lifespan use.

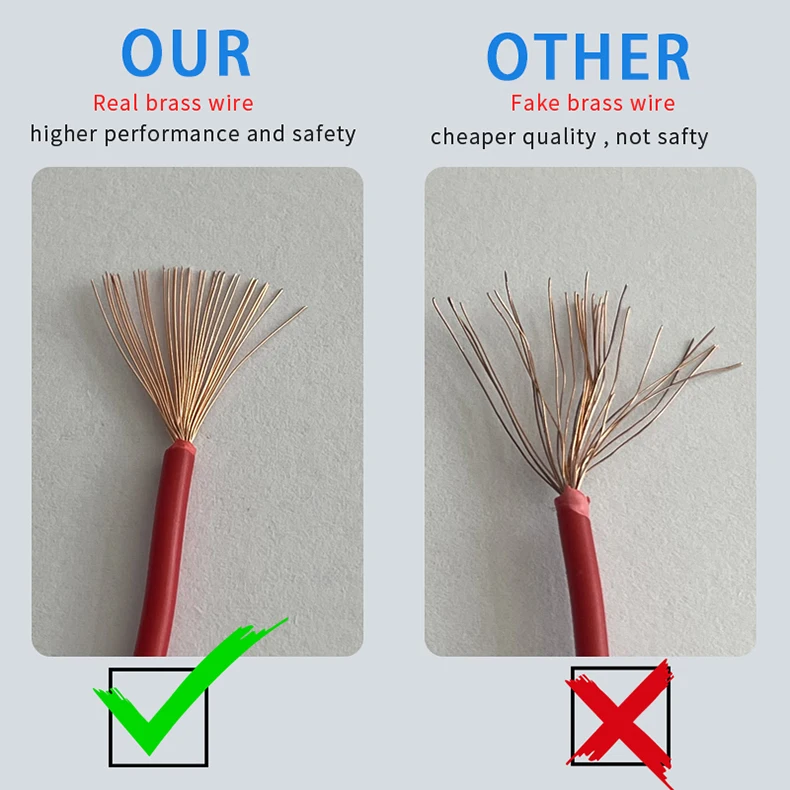

Real Brass Wire

Left side is Guangzhou focuslaser real brass wire, shining, strong, durable with higher performance and safety. Others use fake brass wire to save cost, outside looks same but inside is different.

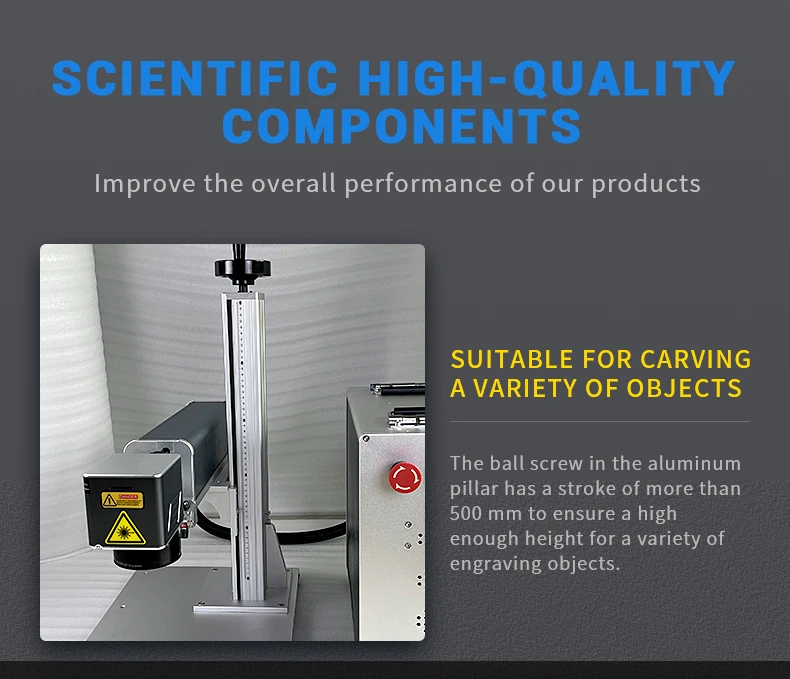

Aluminum Pillar 500mm

Aluminum pillar with ball screws inside over 500mm travel distance to ensure enough height use for many kinds of engraving objects.

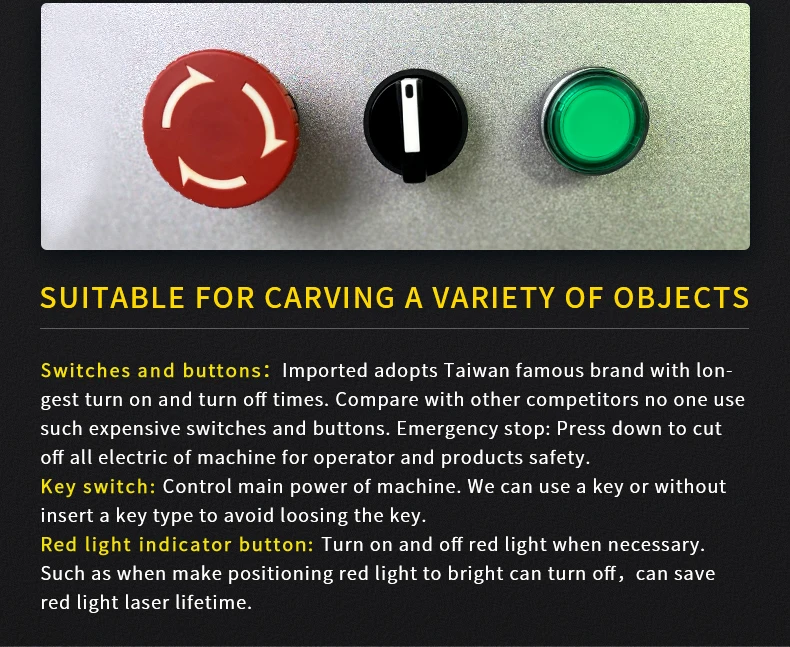

Switches And Buttons

Imported Adopts Taiwan Famous Brand With Longest Turn On And Turn Off Times. Compare With Other Competitors No One Use Such Expensive Switches And Buttons. Emergency Stop: Press Down To Cut Off All Electric Of Machine For Operator And Products Safety. Key Switch: Control Main Power Of Machine. We Can Use A Key Or Without Insert A Key Type To Avoid Loosing The Key. Red Light Indicator Button: Turn On And Off Red Light When Necessary. Such As When Make Positioning Red Light To Bright Can Turn Off，Can Save Red Light Laser Lifetime.

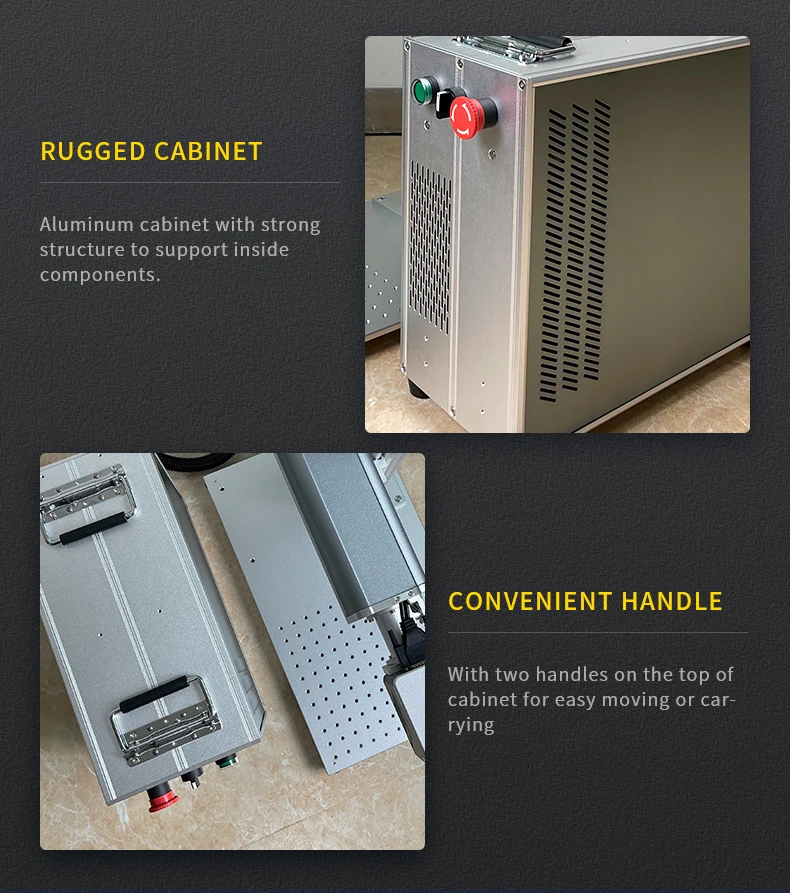

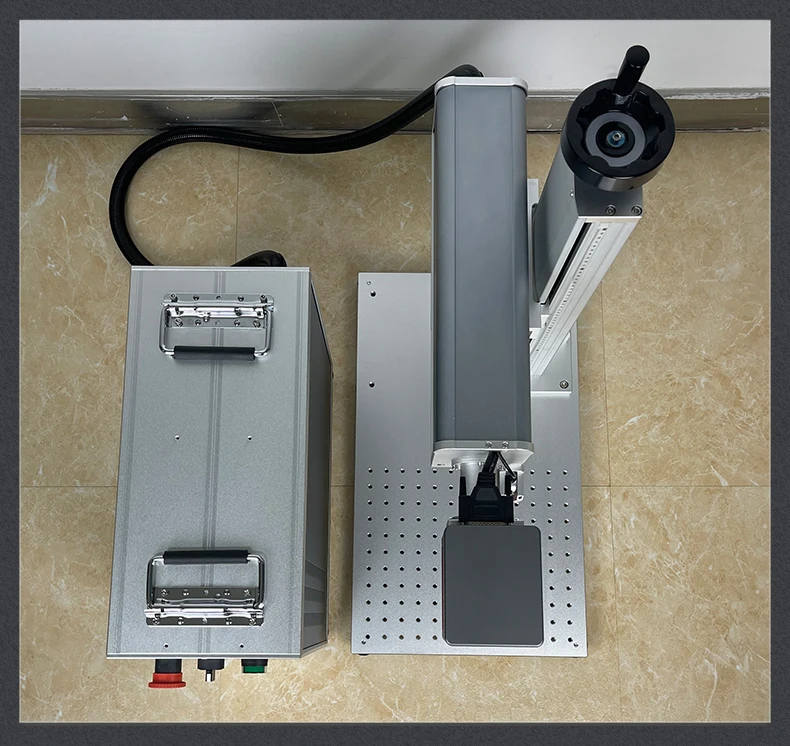

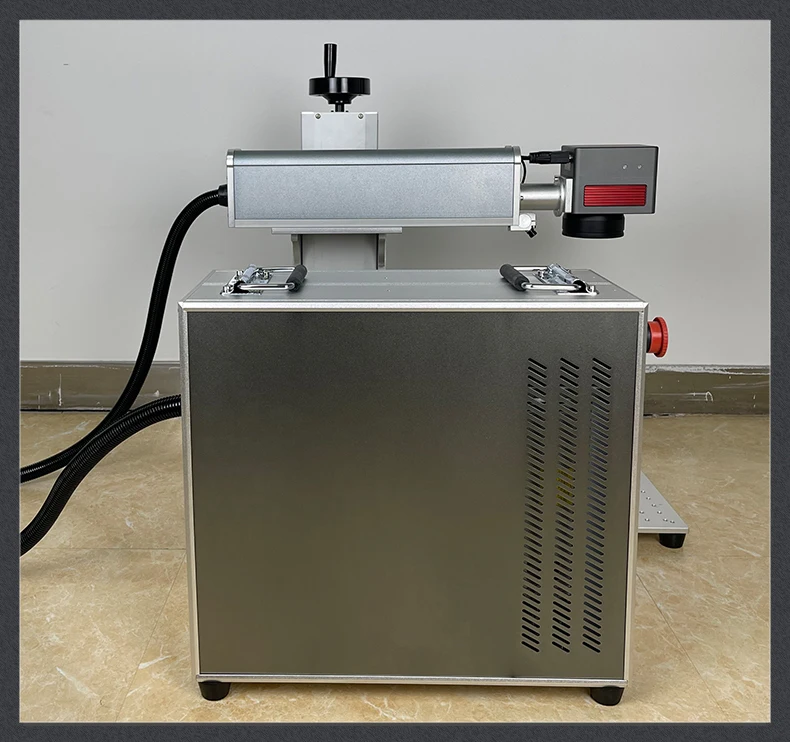

Aluminum Cabinet With Strong Structure To Support Inside Components. With Two Handles On The Top Of Cabinet For Easy Moving Or Carrying.

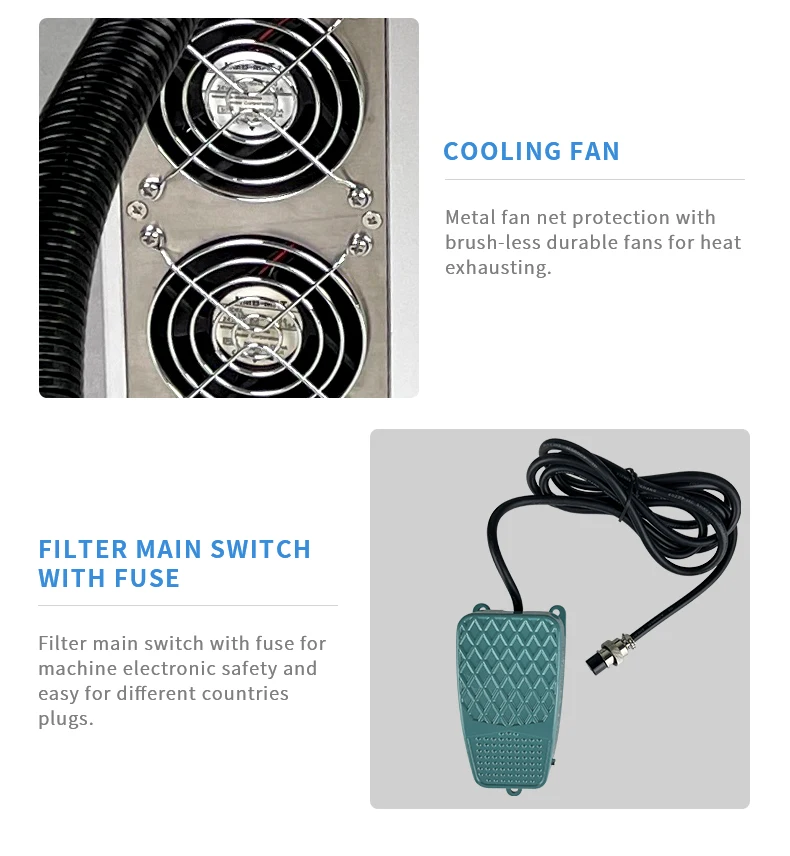

Strong Protection Pipe For Fiber Cable .Strong And Durable Foot SwitchFilter Main Switch With Fuse For Machine Electronic Safety And Easy For Different Countries Plugs.Metal Fan Net Protection With Brush-Less Durable Fans For Heat Exhausting.

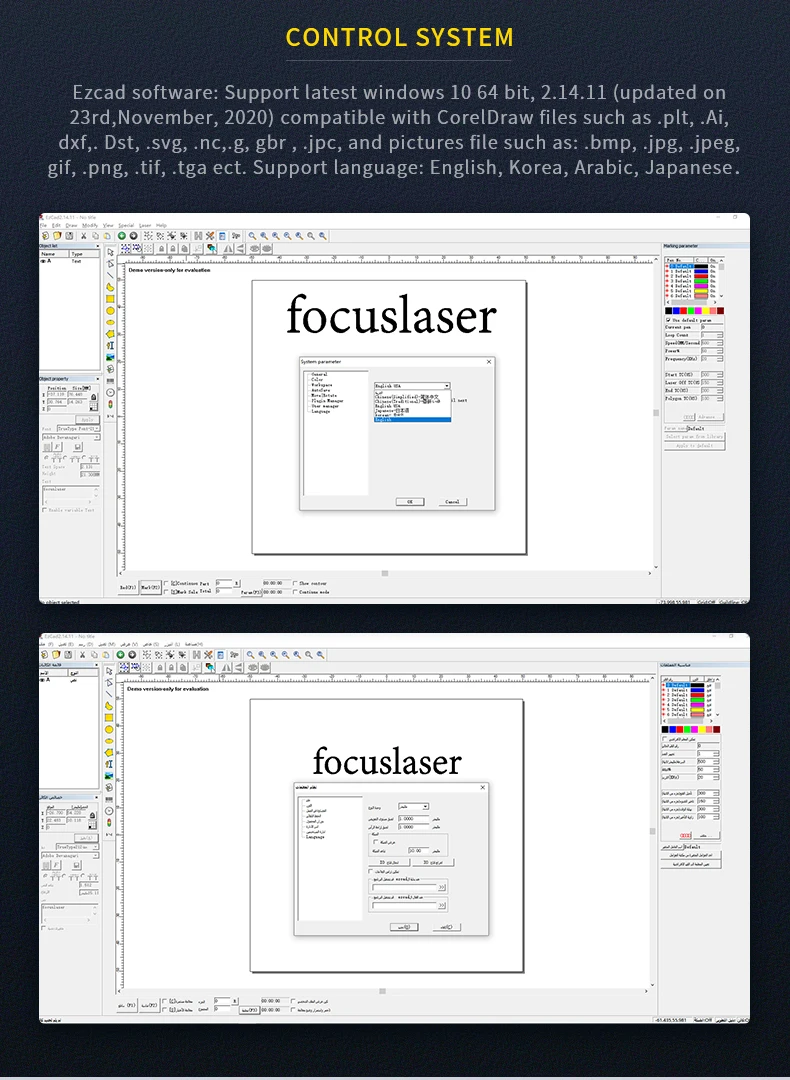

Ezcad2 Software

Support Latest Windows 10 64 Bit, 2.14.11 (Updated On 23rd,November, 2020) Compatible With CorelDraw Files Such As .Plt, .Ai, .Dxf,. Dst, .Svg, .Nc,.G, Gbr , .Jpc, And Pictures File Such As: .Bmp, .Jpg, .Jpeg, .Gif, .Png, .Tif, .Tga Ect. Support All The Language: English,French,German, Korea, Arabic, Portuguese,Japanese ,Russian,Spanish,Brazilian,Mexican, Italian Etc.

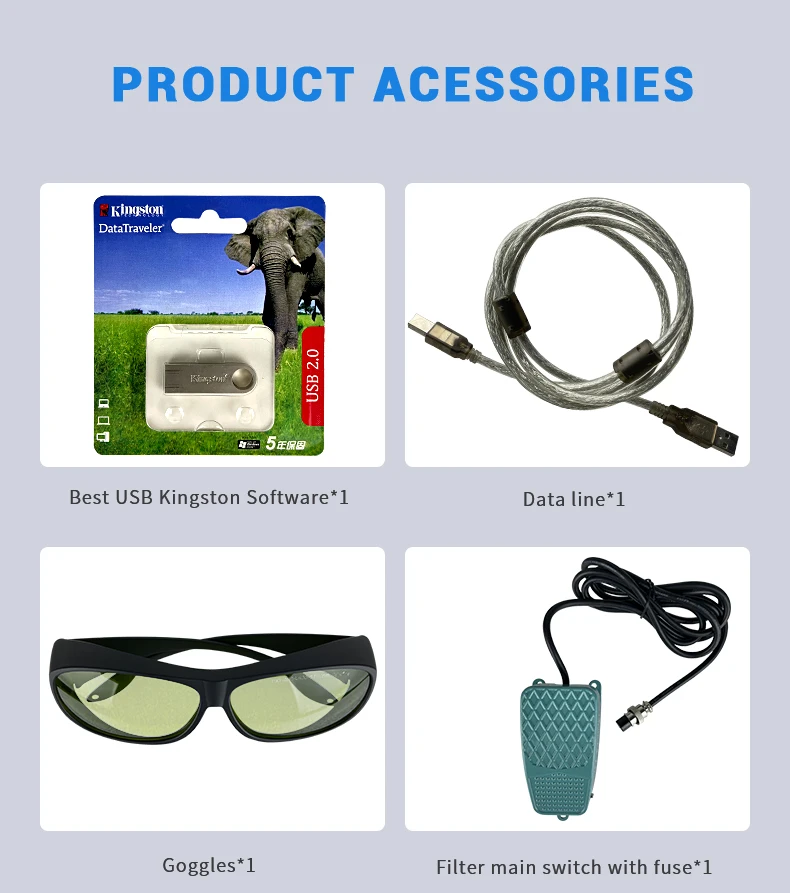

We supply software with best USB Kingston for your data safe.
Spare parts backup such as a backup button for emergency use.

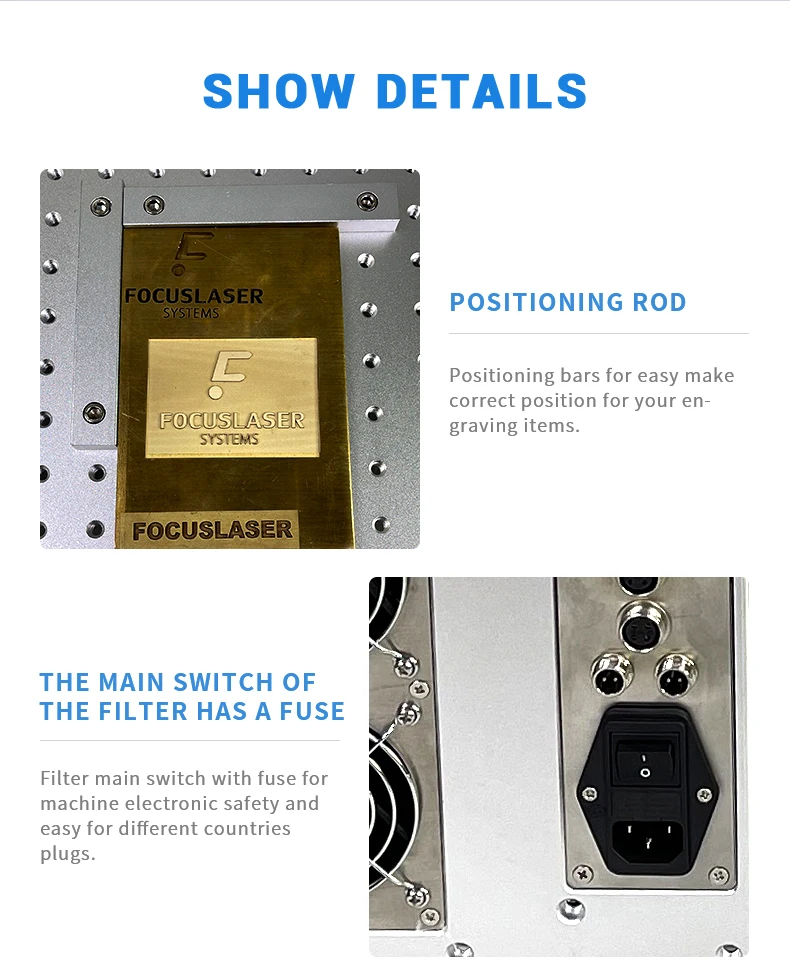

Positioning bars for easy make correct position for your engraving items.
