Hign-concerned Chemical: None
Model Number: UK2.5B
is_customized: Yes
Brand Name: WONKEDQ
Type: Screw Terminal
Origin: Mainland China
Certification: CE,RoHS
Model: UK 2.5B, UK 2.5, UK2.5
Usage: Distribution Panel
Application: Electrical wire conductor
Connection way: Screw
Mounting Type: Din Rail

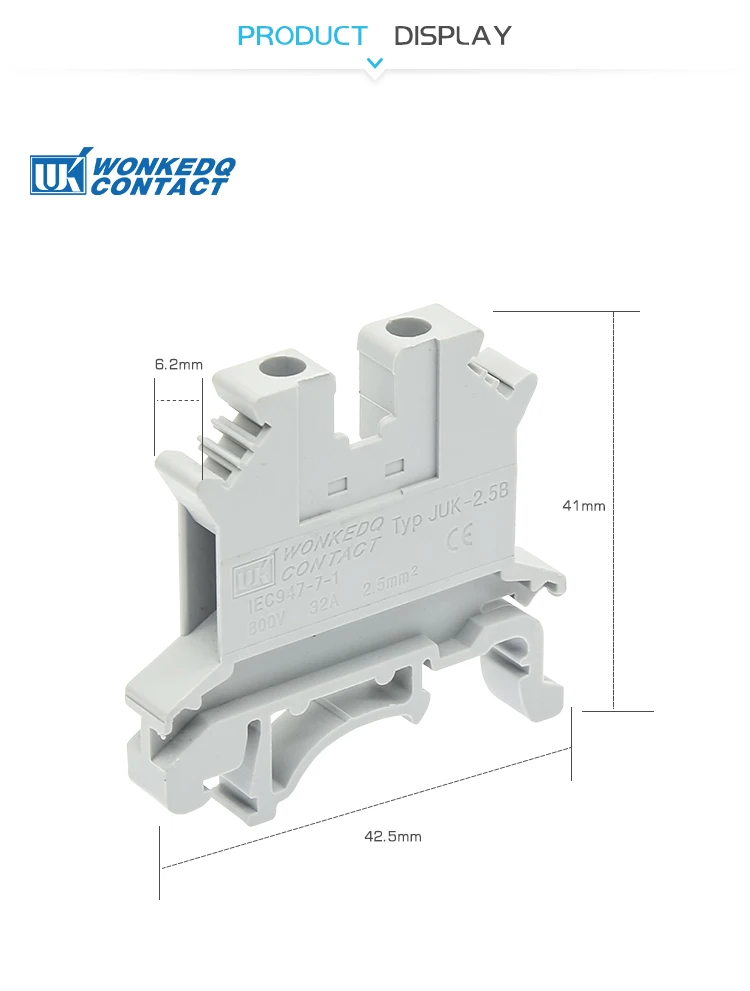

Size L/H/W: 42.5/41/6.2
Current: 32A
Voltage: 800V
Cross section solid cable: 0.2-4mm2
Cross section soft cable: 0.2-2.5mm2

Din Rail UK-2.5B Wire 10Pcs Terminals Universal Connector Screw Terminal Block UK2.5B

DESCRIPTION

The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application.For the most stringent requirements: the screw connection has also proven itself in the wiring of large conductor cross section

The UK universal screw terminal block series has the typical features which are decisive for practical applications.

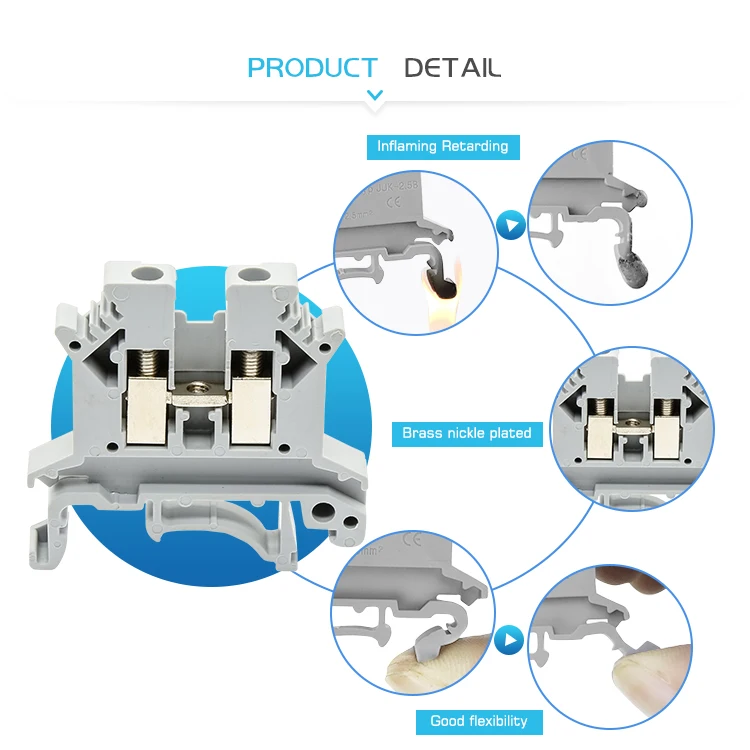

Made from engineering flame retardants nylon PA66 with brass screw metal.

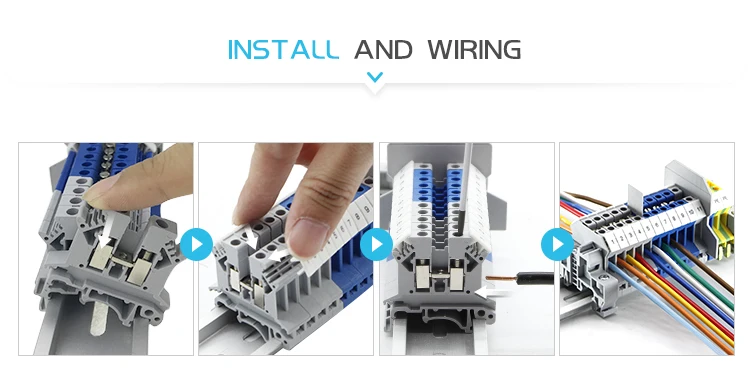

With universal foot which can be installed on Din Rail NS 35.
It can connect two conductors with ease, even large conductor cross sections are not a problem.
Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.

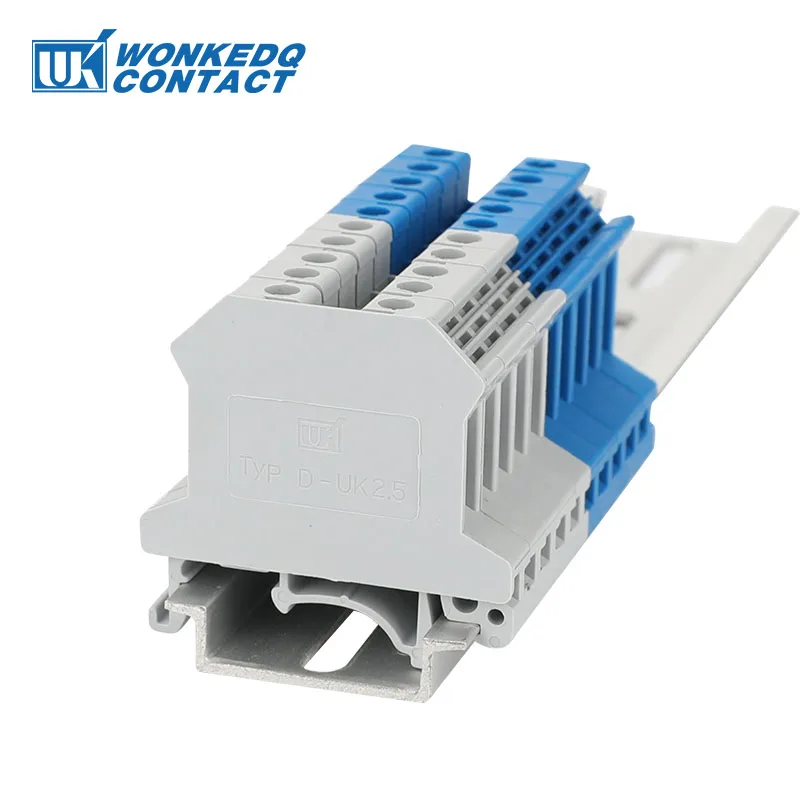

All types of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.

ACCESSORIES ( Click the pictures to the links)


END COVER D-UK 2.5	FIXED BRIDGE FBI 10-6	PLUG-IN BRIDGE EB10-6	MARKER STRIPS ZB6

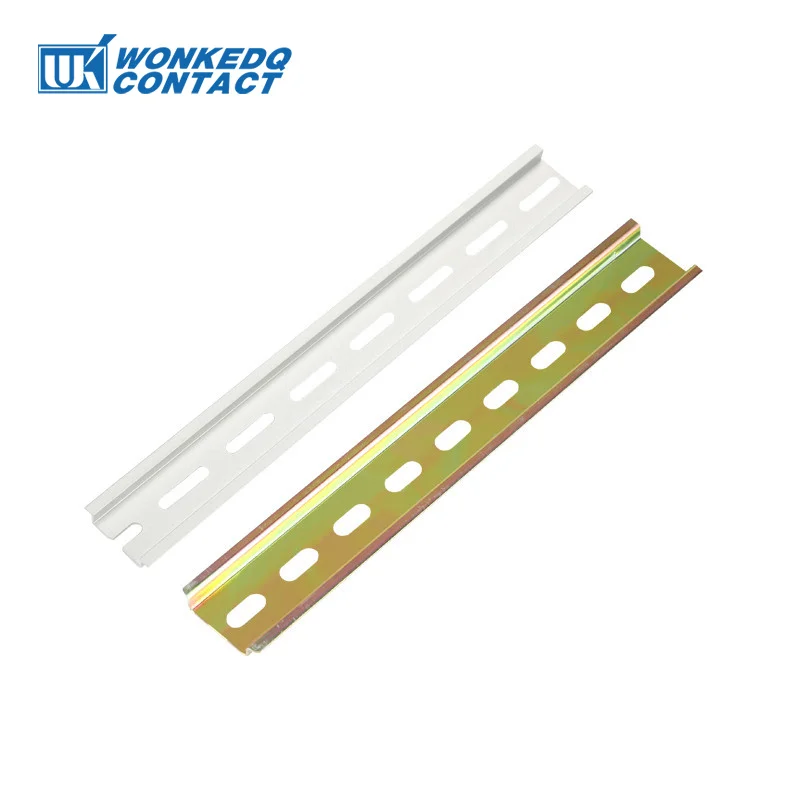

MARKER CARRIER B1	MARKER CLIPS KLM-A	DIN RAIL NS35-S	END STOP E-UK

Type No.	Details	Accessories
UK 2.5B	800V/32A 0.2-4mm2/0.2-2.5mm2 L42.5/H41/W6.2 mm	End cover: D-UK 2.5
		Fixed bridge: FBI 10-6
		Insertion bridge: EB 10-6

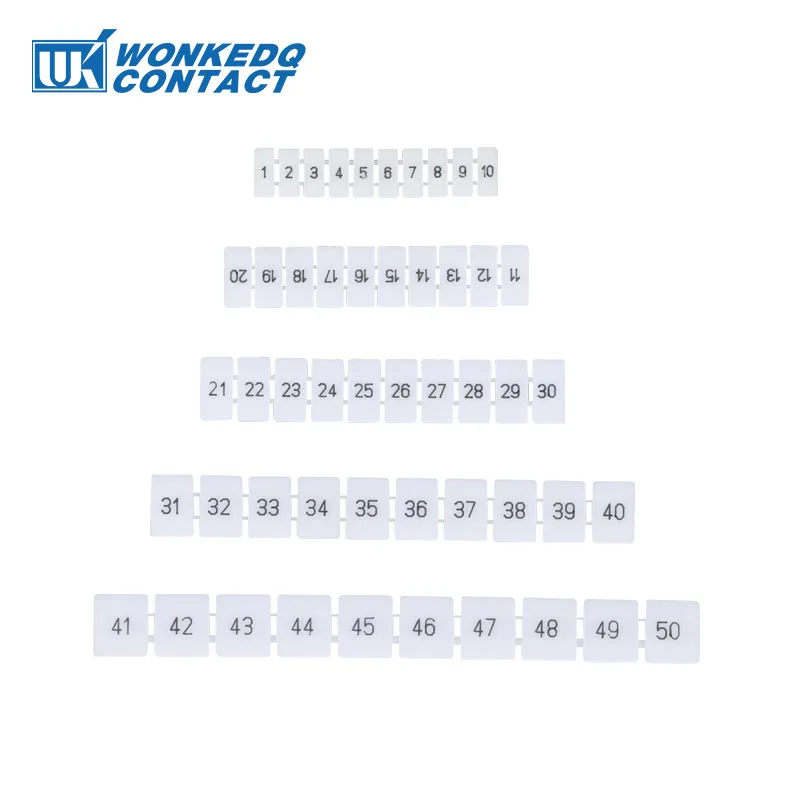

		Marker strip: ZB6

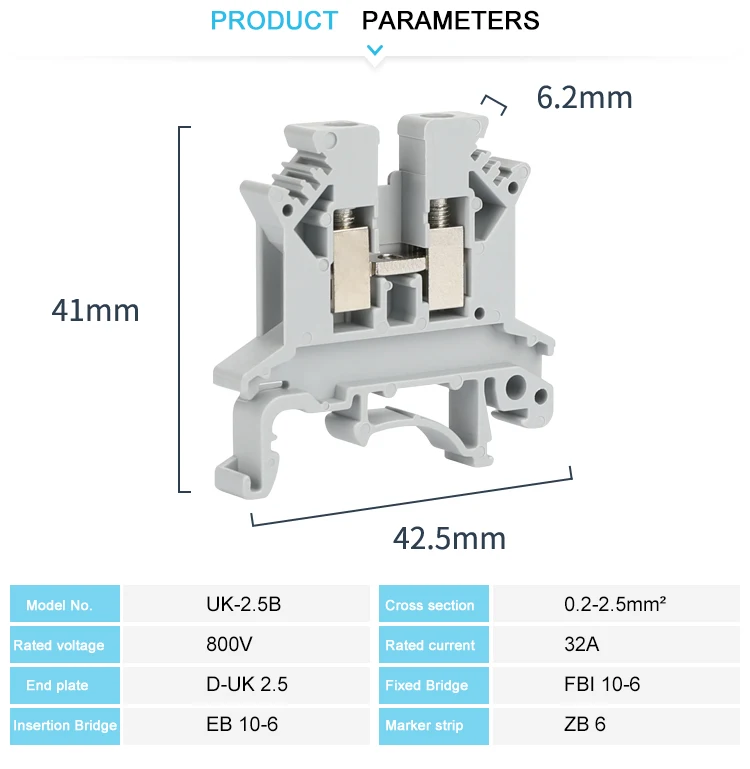

TECHNICAL PARAMETERS

Model Number	UK 2.5B

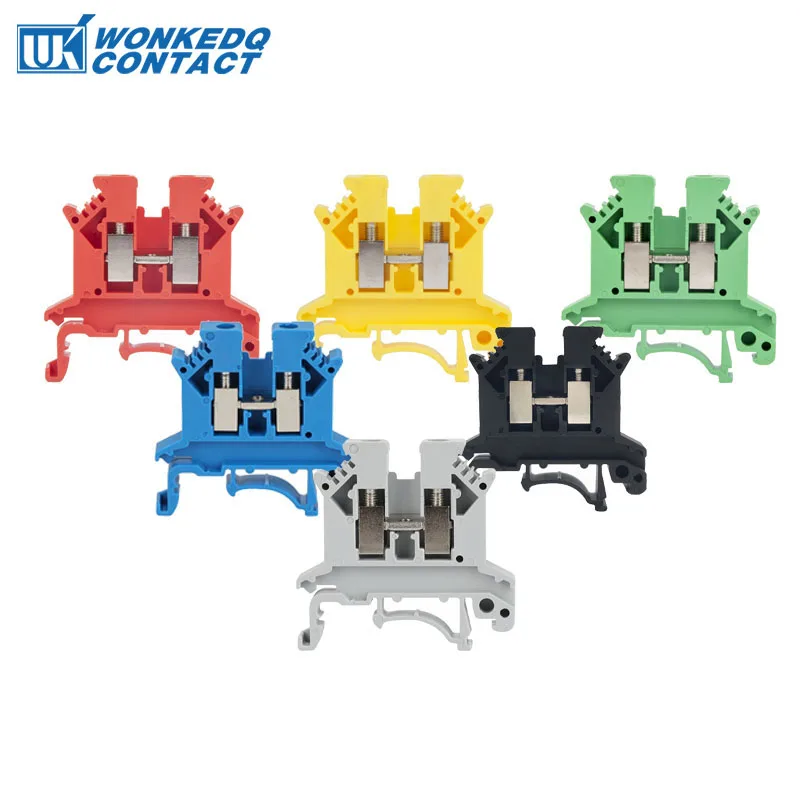

Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/41/6.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	800V/32A
Cross section, solid/soft Cable	0.2-4 mm2/ 0.2-2.5 mm2
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	6.9g/pc, 50PCS/BOX,3000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
